GE DS3800NTCF1C1C Thermocouple Card | Replacement, Equivalent & Selection Guide

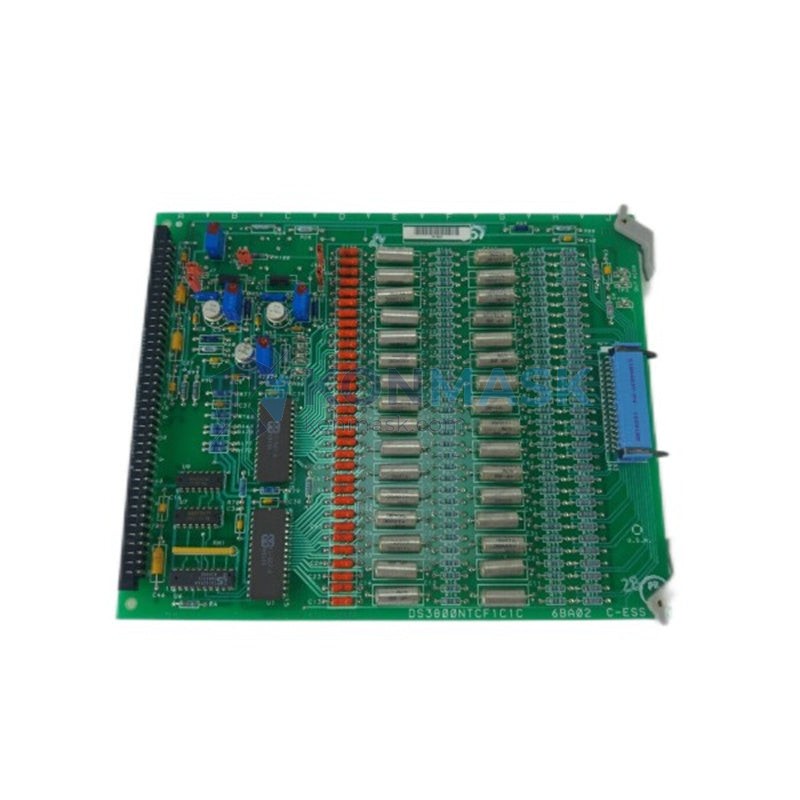

The GE DS3800NTCF1C1C is a Thermocouple Input Card designed for use in General Electric Mark IV Speedtronic Turbine Control Systems. This card acquires thermocouple signals from turbine exhaust and combustion temperature sensors, converting them into digital data for the control processor. Konmask.com supplies both original and compatible replacement units, fully tested and ready for deployment.
Technical Specifications
- Part Number: DS3800NTCF1C1C
- Manufacturer: General Electric (GE)
- Series: DS3800 / Mark IV Speedtronic
- Function: Thermocouple Signal Acquisition & Conditioning
- Input Type: Thermocouple (Type J / Type K compatible)
- Form Factor: PCB Card / Plug-in Module
- Weight: Approx. 240 g
- Operating Environment: Industrial control panel / turbine enclosure
- Communication: Parallel backplane interface to Mark IV processor
- Condition Available: New, Refurbished, Tested Exchange
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the DS3800NTCF1C1C. Always verify electrical and firmware compatibility before substitution:
- DS3800NTCF1C1D — Revised suffix variant; functionally equivalent in most Mark IV configurations
- DS3800NTCF1C1B — Earlier revision; compatible with legacy Mark IV panels
- DS3800NTCF (base part) — Generic reference; confirm full suffix for exact fit
- IS200TTURH1C — GE Mark VIe thermocouple input module (upgrade path for Mark IV to Mark VIe migration)
- DS3800HTRG — Thermocouple reference card used alongside NTCF in some configurations
Note: Suffix revisions (1C1B, 1C1C, 1C1D) may differ in minor hardware revisions. Contact Konmask for cross-reference verification before ordering.
Why Choose the Original DS3800NTCF1C1C
- OEM Accuracy: Designed and calibrated specifically for GE Mark IV signal conditioning requirements
- Proven Reliability: Decades of field deployment in gas turbine, steam turbine, and compressor applications
- Firmware Compatibility: Guaranteed compatibility with Mark IV control logic without re-parameterization
- Reduced Commissioning Risk: Drop-in replacement with no software changes required
- Regulatory Compliance: Meets original GE engineering specifications for safety-critical turbine control
Typical Applications
- Gas turbine exhaust temperature monitoring (EGT / TTX)
- Combustion dynamics and flame temperature acquisition
- Steam turbine inlet/outlet temperature control loops
- Industrial compressor temperature protection systems
- Power generation plant DCS integration via Mark IV backbone
- Petrochemical and refinery turbine-driven equipment
System Compatibility
- Primary System: GE Mark IV Speedtronic Turbine Control
- Compatible Racks: DS3800 series backplane chassis
- Processor Boards: Works with DS3800HPIB, DS3800NPIB, and related Mark IV processor cards
- Not Compatible With: Mark V, Mark VI, or Mark VIe without hardware/firmware adaptation
- Upgrade Path: For Mark VIe migration, consider IS200TTURH1C with appropriate I/O terminal board
Selection Guide
Use the following criteria to confirm the correct thermocouple card for your application:
- Step 1 — Confirm Control System: Verify your turbine runs GE Mark IV Speedtronic (not Mark V/VI/VIe)
- Step 2 — Check Slot Position: Identify the card slot in the DS3800 chassis; NTCF cards occupy dedicated thermocouple input slots
- Step 3 — Verify Suffix Revision: Match the full part number including suffix (1C1C) to your existing card label
- Step 4 — Thermocouple Type: Confirm sensor type (J or K) used in your installation matches card calibration
- Step 5 — Quantity & Lead Time: For critical spares, Konmask recommends holding 1–2 exchange units on-site
Unsure which card fits your system? Send your panel drawing or existing card photo to support@konmask.com for a free cross-reference check.
Quality Assurance & Sourcing
- Source: Procured from authorized distributors, OEM surplus, and certified repair facilities
- Testing: Each unit undergoes functional bench testing prior to shipment
- Condition Grades: New-in-box (NIB), Refurbished (RFB), and Tested-Exchange (TE) available
- Warranty: 12-month warranty on all units; extended warranty available on request
- Traceability: Full documentation and test reports provided upon request
- Packaging: ESD-safe anti-static packaging with foam protection for international shipping
How to Order
- Add the DS3800NTCF1C1C to your cart and proceed to checkout, or
- Email support@konmask.com with your part number, required quantity, and condition preference
- For urgent requirements, call/WhatsApp: +0086 19859288691
- Request a formal quotation for bulk orders or blanket purchase agreements
- Lead time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
We accept T/T (wire transfer), PayPal, and major credit cards. Export documentation (CO, packing list, commercial invoice) provided for international orders.
Replacement & Compatibility FAQ
Q: Can DS3800NTCF1C1D replace DS3800NTCF1C1C directly?
A: In most cases yes — the suffix revision typically reflects minor PCB changes. However, always verify with your GE system documentation or contact Konmask for confirmation.
Q: Is this card compatible with GE Mark V systems?
A: No. The DS3800 series is specific to Mark IV. Mark V uses a different card architecture (e.g., IS200 series).
Q: Can I use a Type K thermocouple with this card?
A: The DS3800NTCF1C1C supports standard thermocouple inputs; confirm the specific type calibration on your card label or contact us for clarification.
Q: Do you offer repair services for faulty DS3800NTCF1C1C cards?
A: Yes. Send your defective unit to us for evaluation. Repair turnaround is typically 5–10 business days.
Q: What is the minimum order quantity?
A: MOQ is 1 piece. Volume discounts apply for orders of 5+ units.
