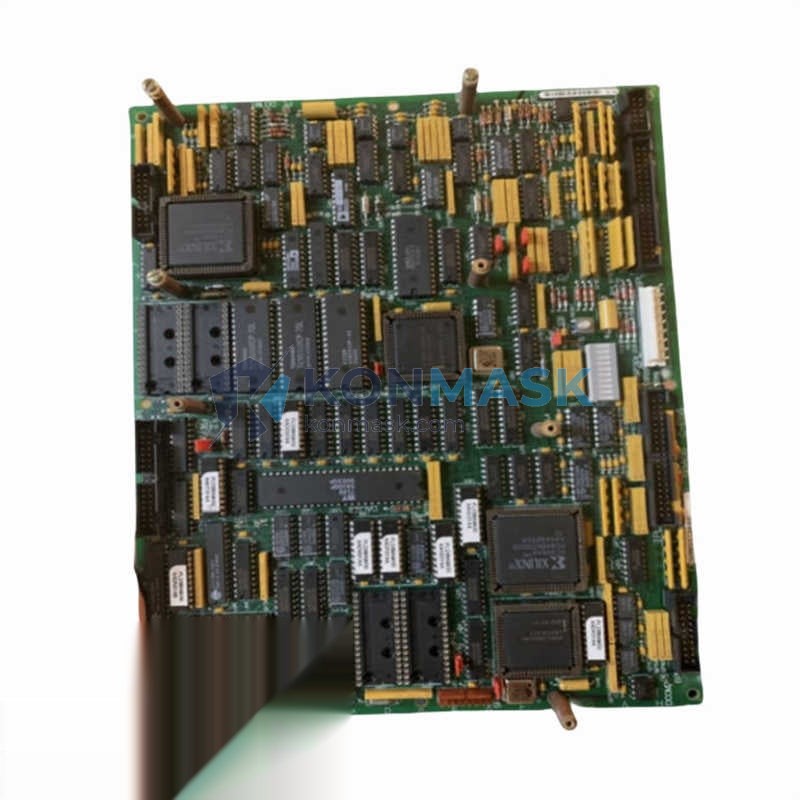

GE DS200SDCCG4AGD Drive Control Board | Replacement, Equivalent & Selection Guide
The GE DS200SDCCG4AGD is a Drive Control Board manufactured by General Electric (GE), designed for use in GE’s Mark V and EX2100 series drive and excitation control systems. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
- Part Number: DS200SDCCG4AGD
- Manufacturer: General Electric (GE)
- Series: DS200 / Mark V / EX2100
- Board Type: Drive Control Board (SDCC)
- Form Factor: PCB Module
- Weight: 360 g (approx.)
- Operating Temperature: 0°C to 60°C (typical industrial range)
- Communication Interface: Internal backplane / serial bus (system-dependent)
- Mounting: Card-cage / rack-mount
- Condition Available: New, Refurbished, Tested Surplus
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents for the DS200SDCCG4AGD. Always verify firmware revision and system compatibility before substitution:
- DS200SDCCG1A – Earlier revision; functionally similar, verify suffix compatibility
- DS200SDCCG2A – Mid-series revision with minor hardware updates
- DS200SDCCG3A – Predecessor to G4 revision; widely interchangeable in most Mark V systems
- DS200SDCCG4A – Base G4 variant without the AGD suffix; confirm connector pinout
- DS200SDCCG5A – Later revision; may require firmware update on host controller
- DS200SDCCG6A – Latest known revision; backward compatibility should be verified with GE documentation
Note: Suffix letters (A, B, C, D, G) typically denote hardware revision or conformal coating variants. Always cross-reference GE’s Bill of Materials (BOM) for your specific system revision.
Why Choose the Original Model
- Guaranteed Compatibility: The DS200SDCCG4AGD is the OEM-specified part for systems requiring the G4AGD revision, ensuring zero firmware or hardware conflicts.
- Regulatory Compliance: Original GE boards maintain CE, UL, and system-level certifications required in regulated industries.
- Reduced Commissioning Risk: No re-parameterization or firmware flashing required when replacing like-for-like.
- Warranty & Traceability: Original or certified-refurbished units from authorized distributors include full traceability documentation.
- Long-Term Support: GE Mark V systems have extended service life; sourcing the correct revision prevents premature obsolescence issues.
Typical Applications
- Gas turbine and steam turbine drive control systems (GE Mark V / Mark VI)
- EX2100 excitation control systems for generators
- Industrial variable-speed drive (VSD) retrofit and maintenance
- Power generation plant automation and control upgrades
- Oil & gas compressor drive control panels
- Marine propulsion drive control systems
- Steel mill and heavy industrial motor drive applications
System Compatibility
| GE System | Compatibility | Notes |
|---|---|---|
| GE Mark V | ✅ Confirmed | Primary target platform |
| GE Mark VI | ⚠️ Verify | Requires system-level BOM check |
| GE EX2100 | ✅ Confirmed | Excitation control applications |
| GE LCI (Load Commutated Inverter) | ⚠️ Verify | Confirm with GE service documentation |
| Third-party OEM systems using DS200 series | ⚠️ Case-by-case | Contact Konmask for compatibility assessment |
Selection Guide
Use the following decision framework when selecting between the DS200SDCCG4AGD and alternative revisions:
- Step 1 – Identify your system BOM: Locate the GE system Bill of Materials or the existing board’s part label to confirm the required suffix (G4AGD).
- Step 2 – Check firmware revision: Confirm the host controller firmware version supports the G4 hardware revision. Mismatched firmware can cause initialization faults.
- Step 3 – Evaluate conformal coating requirement: The “G” suffix in AGD typically indicates conformal coating for harsh environments. Verify if your installation environment requires this.
- Step 4 – Assess lead time vs. risk: If the exact G4AGD is unavailable, a tested G3A or G4A variant may be acceptable for non-critical applications with engineering sign-off.
- Step 5 – Request a compatibility assessment: Contact Konmask’s technical team with your system serial number for a definitive compatibility recommendation.
Quality Assurance & Sourcing
- Source: Konmask.com sources DS200SDCCG4AGD boards from authorized distributors, certified surplus channels, and OEM-refurbishment programs.
- Testing: All refurbished units undergo functional bench testing and visual inspection prior to shipment.
- Documentation: Certificate of Conformance (CoC) and test reports available upon request.
- Packaging: ESD-safe anti-static packaging with foam cushioning for international shipping.
- Warranty: 12-month warranty on refurbished units; 24-month on new OEM stock (subject to availability).
- Export Compliance: All shipments comply with applicable export control regulations (EAR/ECCN).
How to Order
- Add the DS200SDCCG4AGD to your cart and proceed to checkout, or
- Contact us directly for bulk orders, urgent requirements, or compatibility consultation:
- 📧 Email: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://Konmask.com
Please provide your system model, serial number, and required quantity for fastest response. Typical lead time: 3–10 business days depending on stock condition and destination.
Replacement & Compatibility FAQ
Q: Can DS200SDCCG3A replace DS200SDCCG4AGD?
A: In many Mark V systems, yes — but firmware compatibility must be verified. The G3A lacks the conformal coating of the G4AGD, which may matter in humid or corrosive environments.
Q: What does the “AGD” suffix mean?
A: The suffix typically encodes hardware revision (G4), conformal coating variant (G), and manufacturing batch or design variant (D). Always reference GE’s part numbering documentation for your specific system.
Q: Is the DS200SDCCG4AGD still in production?
A: GE has transitioned many Mark V components to end-of-life status. Konmask specializes in sourcing surplus and refurbished stock for legacy system maintenance.
Q: Can I use a DS200SDCCG5A or G6A as a drop-in replacement?
A: Later revisions may require host controller firmware updates. We recommend consulting GE’s service bulletin or contacting Konmask for a compatibility assessment before substitution.
Q: Do you offer exchange/repair services?
A: Yes. Konmask offers board-level repair and exchange programs for DS200 series boards. Contact us with your defective unit details for a repair quote.
