GE DS200TCDA-HBHD Turbine Control Board | Replacement, Equivalent & Selection Guide

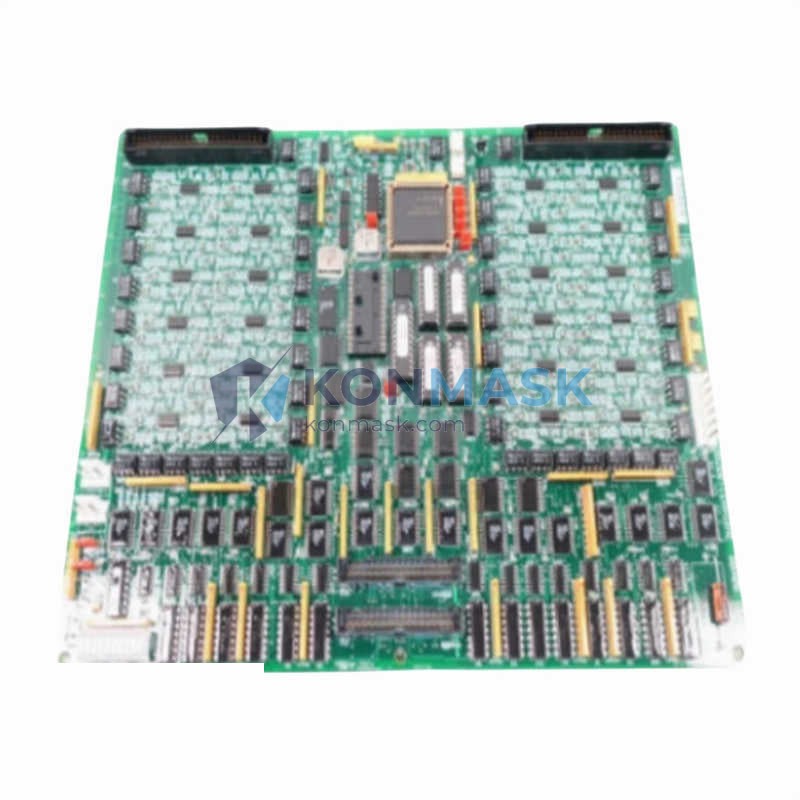

The GE DS200TCDA-HBHD is a turbine control diagnostic board manufactured by General Electric, designed for use in the Mark V Turbine Control System. This board plays a critical role in turbine protection, diagnostics, and I/O interfacing for gas and steam turbine applications. Whether you are sourcing an OEM replacement, seeking a compatible equivalent, or evaluating alternatives for your control system upgrade, this guide provides the complete technical and procurement reference.
Technical Specifications
- Part Number: DS200TCDA-HBHD
- Manufacturer: General Electric (GE)
- Series: Mark V Turbine Control System
- Board Type: Turbine Control Diagnostic / I/O Board
- Weight: 980 g (approx.)
- Form Factor: VME / Mark V card cage compatible
- Operating Environment: Industrial — suitable for power generation and heavy process environments
- Communication: Compatible with Mark V IONET / ARCNET communication architecture
- Condition Available: New OEM, Refurbished, Tested & Repaired
Compatible Replacement & Equivalent Models
The following boards are commonly evaluated as replacements or functional equivalents for the DS200TCDA-HBHD. Always verify firmware revision and hardware suffix compatibility before substitution:
- DS200TCDA-HAHD — Earlier hardware revision; verify suffix compatibility with your Mark V panel revision
- DS200TCDA-HCHD — Later revision; may require firmware update on the Mark V controller
- DS200TCDAH1BHD — Alternate suffix variant; functionally equivalent in most Mark V configurations
- DS200TCQAG1B — Turbine Control Q-board; used in specific Mark V I/O expansion configurations
- IS200TCDAH1A — Mark VI series equivalent; requires Mark VI system compatibility verification
Note: Suffix letters (e.g., H, B, C) denote hardware revision levels. Always cross-reference with your GE Mark V panel BOM before ordering.
Why Choose the Original Model
- OEM Guaranteed Compatibility: The DS200TCDA-HBHD is the factory-specified board for Mark V systems configured with this BOM revision — zero integration risk.
- Proven Field Reliability: Deployed in thousands of GE Mark V installations globally across gas turbines, steam turbines, and combined-cycle plants.
- Firmware Alignment: Eliminates firmware mismatch issues that can arise with cross-revision substitutions.
- Warranty & Traceability: OEM and certified refurbished units come with full traceability documentation for compliance-sensitive facilities.
- Reduced Commissioning Time: Drop-in replacement with no re-parameterization required in matched-revision systems.
Typical Applications
- GE Frame 6, Frame 7, Frame 9 gas turbine control panels
- Steam turbine Mark V control systems in power generation plants
- Combined-cycle plant turbine protection and sequencing
- Industrial compressor control using GE Mark V architecture
- Retrofit and life-extension projects on aging Mark V installations
System Compatibility
- Primary System: GE Mark V Turbine Control System (TMR and Simplex configurations)
-
Card Cage: Mark V ,
, controller cores and I/O expansion racks - Communication Bus: IONET (Mark V proprietary) / ARCNET
- HMI Interface: Compatible with GE CIMPLICITY and Mark V operator interface terminals
- Not Compatible With: Mark IV (without hardware adaptation), Mark VI (direct swap — requires IS200 series board)
Selection Guide
Use the following decision framework to select the correct board for your application:
- Step 1 — Confirm System Generation: Verify your turbine control panel is Mark V (not Mark IV or Mark VI). Check the panel nameplate or GE system documentation.
- Step 2 — Match Hardware Suffix: Locate the BOM or existing board label. Match the suffix (HBHD) exactly unless a GE-approved cross-reference authorizes substitution.
- Step 3 — Check Firmware Revision: If substituting a different suffix revision, confirm firmware compatibility with your Mark V software version.
- Step 4 — Determine Condition Requirement: New OEM for greenfield or critical uptime applications; certified refurbished for budget-sensitive MRO replacements.
- Step 5 — Verify Lead Time vs. Downtime Risk: For emergency shutdowns, confirm stock availability before committing to a sourcing path.
Quality Assurance & Sourcing
- All units sourced through Konmask.com are inspected and tested prior to shipment.
- Refurbished boards undergo full functional testing on GE Mark V test benches.
- Certificates of conformance and test reports available upon request.
- Anti-static packaging and ESD-safe handling throughout the supply chain.
- Traceability documentation available for ISO-certified and regulated facilities.
How to Order
- Online: Add to cart directly from this page — stock status shown in real time.
- Email RFQ: Send your part number, required quantity, and condition preference to support@konmask.com.
- Phone / WhatsApp: +0086 19859288691 — available for urgent sourcing and technical pre-sales questions.
- Bulk / Project Orders: Contact us for volume pricing, kitting, and project-based procurement support.
Replacement & Compatibility FAQ
Q: Can DS200TCDA-HAHD replace DS200TCDA-HBHD directly?
A: In most Mark V configurations, yes — but verify the hardware revision level is accepted by your panel’s BOM. Contact us for a compatibility check.
Q: Is the DS200TCDA-HBHD compatible with Mark VI systems?
A: No. Mark VI uses the IS200 series boards. The DS200 series is specific to Mark V architecture.
Q: Do you offer repair services for faulty DS200TCDA-HBHD boards?
A: Yes. Send your board for evaluation — we provide repair quotes with turnaround time estimates.
Q: What is the lead time for a new OEM unit?
A: New OEM units are subject to GE availability. Certified refurbished units are typically available from stock. Contact us for current lead times.
Q: Can I get a test report with my order?
A: Yes. Test reports and certificates of conformance are available upon request for all refurbished units.
