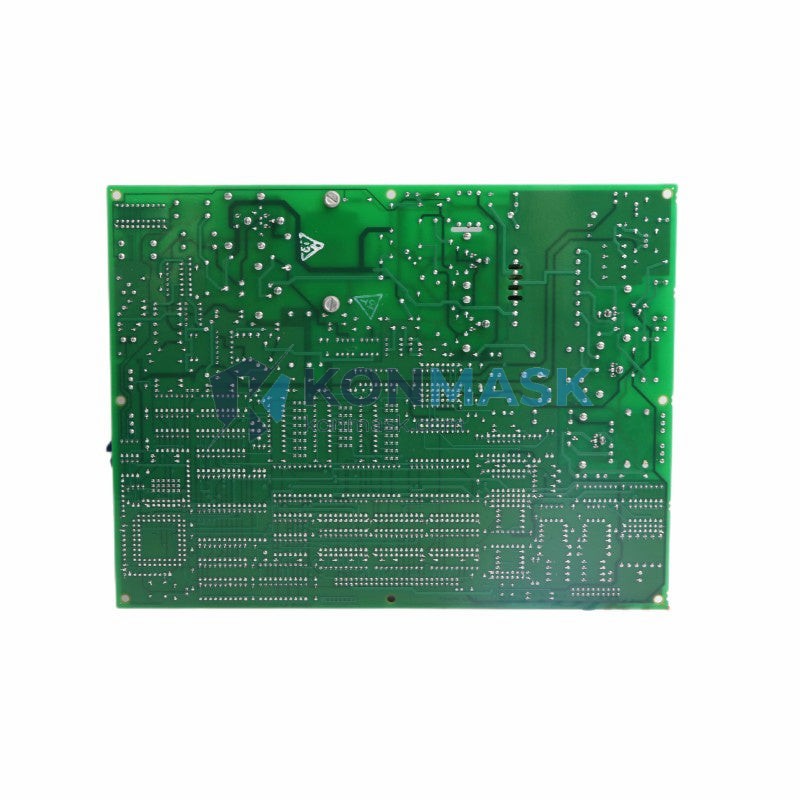

GE DS200TCQAG1BGE – Analog I/O Board | Mark VI Turbine Control Platform
Engineering Background
The DS200TCQAG1BGE is a dedicated Analog Input/Output board engineered by General Electric as a core signal-conditioning component within the Mark VI Turbine Control System. Designed to interface directly with field instrumentation — thermocouples, RTDs, pressure transmitters, and 4–20 mA process loops — this board provides the analog front-end that feeds the Mark VI’s real-time control algorithms. Its architecture reflects GE’s decades of experience in gas turbine, steam turbine, and combined-cycle power plant automation.
Product Positioning
Konmask.com supplies the DS200TCQAG1BGE to maintenance engineers, OEM integrators, and plant operations teams requiring a verified, drop-in replacement for aging Mark VI I/O infrastructure. Every unit is sourced through traceable industrial channels and undergoes functional verification before dispatch — eliminating the risk of counterfeit or untested boards entering critical control loops.
Complete Technical Specifications
| Part Number | DS200TCQAG1BGE |
| Manufacturer | General Electric (GE) |
| Series / Platform | Mark VI Turbine Control System |
| Board Function | Analog Input / Output (I/O) Signal Conditioning |
| Signal Types Supported | 4–20 mA, 0–10 V DC, Thermocouple (J/K/T/E), RTD (Pt100) |
| Analog Input Channels | Multi-channel (per GE Mark VI architecture) |
| Analog Output Channels | Multi-channel (per GE Mark VI architecture) |
| Resolution | 12-bit / 16-bit (channel-dependent) |
| Operating Voltage | +5 VDC / ±15 VDC (supplied via Mark VI backplane) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Form Factor | PCB module, Mark VI rack-mount |
| Weight | 980 g (approx.) |
| Compliance | CE, UL (per GE Mark VI system certification) |
| Condition Available | Refurbished / Tested / New Surplus |
Proven Application Environments
- Gas Turbine Power Plants — Real-time analog feedback from exhaust thermocouples, fuel control valves, and compressor pressure sensors
- Steam Turbine Facilities — Steam temperature and pressure loop monitoring via RTD and 4–20 mA transmitters
- Combined-Cycle Plants (CCPP) — Coordinated analog I/O across heat recovery steam generators (HRSG)
- Compressor Stations — Surge control and anti-surge valve positioning via analog output channels
- Offshore Oil & Gas Platforms — Turbine-driven generator control in hazardous-area installations
- Industrial Cogeneration — Distributed analog signal management in multi-unit turbine arrays
Engineering Advantages
- Direct Mark VI Backplane Compatibility — Plug-and-play replacement; no firmware re-flashing or rack modification required
- High-Fidelity Signal Conditioning — On-board filtering and isolation minimize noise from high-voltage turbine environments
- Multi-Signal Flexibility — Single board handles thermocouple, RTD, mA loop, and voltage inputs, reducing spare-parts inventory
- Galvanic Isolation — Channel-to-channel and board-to-backplane isolation protects control system integrity
- Proven Field Reliability — Deployed in GE Mark VI installations globally since the mid-1990s; extensive MTBF data available
- Rapid Commissioning — Compatible with GE Toolbox configuration software; no custom calibration required for standard signal ranges
System Architecture & Signal Flow
Within the Mark VI architecture, the DS200TCQAG1BGE resides in the I/O rack and communicates with the VCMI (VME Communication Module Interface) via the Mark VI backplane bus. Signal flow is as follows:
- Field Instrument → Terminal block wiring → DS200TCQAG1BGE analog input channel
- On-board ADC converts raw analog signal to digital engineering units
- Digitized data transmitted over backplane to VCMI / controller module (e.g., VMIC, VCCC)
- Mark VI controller executes control algorithm; output command returned to DS200TCQAG1BGE DAC
- Analog output drives field actuator (control valve, IGV actuator, etc.)
This closed-loop path operates at the Mark VI’s standard scan rate, ensuring deterministic turbine control response times.
Sourcing & Quality Verification
- Traceability — All units sourced from decommissioned OEM installations or authorized surplus channels; full chain-of-custody documentation available on request
- Functional Testing — Each board undergoes power-on verification, analog channel continuity check, and signal-range calibration before shipment
- Anti-Counterfeit Measures — GE part markings, PCB revision codes, and component date codes verified against known-good reference units
- Packaging — ESD-safe anti-static bag + foam-lined carton; humidity indicator card included
- Warranty — 12-month functional warranty; DOA replacement within 7 business days
Procurement Process
- Confirm Compatibility — Verify your Mark VI rack revision and VCMI firmware version; contact our engineers if uncertain
- Request Quote — Submit your PO or RFQ to support@konmask.com with quantity and required lead time
- Order Confirmation — Proforma invoice issued within 1 business day; payment via T/T, PayPal, or credit card
- Dispatch — Ships within 3–5 business days via DHL / FedEx with full tracking; express options available
- Incoming Inspection — We recommend a bench power-on test upon receipt; our technical team provides remote commissioning support at no charge
Technical FAQ
Q: Is the DS200TCQAG1BGE compatible with Mark VIe systems?
A: The DS200TCQAG1BGE is designed for the Mark VI platform. Mark VIe uses a different I/O architecture (IONet-based). Please contact us to confirm cross-compatibility for your specific rack configuration.
Q: Can this board be used as a hot-standby spare?
A: Yes. The Mark VI supports TMR (Triple Modular Redundancy) configurations. The DS200TCQAG1BGE can be pre-installed in a standby slot and activated via GE Toolbox without a plant shutdown.
Q: What is the lead time for bulk orders (5+ units)?
A: Typical lead time is 5–10 business days for quantities up to 10 units. For larger orders, contact us for a dedicated sourcing timeline.
Q: Do you provide calibration certificates?
A: Yes. A functional test report is included with every unit. NIST-traceable calibration certificates are available upon request (additional lead time may apply).
Q: What if the board fails within the warranty period?
A: Contact support@konmask.com with your order number and fault description. We will arrange a replacement or full refund within 7 business days.
