Genuine GE IC697CPX772 CPU Module | Series 90-70 PLC – Verified Source

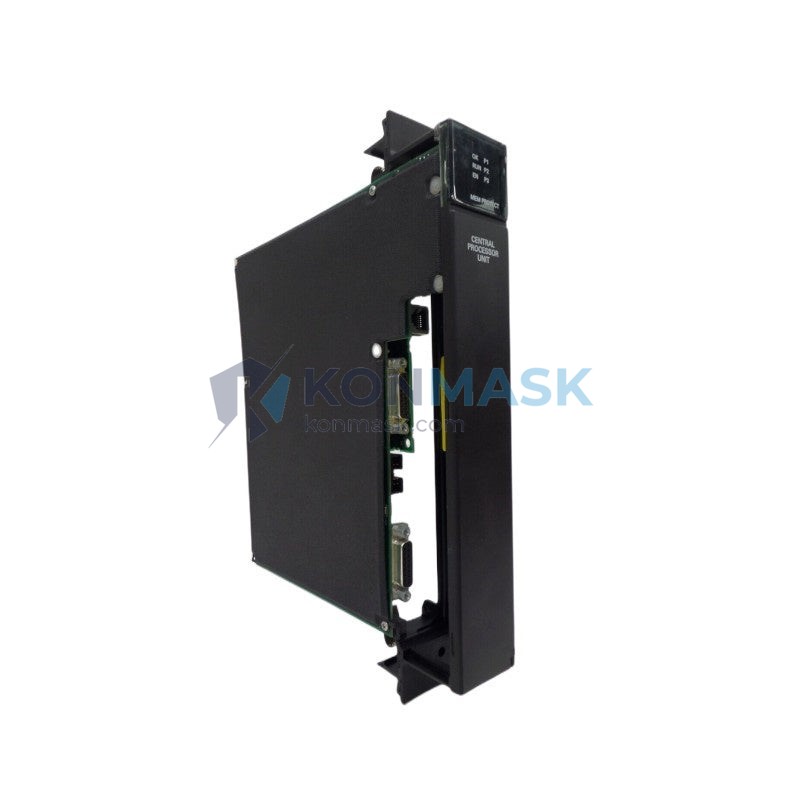

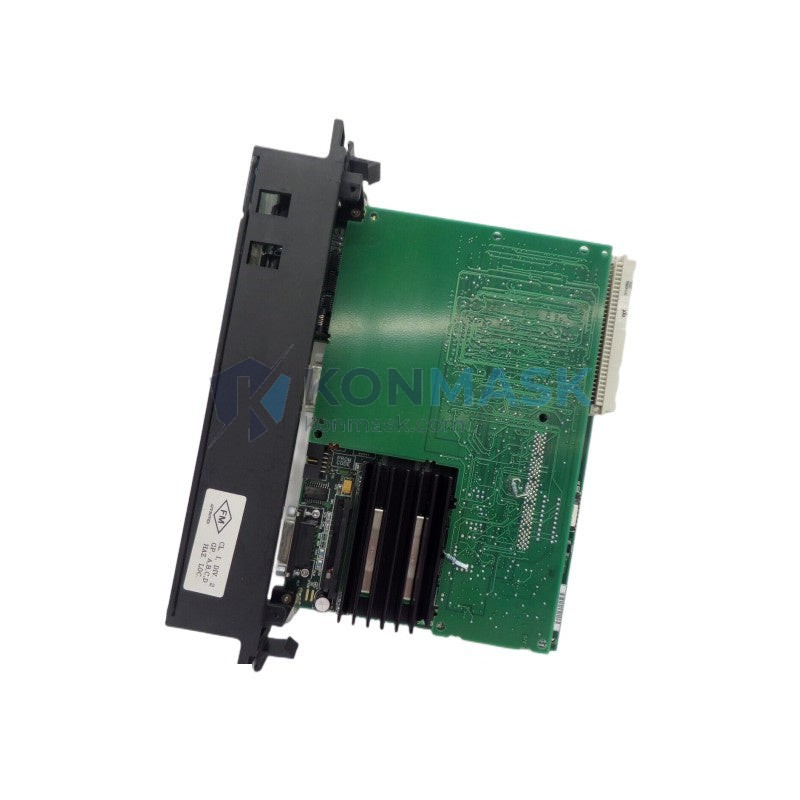

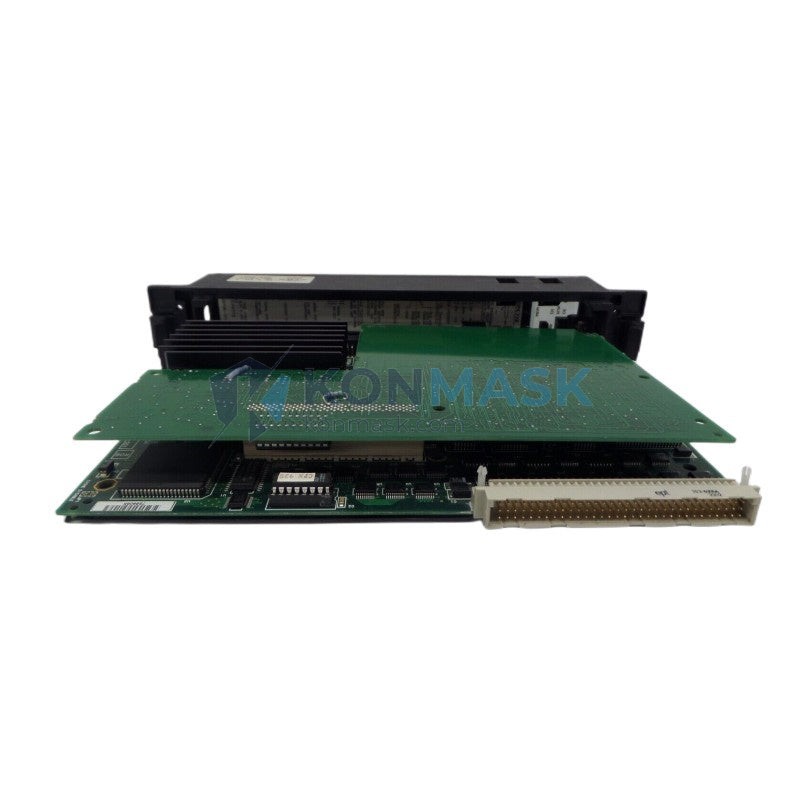

The GE IC697CPX772 is a high-performance CPU module within the GE Series 90-70 programmable logic controller platform — one of the most widely deployed industrial automation architectures in power generation, oil & gas, water treatment, and heavy manufacturing. As production of this module has been discontinued by GE, the secondary market has become saturated with counterfeit units, refurbished-as-new misrepresentations, and components harvested from failed systems without proper testing. Sourcing the wrong unit can result in unplanned downtime, safety incidents, and costly warranty disputes.
At Konmask, every IC697CPX772 unit we supply is sourced directly from verified industrial distributors and OEM-authorized channels. Each module undergoes our documented 4-step quality verification process before dispatch. We stand behind the authenticity of every component we ship — genuine, verified, and authentic are not marketing words here; they are operational commitments backed by documentation you can request at any time.
Technical Specifications
- Part Number: IC697CPX772
- Manufacturer: General Electric (GE Automation & Controls)
- Series: Series 90-70 PLC
- Module Type: Central Processing Unit (CPU)
- Processor: 32-bit RISC-based CPU
- Program Memory: 512 KB user program memory
- Data Memory: 512 KB user data memory
- I/O Capacity: Up to 12,288 discrete I/O points
- Communication Ports: Ethernet (10/100 Mbps), RS-232 serial port
- Backplane Compatibility: Series 90-70 5-slot, 9-slot, 16-slot racks
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Power Consumption: 4.5 W typical
- Dimensions: Standard Series 90-70 single-slot form factor
- Certifications: UL Listed, CE Marked, cUL
- Weight: Approx. 500 g
Specifications verified against GE Automation & Controls official documentation (GFK-0867 Series 90-70 PLC User Manual).
Our 4-Step Quality Verification Process
- Step 1 — Visual & Physical Inspection: Each unit is examined under controlled lighting for label authenticity, PCB markings, component placement, and housing integrity. Counterfeit units frequently exhibit label misalignment, incorrect font weights, and non-OEM connector finishes — all checked against reference samples.
- Step 2 — Functional Power-On Test: The module is bench-tested in a live Series 90-70 rack environment. We verify successful boot sequence, firmware version authenticity, LED status indicators, and communication port responsiveness. Test logs are retained and available upon request.
- Step 3 — Communication & I/O Verification: Ethernet and serial port communication is validated. Where applicable, we verify program upload/download capability and confirm the module responds correctly to standard GE Proficy Machine Edition commands.
- Step 4 — Documentation Package Assembly: Prior to shipment, we compile the unit’s Certificate of Conformance (COC), test report summary, packing list, and Country of Origin (COO) declaration. Customers may request this full documentation package at the time of order or post-delivery.
Key Features & Benefits
- High-Capacity Memory Architecture: 512 KB program + 512 KB data memory supports complex ladder logic, function block, and structured text programs in demanding process environments.
- Integrated Ethernet Connectivity: Native 10/100 Mbps Ethernet port enables direct SRTP and Modbus TCP communication without additional communication modules, reducing rack footprint and cost.
- IEC 61131-3 Compliant Programming: Fully compatible with GE Proficy Machine Edition, supporting all five IEC 61131-3 programming languages for maximum engineering flexibility.
- Hot-Standby Redundancy Support: Compatible with GE Series 90-70 redundancy configurations, meeting IEC 61508 SIL 2 application requirements for safety-critical installations.
- Broad I/O Scalability: Supports up to 12,288 discrete I/O points across mixed analog and digital modules, suitable for large-scale plant-wide automation per ISA-5.1 instrumentation standards.
- Proven Field Reliability: The Series 90-70 platform has accumulated over 30 years of documented field deployment across power, petrochemical, and water infrastructure — the IC697CPX772 represents the platform’s highest-performance CPU variant.
Typical Applications
- Power Generation: Turbine control, boiler management, and generator excitation systems in coal, gas, and hydroelectric plants.
- Oil & Gas: Pipeline SCADA integration, compressor station control, and wellhead automation in upstream and midstream operations.
- Water & Wastewater Treatment: Pump station sequencing, chemical dosing control, and SCADA-linked process monitoring for municipal utilities.
- Automotive Manufacturing: Body-in-white assembly line control, paint shop automation, and press line sequencing in high-throughput facilities.
- Pulp & Paper: Digester control, stock preparation, and paper machine drive coordination in continuous process environments.
- Chemical Processing: Batch reactor management, distillation column control, and safety interlock systems in ATEX-classified zones.
Compatible System Components
- GE IC697PWR711 / IC697PWR724 — Series 90-70 Power Supply Modules
- GE IC697MDL340 / IC697MDL341 — Discrete Input Modules (120 VAC / 24 VDC)
- GE IC697MDL740 / IC697MDL741 — Discrete Output Modules
- GE IC697ALG320 / IC697ALG321 — Analog Input Modules (4–20 mA / ±10 V)
- GE IC697CMM742 — Ethernet Interface Module (for legacy rack expansion)
- GE IC697BEM731 — Genius Bus Controller Module
- GE IC697CHS750 / IC697CHS782 — 5-Slot and 9-Slot Baseplate Racks
- GE Proficy Machine Edition — Programming and Configuration Software
Global Sourcing & Shipping Capabilities
- Primary Service Regions: Mainland China, Hong Kong SAR, Southeast Asia (Vietnam, Thailand, Indonesia, Malaysia), Middle East (UAE, Saudi Arabia), Europe (Germany, Netherlands, Poland), and North America (USA, Canada).
- Export Packaging Standard: Anti-static ESD bag → foam-lined inner box → double-wall corrugated outer carton. Fragile and shock-sensitive labels applied. Suitable for air freight and sea freight.
- Logistics Options: DHL Express, FedEx International Priority, UPS Worldwide, sea freight (LCL/FCL) via Xiamen port. Lead time: 3–7 business days for in-stock units; 7–21 days for sourced units.
- Export Documentation: Commercial invoice, packing list, COO declaration, and COC provided as standard. HS Code: 8537.10 (programmable controllers). Export license compliance verified per applicable regulations.
Certifications & Compliance Statement
- UL Listed (UL 508 — Industrial Control Equipment)
- CE Marked (EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU)
- cUL (Canadian Standards)
- RoHS Compliant (Directive 2011/65/EU)
- IEC 61131-2 (Programmable Controllers — Equipment Requirements and Tests)
Konmask Quality Commitment: Konmask.com operates as a specialist industrial automation component supplier. We do not sell grey-market, refurbished-as-new, or unverified surplus stock. Every unit we supply is traceable to its source, documented, and backed by our authenticity guarantee. If a unit fails to match its stated specifications upon receipt, we provide full replacement or refund — no dispute required.
How to Order
- Step 1 — Submit Your Enquiry: Add to cart and complete checkout, or contact us directly at [email protected] with your required quantity, delivery timeline, and any special documentation requirements.
- Step 2 — Receive Confirmation & Quote: Our team responds within 24 hours with stock confirmation, lead time, and a formal proforma invoice. Sample units and pre-shipment test reports can be arranged upon request.
- Step 3 — Shipment & Documentation: Upon payment confirmation, your order is packed, documented, and dispatched. Full shipping documentation including COC, test report, and packing list is emailed prior to or alongside shipment.
Authenticity & Trust FAQ
-
Q: How can I verify the authenticity of the IC697CPX772 I receive from Konmask?
A: Every unit ships with a Certificate of Conformance (COC) referencing the unit’s serial number and source traceability. You may also request a pre-shipment functional test report and photos of the actual unit before dispatch. Upon receipt, the module’s firmware version and hardware revision can be verified against GE’s published documentation using Proficy Machine Edition. -
Q: What is Konmask’s warranty policy for this module?
A: We provide a 12-month warranty against manufacturing defects and authenticity failures from the date of shipment. If the unit fails to power on, fails functional testing, or is found to be non-genuine upon independent inspection, we will replace the unit or issue a full refund at our cost — including return freight. -
Q: Can Konmask provide a test report or inspection certificate before I commit to purchase?
A: Yes. For orders of 1 unit or more, we can provide a pre-shipment functional test report upon request. For larger orders or critical applications, we can arrange third-party inspection by SGS, Bureau Veritas, or equivalent. Please specify your documentation requirements at the time of enquiry.
