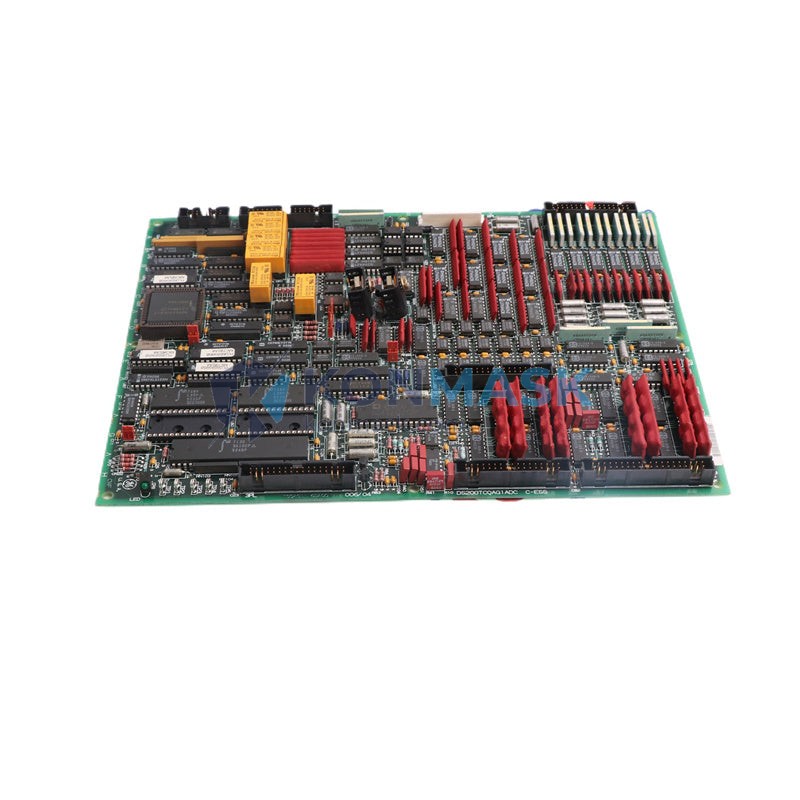

GE DS200TCQRG1RFC Turbine Control Qualification Relay Board – Mark VI Series
When a gas turbine’s control relay board fails mid-operation, the consequences cascade instantly: protective relay logic drops out, turbine trip circuits lose integrity, and the entire power generation unit faces an unplanned shutdown. In energy plants, petrochemical facilities, and industrial co-generation sites, every unplanned outage translates directly into lost megawatts, regulatory scrutiny, and six-figure recovery costs. The GE DS200TCQRG1RFC is the precision relay interface board that keeps these scenarios from becoming reality — a mission-critical component that no Mark VI-based turbine control system can afford to run without.
Within the GE Mark VI Turbine Control System family, the DS200TCQRG1RFC occupies a specialized role as the TCQR (Turbine Control Qualification Relay) board. It serves as the hardwired relay output interface between the Mark VI’s digital control logic and the physical trip/protection circuits of the turbine. Globally, the Mark VI platform controls thousands of GE Frame 5, Frame 6, Frame 7, and Frame 9 gas turbines across power utilities, oil & gas pipelines, and LNG terminals — making the DS200TCQRG1RFC one of the most strategically important spare parts in any plant’s critical spares inventory.
Technical Specifications
- Part Number: DS200TCQRG1RFC
- Manufacturer: General Electric (GE Energy / GE Power)
- Series: Mark VI Turbine Control System
- Board Type: TCQR — Turbine Control Qualification Relay Board
- Form Factor: VME-format PCB module
- Weight: Approx. 540 g
- Condition Available: New surplus / Tested & refurbished
- Compatibility: GE Mark VI MKVI control panels (VCMI, VCRC, VCCC racks)
- Relay Output Type: Hardwired protective relay interface
- Operating Environment: Industrial control cabinet, DIN-rail compatible enclosure
Note: Specifications above are based on publicly available GE Mark VI documentation. Always verify against your site-specific engineering drawings before installation.
Key Features & Benefits
- Hardwired Relay Integrity: Provides galvanically isolated relay outputs for turbine trip and protection circuits, ensuring fail-safe behavior independent of software state.
- Mark VI Native Compatibility: Designed and manufactured to GE’s original specifications for seamless plug-and-play replacement in existing Mark VI racks.
- High Reliability Design: Industrial-grade PCB construction with conformal coating for resistance to humidity, vibration, and thermal cycling common in turbine hall environments.
- Reduced Downtime Risk: Stocking this board as a critical spare eliminates multi-week OEM lead times during emergency outages.
- Tested Before Shipment: Each unit sourced by Konmask.com undergoes functional verification prior to dispatch.
Industry & Equipment Applications
- Power Generation: Combined-cycle and simple-cycle gas turbine power plants using GE Frame 5, 6B, 7EA, 7FA, 9E, 9FA turbines.
- Oil & Gas: Offshore platform turbine-driven compressors and pipeline booster stations with Mark VI control.
- LNG & Petrochemical: Process-critical turbine-generator sets in liquefaction trains and refinery utilities.
- Industrial Co-generation: CHP (Combined Heat and Power) plants where turbine availability directly impacts steam supply to process.
- Marine & Offshore: FPSO and drillship power generation modules equipped with GE Mark VI systems.
System Integration & Compatible Parts
The DS200TCQRG1RFC operates within the GE Mark VI control architecture alongside the following commonly associated boards and modules:
- DS200TCQAG1B / DS200TCQAG1A — TCQA Analog I/O Board
- DS200SDCCG1AFB — SDCC Control Card
- DS200TCPSG1A — TCPS Power Supply Board
- DS200IOCAG1B — IOCA I/O Controller Board
- IS200TSVOH1A — TSVO Servo Output Board
- DS200VPBLG1AEE — VPBL Vibration Monitor Board
If you require a complete Mark VI spare parts package or system audit, contact our technical team for a customized BOM quotation.
Our Quality Assurance Process
- Source Verification: All boards are sourced from decommissioned OEM systems, authorized distributors, or new surplus channels — never counterfeit or grey-market unknown origin.
- Visual Inspection: PCB examined for burn marks, cracked solder joints, damaged connectors, and component integrity.
- Functional Test: Where applicable, boards are bench-tested using GE-compatible test rigs to verify relay actuation and signal continuity.
- ESD-Safe Packaging: Shipped in anti-static bags with foam cushioning inside double-wall cartons.
- Documentation: Test report and product condition certificate available upon request.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your part number and required quantity.
- Receive a Quote: Our team responds within 1 business day with pricing, availability, and lead time.
- Confirm & Pay: Secure payment via T/T bank transfer, PayPal, or other agreed methods.
- Shipment: Dispatched via DHL / FedEx / UPS with full tracking. Export documentation provided for international orders.
- After-Sales Support: 90-day warranty on tested units. Technical support available for installation guidance.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists — Focused exclusively on PLC, DCS, and turbine control components since day one.
- ✅ Global B2B Supply — Serving engineering firms, EPCs, plant maintenance teams, and MRO distributors in 40+ countries.
- ✅ Fast Response — Dedicated account managers for urgent AOG (Aircraft/Asset on Ground) and emergency plant situations.
- ✅ Transparent Sourcing — Full traceability documentation available; no mystery stock.
- ✅ Competitive Pricing — Significant savings vs. OEM list price without compromising on quality assurance.
Frequently Asked Questions
Q: Is the DS200TCQRG1RFC compatible with both Mark V and Mark VI systems?
A: The DS200TCQRG1RFC is specifically designed for the GE Mark VI platform. While some DS200-series boards have cross-compatibility, this part number is Mark VI-specific. Please confirm your panel model (VCMI/VCRC/VCCC) before ordering.
Q: What does “G1RFC” in the part number suffix mean?
A: GE uses alphanumeric suffixes to denote hardware revision levels and configuration variants. “G1RFC” indicates a specific revision of the TCQR board. Always match the full part number including suffix when ordering replacements.
Q: Can you supply a tested unit with a warranty?
A: Yes. Tested and refurbished units come with a 90-day functional warranty. New surplus units are sold as-is with visual inspection certification. Contact us to specify your requirement.
Q: How long does international shipping take?
A: Standard express shipping (DHL/FedEx) typically takes 3–7 business days to most destinations. Expedited options are available for urgent requirements.
Q: Do you provide export documentation for customs clearance?
A: Yes. We provide commercial invoice, packing list, and certificate of origin. HS code classification guidance is available upon request based on your destination country’s requirements.
Q: What if the board I receive doesn’t resolve my turbine fault?
A: Our technical team can assist with Mark VI fault diagnostics. If the board is confirmed non-faulty after testing, we offer exchange or return per our warranty policy.
