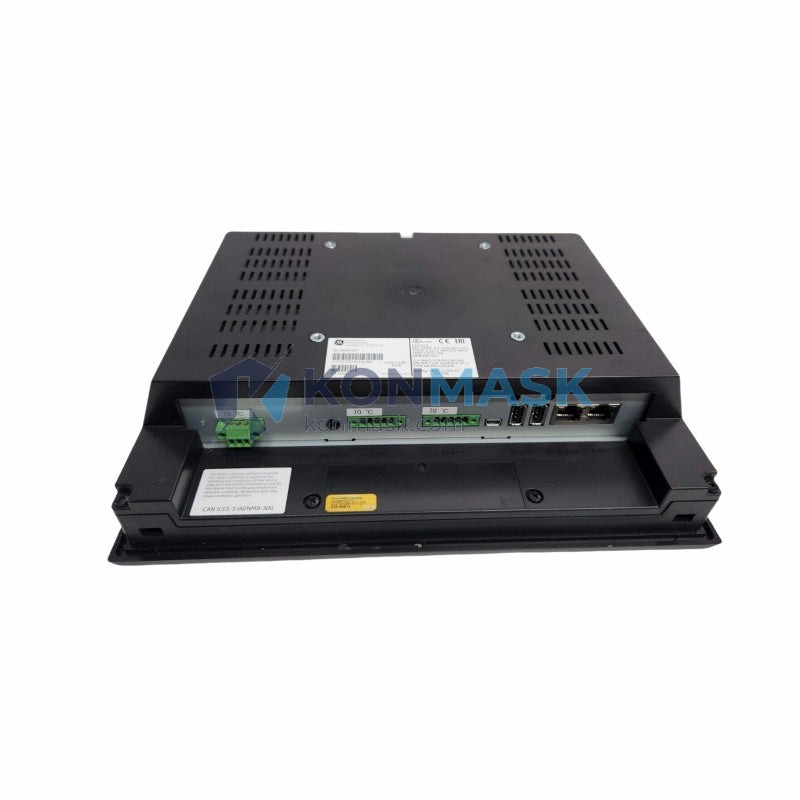

Industrial Automation HMI Solution – GE Fanuc IC755CSS10CDA-AG | QuickPanel+
Where This Product Is Used
The GE Fanuc IC755CSS10CDA-AG QuickPanel+ is a 10-inch industrial HMI touch panel engineered for demanding automation environments. It is widely deployed in:
- Manufacturing & Assembly Lines – Real-time machine status monitoring, operator input, and alarm management on production floors.
- Water & Wastewater Treatment Plants – Process visualization and control for pumps, valves, and flow systems integrated with PLCs.
- Oil & Gas Facilities – Rugged panel interface for upstream/downstream process control in harsh environments.
- Power Generation & Distribution – Substation HMI for SCADA integration, breaker control, and energy monitoring.
- Food & Beverage Processing – Washdown-compatible operator interface for recipe management and batch control.
- Building Automation Systems (BAS) – Central touchpoint for HVAC, lighting, and access control visualization.
- Pharmaceutical & Life Sciences – Validated HMI interface for GMP-compliant process control and audit trails.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number (SKU) | IC755CSS10CDA-AG |
| Brand / Series | GE Fanuc / QuickPanel+ |
| Display Size | 10.4″ (diagonal) |
| Display Type | Color TFT LCD Touchscreen |
| Resolution | 800 × 600 (SVGA) |
| Touch Technology | Resistive Touch |
| Operating System | Windows Embedded Compact 7 |
| Processor | ARM Cortex-A8, 800 MHz |
| Memory (RAM) | 512 MB DDR3 |
| Storage (Flash) | 512 MB internal flash |
| Communication Ports | 2× USB Host, 1× USB Device, 2× Ethernet (10/100), 1× RS-232/485 |
| Power Supply | 24 VDC nominal (18–30 VDC range) |
| Power Consumption | ≤ 25 W typical |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Protection Rating | IP65 (front panel) |
| Mounting | Panel cutout, landscape orientation |
| Weight | Approx. 220 g (module only) |
| HMI Software | Proficy Machine Edition (PME) |
Why Engineers Specify This Model
- Native GE Ecosystem Integration – Seamlessly communicates with GE PACSystems RX3i, VersaMax, and Series 90 PLCs via SRTP and Ethernet Global Data (EGD) protocols without additional gateways.
- Windows CE 7 Flexibility – Supports third-party SCADA clients, VNC remote access, and custom .NET Compact Framework applications.
- IP65 Front Panel – Dust-tight and water-jet resistant, suitable for washdown and outdoor-cabinet installations.
- Dual Ethernet Ports – Enables network segmentation between plant-floor PLC network and enterprise IT network without additional switches.
- Compact Footprint – Optimized panel cutout dimensions reduce enclosure size and installation cost.
- Proficy Machine Edition (PME) Compatible – Unified development environment shared with GE PLC programming reduces engineering time and training overhead.
Complete System Bill of Materials
For a complete QuickPanel+ HMI installation, engineers typically specify:
- IC755CSS10CDA-AG – QuickPanel+ 10″ HMI (this unit)
- 24 VDC DIN-rail power supply (e.g., IC693PWR321 or equivalent)
- Ethernet patch cable (Cat5e/Cat6, shielded for industrial use)
- Panel cutout gasket & mounting hardware (included)
- USB programming cable or Ethernet crossover for initial commissioning
- Proficy Machine Edition (PME) software license (sold separately)
- GE PACSystems RX3i CPU (e.g., IC695CPE305) – host PLC controller
- Surge protection device for 24 VDC supply line (recommended)
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL Listed – UL 508 (Industrial Control Equipment)
- RoHS Compliant – Directive 2011/65/EU
- ATEX / Class I Div 2 – Consult factory for hazardous-location variants
- IEC 61131-2 – Programmable Controllers, Equipment Requirements
Quality Assurance & Sourcing
Every IC755CSS10CDA-AG unit shipped by Konmask.com undergoes a documented inspection process:
- Visual inspection for physical damage, label integrity, and connector condition
- Power-on functional verification (display, touch calibration, boot sequence)
- Firmware version check and documentation
- Anti-static packaging with humidity indicator card
- Traceable lot documentation available on request
Units are sourced from authorized distributors, OEM overstock, and verified secondary-market channels. Counterfeit-risk screening is applied to all secondary-market inventory.
How to Source This Part
- Add to Cart – Click Add to Cart above to purchase online with secure checkout.
- Request a Quote – For volume orders (5+ units), email support@konmask.com for tiered pricing.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock lead time is 2–4 weeks depending on sourcing channel.
- Export & Cross-Border – We ship globally. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- Payment – T/T bank transfer, PayPal, and major credit cards accepted.
Application-Specific FAQ
Q: Is the IC755CSS10CDA-AG compatible with non-GE PLCs (Siemens, Allen-Bradley)?
A: Yes, via OPC-DA/UA, Modbus TCP, and EtherNet/IP drivers available in PME or third-party SCADA software running on the Windows CE platform.
Q: Can I run a VNC server on this panel for remote monitoring?
A: Yes. The Windows CE 7 OS supports VNC server applications, enabling remote desktop access from any VNC client on the same network.
Q: What is the difference between IC755CSS10CDA and IC755CSS10CDA-AG?
A: The “-AG” suffix denotes a specific hardware revision. Always specify the full part number including revision suffix when ordering to ensure firmware and hardware compatibility with your existing system.
Q: Is a replacement touchscreen digitizer available?
A: Spare touch panels and display assemblies are available. Contact support@konmask.com with your unit serial number for compatibility confirmation.
Q: Does this unit support SD card expansion?
A: Yes, the QuickPanel+ 10″ includes an SD card slot for data logging, recipe storage, and firmware updates.
