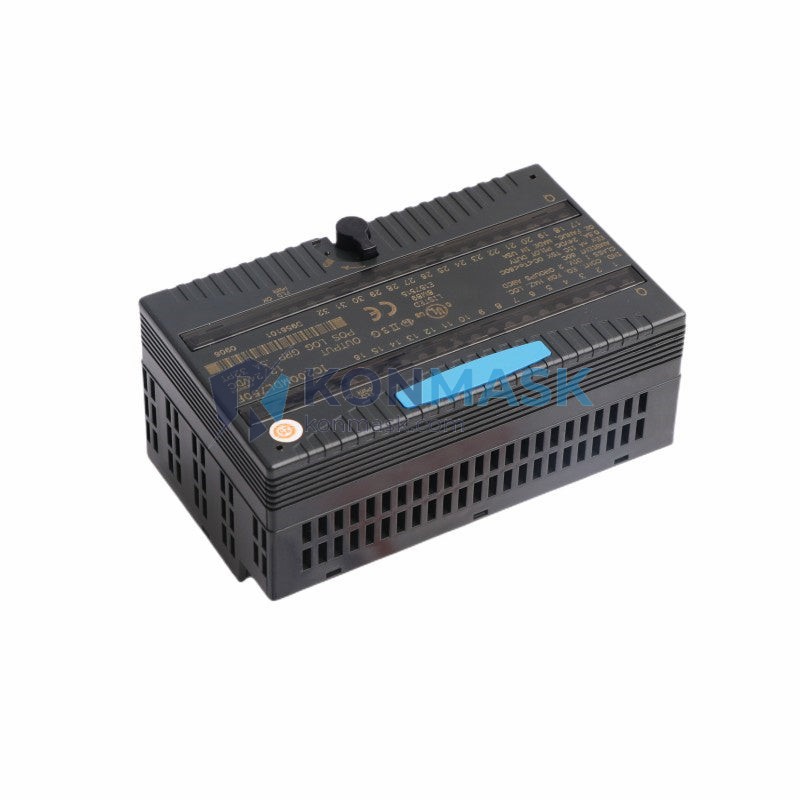

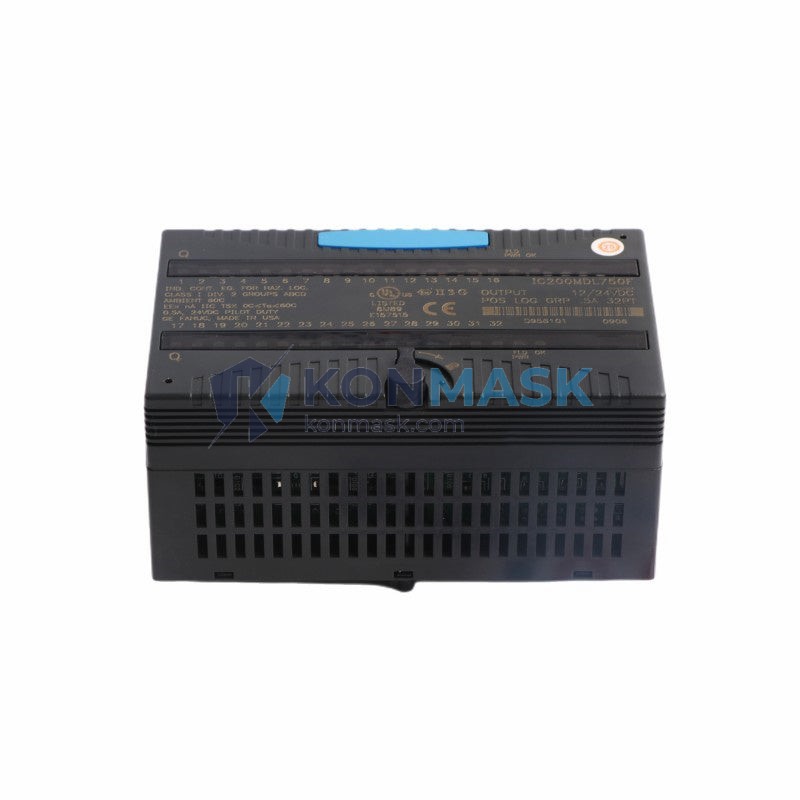

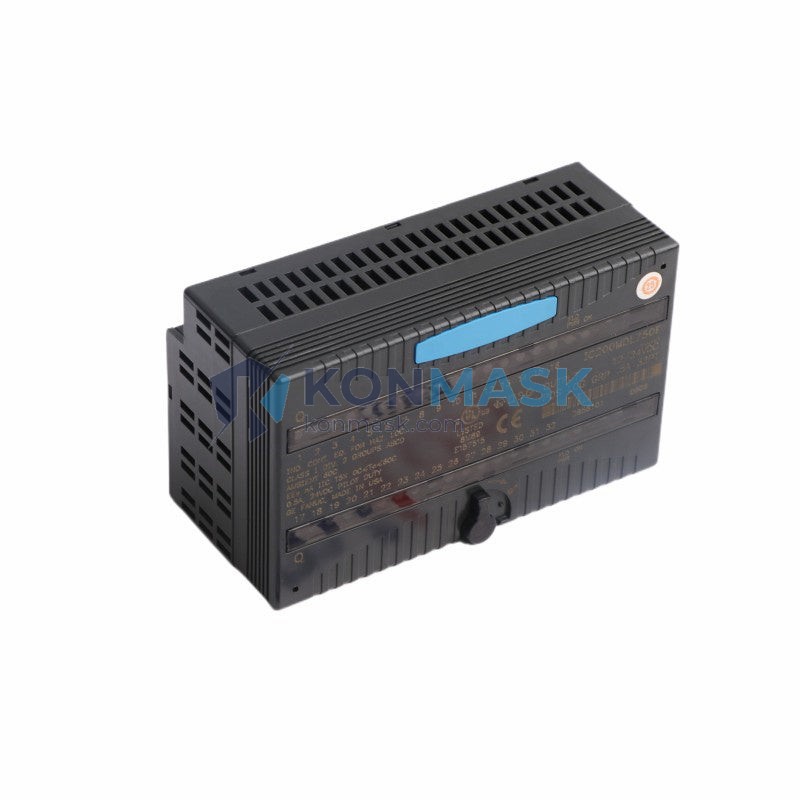

GE IC200MDL750 — 12/24VDC Positive Logic Discrete Output Module | VersaMax Series
Engineering Background: The IC200MDL750 is a discrete output module from GE’s VersaMax Micro/Nano PLC platform — a field-proven architecture widely deployed in manufacturing, utilities, and process automation since the late 1990s. Designed to interface directly with 12 VDC and 24 VDC actuator loads, this module delivers solid-state switching reliability in environments where relay-based outputs introduce unacceptable latency or maintenance overhead.
Product Positioning: Targeted at OEM machine builders, MRO procurement teams, and system integrators maintaining legacy GE VersaMax installations, the IC200MDL750 provides a direct drop-in replacement path with no firmware or rack reconfiguration required. Konmask.com stocks verified OEM units sourced through authorized distribution channels, with full traceability documentation available on request.
Complete Technical Specifications
- Part Number: IC200MDL750
- Manufacturer: GE (General Electric) / Emerson Automation Solutions
- Series / Platform: VersaMax Micro PLC
- Module Type: Discrete Output — Positive Logic (Sourcing)
- Output Voltage Range: 12 VDC / 24 VDC
- Output Logic Type: Positive Logic (PNP / Sourcing)
- Current Rating per Point: 0.5 A
- Number of Output Points: 16 (typical for MDL750 series)
- Output Protection: Short-circuit and overload protected (solid-state)
- Isolation: Optical isolation between field and logic side
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Backplane Interface: VersaMax Micro expansion bus
- Module Weight: 140 g (nominal)
- Certifications: UL Listed, CE Marked, cUL
- RoHS Compliance: Consult datasheet for revision-specific status
Proven Application Environments
- Discrete actuator control: solenoid valves, contactors, pilot lights, and motor starters
- Conveyor and material handling systems requiring high-cycle-rate switching
- Packaging machinery with multi-axis output coordination
- Water/wastewater treatment pump and valve control panels
- HVAC and building automation systems on VersaMax Micro platforms
- OEM machine retrofits replacing aging relay output cards
- Automotive assembly line end-of-line test fixtures
Engineering Advantages
- Solid-State Reliability: No mechanical contacts — eliminates arc wear and extends MTBF in high-cycle applications
- Positive Logic (Sourcing) Architecture: Simplifies wiring to NPN-input field devices; reduces common-mode noise susceptibility
- Optical Isolation: Protects PLC backplane from field-side transients and ground loops
- Direct Backplane Mounting: No external power supply wiring to the module; draws logic power from VersaMax bus
- Compact Form Factor: Maximizes I/O density in space-constrained control panels
- Hot-Swap Compatible: Supports module replacement without full system shutdown (verify with site safety procedures)
System Architecture & Signal Flow
The IC200MDL750 interfaces with the VersaMax Micro CPU via the proprietary expansion bus. The CPU writes output image table data to the module during each scan cycle. The module’s internal logic translates the digital state to a field-side switching signal through an optocoupler stage, driving the solid-state output transistor. The sourcing (PNP) output provides a positive voltage rail to the load, with the return path through the common terminal. Field wiring connects to the module’s removable terminal block, enabling rapid replacement without rewiring.
Signal path summary: CPU Output Image Table → Backplane Bus → Module Logic → Optocoupler → Output Transistor (PNP) → Field Load → Common Return
Sourcing & Quality Verification
- Origin: OEM-manufactured units; no third-party remanufacturing or remarking
- Inspection: Each unit inspected for physical integrity, label authenticity, and connector condition prior to listing
- Traceability: Lot documentation and date codes available on request for critical infrastructure procurement
- Packaging: Anti-static bag + foam-lined carton; ESD-safe handling throughout fulfillment
- Warranty: 90-day functional warranty against DOA; extended warranty available — contact sales
Procurement Process
- Lead Time: In-stock units ship within 1–2 business days (China domestic); international DHL/FedEx available
- MOQ: 1 unit (no minimum order quantity)
- Volume Pricing: Available for orders of 5+ units — contact support@konmask.com for a quote
- Payment: T/T, PayPal, credit card via Shopify Payments; LC available for large orders
- Export Documentation: Commercial invoice, packing list, and CO available for customs clearance
- Returns: 30-day return window for unused, uninstalled units in original packaging
Technical FAQ
Q: Is the IC200MDL750 compatible with VersaMax Nano CPUs?
A: The IC200MDL750 is designed for the VersaMax Micro expansion bus. Compatibility with Nano-series CPUs depends on the specific CPU model — consult GEA-12500 system manual or contact our technical team.
Q: Can this module drive inductive loads directly?
A: Yes, with appropriate flyback suppression (snubber diode or RC network) across the load. The module’s internal protection handles transient suppression, but external suppression is recommended for large solenoids to maximize module lifespan.
Q: What is the difference between IC200MDL750 and IC200MDL740?
A: The MDL740 is a negative logic (NPN/sinking) output module; the MDL750 is positive logic (PNP/sourcing). Selection depends on your field device input type. Confirm your actuator wiring polarity before ordering.
Q: Is a GE Proficy Machine Edition license required to configure this module?
A: No additional license is required for the output module itself. The CPU programming license (Proficy ME) is required for the host CPU configuration, but the module is auto-recognized by the VersaMax system.
Q: Do you provide the GFK datasheet?
A: Yes — the relevant reference is GFK-1504 (VersaMax Micro PLC User’s Manual). Contact support@konmask.com to request a copy.
