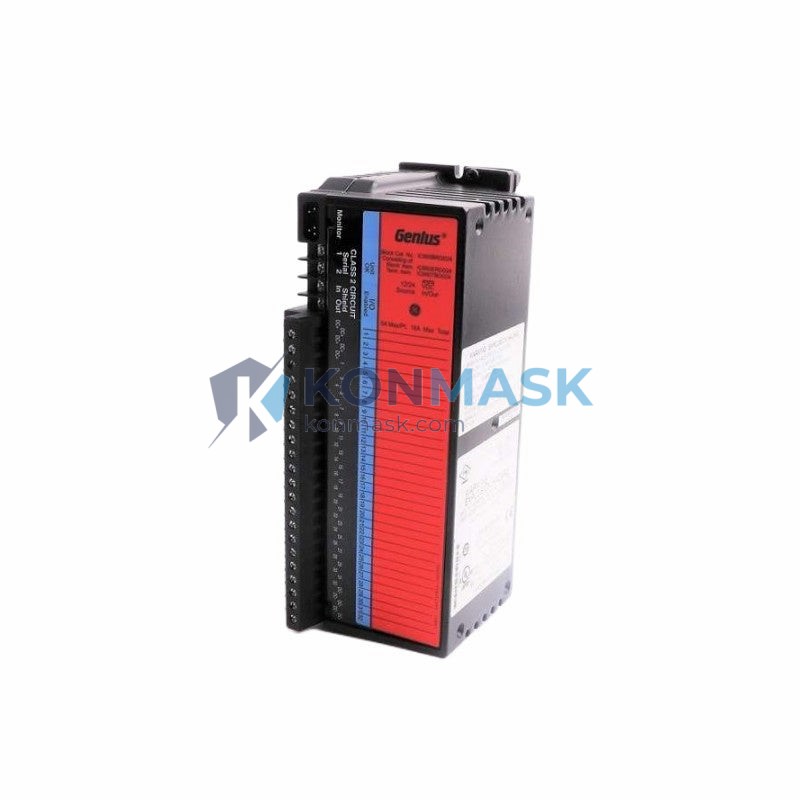

GE IC660BRD025 / IC660ERD025 / IC660TBD025 Genius 32-Circuit Sink Block | Replacement, Equivalent & Selection Guide
The GE IC660BRD025, IC660ERD025, and IC660TBD025 are 32-circuit sink (NPN) I/O blocks from the GE Genius distributed I/O family. Designed for demanding industrial environments, these blocks interface directly with field devices and communicate over the Genius Bus, eliminating the need for traditional I/O racks. Whether you are maintaining an existing GE Series Six / Series 90 system or sourcing a verified replacement, this guide covers everything you need.
Technical Specifications
- Part Numbers: IC660BRD025 (Bus Receiver), IC660ERD025 (Enhanced), IC660TBD025 (Terminal Block variant)
- I/O Type: 32-Circuit Discrete Sink (NPN) Input/Output Block
- Bus Interface: GE Genius Bus (serial, 153.6 kbps)
- Operating Voltage: 24 VDC nominal
- Input Voltage Range: 0–30 VDC
- Output Current: Up to 0.5 A per circuit (sink)
- Circuit Count: 32 discrete I/O circuits
- Protection: Short-circuit and overload protection per circuit
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Mounting: DIN rail or panel mount
- Dimensions (approx.): 300 mm × 100 mm × 60 mm
- Weight: ~620 g
- Certifications: UL Listed, CE Marked
Compatible Replacement & Equivalent Models
The table below lists verified compatible and functionally equivalent models for the IC660BRD025 / IC660ERD025 / IC660TBD025:
- IC660BRD025 — Original Bus Receiver variant; direct drop-in for IC660ERD025 in most applications
- IC660ERD025 — Enhanced variant with improved diagnostics; backward-compatible with IC660BRD025 wiring
- IC660TBD025 — Terminal block variant; same electrical specs, different field-wiring connector style
- IC660BBD025 — Bus Block variant; functionally equivalent for sink I/O applications on Genius Bus
- IC660BBA020 / IC660BBA024 — 16-circuit sink blocks; use two units to replace one 32-circuit block where space allows
Note: Always verify bus address settings and firmware revision compatibility before substituting models in a live system.
Why Choose the Original Model
- Proven field reliability — Millions of Genius I/O blocks deployed globally in continuous-process industries since the 1980s
- Exact firmware compatibility — Original GE part numbers guarantee compatibility with GE Series Six, Series 90-30, Series 90-70, and PACSystems RX3i Genius Bus Controllers
- Certified diagnostics — Per-circuit fault reporting and bus health monitoring not always replicated in third-party equivalents
- Regulatory compliance — UL/CE certifications maintained; critical for regulated industries (pharma, food & beverage, utilities)
- Warranty & traceability — Sourced units from Konmask.com include full traceability documentation
Typical Applications
- Discrete sensor and actuator interfacing in GE Genius distributed I/O networks
- Motor starter and solenoid valve control in process plants
- Conveyor and material-handling automation
- Water/wastewater treatment plant control systems
- Automotive assembly line I/O expansion
- Power generation and utilities SCADA integration
System Compatibility
- GE Series Six PLC — Full compatibility via Genius Bus Interface Unit (BIU)
- GE Series 90-30 / 90-70 — Compatible with IC660CBB900 / IC660CBB902 Genius Bus Controllers
- GE PACSystems RX3i — Compatible via IC695PBM300 or IC660CBB902 Genius Bus Controller
- Third-party Genius Bus Masters — Compatible with any Genius Bus master that supports the standard Genius datagram protocol
Selection Guide
Use the following criteria to select the correct model for your application:
- Wiring style needed? — Choose IC660TBD025 for screw-terminal field wiring; IC660BRD025 / IC660ERD025 for standard connector wiring
- Enhanced diagnostics required? — Specify IC660ERD025 for per-circuit fault isolation and enhanced bus reporting
- Circuit count: — 32-circuit blocks (IC660xRD025) for high-density I/O; use IC660BBA020/024 for lower-density nodes
- Sink (NPN) vs. Source (PNP): — IC660xRD025 series is sink (NPN); for source (PNP) applications, refer to IC660xSD025 series
- Bus address: — Each block requires a unique Genius Bus address (0–31); verify no address conflicts before installation
- Environment: — Standard models rated 0–60°C; consult Konmask for extended-temperature or conformal-coated variants
Quality Assurance & Sourcing
- All units sourced through authorized distribution channels or verified surplus with full traceability
- Pre-shipment inspection: visual, label verification, and functional power-on test where applicable
- Anti-counterfeit measures: holographic labels, serial number verification against GE records
- Packaging: ESD-safe bags, foam-lined cartons, humidity indicator cards for long-term storage units
- Documentation: Certificate of Conformance (CoC) and test report available on request
How to Order
- Step 1: Confirm your required part number (IC660BRD025, IC660ERD025, or IC660TBD025)
- Step 2: Specify quantity and required delivery timeline
- Step 3: Contact us via the form below or email support@konmask.com
- Step 4: Receive quotation with lead time, CoC availability, and shipping options within 24 hours
- Step 5: Confirm order — we ship worldwide via DHL, FedEx, and UPS with full tracking
For urgent requirements or large-volume orders, call us directly: +0086 19859288691
Replacement & Compatibility FAQ
Q: Can IC660ERD025 directly replace IC660BRD025?
A: Yes, in most cases. The IC660ERD025 is the enhanced successor to the IC660BRD025 with the same electrical interface. Verify bus address and firmware version compatibility with your Bus Controller before swapping.
Q: Is IC660TBD025 electrically identical to IC660BRD025?
A: Yes. The “T” variant uses a different field-wiring connector (terminal block style) but has identical electrical specifications and Genius Bus behavior.
Q: Can I use these blocks with a PACSystems RX3i controller?
A: Yes, via a Genius Bus Controller module (e.g., IC695PBM300 or IC660CBB902). The RX3i does not natively support Genius Bus without this interface module.
Q: Are third-party Genius I/O replacements available?
A: Some third-party manufacturers offer Genius-compatible I/O blocks. However, per-circuit diagnostics and full datagram compatibility may vary. Konmask recommends original GE parts for critical process applications.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For sourced or refurbished units, lead time is typically 5–15 business days. Contact us for current availability.
