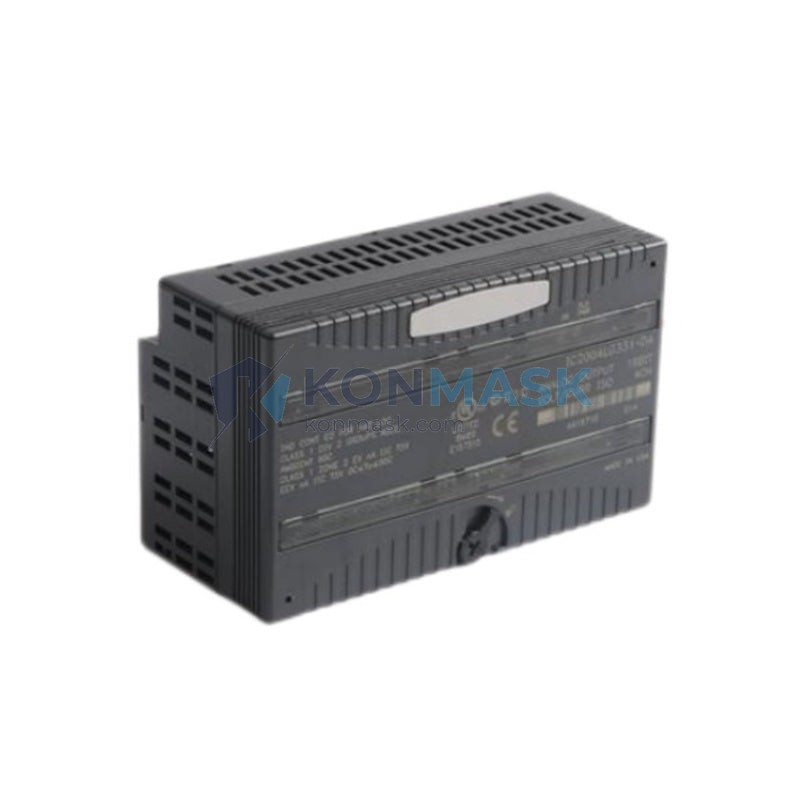

Analog Output Control Solution – GE IC200ALG322 | VersaMax Series
In modern industrial facilities, precise analog signal control is the backbone of process stability. Whether regulating a variable-frequency drive (VFD) on a 500 kW pump motor, commanding a proportional valve in a hydraulic press, or trimming the setpoint of a temperature controller in a continuous furnace, the quality of the analog output signal directly determines product quality and energy efficiency. Studies show that ±1% signal drift in a closed-loop flow control loop can translate to 3–5% raw material waste and up to 8% excess energy consumption per shift.
The GE IC200ALG322 eliminates this risk. As part of the proven VersaMax I/O platform, this 4-channel, 12-bit, ±10 VDC analog output module delivers 4,096-step resolution with stable, low-noise voltage outputs that integrate directly into GE Fanuc PACSystems and VersaMax CPU architectures. Engineers specify it when they need deterministic, repeatable analog control without the overhead of external signal conditioners or DAC converters.
Where This Product Is Used
1. Continuous Process Manufacturing
• Flow control loops: Commands 4–20 mA transducers via I/V converters; maintains ±0.05% setpoint accuracy in liquid blending systems operating at 60–120°C.
• Pressure regulation: Drives electro-pneumatic regulators (0–10 bar) in chemical reactors; compatible with ATEX Zone 2 marshalling panels.
• Level control: Outputs proportional signal to modulating control valves in storage tank farms; supports ISA-5.1 loop documentation standards.
2. Motion Control & Drive Systems
• VFD speed reference: Provides ±10 VDC speed command to Siemens SINAMICS, ABB ACS880, and Yaskawa A1000 drives; 12-bit resolution enables smooth ramp profiles at 0.024% increments.
• Servo amplifier reference: Used as analog velocity/torque reference in CNC milling and grinding machines; meets IEC 61800-3 EMC requirements when properly shielded.
• Multi-axis coordination: 4 independent channels allow simultaneous control of X/Y/Z axes plus spindle in compact machining centers.
3. HVAC & Building Automation
• Chiller capacity control: Sends 0–10 VDC capacity signal to centrifugal chiller unloaders; reduces part-load energy consumption by up to 18% vs. on/off staging.
• AHU damper positioning: Controls modulating actuators (Belimo, Honeywell) in air handling units; supports ASHRAE 90.1 demand-controlled ventilation sequences.
• Cooling tower fan speed: Analog output to VFD enables approach temperature control within ±0.5°C, extending tower fill life.
4. Oil & Gas / Upstream Production
• Wellhead choke valve control: Drives electro-hydraulic actuators for wellhead pressure management; operates reliably in –20°C to +60°C ambient range.
• Gas compression staging: Provides suction pressure setpoint to anti-surge controllers on centrifugal compressors; integrates with API 670 machinery protection systems.
• Separator level trim: Analog output to control valve trims three-phase separator levels; supports SIL 1 loop architectures when paired with safety-rated CPUs.
5. Food & Beverage Processing
• Pasteurizer temperature control: Commands steam control valves in HTST pasteurizers; output stability meets 3-A Sanitary Standards for process repeatability.
• Filling machine speed sync: Synchronizes conveyor and filling head speeds via analog reference; reduces product giveaway by maintaining fill accuracy within ±0.5 mL.
• CIP flow control: Modulates cleaning solution flow rates during CIP cycles; supports EHEDG hygienic design documentation requirements.
6. Power Generation & Utilities
• Turbine governor interface: Provides load reference signal to electro-hydraulic governors on gas and steam turbines; 12-bit resolution supports IEEE 1110 governor performance standards.
• Boiler feedwater control: Drives feedwater control valve in drum-type boilers; three-element control loops benefit from the module’s low output noise (<5 mV p-p).
• Transformer tap changer: Analog output to automatic voltage regulator (AVR) for reactive power compensation in 110 kV substations.
Technical Specifications
| Part Number | IC200ALG322 |
| Platform | GE Fanuc VersaMax I/O |
| Output Channels | 4 (independent, simultaneously active) — enables multi-axis or multi-loop control from a single module slot |
| Output Type | Voltage, ±10 VDC — universal compatibility with VFDs, servo amps, and proportional valves |
| Resolution | 12-bit (4,096 steps) — 0.00488 V/step; sufficient for sub-0.1% setpoint accuracy in closed-loop PID |
| Output Impedance | ≥ 2 kΩ load (voltage mode) |
| Accuracy | ±0.1% of full scale at 25°C |
| Temperature Drift | ±50 ppm/°C — critical for outdoor enclosures with wide ambient swings |
| Update Rate | Synchronous with VersaMax bus scan |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Power Consumption | Supplied via VersaMax backplane (5 VDC bus) |
| Isolation | Field-side isolation from logic bus |
| Dimensions | Standard VersaMax single-slot module |
| Weight | 300 g |
| Certifications | CE, UL, cUL, RoHS |
| Compatible CPUs | IC200CPUE05, IC200CPU001, IC200CPU002, IC200CPUE05, PACSystems RX3i (via NIU) |
Why Engineers Specify This Model
• In VFD speed control applications, the IC200ALG322 delivers ±10 VDC bipolar output because most industrial drives accept this as the native speed reference signal, eliminating the need for external signal converters and meeting IEC 61800-3 drive interface requirements.
• In multi-loop PID process control, the IC200ALG322 delivers 4 independent simultaneous channels because parallel loop updates prevent cross-loop interference, meeting ISA-88 batch control sequencing requirements.
• In precision motion and CNC applications, the IC200ALG322 delivers 12-bit resolution (4,096 steps) because fine velocity increments prevent stick-slip at low speeds, meeting ISO 230-2 positioning accuracy requirements for machine tools.
• In outdoor and wide-temperature installations, the IC200ALG322 delivers ±50 ppm/°C thermal stability because signal drift in uncontrolled enclosures directly causes setpoint deviation, meeting IEC 61131-2 environmental class requirements.
• In HVAC and building automation retrofits, the IC200ALG322 delivers direct 0–10 VDC compatibility because most BACnet/Modbus-bridged actuators and chillers accept this signal natively, meeting ASHRAE Guideline 36 high-performance sequences of operation.
• In power generation governor interfaces, the IC200ALG322 delivers low output noise (<5 mV p-p) because governor stability margins are sensitive to signal noise, meeting IEEE 1110 synchronous generator excitation system requirements.
Complete System Bill of Materials
The following components are typically specified alongside the IC200ALG322 for a complete VersaMax analog output control system:
Core PLC Platform
• IC200CPUE05 – VersaMax CPU with Ethernet; hosts the control program and manages I/O bus scan for the ALG322 outputs.
• IC200PWR002 – VersaMax 24 VDC power supply; provides regulated backplane power to the module rack.
• IC200CHS022 – VersaMax 10-slot carrier; physical mounting base for CPU, power supply, and I/O modules including the ALG322.
Signal Wiring & Conditioning
• Shielded twisted-pair cable (Belden 9501 or equivalent) – Recommended for analog signal runs >3 m to suppress common-mode noise on ±10 VDC lines.
• Terminal block with shield clamp (Phoenix Contact MSTB series) – Provides clean field-side termination and single-point shield grounding per IEC 61000-5-2.
• I/V converter module (e.g., Moore Industries SPA) – Required when field devices accept 4–20 mA instead of voltage; converts IC200ALG322 voltage output to current loop.
Communication & Integration
• IC200ETM001 – VersaMax Ethernet NIU; enables Modbus TCP or SRTP communication to SCADA/DCS for remote setpoint download to the ALG322 channels.
• IC200PBI001 – PROFIBUS DP NIU; integrates VersaMax I/O (including ALG322) into Siemens S7 or ABB 800xA DCS architectures.
Protection & Enclosure
• Surge protection device (Phoenix Contact TRABTECH PT series) – Protects analog output lines from transient overvoltage in outdoor or long-cable installations.
• IP54 steel enclosure with DIN rail – Houses the VersaMax rack in environments with dust or splash exposure; maintains module operating temperature range.
Compliance & Industry Standards
• CE Marking (EU) – Issued by GE Fanuc; confirms compliance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Practical meaning: legally required for installation in EU machinery and process plants; simplifies customs clearance for European buyers.
• UL / cUL Listed – Issued by Underwriters Laboratories; confirms compliance with UL 508 (Industrial Control Equipment) for US and Canadian markets. Practical meaning: required by NEC Article 409 for industrial control panels in North America; accepted by AHJ inspectors without additional testing.
• RoHS Compliant – Confirms restriction of hazardous substances per EU Directive 2011/65/EU. Practical meaning: required for import into EU, UK, and China (China RoHS); eliminates disposal surcharges in regulated markets.
• IEC 61131-2 Compliance – Programmable controller equipment standard; confirms the module meets environmental, electrical, and mechanical requirements for industrial PLC I/O. Practical meaning: accepted by engineering specifications that mandate IEC 61131-compliant hardware.
• ATEX / IECEx (Zone 2 via barriers) – The IC200ALG322 is a non-intrinsically safe device; it can be used in Zone 2 hazardous areas when installed with certified Zener barriers or galvanic isolators. Practical meaning: enables use in petrochemical and offshore applications with proper loop design documentation.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the IC200ALG322 exclusively from authorized GE Fanuc distributors, certified surplus dealers with documented chain-of-custody, and direct OEM decommissioning projects. We do not source from unverified secondary markets.
4-Step Inspection Process:
1. Visual & Physical Inspection – Connector pins, PCB condition, label integrity, and housing checked against GE factory reference photos.
2. Functional Power-On Test – Module installed in VersaMax test rack; all 4 output channels verified for correct voltage output across the ±10 VDC range using calibrated Fluke 87V multimeter.
3. Firmware Version Verification – Firmware revision confirmed and documented; downgrade/upgrade available on request.
4. ESD-Safe Packaging – Module bagged in anti-static pouch, placed in foam-lined box with desiccant; labeled with inspection date and technician ID.
Available Documentation: Certificate of conformance (CoC) · Inspection report · Firmware version record · Original GE datasheet · Customs HS code declaration (8537.10)
How to Source This Part
Step 1 – Submit Your Inquiry
Contact us via the product page quote form, email support@konmask.com, or WhatsApp +0086 19859288691 with your required quantity, delivery timeline, and any firmware or documentation requirements.
Step 2 – Receive Confirmation in 24 Hours
Our technical team confirms stock availability, unit condition (new/refurbished/tested surplus), lead time, and pricing within 24 business hours. Urgent requirements can be escalated for same-day response.
Step 3 – Global Fulfillment
We ship worldwide via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Export documentation (commercial invoice, packing list, CoC, and EAR99 classification letter) is prepared for all international shipments. Typical transit: 3–7 business days to most destinations.
Application-Specific FAQ
Q1: Can the IC200ALG322 directly command a VFD in a pump speed control application without an external converter?
A: Yes. Most industrial VFDs (Siemens, ABB, Yaskawa, Danfoss) accept ±10 VDC as a native analog speed reference input. The IC200ALG322 outputs this signal directly from its screw terminals, eliminating the need for an I/V converter in voltage-input drive applications. Verify your drive’s analog input specification (typically AI1 terminal) before wiring.
Q2: In a HVAC chiller control application, can I use all 4 channels simultaneously for different control loops?
A: Yes. All 4 channels are independent and simultaneously active — there is no multiplexing or channel-sharing. In a typical chiller plant, you can simultaneously control chiller capacity (Ch1), cooling tower fan speed (Ch2), condenser water pump speed (Ch3), and chilled water valve position (Ch4) from a single IC200ALG322 module, reducing rack space and wiring cost.
Q3: What is the maximum cable run length for the analog output signal in a process plant environment?
A: GE recommends a maximum of 100 m (330 ft) for ±10 VDC voltage output using shielded twisted-pair cable (minimum 0.5 mm² / 20 AWG). For runs exceeding 100 m, or in high-noise environments (near VFD cabinets or high-current bus bars), use an I/V converter at the module end and transmit as 4–20 mA current loop, which is inherently more noise-immune over long distances.
