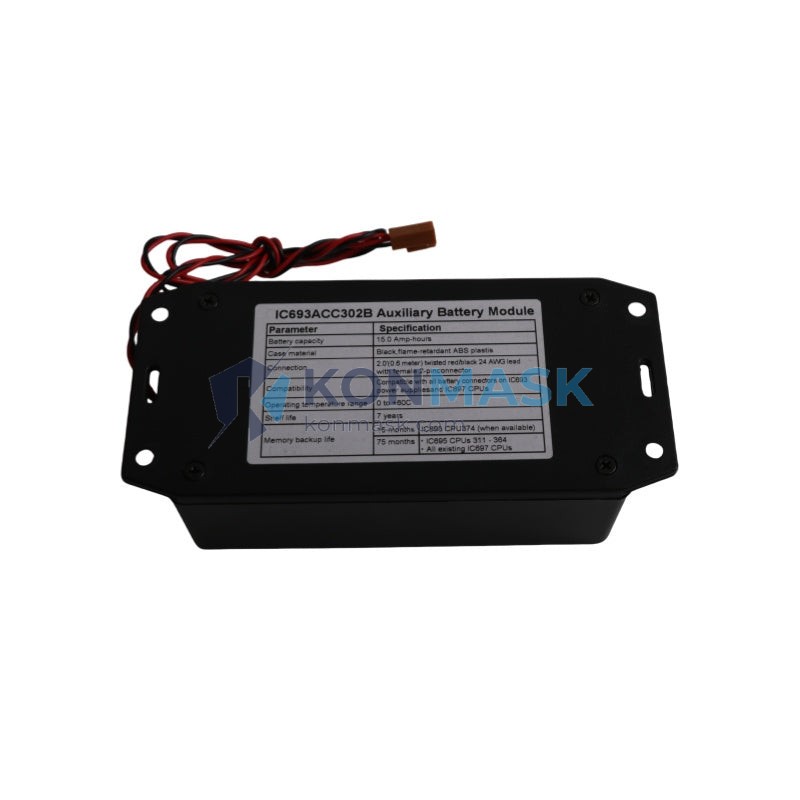

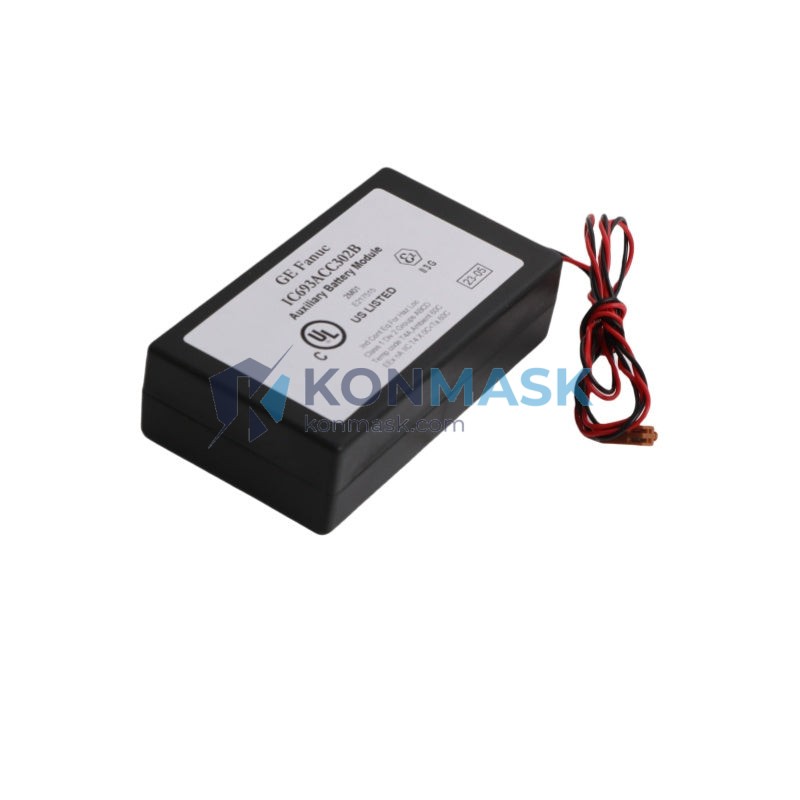

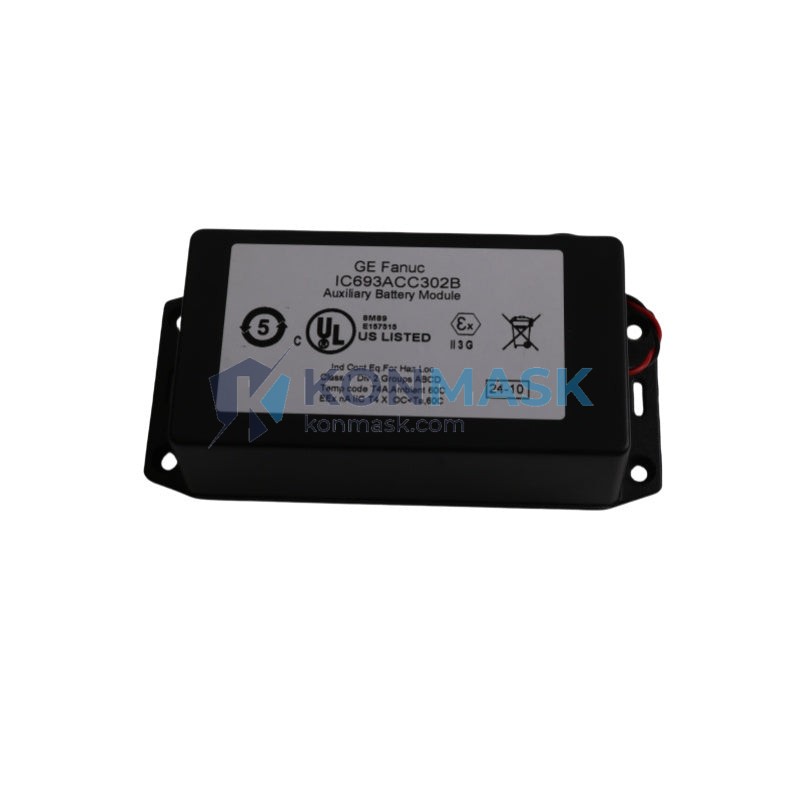

GE IC693ACC302B Auxiliary Battery Module | Replacement, Equivalent & Selection Guide
The GE IC693ACC302B is an Auxiliary Battery Module designed for the GE Series 90-30 PLC platform. It provides backup power to retain program memory and real-time clock (RTC) data during power interruptions, ensuring uninterrupted control system operation in critical industrial environments. This guide helps procurement engineers and maintenance specialists identify compatible replacements, evaluate alternatives, and make confident sourcing decisions.
Technical Specifications
- Part Number: IC693ACC302B
- Manufacturer: GE Fanuc Automation (now Emerson / GE Vernova)
- Series / Platform: Series 90-30 (90-30 PLC)
- Function: Auxiliary Battery Module — RAM & RTC backup power
- Battery Type: Lithium (Li)
- Nominal Voltage: 3.0 V DC
- Typical Battery Life: Up to 5 years (ambient temperature dependent)
- Weight: Approx. 260 g
- Mounting: Snap-in module, Series 90-30 baseplate compatible
- Operating Temperature: 0 °C to 60 °C
- Storage Temperature: −40 °C to 85 °C
- Compliance: CE, UL listed
- Country of Origin: United States
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the IC693ACC302B. Compatibility must be verified against your specific CPU and baseplate revision before installation.
- IC693ACC302A — Earlier revision; functionally equivalent in most applications
- IC693ACC302 — Base revision; verify firmware compatibility with your CPU
- IC693ACC301 — Standard battery module for Series 90-30; lower capacity, suitable for shorter backup requirements
- IC693PWR321 — Power supply with integrated battery backup; alternative architecture for new system builds
- Third-party lithium battery packs — Must match 3.0 V output, connector pinout, and physical form factor; not recommended for safety-critical systems without OEM validation
⚠ Always cross-reference the CPU model (e.g., IC693CPU374, IC693CPU375) and baseplate revision when selecting a replacement battery module.
Why Choose the Original IC693ACC302B
- OEM-validated compatibility — Guaranteed fit and function with all Series 90-30 CPUs and baseplates
- Certified battery chemistry — Lithium cell meets GE Fanuc safety and longevity standards
- Plug-and-play installation — No configuration required; hot-swap capable on supported CPU revisions
- Full traceability — OEM documentation, date codes, and warranty support included
- Regulatory compliance — CE and UL certifications maintained for audit and insurance purposes
Typical Applications
- Automotive assembly line PLC control systems
- Food & beverage processing with Series 90-30 controllers
- Water treatment and utilities SCADA/PLC infrastructure
- Oil & gas upstream/downstream automation panels
- Pharmaceutical batch control systems requiring RTC accuracy
- Building automation and HVAC control panels
- Machine tool and CNC auxiliary control systems
System Compatibility
The IC693ACC302B is compatible with the following GE Series 90-30 CPU modules and system configurations:
- IC693CPU331, IC693CPU340, IC693CPU341
- IC693CPU350, IC693CPU351, IC693CPU360, IC693CPU363
- IC693CPU364, IC693CPU374, IC693CPU375
- All standard Series 90-30 5-slot, 10-slot, and expansion baseplates
- Compatible with Proficy Machine Edition and Logicmaster 90-30 programming environments
Note: Not compatible with Series 90-70 or PACSystems RX3i platforms. Verify baseplate model before ordering.
Selection Guide
- Step 1 — Identify your CPU: Confirm your Series 90-30 CPU part number from the nameplate or system documentation.
- Step 2 — Check battery status: Use the CPU’s Battery Low LED or Proficy ME diagnostics to confirm replacement is needed.
- Step 3 — Verify revision: IC693ACC302B (Rev B) is the current production revision. If installed before 2005, confirm baseplate compatibility.
- Step 4 — Evaluate alternatives: If unavailable, IC693ACC302A or IC693ACC302 are the closest functional equivalents. Third-party options require engineering sign-off.
- Step 5 — Quantity & lead time: For MRO stocking, maintain 2–4 units per system. Contact us for volume pricing.
Quality Assurance & Sourcing
At Konmask.com, all GE Fanuc modules are sourced through verified industrial distribution channels. Our quality process includes:
- Visual inspection and label authentication against OEM specifications
- Functional verification where applicable
- Anti-static packaging with humidity indicators
- Full traceability documentation available on request
- Counterfeit screening per AS6081 guidelines
We supply both new original and refurbished/tested units. Condition is clearly stated on each listing. Refurbished units include a 90-day functional warranty.
How to Order
- Online: Add to cart directly from this page. We accept T/T, PayPal, and major credit cards.
- Email RFQ: support@konmask.com — include part number, quantity, and required delivery date.
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock items ship within 1–3 business days. Out-of-stock: 7–21 business days depending on sourcing.
- Export: We ship worldwide. Export documentation (CO, packing list, commercial invoice) provided for all international orders.
Replacement & Compatibility FAQ
Q: Can I replace IC693ACC302B with IC693ACC302A?
A: Yes, in most cases. Both revisions are functionally equivalent. Verify connector and physical dimensions match your baseplate slot before installation.
Q: How do I know when the battery needs replacement?
A: The Series 90-30 CPU has a dedicated Battery Low LED indicator. Proficy Machine Edition will also generate a fault log entry when battery voltage drops below threshold.
Q: Can I hot-swap the battery module without losing the PLC program?
A: On most Series 90-30 CPUs, the program is stored in flash memory and is not lost during battery replacement. However, real-time clock data may reset. Consult your CPU user manual for hot-swap procedures.
Q: Is IC693ACC302B compatible with PACSystems RX3i?
A: No. The RX3i platform uses IC695ACC402. Do not interchange between platforms.
Q: Do you provide a Certificate of Conformance?
A: Yes. A CoC is available upon request for all orders. Contact us before placing your order if required for your procurement process.
