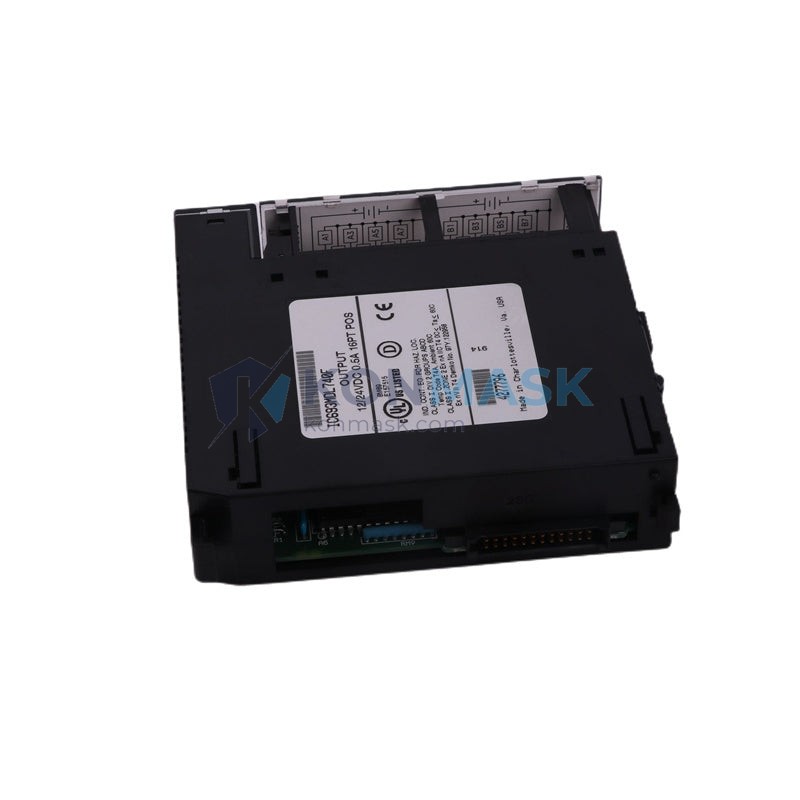

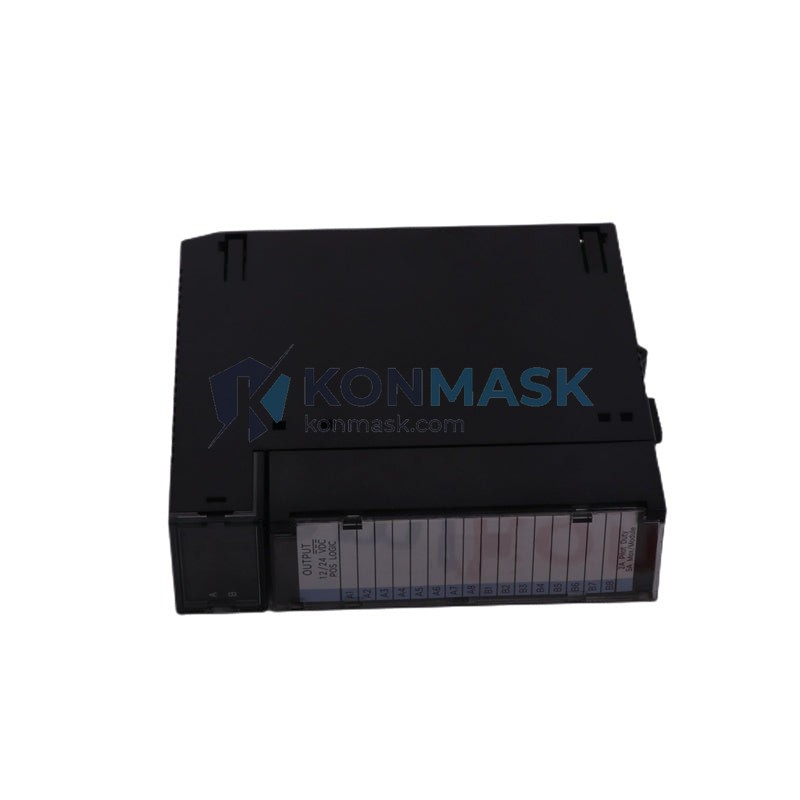

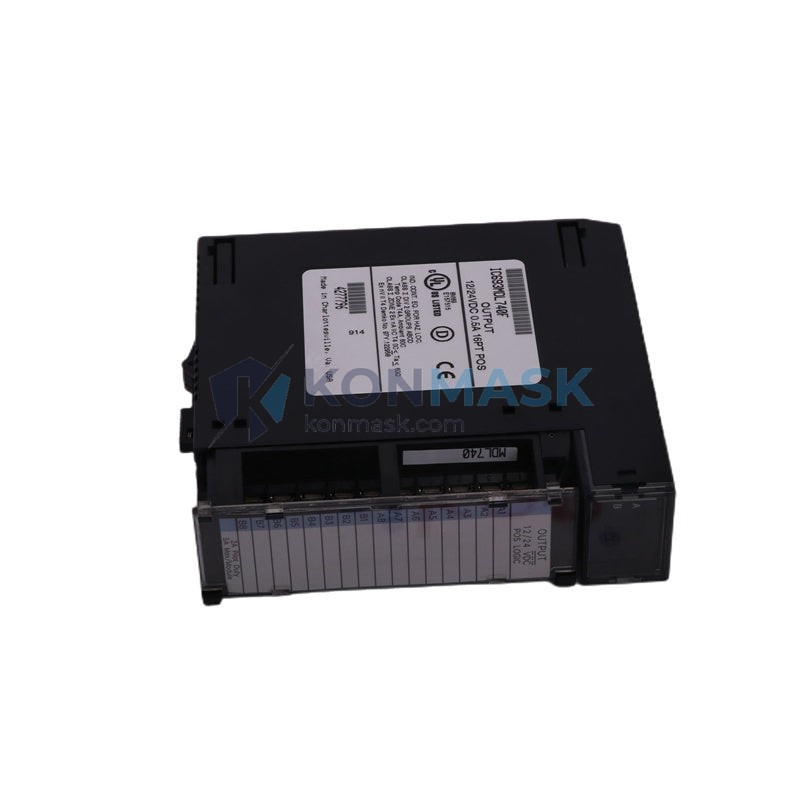

GE IC693MDL740 – 32-Point Discrete Output Module | Series 90-30 PLC Platform
Engineering Background: The GE Series 90-30 (90-30) programmable logic controller is one of the most widely deployed mid-range control platforms in North American industrial automation, with an installed base spanning petrochemical processing, power generation, and municipal water treatment. Within the 90-30 rack architecture, discrete output modules serve as the final control element interface — translating CPU logic states into field-level switching signals that actuate solenoids, motor starters, indicator lamps, and relay coils. The IC693MDL740 occupies a critical position in this signal chain: it provides 32 individually addressable DC output points in a single rack slot, maximizing I/O density without sacrificing per-point current capacity.
Product Positioning: The IC693MDL740 is a 12/24VDC sourcing output module rated at 0.5A per point. It is distinguished from the IC693MDL741 (relay output, lower switching speed) and IC693MDL742 (higher current, 2A per point) by its balance of density, speed, and cost-efficiency. The IC693MDL740 is the preferred choice when load currents are below 0.5A per point, switching frequencies exceed relay capability, and rack slot economy is a priority. It is not suitable for AC load switching or applications requiring isolated output commons per group beyond its internal grouping structure.
Complete Technical Specifications
Electrical
- Output Type: Discrete DC Sourcing (PNP)
- Number of Output Points: 32
- Output Voltage Range: 12/24 VDC (10.2–26.4 VDC operating range)
- Output Current per Point: 0.5 A maximum
- Total Module Current: 4.0 A maximum (all points ON)
- Output Leakage Current: <1.0 mA at 24 VDC
- Output Voltage Drop (ON state): <1.0 VDC at rated current
- Backplane Current Consumption (5 VDC): 350 mA typical
- Isolation: 1500 VAC (field side to backplane, 1 minute)
- Output Commons: 4 groups of 8 points, common per group
- Short-Circuit Protection: Electronic, auto-reset
- Inductive Load Clamp: Internal flyback diode per output
Mechanical
- Form Factor: Single-slot Series 90-30 I/O module
- Connector: 40-pin IDC field wiring connector (included)
- Weight: Approximately 300 g
- Mounting: Series 90-30 baseplate (IC693CHS391, IC693CHS397, IC693CHS398, IC693CHS399)
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 68-2-6, 10–57 Hz, 0.075 mm displacement
- Shock: IEC 68-2-27, 15 g, 11 ms half-sine
Certifications
- UL Listed (UL 508)
- CE Marked (EMC Directive 2014/30/EU, LVD 2014/35/EU)
- CSA Certified
- RoHS Compliant
Data source: GE Automation & Controls IC693MDL740 Product Data Sheet (GFK-0898); GE Series 90-30 PLC I/O Module Specifications Manual (GFK-0898G). Specifications subject to revision — consult current GE documentation for safety-critical applications.
Proven Application Environments
- Petrochemical Refining: Distillation column control systems | Solenoid valve actuation on feed/reflux lines | Continuous 24/7 duty cycle with ambient temperatures up to 55°C
- Power Generation: Coal and gas-fired plant auxiliary systems | Motor starter and contactor control for cooling water pumps | High-cycle switching with inductive loads requiring internal flyback protection
- Municipal Water Treatment: SCADA-integrated pump station control | Chlorination dosing pump enable/disable | Wet environment panels with sealed enclosures, module operating at lower end of humidity range
- Automotive Manufacturing: Body-in-white welding line PLC racks | Pneumatic cylinder solenoid control at high switching rates | Multi-zone output grouping aligned to machine safety zones
- Pulp & Paper: Digester and bleaching process control | Conveyor drive enable signals and indicator lamp arrays | Mixed load types within 0.5A per-point constraint
- Food & Beverage Processing: CIP (Clean-in-Place) sequence control | Valve manifold actuation in hygienic process areas | Washdown-rated enclosures with module protected from direct moisture exposure
Engineering Advantages
- For high-density I/O applications, this output module delivers 32 points per rack slot, because the single-slot form factor maximizes backplane utilization in space-constrained control panels without requiring additional rack expansion.
- For inductive load switching (solenoids, relays, motor starters), this output module protects field wiring and adjacent outputs, because each output incorporates an internal flyback diode that clamps inductive kickback without external suppression components.
- For high-cycle-rate applications such as pneumatic valve control, this output module sustains reliable switching, because solid-state DC sourcing outputs have no mechanical wear mechanism, unlike relay-type alternatives.
- For fault-tolerant process control, this output module enables rapid fault isolation, because the 4-group common structure allows independent field power feeds per group, limiting the blast radius of a field wiring fault to 8 points.
- For legacy system maintenance and brownfield expansion, this output module integrates without firmware changes, because it is fully backward-compatible with all Series 90-30 CPUs (IC693CPU311 through IC693CPU374) and existing I/O configuration tables.
- For applications requiring electronic short-circuit protection, this output module eliminates fuse replacement downtime, because the auto-reset electronic protection clears transient faults without manual intervention or blown-fuse diagnostics.
System Architecture & Signal Flow
Signal Flow: CPU logic coil state → backplane data bus → IC693MDL740 output register → optocoupler isolation stage → power transistor (sourcing) → field terminal → load → field common (per group). The module sources current from the field power supply (user-supplied 12/24 VDC) through the load to the common terminal. The backplane interface is galvanically isolated from the field side at 1500 VAC.
Compatible Hardware:
- Baseplates: IC693CHS391 (5-slot), IC693CHS397 (10-slot), IC693CHS398 (10-slot with expansion), IC693CHS399 (5-slot with expansion) — compatible because all share the Series 90-30 backplane bus standard
- CPUs: IC693CPU311, IC693CPU313, IC693CPU321, IC693CPU323, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU351, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374 — compatible because the module uses standard discrete I/O addressing with no CPU-specific firmware dependency
- Power Supplies: IC693PWR321, IC693PWR322, IC693PWR330, IC693PWR331 — field power is user-supplied separately from backplane 5 VDC
Substitution Conditions: The IC693MDL741 (relay output) may substitute when load isolation per point is required or AC loads are present, at the cost of switching speed and cycle life. The IC693MDL742 may substitute when per-point current exceeds 0.5A (up to 2A), accepting reduced point count per slot. Direct substitution with non-GE third-party modules requires verification of backplane bus protocol compatibility and is not recommended for safety-instrumented systems.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from authorized distribution channels, decommissioned OEM equipment, and verified industrial surplus. Each unit undergoes a structured pre-shipment inspection process:
- Visual Inspection: PCB examination for burn marks, cracked components, corroded terminals, and damaged connector pins. Label integrity and firmware revision marking verified.
- Functional Test: Module seated in Series 90-30 test rack with known-good CPU. All 32 output points exercised individually under resistive load. Leakage current and ON-state voltage drop measured against datasheet limits.
- Isolation Test: Hi-pot test at 1500 VAC between field terminals and backplane connector to verify isolation integrity.
- Documentation Package: Test report generated with point-by-point results, serial number, and inspection date.
Available Documentation on Request: Functional test report | Hi-pot test certificate | Country of origin declaration | RoHS compliance statement | GE original datasheet (GFK-0898)
Procurement Process
- Inquiry Submission: Submit part number, required quantity, and delivery timeline via email to support@konmask.com or by phone at +0086 19859288691. Include application context if compatibility verification is needed.
- Quotation & Availability Confirmation: A response with pricing, stock status, lead time, and available documentation is provided within 24 hours on business days. Expedited response available for urgent plant shutdown requirements.
- Order Fulfillment: Orders confirmed with payment are processed for same-day or next-business-day dispatch. Export documentation (commercial invoice, packing list, certificate of origin) prepared for international shipments. Technical support is available post-delivery for installation verification and compatibility questions.
Technical Support Types Available: Pre-sales compatibility verification | Wiring diagram review | Replacement identification for obsolete part numbers | Post-installation fault diagnosis guidance
Technical FAQ
Q: Is the IC693MDL740 compatible with the IC693CPU374 (the last production Series 90-30 CPU)?
A: Yes. The IC693MDL740 is compatible with all Series 90-30 CPUs including the IC693CPU374. The module uses standard discrete output addressing and requires no special configuration beyond assigning the I/O slot in the hardware configuration table (Proficy Machine Edition or earlier programming software). No firmware update to the CPU is required.
Q: Can the IC693MDL741 relay output module substitute for the IC693MDL740 in an existing rack without hardware changes?
A: The IC693MDL741 occupies the same rack slot and uses the same 40-pin connector, so physical installation is identical. However, the relay module has a different I/O point count (16 points vs. 32) and requires re-addressing in the CPU hardware configuration. The field wiring commons are also structured differently. A direct drop-in substitution requires hardware configuration modification and field wiring review — it is not a transparent replacement.
Q: Is the IC693MDL740 certified for use in Class I, Division 2 hazardous locations (petrochemical applications)?
A: The IC693MDL740 itself is UL 508 and CSA certified for industrial control equipment but is not independently rated for Class I, Division 2 installation. For hazardous location compliance, the module must be installed within a purged and pressurized enclosure (NFPA 496 Type X or Type Z) or an explosion-proof enclosure rated for the specific gas group and temperature class. The system-level hazardous location certification depends on the enclosure and installation method, not the module alone. Consult the applicable NEC/CEC articles and the AHJ for project-specific approval.
