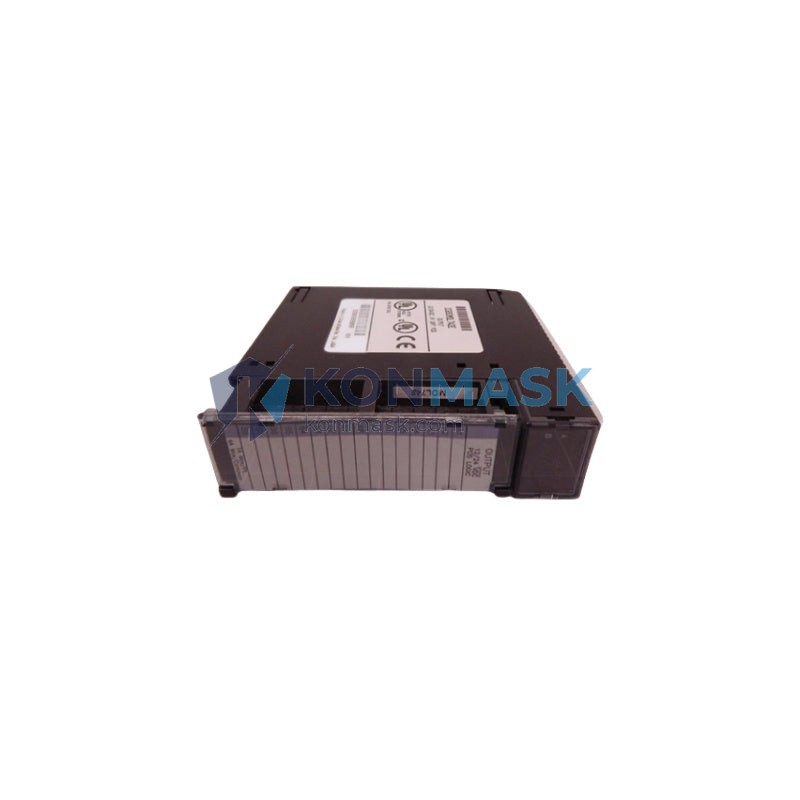

GE IC693MDL742E – 16-Point Positive Logic Output Module | Series 90-30 PLC
Engineering Background
The GE IC693MDL742E is a discrete output module engineered for the GE Fanuc Series 90-30 programmable logic controller platform — one of the most widely deployed mid-range PLC families in North American and global industrial automation. Designed to interface directly with field devices operating on 12/24 VDC positive logic (sourcing) architectures, this module delivers deterministic, high-cycle switching performance in demanding production environments.
Product Positioning
Targeting procurement engineers and MRO specialists managing Series 90-30 installations, the IC693MDL742E serves as a direct OEM replacement or capacity-expansion module. Its 16-point density, compact form factor, and native compatibility with the Series 90-30 backplane make it the preferred choice for facilities requiring minimal downtime during module swap-outs or system expansions.
Complete Technical Specifications
| Part Number | IC693MDL742E |
| Manufacturer | GE Fanuc / GE Automation & Controls |
| Module Type | Discrete Output — Positive Logic (Sourcing) |
| Output Points | 16 Points |
| Output Voltage Range | 12 VDC / 24 VDC |
| Logic Type | Positive Logic (Source Output) |
| Output Current per Point | 0.5 A (typical) |
| Compatible Platform | GE Series 90-30 PLC |
| Backplane Interface | Series 90-30 I/O Bus |
| Isolation | Optical isolation between field and logic circuits |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Weight | 300 g (approx.) |
| Form Factor | Single-slot Series 90-30 module |
| Status Indicators | Per-point LED output status indicators |
| Standards Compliance | UL Listed; CE Marked |
Proven Application Environments
- Automotive Assembly Lines — Solenoid valve and actuator control in body-in-white and powertrain lines
- Food & Beverage Processing — Conveyor drive enable signals and filling machine sequencing
- Water & Wastewater Treatment — Pump start/stop and valve actuation in SCADA-integrated systems
- Oil & Gas Facilities — Wellhead and pipeline control panel I/O expansion
- Pharmaceutical Manufacturing — Batch process control with validated PLC architectures
- Material Handling & Logistics — Sortation system output control and conveyor routing
- Power Generation & Utilities — Auxiliary equipment control in turbine and substation panels
Engineering Advantages
- Positive Logic (Sourcing) Architecture — Directly drives NPN-input field devices without external relay interposing, reducing panel wiring complexity and failure points
- 16-Point Density — High channel count per slot minimizes rack space consumption and reduces per-point hardware cost
- Optical Isolation — Galvanic separation between PLC logic bus and field wiring protects the CPU from field-side transients and ground loops
- Per-Point LED Indicators — Enables rapid field diagnostics without a programming terminal; reduces MTTR during troubleshooting
- Hot-Swap Compatible — Supports module replacement under power in appropriately configured Series 90-30 racks, minimizing production downtime
- OEM-Grade Reliability — Manufactured to GE Fanuc production specifications with full traceability
System Architecture & Signal Flow
The IC693MDL742E occupies a single I/O slot in any Series 90-30 baseplate (5-slot, 10-slot, or expansion). The CPU or Bus Controller addresses the module via the Series 90-30 I/O bus. On each output point, the PLC logic signal passes through an optical isolator to a solid-state sourcing driver. When the output is commanded ON, the driver sources current from the field-side 12/24 VDC supply through the load (solenoid, relay coil, indicator lamp, etc.) to the common return. Per-point LED indicators mirror the commanded output state, providing real-time visual feedback at the module face.
Wiring Note: Field power supply common (0 VDC) must be connected to the module’s field common terminal. Each output point connects to the positive terminal of the field device load. Refer to GE publication GFK-0356 (Series 90-30 I/O Module Specifications) for terminal block wiring diagrams and derating curves.
Sourcing & Quality Verification
- Authentic OEM Units — Sourced through verified industrial automation supply channels; no grey-market or counterfeit exposure
- Pre-Shipment Inspection — Each module undergoes visual inspection for physical integrity, label authenticity, and connector condition
- Functional Test Available — Bench-tested units available on request; test reports provided upon inquiry
- Traceability — Lot and date codes documented; available for regulated-industry procurement requirements
- Packaging — Anti-static bag + foam-lined carton; ESD-safe handling throughout fulfillment
- Warranty — 12-month warranty against manufacturing defects; DOA replacement policy
Procurement Process
- Step 1 — Confirm Part Number: Verify IC693MDL742E against your BOM or existing module label (revision suffix E)
- Step 2 — Request Quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation
- Step 3 — Submit PO: Purchase orders accepted via email; Net-30 terms available for qualified accounts
- Step 4 — Shipment: Standard dispatch within 1–3 business days; expedited shipping available for AOG/emergency requirements
- Step 5 — Incoming Inspection: Recommended IQC checklist provided upon request to support your receiving process
Technical FAQ
Q: Is the IC693MDL742E compatible with all Series 90-30 baseplates?
A: Yes. The module is compatible with all standard Series 90-30 baseplates (IC693CHS391, IC693CHS392, IC693CHS393, and expansion units) without hardware modification.
Q: What is the difference between positive logic (sourcing) and negative logic (sinking) output modules?
A: Positive logic (sourcing) outputs supply current from the module to the field device load. Negative logic (sinking) outputs provide a current return path. The IC693MDL742E is a sourcing module; ensure your field devices have NPN-compatible inputs or use appropriate interposing relays for PNP-input devices.
Q: Can this module replace an IC693MDL742 (without the E suffix)?
A: The E suffix denotes a revision level. In most applications the IC693MDL742E is a direct functional replacement for earlier revisions. Confirm with your GE documentation or contact our technical team for application-specific validation.
Q: What is the maximum inrush current the module can handle?
A: Refer to GFK-0356 for inrush derating data. For lamp or capacitive loads with high inrush, consult the derating curves to ensure per-point current limits are not exceeded.
Q: Do you provide MSDS / RoHS documentation?
A: RoHS compliance documentation and material declarations are available upon request for regulated procurement processes.
