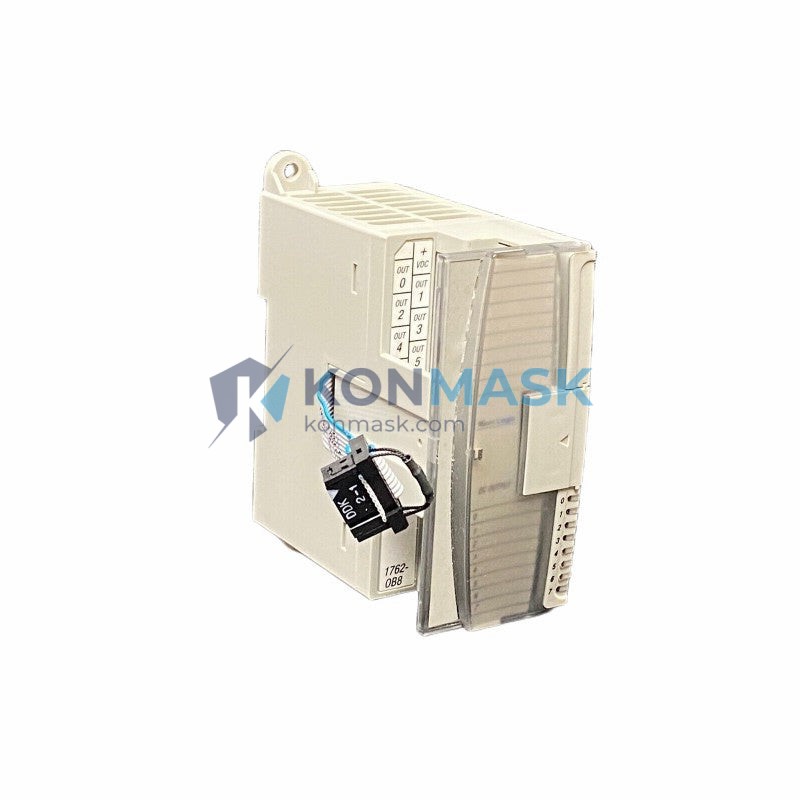

Allen-Bradley 1762-OA8 AC Digital Output Module – MicroLogix Expansion I/O Series
When a critical AC output channel fails on a MicroLogix controller, the consequences cascade instantly — conveyor lines halt, HVAC systems lose control, and production supervisors face unplanned downtime that costs thousands per hour. The Allen-Bradley 1762-OA8 is the precision-engineered solution that keeps those eight AC output circuits alive and reliable, delivering the switching capacity and electrical isolation that industrial environments demand. Without it, your MicroLogix system simply cannot drive the solenoids, contactors, and motor starters that modern automation depends on.
Within the MicroLogix 1762 expansion I/O family, the 1762-OA8 occupies a foundational role: it is the standard 8-point AC discrete output module designed for 120/240 VAC field devices. Globally, it is one of the most widely deployed output modules in the MicroLogix ecosystem, trusted by OEMs and system integrators across food & beverage, water treatment, HVAC, and light manufacturing. Its combination of compact DIN-rail form factor, broad voltage compatibility, and Rockwell Automation’s proven reliability makes it a benchmark product in the sub-compact PLC segment.
Technical Specifications
- Catalog Number: 1762-OA8
- Output Type: Discrete AC (Triac)
- Number of Outputs: 8 points
- Output Voltage Range: 74–265 VAC, 47–63 Hz
- Maximum Load Current: 0.5 A per point (continuous); 2 A surge
- Maximum Total Current: 4 A per module
- Minimum Load Current: 10 mA per point
- Output Groups: 2 groups of 4 points (isolated commons)
- Isolation: 1500 VAC optical isolation (field side to logic side)
- Backplane Current Draw: 75 mA @ 5 VDC
- Power Dissipation: 4.5 W maximum
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5–95% non-condensing
- Enclosure Rating: Open type (IP20)
- Dimensions (H × W × D): 90 × 40 × 87 mm
- Weight: Approx. 100 g
- Compatible Controllers: MicroLogix 1100, 1200, 1500
- Certifications: UL, CE, C-Tick
Note: All specifications are sourced from Rockwell Automation official documentation. Konmask.com does not fabricate or alter technical data.
Key Features & Benefits
- 8 Independent AC Output Points — Drive solenoid valves, contactors, pilot lights, and motor starters directly from the module without additional relays.
- Wide Voltage Compatibility (74–265 VAC) — Operates seamlessly on both 120 VAC (North America) and 240 VAC (Europe/Asia) field wiring, reducing the need for separate module variants across global installations.
- Optical Isolation (1500 VAC) — Protects the PLC backplane and CPU from field-side voltage transients, ground loops, and electrical noise common in industrial environments.
- Dual Isolated Output Groups — Two groups of 4 points with separate commons allow mixed-voltage field devices on a single module, maximizing wiring flexibility.
- Compact DIN-Rail Form Factor — 40 mm wide profile integrates neatly into MicroLogix panel layouts without consuming excessive cabinet space.
- Plug-and-Play Expansion — Connects directly to MicroLogix 1100/1200/1500 via the right-side expansion port; no additional power supply required for the module itself.
- Rockwell Automation Ecosystem Compatibility — Fully supported in RSLogix 500 / Studio 5000 Logix Designer for seamless I/O configuration and diagnostics.
Industry & Equipment Applications
- Food & Beverage Processing — Controlling pneumatic solenoids on filling lines, conveyor diverters, and CIP valve manifolds.
- HVAC & Building Automation — Switching fan contactors, damper actuators, and pump starters in air handling units.
- Water & Wastewater Treatment — Operating pump motor starters, UV lamp ballasts, and chemical dosing solenoids.
- Packaging Machinery — Driving sealing bar heaters, label applicator solenoids, and reject gate actuators.
- Light Manufacturing & Assembly — Controlling indicator lamps, alarm horns, and small motor contactors on assembly stations.
- OEM Machine Building — Standard output module for compact machine panels where MicroLogix 1100/1200 is the controller platform.
System Integration & Compatible Parts
The 1762-OA8 is part of the Allen-Bradley MicroLogix 1762 expansion I/O family. Common companion modules and controllers include:
- 1762-IQ8 — 8-Point 24 VDC Sink/Source Digital Input Module
- 1762-IQ16 — 16-Point 24 VDC Digital Input Module
- 1762-OW8 — 8-Point Relay Output Module (for mixed AC/DC loads)
- 1762-IF4 — 4-Channel Analog Input Module
- 1762-OF4 — 4-Channel Analog Output Module
- 1763-L16AWA — MicroLogix 1100 Controller (120/240 VAC power, relay outputs)
- 1762-L24AWA — MicroLogix 1200 Controller (AC power, relay outputs)
- 1764-LSP — MicroLogix 1500 Base Unit
Contact our technical team to verify compatibility with your specific controller revision and firmware version before ordering.
Our Quality Assurance Process
Every Allen-Bradley 1762-OA8 module shipped from Konmask.com undergoes a structured verification process:
- Source Verification — Modules are sourced from authorized distributors, certified resellers, or directly from decommissioned OEM equipment with documented provenance.
- Visual Inspection — Housing integrity, connector condition, label legibility, and absence of physical damage are checked against Rockwell Automation reference standards.
- Functional Testing — Where applicable, output switching and backplane communication are verified using MicroLogix test rigs prior to dispatch.
- Anti-Counterfeit Screening — PCB markings, component dates, and firmware identifiers are cross-referenced to detect non-genuine parts.
- Secure Packaging — Modules are packed in ESD-safe bags with foam cushioning and clearly labeled for safe international transit.
How to Order
- Submit an Inquiry — Use the contact form or email support@konmask.com with your required quantity, delivery timeline, and destination country.
- Receive a Quotation — Our team will respond within 1 business day with pricing, lead time, and shipping options.
- Confirm & Pay — Orders are confirmed upon receipt of payment via T/T (bank transfer), PayPal, or other agreed methods.
- Dispatch & Tracking — Modules are dispatched within 1–3 business days with full tracking information provided.
- After-Sales Support — Our technical team remains available post-delivery for integration questions and warranty claims.
Why Choose Konmask.com?
- Industrial Automation Specialists — We focus exclusively on PLC, DCS, and automation hardware — not a generalist marketplace.
- Global B2B Export Experience — Serving system integrators, OEMs, and MRO buyers across Asia, Europe, the Middle East, and the Americas.
- Technical Pre-Sales Support — Our engineers can advise on module compatibility, wiring configurations, and system architecture before you commit to an order.
- Competitive Pricing on Genuine Parts — Direct sourcing relationships allow us to offer market-competitive pricing without compromising authenticity.
- Fast Response, Reliable Delivery — Inquiries answered within 24 hours; orders dispatched with full documentation and tracking.
Frequently Asked Questions
Q: Is the 1762-OA8 compatible with MicroLogix 1100?
A: Yes. The 1762-OA8 is fully compatible with MicroLogix 1100, 1200, and 1500 controllers via the standard 1762 expansion bus.
Q: What is the maximum current per output point?
A: The module supports 0.5 A continuous per point, with a 2 A surge rating. Total module current must not exceed 4 A.
Q: Can I mix 120 VAC and 240 VAC devices on the same module?
A: Yes, provided they are wired to separate output groups (Group 1: points 0–3; Group 2: points 4–7), each with its own isolated common terminal.
Q: Do you supply new or refurbished units?
A: We supply both new-in-box and tested/refurbished units depending on availability. The condition is clearly stated in your quotation. All units pass our QA process regardless of condition.
Q: How long does international shipping take?
A: Typical transit times are 5–10 business days for express courier (DHL/FedEx/UPS) to most destinations. Economy options are available for non-urgent orders.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. Official Rockwell Automation documentation is available upon request. Contact support@konmask.com.
