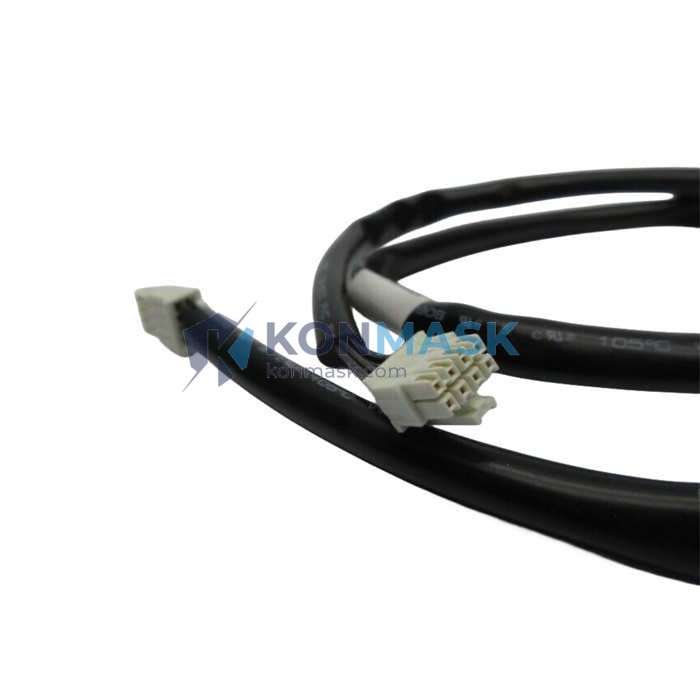

GE IC695CBL001A – Serial Port Programming Cable | PACSystems RX3i Platform
Engineering Background
The GE IC695CBL001A is the factory-designated serial programming cable for the GE PACSystems RX3i control platform. Designed to interface directly between a standard RS-232 serial port (or USB-to-serial adapter) on an engineering workstation and the CPU serial port on RX3i rack-mounted CPUs, this cable is an essential commissioning and maintenance tool for any PACSystems RX3i installation. It enables direct firmware downloads, logic uploads/downloads, and real-time diagnostics via Proficy Machine Edition (PME) software.
Product Positioning
Targeted at automation engineers, system integrators, and maintenance teams operating GE PACSystems RX3i environments, the IC695CBL001A eliminates the need for custom cable fabrication and ensures signal integrity compliant with GE’s hardware specifications. It is the recommended cable for initial CPU commissioning, field troubleshooting, and firmware maintenance tasks where Ethernet connectivity is unavailable or impractical.
Complete Technical Specifications
- Part Number: IC695CBL001A
- Manufacturer: GE (General Electric / GE Automation & Controls)
- Compatible Platform: PACSystems RX3i
- Cable Type: Serial RS-232 Programming / Configuration Cable
- Connector A (CPU Side): RJ-45 (8P8C) — mates with RX3i CPU serial port
- Connector B (PC Side): DB-9 Female (RS-232 DTE)
- Cable Length: Approximately 1.8 m (6 ft)
- Signal Standard: RS-232C
- Compatible CPUs: IC695CPU310, IC695CPU315, IC695CPU320, IC695CPU330, IC695CPE302, IC695CPE305, IC695CPE310, IC695CPE330, IC695CPE400 and other RX3i CPU variants with serial port
- Software Interface: Proficy Machine Edition (PME) — SNP/SRTP protocol
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Weight: Approx. 150 g
- RoHS Compliant: Yes
Proven Application Environments
- Initial CPU commissioning and logic download during plant startup
- Field firmware upgrades and CPU configuration backup
- Maintenance diagnostics when Ethernet network access is restricted or unavailable
- Factory acceptance testing (FAT) and site acceptance testing (SAT) environments
- Oil & gas, water treatment, power generation, and discrete manufacturing facilities running PACSystems RX3i
- Redundant CPU systems requiring direct serial access for individual CPU maintenance
Engineering Advantages
- OEM-Specified Pinout: Eliminates wiring errors common with field-fabricated cables; fully compliant with GE hardware documentation
- Plug-and-Play Compatibility: Recognized immediately by Proficy Machine Edition without driver configuration
- Robust Connector Construction: Strain-relieved connectors rated for repeated field connect/disconnect cycles
- USB Adapter Compatible: Works reliably with standard USB-to-RS232 adapters (FTDI chipset recommended) for modern laptops without native COM ports
- Compact Form Factor: Lightweight and portable — suitable for field service kits
System Architecture & Signal Flow
The IC695CBL001A connects the engineering workstation’s COM port (DB-9 Female, RS-232) to the RX3i CPU’s RJ-45 serial port. Communication is established via the SNP (Serial Natural Protocol) or SRTP protocol layer within Proficy Machine Edition. The cable carries TXD, RXD, RTS, CTS, and GND signals with the pinout adapted from standard RS-232 DTE to the RX3i CPU’s proprietary RJ-45 serial interface. No external power supply is required; the cable is passive (non-powered).
Typical Connection Path: Engineering PC (COM Port / USB-RS232 Adapter) → IC695CBL001A → RX3i CPU Serial Port (RJ-45) → PME SNP Session
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with documented chain of custody
- Pre-shipment inspection includes connector integrity check, cable continuity test, and visual inspection for OEM markings
- Packaging inspected for tamper evidence; original GE labeling verified where applicable
- Konmask.com maintains traceability records for all stocked units
- 30-day return policy for DOA (Dead on Arrival) units with full replacement or refund
Procurement Process
- Step 1: Confirm CPU model compatibility (refer to Compatible CPUs list above)
- Step 2: Add IC695CBL001A to cart and proceed to checkout
- Step 3: Select preferred shipping method — express options available for urgent plant requirements
- Step 4: Receive order confirmation with tracking; typical lead time 1–3 business days for in-stock units
- Step 5: For volume orders (>5 units) or project-based procurement, contact support@konmask.com for a formal quotation
Technical FAQ
Q: Can IC695CBL001A be used with PACSystems RX7i or RSTi-EP CPUs?
A: No. The IC695CBL001A is specifically designed for RX3i CPUs. RX7i and RSTi-EP platforms use different serial port configurations and require separate cables.
Q: My laptop has no COM port. Can I use a USB-to-serial adapter?
A: Yes. FTDI-chipset USB-to-RS232 adapters are widely compatible. Prolific PL2303 adapters may require specific driver versions — FTDI is recommended for reliability.
Q: What baud rate should I configure in Proficy Machine Edition?
A: PME auto-negotiates baud rate via SNP. Default is typically 19200 baud; refer to your CPU’s hardware reference manual for supported rates.
Q: Is this cable compatible with GE Series 90-30 PLCs?
A: No. Series 90-30 uses a different serial cable (IC693CBL316 or similar). IC695CBL001A is exclusive to the PACSystems RX3i platform.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes, upon request for volume orders. Contact support@konmask.com with your order number.
