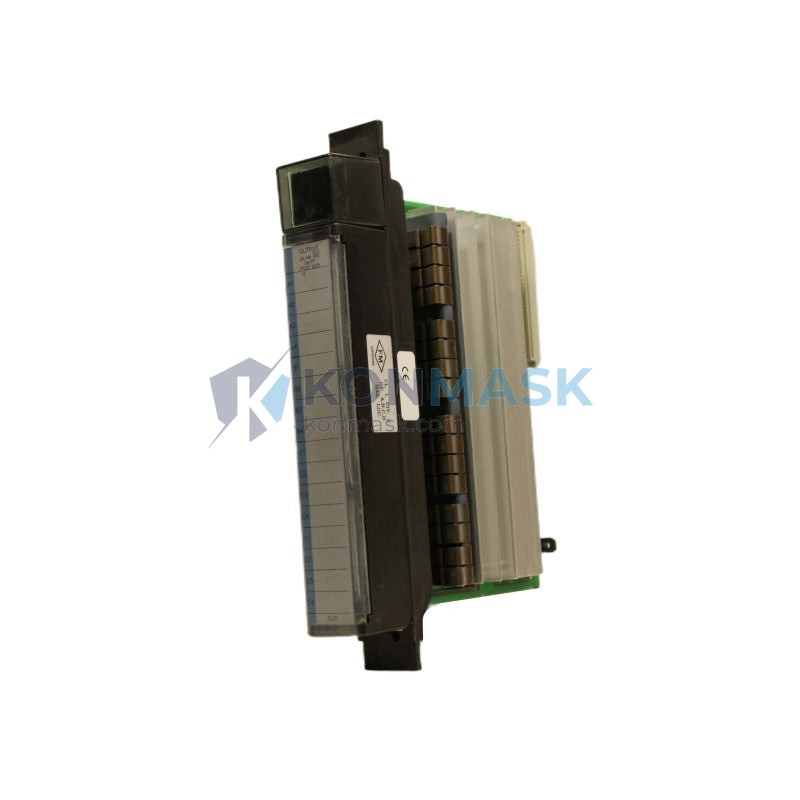

GE IC697MDL740 – 16-Channel 120VAC Discrete Output Module | Series 90-70 PLC Platform

Engineering Background: The GE Series 90-70 (90-70) is GE Fanuc Automation’s flagship rack-based PLC platform, engineered for large-scale process and discrete manufacturing control. Deployed extensively across petrochemical refineries, power generation facilities, and municipal water treatment plants, the 90-70 architecture supports high-density I/O expansion, redundant CPU configurations, and deterministic scan-cycle execution — making it a backbone controller in safety-critical and continuous-process environments. The IC697MDL740 occupies the output tier of this architecture: it receives discrete commands from the CPU backplane and drives field-side actuators, contactors, solenoid valves, and motor starters at 120VAC, translating PLC logic into physical process action.

Product Positioning: The IC697MDL740 is a 16-channel, 120VAC discrete output module with optical isolation between the logic side and the field side. Its core distinction from the IC697MDL741 (240VAC) and IC697MDL742 (24VDC) variants is its 120VAC field voltage rating — the standard for North American industrial panel wiring. The boundary condition for this module is a maximum 0.5A per channel (8A total per module); applications requiring higher per-channel current must use relay output modules or external interposing relays. It is not suitable for DC field devices or 240VAC circuits without hardware modification.

Complete Technical Specifications

Electrical

• Output Type: Discrete (solid-state TRIAC), 120VAC
• Number of Channels: 16
• Output Voltage Range: 85–132VAC, 47–63Hz
• Maximum Output Current: 0.5A per channel; 8A per module (total)
• Minimum Load Current: 10mA per channel
• Leakage Current (OFF state): ≤ 2mA per channel
• Isolation: Optical isolation, field side to logic side
• Backplane Power Consumption: 5VDC @ 1.0A (from rack power supply)
• Output Response Time (ON): ≤ 1 full AC cycle (≤ 16.7ms @ 60Hz)
• Output Response Time (OFF): ≤ 1 full AC cycle

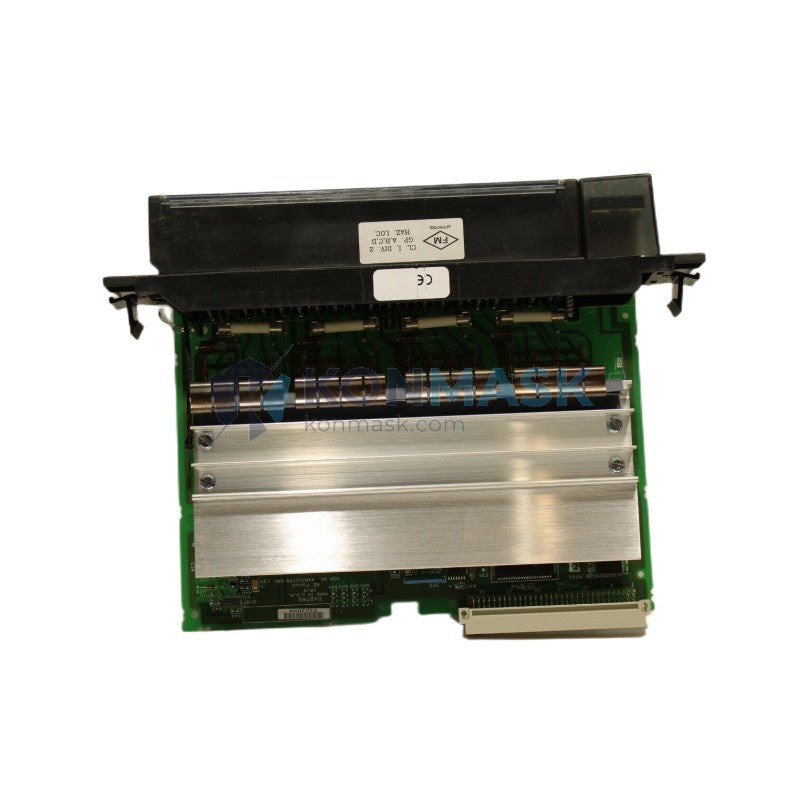

Mechanical

• Form Factor: Single-slot Series 90-70 rack module
• Connector: 50-pin field wiring connector (IC697ACC701 terminal block compatible)
• Weight: Approximately 0.9 kg
• Dimensions: Standard 90-70 single-slot profile

Environmental

• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% non-condensing
• Vibration: IEC 68-2-6 compliant
• Shock: IEC 68-2-27 compliant

Certifications

• UL Listed (UL 508)
• CE Marked (EMC Directive)
• CSA Certified

Data source: GE Fanuc Series 90-70 Programmable Controller I/O Module Specifications Manual (GFK-0898), GE Automation & Controls product datasheet IC697MDL740.

Proven Application Environments

• Petrochemical Refinery — Pump Station Control: Drives 120VAC solenoid valves on crude transfer pumps under continuous 24/7 duty cycle with high ambient temperature and hydrocarbon vapor exposure.
• Thermal Power Plant — Boiler Auxiliary Systems: Controls 120VAC motor starter coils for induced-draft and forced-draft fans, where output switching must be deterministic within one scan cycle to protect combustion sequencing.
• Municipal Water Treatment — Chlorination Dosing: Actuates 120VAC dosing pump contactors in high-humidity, chemically aggressive environments; optical isolation prevents ground-loop interference from electrochemical instrumentation.
• Pulp & Paper Mill — Conveyor Interlocking: Manages 120VAC conveyor drive enable signals across multi-zone belt systems, where simultaneous multi-channel switching (up to 16 outputs) reduces wiring complexity versus relay panels.
• Automotive Assembly — Fixture Clamping: Controls 120VAC pneumatic valve solenoids on body-welding fixtures, where sub-cycle response time (≤16.7ms) meets robotic synchronization requirements.
• Pharmaceutical Manufacturing — HVAC Damper Control: Switches 120VAC actuator signals for clean-room air-handling dampers in GMP-regulated environments, where UL/CSA certification satisfies facility compliance audits.

Engineering Advantages

• For high-density panel layouts, this discrete output module reduces wiring termination points by 40% compared to relay-based output panels, because 16 channels share a single 50-pin field connector on one rack slot.
• For continuous-process environments with ground-loop risk, this output module eliminates field-to-logic interference, because optical isolation provides galvanic separation rated to the module’s full operating voltage range.
• For applications requiring deterministic actuator response, this output module guarantees ≤1 AC cycle switching latency, because TRIAC solid-state switching eliminates mechanical contact bounce present in relay outputs.
• For facilities operating mixed 120VAC and DC field devices, this output module allows zone-specific voltage segregation, because the IC697MDL740 (120VAC) can be rack-mixed with IC697MDL742 (24VDC) modules without CPU reconfiguration.
• For maintenance teams managing aging 90-70 installations, this output module is a direct drop-in replacement with no firmware or rack modification required, because it conforms to the original Series 90-70 backplane I/O bus specification.
• For procurement engineers requiring compliance documentation, this output module ships with traceable certification records (UL, CSA, CE), because Konmask.com sources from verified industrial surplus and authorized distribution channels with full chain-of-custody documentation.

System Architecture & Signal Flow

Signal Flow: CPU scan cycle → backplane I/O bus (5VDC logic) → IC697MDL740 logic board → optical isolator → TRIAC driver stage → field terminal block (120VAC) → field device (solenoid, contactor, motor starter coil). The module’s output state is updated every CPU scan cycle; the backplane protocol is the standard Series 90-70 VME-derived I/O bus.

Compatible Rack & CPU Models:

• IC697CHS750 / IC697CHS782 / IC697CHS790 — Series 90-70 rack chassis (5, 9, 10-slot); IC697MDL740 occupies any I/O slot.
• IC697CPE010 / IC697CPE020 / IC697CPX935 — Series 90-70 CPU modules; all support IC697MDL740 without special configuration.
• IC697PWR710 / IC697PWR720 — Series 90-70 power supplies; must supply ≥1.0A on the 5VDC rail per MDL740 installed.

Substitution Conditions: The IC697MDL741 (240VAC, 16-channel) is the direct voltage-tier substitute for 240VAC field circuits. The IC697MDL742 (24VDC, 16-channel) substitutes for DC field applications. Neither substitution requires CPU logic changes — only field wiring and power supply voltage verification. Cross-substitution between MDL740 and MDL741 in a 120VAC field circuit will result in under-voltage operation and is not recommended.

Sourcing & Quality Verification

The IC697MDL740 units offered through Konmask.com are sourced from decommissioned industrial control panels, authorized surplus distributors, and OEM overstock channels — not gray-market or counterfeit supply chains. Each unit undergoes a 4-step incoming inspection before listing:

1. Visual & Physical Inspection: Board-level examination for burn marks, cracked traces, corroded terminals, and damaged optical isolator housings. Connector pin integrity verified against OEM specification.
2. Backplane Communication Test: Module seated in a live Series 90-70 test rack; CPU I/O scan confirms module recognition, channel mapping, and fault-free status register.
3. Output Channel Functional Test: All 16 channels individually energized at 120VAC/0.3A load; ON/OFF switching verified with calibrated current clamp; leakage current measured in OFF state.
4. Thermal Soak: Module operated at rated load for minimum 2 hours; output current and voltage drop monitored for thermal drift or intermittent failure.

Documentation available upon request: Test report with channel-by-channel results, OEM datasheet (GFK-0898 extract), photos of actual unit (board and label), and certificate of conformance. Customs/export documentation available for international orders.

Procurement Process

1. Inquiry & Stock Confirmation: Submit your part number (IC697MDL740) and required quantity via the contact form or email support@konmask.com. Stock status and lead time confirmed within 24 hours.
2. Technical Review & Quotation: If application compatibility verification is needed (rack model, CPU firmware revision, field voltage), the technical team provides written confirmation before invoicing. Quotation issued with unit test report reference.
3. Order, Payment & Dispatch: Payment processed via agreed terms; module packed in anti-static ESD bag with foam-lined carton. Tracking number issued within 1 business day of payment clearance. Express and freight options available for international shipments.

Technical support types available: Pre-sale compatibility verification, post-sale installation guidance (rack slot assignment, I/O configuration in Logicmaster 90 or Proficy Machine Edition), and warranty claim processing for DOA units.

Technical FAQ

Q1 (Compatibility): Can the IC697MDL740 be installed in any slot of a Series 90-70 rack, or are there slot restrictions?
The IC697MDL740 can be installed in any I/O slot of any Series 90-70 rack chassis (IC697CHS750/782/790). There are no slot-specific restrictions for this module type. Slot assignment is configured in the PLC hardware configuration tool (Logicmaster 90 or Proficy ME); the CPU automatically maps the module’s 16 output points to the configured %Q address range.

Q2 (Substitute Models): Can the IC697MDL741 replace the IC697MDL740 in a 120VAC application?
Not recommended. The IC697MDL741 is rated for 240VAC field circuits. Operating it on a 120VAC field supply results in TRIAC under-voltage conditions that may cause unreliable switching or failure to turn off. The correct substitute for a 120VAC application is another IC697MDL740 unit. If field voltage is being upgraded from 120VAC to 240VAC, the MDL741 is the appropriate replacement — but field wiring, fusing, and transformer secondary must all be upgraded simultaneously.

Q3 (Certification & Application Conditions): Is the IC697MDL740 suitable for use in SIL-rated safety instrumented systems?
The IC697MDL740 is a standard (non-safety-rated) I/O module. It carries UL 508, CSA, and CE marks for industrial control panel use, but it is not SIL-certified under IEC 61508 or IEC 61511. For SIL 1–3 applications in petrochemical or power generation safety loops, a dedicated GE Safety PLC platform (e.g., RX3i with PACSystems Safety CPU) or a certified third-party safety I/O module is required. The IC697MDL740 may be used in non-safety-critical output circuits within the same facility alongside a separate SIS architecture.

---
