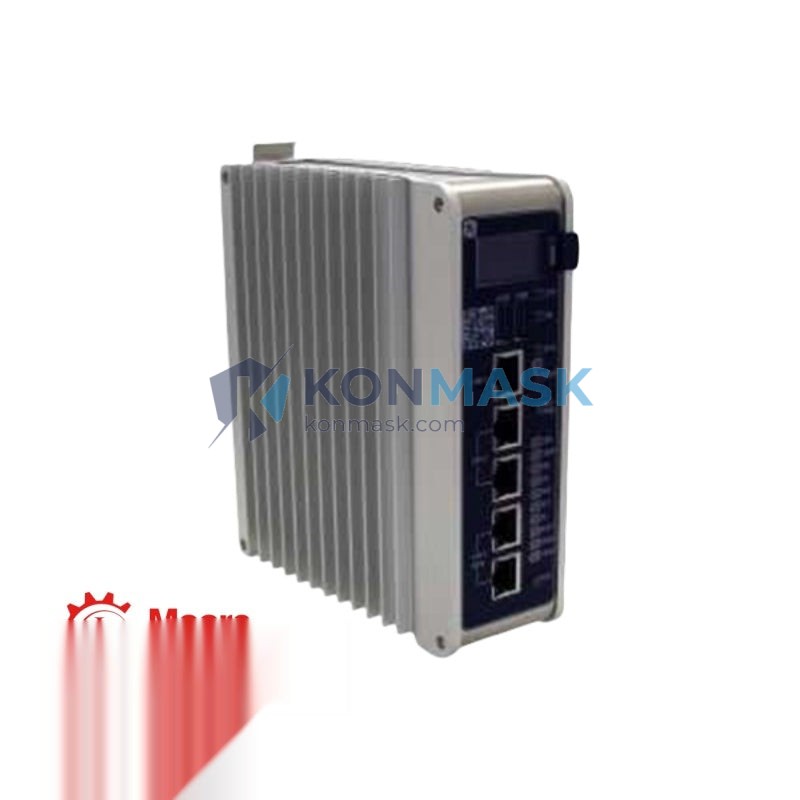

GE IC695CPE400 – High-Performance CPU Module | PACSystems RX3i Platform
Engineering Background: The GE IC695CPE400 is the flagship CPU module of the PACSystems RX3i control platform — GE Automation & Controls’ premier industrial PLC architecture designed for mission-critical process and discrete manufacturing environments. Built on a dual-core 1.1 GHz Intel Atom processor, this module delivers deterministic real-time control with the processing headroom required for complex ladder logic, function block diagrams, and structured text programs running simultaneously.
Product Positioning: Targeted at procurement engineers and system integrators sourcing a proven, high-availability CPU for new installations or legacy RX3i system expansions, the IC695CPE400 is the direct successor to the IC695CPE330/CPE302 family. It is the recommended CPU for applications demanding high-speed I/O scanning, large program memory, and integrated dual Ethernet ports — eliminating the need for a separate Ethernet interface module.
Complete Technical Specifications
- Part Number: IC695CPE400
- Platform: PACSystems RX3i
- Processor: 1.1 GHz Dual-Core Intel Atom
- Program Memory: 64 MB (user logic + data)
- Battery-Backed RAM: 512 KB
- Ethernet Ports: 2 × 10/100/1000 Mbps (RJ-45), embedded
- Serial Ports: 1 × RS-232 (front panel)
- USB Port: 1 × USB 2.0 (programming / firmware update)
- Backplane Compatibility: IC695CHS007, IC695CHS012, IC695CHS016 (Universal Backplane)
- Scan Time: < 0.1 ms / 1K boolean instructions
- Max I/O Points: 32,768 discrete / 4,096 analog
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Power Consumption: 13 W (typical)
- Dimensions (H × W × D): 230 × 30 × 230 mm (single slot)
- Weight: ~300 g
- Certifications: UL, CE, cUL, RoHS
- Firmware: RX3i CPU Firmware v9.30+ compatible
- Programming Software: Proficy Machine Edition (PME) 9.0+
Proven Application Environments
- Oil & Gas: Pipeline SCADA, compressor station control, wellhead automation
- Power Generation: Turbine sequencing, BOP control, substation automation
- Water & Wastewater: Pump station control, SCADA integration, chemical dosing
- Automotive Manufacturing: Assembly line control, robotic cell coordination, press control
- Food & Beverage: Batch processing, CIP/SIP control, packaging line automation
- Pulp & Paper: Distributed control, drive coordination, quality control loops
- Mining: Conveyor control, crusher automation, ventilation management
Engineering Advantages
- Dual Gigabit Ethernet: Supports EtherNet/IP, SRTP, Modbus TCP, and OPC-UA simultaneously — no additional NIU required
- Hot-Standby Redundancy Ready: Pairs with IC695RMX128 redundancy module for bumpless transfer in high-availability systems
- Expanded Memory Architecture: 64 MB program store supports large-scale applications with thousands of rungs and complex data tables
- Backward Compatible: Executes legacy Series 90-30 and PACSystems RX3i programs with minimal migration effort
- Integrated Diagnostics: Built-in fault table, I/O force capability, and online program change (OPC) without stopping the controller
- Cybersecurity: Supports role-based access control (RBAC) and encrypted communications via TLS
System Architecture & Signal Flow
The IC695CPE400 occupies a single slot in any RX3i Universal Backplane (7, 12, or 16-slot). The CPU communicates with I/O modules via the high-speed RX3i backplane bus (up to 300 MB/s) and with remote I/O drops via Ethernet or PROFIBUS. The dual embedded Ethernet ports support independent network segmentation — one port for the plant network (SCADA/HMI) and one for the control network (I/O devices, drives, remote racks) — enforcing network isolation without additional hardware.
Signal flow: Field devices → RX3i I/O modules → Backplane bus → IC695CPE400 CPU scan → Output resolution → Backplane bus → Output modules → Actuators/drives. Ethernet supervisory data is handled asynchronously via the embedded communication stack, ensuring deterministic scan performance is unaffected by network load.
Sourcing & Quality Verification
- Source: Genuine GE Automation & Controls / Emerson (post-acquisition) factory stock and authorized distributor channels
- Inspection: Each unit undergoes visual inspection, firmware version verification, and functional power-on test prior to shipment
- Condition Options: New-in-box (NIB), Refurbished (tested to OEM spec), Surplus (original packaging)
- Traceability: Serial number and date code recorded; documentation available on request
- Warranty: 12-month replacement warranty against manufacturing defects
- Counterfeit Prevention: All units verified against GE part number database; holograms and OEM labels intact
Procurement Process
- Submit RFQ: Email support@konmask.com with quantity, required condition, and delivery timeline
- Receive Quote: Pricing and lead time confirmed within 24 business hours
- Order Confirmation: Purchase order accepted via email or online checkout
- Inspection & Test: Unit tested and documented before dispatch
- Shipping: DHL / FedEx / UPS express worldwide; EXW Xiamen available for bulk orders
- Documentation: Commercial invoice, packing list, test report, and CoC provided
Technical FAQ
Q: Is the IC695CPE400 compatible with IC695CHS007 backplanes?
A: Yes. The IC695CPE400 is compatible with all RX3i Universal Backplanes (7, 12, and 16-slot variants).
Q: Can I replace an IC695CPE330 with an IC695CPE400 without reprogramming?
A: In most cases, yes. The IC695CPE400 is backward compatible with CPE330 programs. A firmware upgrade and minor hardware configuration update in PME may be required.
Q: Does the IC695CPE400 support redundancy?
A: Yes. When paired with the IC695RMX128 Redundancy Memory Xchange module, the IC695CPE400 supports hot-standby CPU redundancy with bumpless switchover.
Q: What programming software is required?
A: Proficy Machine Edition (PME) version 9.0 or later is required. PME supports Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), and Instruction List (IL).
Q: What is the lead time for in-stock units?
A: In-stock units typically ship within 1–3 business days. Contact us for current availability.
