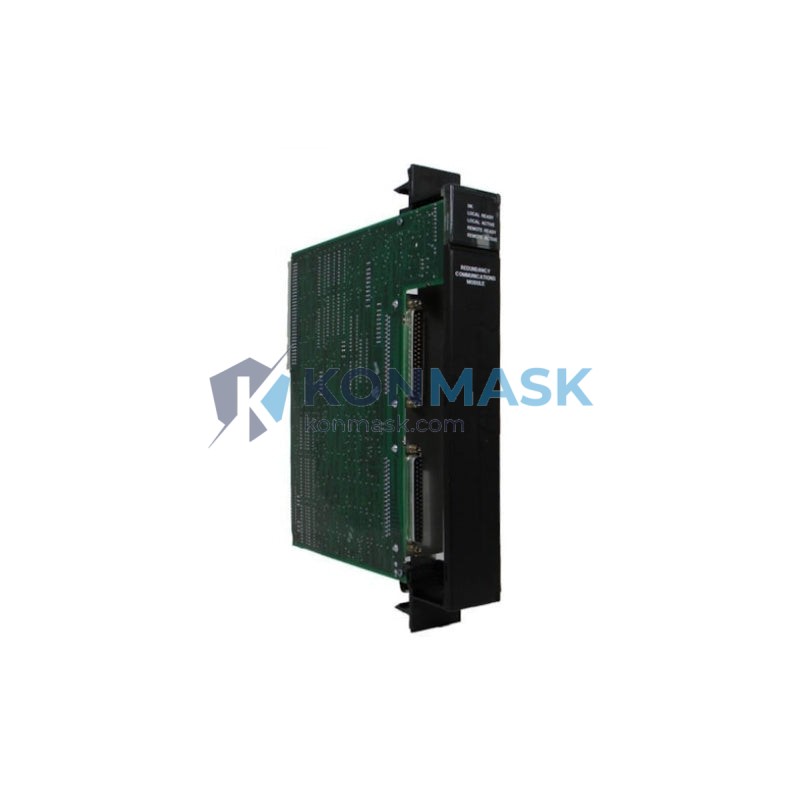

GE IC697RCM711 – Redundancy Communications Module | Series 90-70 PLC Platform
Engineering Background
The GE IC697RCM711 is a dedicated Redundancy Communications Module (RCM) engineered for the GE Fanuc Series 90-70 programmable logic controller platform. Designed to meet the stringent availability requirements of continuous-process and safety-critical industries, this module enables hot-standby CPU redundancy by maintaining a high-speed synchronization link between the primary and backup controller racks. When a primary CPU fault is detected, bumpless transfer to the standby system is executed within one scan cycle, eliminating unplanned downtime and protecting process integrity.
Product Positioning
The IC697RCM711 is the preferred redundancy backbone for engineers specifying fault-tolerant Series 90-70 architectures in power generation, oil & gas, chemical processing, and water treatment facilities. It pairs directly with the IC697CPU772 and IC697CPU781 redundant CPUs and is fully supported under GE Proficy Machine Edition and Logicmaster 90-70 programming environments.
Complete Technical Specifications
| Part Number | IC697RCM711 |
| Manufacturer | GE Fanuc Automation (now Emerson / GE Vernova) |
| Platform | Series 90-70 PLC |
| Module Type | Redundancy Communications Module (RCM) |
| Redundancy Architecture | Hot-standby (1:1 CPU redundancy) |
| Synchronization Link | Dedicated high-speed fiber-optic / coaxial RCM bus |
| Transfer Time | Bumpless switchover ≤ 1 PLC scan cycle |
| Compatible CPUs | IC697CPU772, IC697CPU781 |
| Rack Compatibility | IC697CHS750, IC697CHS782, IC697CHS790 (Series 90-70 racks) |
| Power Consumption | Refer to GE GFK-0867 hardware manual for slot power budget |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration | IEC 68-2-6 compliant |
| Agency Approvals | UL, CE (refer to product nameplate) |
| Form Factor | Single-slot Series 90-70 VME-style module |
| Weight | ~1,000 g (module only) |
| Programming Software | GE Proficy Machine Edition, Logicmaster 90-70 |
| Reference Manual | GFK-0867, GFK-1527 |
Proven Application Environments
- Power Generation — Turbine control and boiler management systems requiring zero-downtime operation
- Oil & Gas — Pipeline SCADA, compressor station control, and emergency shutdown (ESD) integration
- Chemical & Petrochemical — Continuous reactor control where process interruption causes batch loss or safety events
- Water & Wastewater — Pump station and treatment plant automation with high-availability mandates
- Pulp & Paper — Line-speed process control requiring fault-tolerant PLC architectures
- Automotive Manufacturing — Transfer line and press control with SLA-driven uptime requirements
Engineering Advantages
- Bumpless Transfer — Switchover completes within one scan cycle; outputs hold state, preventing process upsets
- Dedicated RCM Bus — Synchronization traffic is isolated from the I/O backplane, eliminating scan-time impact
- Automatic Re-synchronization — After a fault is cleared, the repaired CPU re-syncs to the active primary without manual intervention
- Diagnostics & Status LEDs — On-board indicators report Primary/Standby role, sync status, and fault conditions at a glance
- Backward Compatibility — Integrates into existing Series 90-70 installations without rack or wiring changes
- Long Field Life — Designed for 24/7 continuous operation in industrial environments; proven 20+ year installed base
System Architecture & Signal Flow
In a standard IC697RCM711 redundancy configuration, two identical Series 90-70 racks are deployed — one designated Primary, one Standby. Each rack contains a compatible redundant CPU (IC697CPU772 or IC697CPU781) and one IC697RCM711 module. The two RCM modules are interconnected via the dedicated RCM synchronization cable, forming a private high-speed link independent of the I/O bus.
During normal operation, the Primary CPU executes the control program and continuously mirrors its memory image — including I/O data, register tables, and program state — to the Standby CPU through the RCM link. The Standby CPU remains in a warm-ready state, tracking every scan. Upon detection of a Primary fault (CPU failure, rack power loss, or communication error), the IC697RCM711 on the Standby rack asserts control, and the Standby CPU assumes the Primary role within one scan cycle. Field I/O continues without interruption.
Sourcing & Quality Verification
- Source — Konmask.com sources IC697RCM711 units from decommissioned OEM installations, authorized distributors, and certified industrial surplus channels
- Inspection — Each unit undergoes visual inspection, board-level cleaning, and functional verification prior to listing
- Authenticity — Firmware revision and hardware revision labels are verified against GE documentation; counterfeit screening is performed on all inbound stock
- Packaging — Shipped in anti-static ESD bags with foam cushioning; export carton rated for international freight
- Warranty — 90-day replacement warranty against DOA or latent defects; extended warranty available on request
Procurement Process
- Submit Inquiry — Contact support@konmask.com with your required quantity, target delivery date, and any firmware revision requirements
- Receive Quote — Our technical team will confirm stock availability, hardware revision, and pricing within 1 business day
- Order Confirmation — Purchase order accepted via email; proforma invoice issued for wire transfer or credit card payment
- Quality Check & Ship — Unit is re-inspected, photographed, and shipped with tracking; DHL / FedEx / SF Express available
- Post-Delivery Support — Technical assistance available for installation, configuration, and commissioning questions
Technical FAQ
Q: Can the IC697RCM711 be used with non-redundant CPUs?
A: No. The RCM711 requires a compatible redundant CPU (IC697CPU772 or IC697CPU781) in each rack. It cannot be used with standard non-redundant Series 90-70 CPUs.
Q: What cable connects the two RCM modules?
A: GE specifies a dedicated RCM synchronization cable (part number varies by rack separation distance). Refer to GFK-1527 for cable selection and maximum distance specifications.
Q: Is the IC697RCM711 compatible with Series 90-30 or PACSystems racks?
A: No. The IC697RCM711 is exclusively designed for the Series 90-70 VME-style rack architecture and is not interchangeable with Series 90-30 or PACSystems RX7i/RX3i hardware.
Q: What happens if the RCM synchronization link fails?
A: If the RCM link is lost, both CPUs detect the fault. The Primary continues to control the process; the Standby enters a degraded state and raises a diagnostic alarm. Redundancy is suspended until the link is restored and re-synchronization completes.
Q: Can Konmask provide a test report or inspection photos?
A: Yes. Inspection photos and a basic functional test report are available upon request prior to order confirmation.
