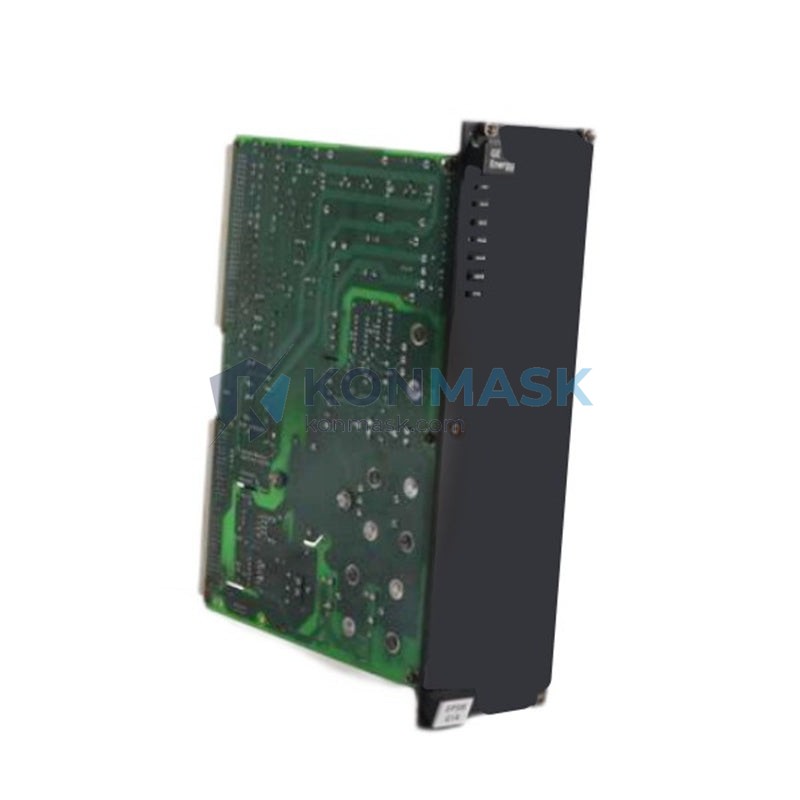

GE IS200BICLH1AED IGBT Drive/Source Bridge PCB – Mark VI Turbine Control Series
When a critical IGBT drive bridge board fails inside a gas turbine or steam turbine control cabinet, the consequences are immediate and severe: the turbine trips offline, power generation halts, and every minute of unplanned downtime translates into significant financial loss and potential safety risk. In combined-cycle power plants and industrial co-generation facilities, a single failed PCB at this level can cascade into full plant shutdown. The GE IS200BICLH1AED IGBT Drive/Source Bridge PCB is the precision-engineered solution that keeps your Mark VI turbine control system running without interruption.
The IS200BICLH1AED occupies a mission-critical position within GE’s Mark VI turbine control platform — one of the most widely deployed distributed control architectures in global power generation. As the IGBT drive and source bridge interface board, it manages the gate-drive signals and source-side switching logic for the IGBT power stage, ensuring precise, reliable control of high-voltage switching events. The Mark VI series is trusted by utilities, independent power producers, and industrial operators across more than 60 countries, making genuine replacement parts like the IS200BICLH1AED essential inventory for any serious maintenance program.
Technical Specifications
- Part Number: IS200BICLH1AED
- Manufacturer: General Electric (GE)
- Series: Mark VI Turbine Control System
- Function: IGBT Drive / Source Bridge PCB
- Form Factor: Printed Circuit Board (PCB) module
- Weight: 380 g
- Compatibility: GE Mark VI control cabinets (gas turbine, steam turbine, combined-cycle applications)
- Condition Available: New surplus, refurbished/tested, exchange
Note: Electrical ratings, I/O counts, and firmware revision details should be confirmed against your site-specific Mark VI engineering drawings. Konmask does not fabricate or alter specifications.
Key Features & Benefits
- Precision Gate Drive Control: Provides accurate IGBT gate-drive and source-bridge switching signals, minimizing switching losses and protecting downstream power components.
- Mark VI Native Compatibility: Designed and manufactured by GE to integrate seamlessly within the Mark VI architecture — no firmware patching or third-party adaptation required.
- High Reliability Design: Industrial-grade PCB construction rated for the thermal and EMI environment of turbine control enclosures.
- Drop-in Replacement: Direct form-fit-function replacement for failed or degraded IS200BICLH1AED boards, minimizing engineering time during outage windows.
- Reduced MTTR: Having a tested spare on-site dramatically reduces Mean Time To Repair during unplanned turbine trips.
- Global Availability: Konmask maintains sourcing channels for hard-to-find Mark VI boards, including obsolete and long-lead-time part numbers.
Industry & Equipment Applications
- Gas turbine generators (GE Frame 6, Frame 7, Frame 9 series and derivatives)
- Steam turbine control systems with Mark VI architecture
- Combined-cycle power plants (CCPP)
- Industrial co-generation and cogeneration facilities
- LNG compression and pipeline compressor stations
- Offshore platform power generation
- Petrochemical plant utility systems
System Integration & Compatible Parts
The IS200BICLH1AED operates within the broader GE Mark VI control ecosystem. Commonly associated and compatible components include:
- IS200VCRCH1B — Mark VI VCRC Control Board
- IS200TREGH1B — Mark VI Turbine Regulation Board
- IS200DSPXH1A — Mark VI DSP Processor Board
- IS200EPCTG1A — Mark VI EPC Termination Board
- IS200BPPBH1A — Mark VI Base Power PCB
If you require a complete Mark VI board set or are sourcing multiple part numbers for a planned outage, contact our team for a consolidated quote.
Our Quality Assurance Process
- Visual Inspection: Every board is inspected for physical damage, burnt components, corrosion, and solder joint integrity before listing.
- Functional Verification: Where applicable, boards undergo bench-level power-on testing and functional checks against known-good reference units.
- ESD-Safe Handling: All PCBs are handled, stored, and shipped using anti-static packaging and ESD-safe procedures.
- Traceability: Part numbers, revision codes, and condition grades are documented and provided with each shipment.
- Warranty: Refurbished and tested units are covered by Konmask’s standard warranty. Contact us for terms applicable to your order.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your part number, required quantity, and preferred condition (new/refurbished/exchange).
- Receive a Quote: Our team will respond with pricing, lead time, and availability — typically within 1 business day.
- Confirm & Pay: Approve the proforma invoice and complete payment via T/T bank transfer, PayPal, or other agreed method.
- Shipping: Orders are dispatched via DHL, FedEx, or UPS Express with full tracking. Export documentation provided for international shipments.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and turbine control components — not a generalist electronics reseller.
- Global Sourcing Network: Access to new surplus, refurbished, and exchange inventory across GE Mark IV, Mark V, Mark VI, and Mark VIe platforms.
- Fast Response: Dedicated team for B2B inquiries with same-day or next-business-day quote turnaround.
- Secure Packaging & Export Compliance: Professional export packing with commercial invoice, packing list, and country-of-origin documentation.
- Trusted by Engineers Worldwide: Serving maintenance engineers, procurement teams, and EPC contractors across Asia, Europe, the Middle East, and the Americas.
Frequently Asked Questions
Q: Is the IS200BICLH1AED still in production by GE?
A: The Mark VI platform has been largely superseded by the Mark VIe. Many IS200-series boards are no longer in active production, making quality surplus and refurbished stock the primary supply channel. Konmask specializes in sourcing these discontinued and hard-to-find part numbers.
Q: Can I use a refurbished IS200BICLH1AED in a live turbine control system?
A: Refurbished boards that have passed functional testing are widely used in maintenance and outage scenarios. We recommend consulting your site’s OEM service agreement and engineering team before installation. Konmask provides full condition documentation to support your engineering review.
Q: What is the lead time for the IS200BICLH1AED?
A: Lead time depends on current stock status. In-stock units typically ship within 1–3 business days. For sourced or exchange units, lead time is quoted individually. Submit an inquiry for real-time availability.
Q: Do you provide a warranty?
A: Yes. Refurbished and tested units carry Konmask’s standard warranty. New surplus units are sold as-is with inspection documentation. Contact us for warranty terms specific to your order.
Q: Can you supply multiple IS200-series boards for a planned outage?
A: Absolutely. We regularly fulfill multi-line purchase orders for planned maintenance outages. Contact us with your full BOM and we will provide a consolidated quote with unified lead time.
