GE IS200EISBH1A / IS200EISBH1AAA — Fiber Optic Communication Board | Mark VI Turbine Control Platform
Engineering Background

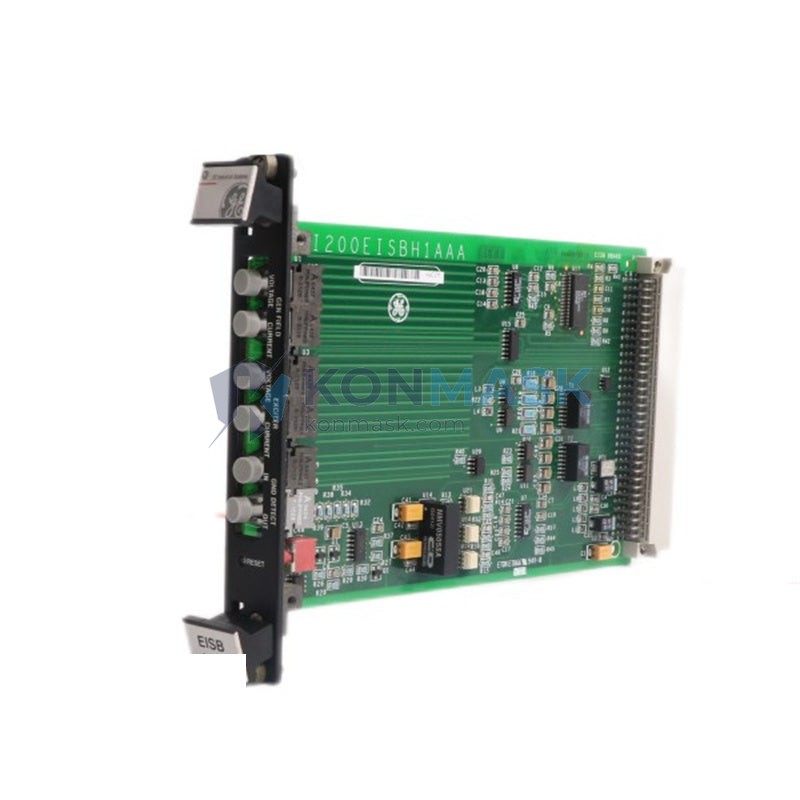

The IS200EISBH1A (also designated IS200EISBH1AAA) is a high-speed fiber optic interface board designed and manufactured by General Electric as part of the Mark VI Turbine Control System — GE’s flagship distributed control architecture for gas turbines, steam turbines, and combined-cycle power generation units. This board serves as the optical backbone for inter-module communication within the Mark VI I/O network, enabling deterministic, noise-immune data transfer in high-EMI industrial environments.
Product Positioning
Procurement engineers sourcing replacement or spare IS200EISBH1A boards require a supplier capable of verifying board revision, confirming firmware compatibility with the target Mark VI rack configuration, and providing traceable documentation. Konmask.com specializes in exactly this: genuine GE Mark VI components with full inspection, revision verification, and rapid global dispatch — eliminating the risk of counterfeit or incompatible substitutes entering critical turbine control loops.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IS200EISBH1A / IS200EISBH1AAA |
| Manufacturer | General Electric (GE) |
| Platform / Series | Mark VI Turbine Control System |
| Board Function | Fiber Optic Communication Interface Board |
| Communication Medium | Fiber optic (multi-mode) |
| Interface Protocol | GE IONet (proprietary high-speed I/O network) |
| Operating Voltage | +5 VDC (supplied via Mark VI backplane) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Form Factor | PCB module, Mark VI rack-mount |
| Weight (approx.) | 120 g |
| Compliance | CE, RoHS (per GE Mark VI platform standards) |
| Condition Available | New surplus / Refurbished / Used tested |
Proven Application Environments
- Gas Turbine Power Plants — GE Frame 6, Frame 7, Frame 9 series turbines running Mark VI control
- Steam Turbine Units — Combined-cycle and cogeneration plants with Mark VI DCS integration
- Compressor Stations — Pipeline and process compressor trains with GE Mark VI supervisory control
- Offshore Platforms — Marine and offshore gas turbine generator sets requiring high-EMI-immunity fiber links
- Petrochemical & Refinery Plants — Continuous process environments demanding deterministic I/O communication
- Nuclear Auxiliary Systems — Balance-of-plant turbine control where fiber isolation is a safety requirement
Engineering Advantages
- EMI Immunity — Fiber optic medium eliminates ground loops and electromagnetic interference inherent in copper-based I/O wiring, critical in high-voltage switchyard environments
- Deterministic Latency — GE IONet protocol delivers fixed-cycle scan times essential for turbine protection and trip logic
- Galvanic Isolation — Complete electrical isolation between controller and I/O racks prevents fault propagation across the control network
- Long-Distance Reach — Multi-mode fiber supports inter-rack distances exceeding copper limitations, enabling distributed turbine hall architectures
- Hot-Swap Compatible — Designed for live replacement within Mark VI redundant (TMR/dual) configurations with minimal process disruption
- Revision Traceability — Each board carries GE revision markings; Konmask verifies revision compatibility with your specific Mark VI software release before dispatch
System Architecture & Signal Flow
Within the Mark VI architecture, the IS200EISBH1A resides in the I/O Terminal Board (IOTB) rack and interfaces with the VCMI (VME Communication Module Interface) controller via the IONet fiber ring. Signal flow is as follows:
- Field sensors/actuators → Terminal Board (e.g., TBAI, TBDO) → I/O Pack (e.g., PDIA, PDOA)
- I/O Pack → IS200EISBH1A Fiber Optic Board (optical serialization & transmission)
- Fiber link → VCMI Controller Module (real-time data processing)
- VCMI → HMI / SCADA via Ethernet (operator display & historian)
In TMR (Triple Modular Redundant) configurations, three IS200EISBH1A boards operate in parallel across R, S, T controller paths, with voting logic in the VCMI ensuring fault tolerance at the communication layer.
Sourcing & Quality Verification
All IS200EISBH1A boards supplied by Konmask.com undergo the following verification process before shipment:
- ✅ Visual Inspection — PCB, connectors, fiber ports, and component integrity checked against GE reference standards
- ✅ Revision Code Verification — Board revision (H1A suffix) confirmed and documented; cross-referenced against customer’s Mark VI software version
- ✅ Functional Bench Test — Where applicable, boards are powered and communication link integrity verified
- ✅ Anti-Static Packaging — ESD-safe bags, foam cushioning, and rigid outer carton for international freight
- ✅ Documentation Package — Test report, photos, and packing list provided with every shipment
Procurement Process
- Submit RFQ — Email [email protected] with your required quantity, acceptable condition (new/refurbished/used), and target delivery date
- Receive Quote — Konmask responds within 1 business day with pricing, lead time, and available revision codes
- Confirm Compatibility — Provide your Mark VI software version; our engineers verify revision compatibility at no charge
- Place Order & Payment — T/T bank transfer, PayPal, or trade assurance accepted; proforma invoice issued immediately
- Dispatch & Tracking — Ships via DHL / FedEx / UPS Express with full tracking; typical transit 3–7 business days worldwide
- After-Sales Support — 90-day warranty on all tested units; technical support available via email and WhatsApp
Technical FAQ
Q: What is the difference between IS200EISBH1A and IS200EISBH1AAA?
A: IS200EISBH1AAA is the full catalog designation including the assembly suffix (AAA = standard assembly). Both refer to the same physical board. Always quote both numbers when ordering to avoid confusion.
Q: Is this board compatible with Mark VIe?
A: The IS200EISBH1A is designed for the classic Mark VI platform. Mark VIe uses a different I/O architecture (PROFINET-based). Please confirm your controller generation before ordering.
Q: Can I use a refurbished board in a TMR safety-critical application?
A: Yes, provided the board passes functional verification and revision requirements are met. Konmask supplies test reports for all refurbished units to support your site acceptance procedure.
Q: What fiber connector type does the IS200EISBH1A use?
A: The board uses ST-type fiber optic connectors (multi-mode, 62.5/125 µm). Ensure your fiber patch cables match before installation.
Q: Do you offer exchange / core return programs?
A: Yes. Contact us to discuss exchange pricing if you have a faulty IS200EISBH1A core to return — this can significantly reduce your net procurement cost.
