GE IS200SHRAH2A HART Analog I/O Board | Replacement, Equivalent & Selection Guide

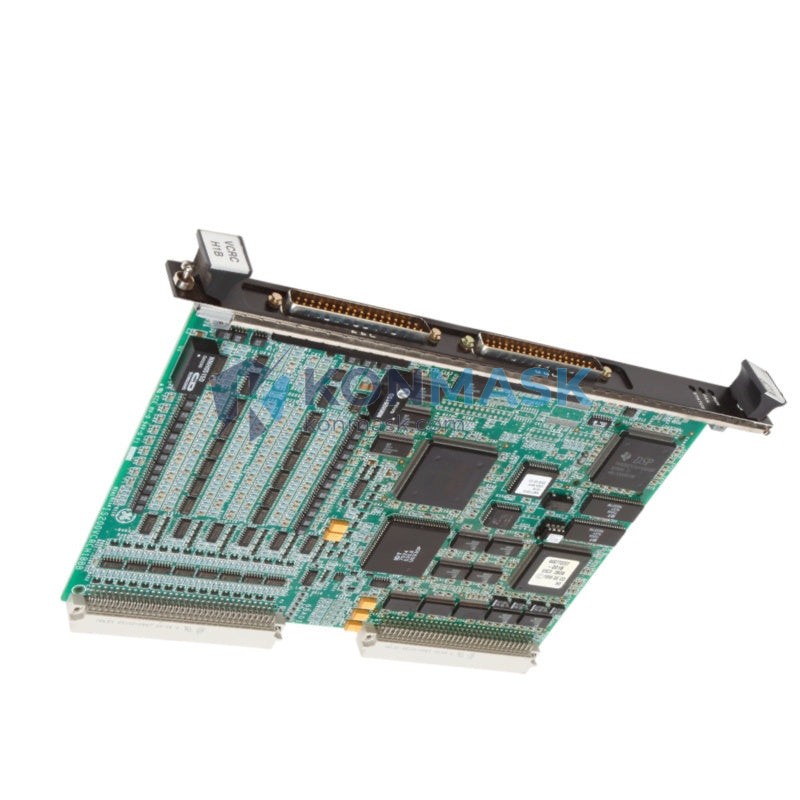

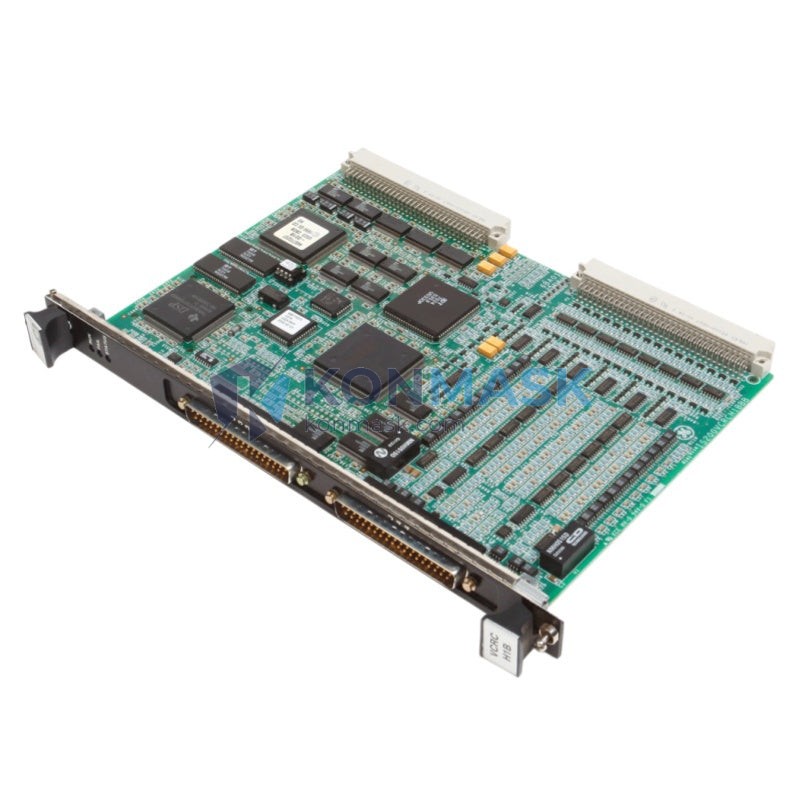

The GE IS200SHRAH2A is a HART-enabled Analog Input/Output Board designed for the GE Mark VI Turbine Control System. This board serves as a critical interface between field instruments and the turbine control platform, enabling bidirectional HART communication alongside standard 4–20 mA analog signal processing. It is widely deployed in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide.
If you are sourcing a replacement, evaluating equivalent alternatives, or selecting the right analog I/O board for your Mark VI system, this page provides a comprehensive technical reference and selection guide to support your procurement decision.
Technical Specifications
- Part Number: IS200SHRAH2A
- Manufacturer: GE (General Electric)
- Series: Mark VI Turbine Control System
- Function: HART-Enabled Analog Input/Output Board
- Signal Type: 4–20 mA analog with HART protocol overlay
- Communication Protocol: HART (Highway Addressable Remote Transducer)
- I/O Type: Mixed analog input and output channels
- Form Factor: VME-style plug-in board
- Weight: Approx. 900 g
- Compatibility: GE Mark VI / Mark VIe turbine control cabinets
- Operating Environment: Industrial control panel / DCS enclosure
Note: Specifications above are based on published GE documentation. Always verify against your system’s engineering drawings before ordering.
Compatible Replacement & Equivalent Models
When the IS200SHRAH2A is unavailable or end-of-life, the following models may serve as functional replacements or equivalents depending on your system revision and cabinet configuration:
- IS200SHRAH2B – Revised hardware revision of the same board; check firmware compatibility with your Mark VI controller
- IS200SHRAH2C – Later revision with potential minor circuit updates; confirm with GE service documentation
- IS200AIAAH1A – Standard analog input board (non-HART); suitable only if HART communication is not required
- IS200AIAAH2A – Enhanced analog input variant; verify channel count and I/O mapping before substitution
- Third-party compatible boards – Some aftermarket suppliers offer pin-compatible replacements; Konmask.com recommends verifying firmware, calibration, and safety certification before installation
Important: Always consult your GE Mark VI system documentation and a qualified controls engineer before substituting any board. Incorrect substitution may affect turbine protection logic.
Why Choose the Original IS200SHRAH2A
- Guaranteed compatibility: Factory-matched to GE Mark VI hardware and firmware revisions
- HART transparency: Native HART pass-through enables advanced diagnostics and smart instrument configuration without additional gateways
- Proven reliability: Deployed in thousands of turbine control systems globally across power generation and oil & gas sectors
- Safety integrity: Designed and tested to meet GE’s turbine control safety and EMC requirements
- Reduced commissioning risk: Drop-in replacement with no firmware reconfiguration required when matching revision
Typical Applications
- Gas turbine control systems (GE Frame 5, Frame 6, Frame 7, Frame 9 series)
- Steam turbine control and protection panels
- Combined-cycle power plant (CCPP) automation
- Compressor station control in oil & gas pipelines
- Industrial process plants requiring HART-capable analog I/O
- Retrofit and upgrade projects on legacy Mark VI installations
System Compatibility
- Primary Platform: GE Mark VI Turbine Control System
- Also Compatible With: GE Mark VIe (verify slot and firmware version)
- Cabinet Types: VSVO, VTUR, VPRO, and associated I/O expansion racks
- Controller Interface: Communicates via backplane bus to VCMI or equivalent controller module
- Field Wiring: Standard terminal block connections; HART signals carried on existing 4–20 mA wiring
Selection Guide
Use the following criteria to determine whether IS200SHRAH2A is the right board for your application:
- Step 1 – Confirm system platform: Verify your turbine control system is GE Mark VI or Mark VIe
- Step 2 – Check slot assignment: Identify the board slot in your cabinet layout drawing (typically labeled SHRA)
- Step 3 – Verify hardware revision: Match the H2A revision to your system’s BOM or existing installed board label
- Step 4 – Confirm HART requirement: If field instruments use HART protocol for diagnostics, the SHRAH2A is required; non-HART boards will not support this function
- Step 5 – Check channel count: Confirm the number of analog input and output channels matches your I/O list
- Step 6 – Contact Konmask.com: Share your system drawing or BOM for expert verification before ordering
Quality Assurance & Sourcing
At Konmask.com, every IS200SHRAH2A unit we supply undergoes a structured quality process:
- Visual inspection for physical damage, corrosion, and component integrity
- Label and part number verification against GE documentation
- Functional bench testing where applicable
- Secure anti-static packaging for international shipment
- Full traceability documentation provided upon request
We source from verified industrial surplus channels, authorized distributors, and decommissioned plant inventories. All units are clearly described as new, refurbished, or tested-used, with no misrepresentation.
How to Order
- Submit your inquiry via support@konmask.com or the contact form on this page
- Provide your part number (IS200SHRAH2A), required quantity, and any revision or condition preferences
- Our technical team will confirm availability, lead time, and pricing within 24 hours
- Upon agreement, we issue a proforma invoice and arrange secure international shipping
- Post-shipment tracking and documentation (packing list, test report) provided as standard
We support customers in power generation, oil & gas, petrochemical, and heavy industry across North America, Europe, the Middle East, and Asia-Pacific.
Replacement & Compatibility FAQ
Q: Can IS200SHRAH2B replace IS200SHRAH2A directly?
A: In most cases yes, as H2B is a hardware revision of the same board. However, confirm firmware compatibility with your Mark VI controller version before installation.
Q: What happens if I install a non-HART analog board in place of the SHRAH2A?
A: HART communication to field instruments will be lost. Smart instrument diagnostics and remote configuration via HART will not function. This may be acceptable if HART is not used in your system, but must be verified with your controls engineer.
Q: Do you supply tested or new units?
A: We supply both. Condition is clearly stated in our quotation. All units are inspected and documented before shipment.
Q: Can you help verify compatibility with my specific Mark VI cabinet?
A: Yes. Send us your cabinet drawing, BOM, or existing board label photo and our technical team will confirm compatibility before you order.
Q: What is the lead time for IS200SHRAH2A?
A: Lead time depends on current stock. Contact us for real-time availability. We maintain a global sourcing network to minimize lead times for urgent requirements.
Q: Do you ship internationally?
A: Yes. We ship worldwide via DHL, FedEx, and UPS with full export documentation support.
{
