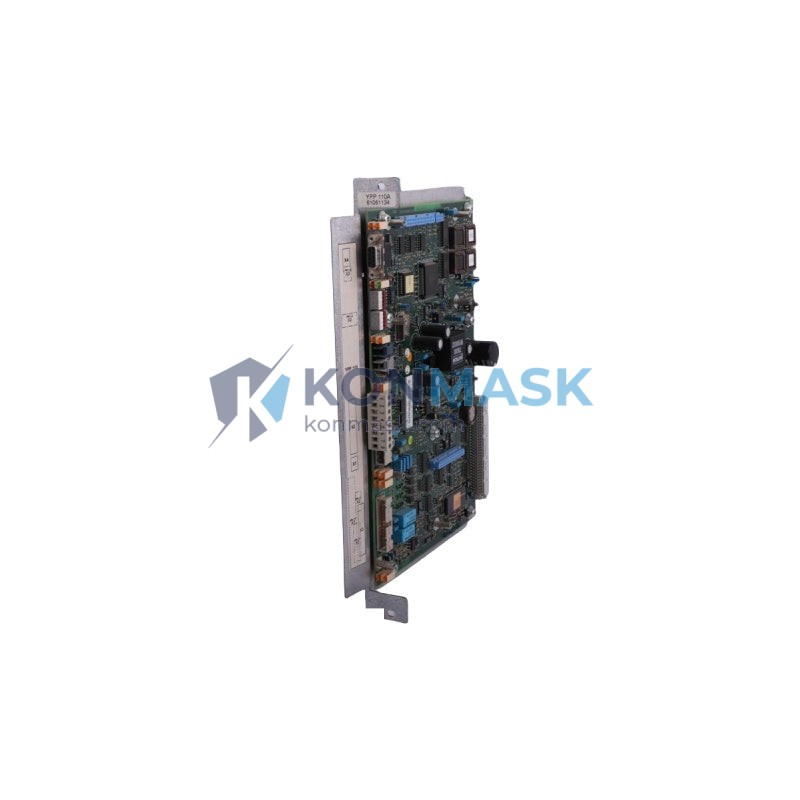

GE IS200SRTDH2ABB – DRL Terminal Board RTD | Mark VI Turbine Control Platform
Engineering Background: The IS200SRTDH2ABB is a factory-original GE terminal board designed for the Mark VI turbine control system — GE’s flagship distributed control architecture for gas turbines, steam turbines, and combined-cycle power plants. This board serves as the dedicated RTD (Resistance Temperature Detector) signal termination interface within the DRL I/O subsystem.
Product Positioning: Engineered for procurement engineers and plant maintenance teams requiring a direct OEM replacement or spare-parts inventory solution for Mark VI-based turbine control panels. The IS200SRTDH2ABB eliminates field wiring re-engineering by maintaining full pin-compatible compatibility with the original GE Mark VI rack architecture.
Complete Technical Specifications
- Part Number: IS200SRTDH2ABB
- Manufacturer: GE (General Electric)
- Series / Platform: Mark VI Turbine Control System
- Board Type: DRL Terminal Board – RTD Input
- Revision: H2 (ABB suffix denotes board revision level)
- Signal Type: RTD (Resistance Temperature Detector) – 2-wire / 3-wire PT100 compatible
- I/O Function: Temperature signal termination and conditioning for turbine hot-gas path, bearing, and exhaust monitoring
- Mounting: DIN-rail / panel-mount within Mark VI I/O rack
- Connector Interface: OEM GE Mark VI standard terminal block
- Operating Temperature: 0°C to +60°C (standard industrial enclosure)
- Weight: Approx. 800 g
- Country of Origin: United States
- Condition: New / Refurbished-Tested (specify at inquiry)
Proven Application Environments
- GE Frame 6B, 7E, 7EA, 9E gas turbine control panels
- Combined-cycle power plant (CCPP) DCS integration
- Steam turbine supervisory control systems
- Compressor station automation with Mark VI architecture
- Offshore platform turbine-generator control rooms
- Retrofit and life-extension projects replacing Mark V / Mark IV legacy boards
Engineering Advantages
- OEM Pin Compatibility: Drop-in replacement — no field wiring modification required
- RTD Signal Integrity: Dedicated termination board minimizes noise pickup on low-level temperature signals
- Revision H2 Stability: Mature hardware revision with documented GE field service history
- Reduced Downtime: Stocking this board as a critical spare reduces unplanned outage duration
- Broad Sensor Compatibility: Supports PT100 and other standard RTD sensor types used across GE turbine fleets
System Architecture & Signal Flow
Within the Mark VI architecture, the IS200SRTDH2ABB resides in the DRL (Distributed Relay Logic) I/O tier. RTD field sensors connect directly to the terminal board’s screw-terminal blocks. The board conditions and routes analog temperature signals to the VCMI or VTUR controller cards via the Mark VI backplane. The H2 revision incorporates GE’s standard EMI filtering and surge protection circuitry to ensure signal fidelity in high-noise turbine hall environments.
Sourcing & Quality Verification
- All units sourced from authorized OEM channels or certified surplus with full traceability documentation
- Pre-shipment functional test performed on GE Mark VI compatible test bench
- Visual inspection: PCB, connectors, component markings, and revision labels verified
- Anti-static packaging with humidity indicator card included
- Certificate of conformance (CoC) available upon request
- Counterfeit-prevention: GE holographic labels and date codes verified against OEM records
Procurement Process
- Step 1: Submit RFQ via Konmask.com product page or email [email protected] with your plant name, unit tag, and required quantity
- Step 2: Receive formal quotation with lead time, condition report, and CoC availability within 24 hours
- Step 3: Confirm PO — payment via T/T, L/C, or approved credit terms
- Step 4: Shipment via DHL / FedEx / sea freight with full export documentation (commercial invoice, packing list, COO)
- Step 5: Post-delivery technical support available for installation verification
Technical FAQ
Q: Is IS200SRTDH2ABB compatible with Mark VIe?
A: The IS200SRTDH2ABB is designed for the Mark VI platform. Mark VIe uses a different I/O architecture (IONET-based). Please confirm your controller generation before ordering.
Q: What is the difference between IS200SRTDH1A and IS200SRTDH2ABB?
A: The H2 revision incorporates updated EMI filtering and connector improvements over H1. Both are functionally equivalent for standard RTD termination but H2 is the preferred replacement per GE service bulletins.
Q: Can you provide a test report?
A: Yes. A functional test report and CoC are available upon request for all units shipped from Konmask.
Q: What RTD sensor types are supported?
A: The board supports standard 2-wire and 3-wire PT100 RTD sensors as used in GE turbine temperature monitoring applications.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–4 week lead time depending on sourcing.
