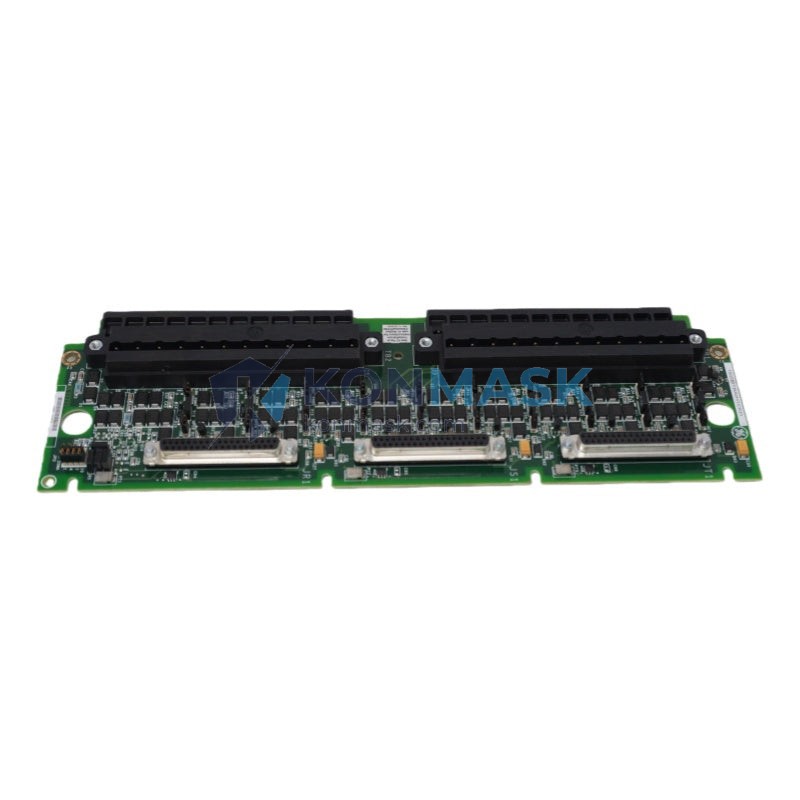

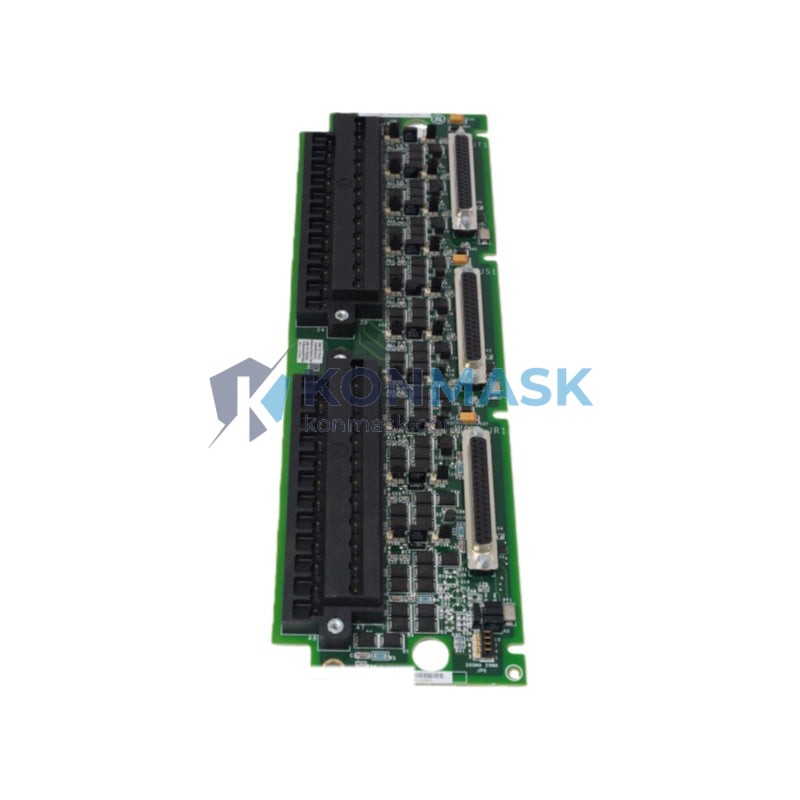

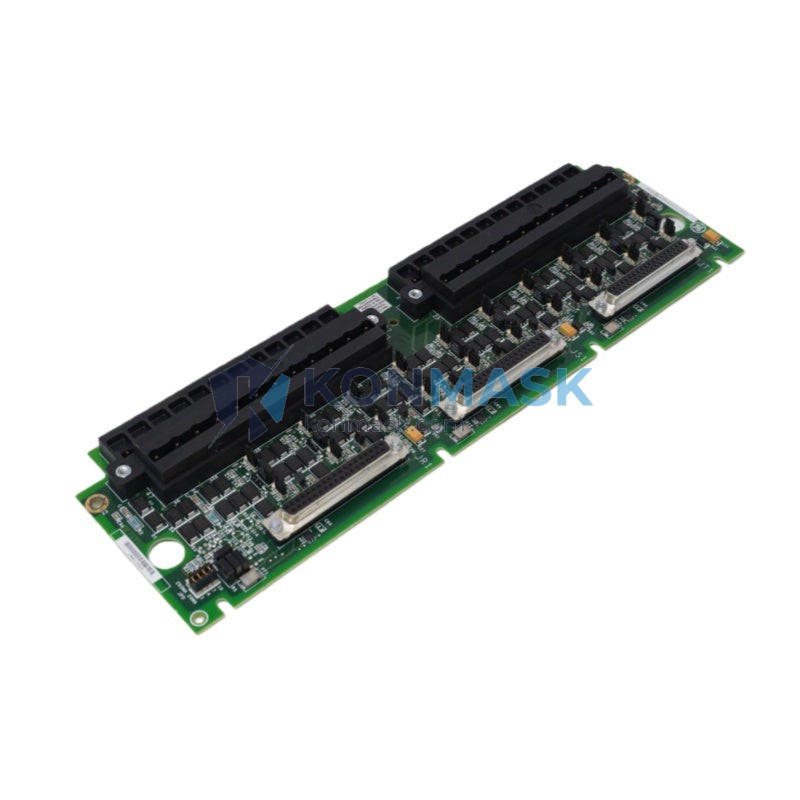

GE IS200TBAIH1C – Analog Input Terminal Board | Mark VI Turbine Control Platform
Engineering Background: In gas turbine and steam turbine control environments, the integrity of analog signal acquisition is mission-critical. When an analog input terminal board fails or is absent, the control system loses visibility into key process variables — temperature, pressure, flow, and vibration — rendering the turbine controller blind. Unplanned shutdowns, unsafe operating conditions, and costly production losses follow. The GE IS200TBAIH1C is the precision interface that prevents this scenario, serving as the structured analog front-end between field instrumentation and the Mark VI controller core.
Product Positioning: The IS200TBAIH1C is a dedicated Analog Input Terminal Board engineered for GE’s Mark VI Turbine Control System — one of the most widely deployed turbine management platforms in power generation globally. Within the Mark VI architecture, this board occupies the critical signal conditioning layer, accepting analog inputs from field transmitters and sensors, and presenting clean, conditioned signals to the I/O processor modules. Its design reflects GE’s decades of experience in high-reliability industrial control, making it a trusted component in power plants, compressor stations, and combined-cycle facilities worldwide.
Complete Technical Specifications
- Part Number: IS200TBAIH1C
- Manufacturer: GE (General Electric)
- Series / Platform: Mark VI Turbine Control System
- Board Type: Analog Input Terminal Board
- Function: Field-side analog signal termination and conditioning for Mark VI I/O modules
- Compatible I/O Module: Designed for use with Mark VI TBAI-series analog input I/O packs
- Signal Types Supported: 4–20 mA current loop inputs, thermocouple inputs, RTD inputs (configuration-dependent)
- Mounting: DIN rail / panel mount per Mark VI system enclosure standard
- Operating Temperature: Per GE Mark VI environmental specification (industrial grade)
- Weight: Approx. 300 g
- Condition Available: New surplus, refurbished, tested
Note: All specifications are based on GE published documentation. Konmask does not fabricate or alter manufacturer specifications.
Proven Application Environments
- Gas Turbine Power Plants — Primary analog I/O interface for GE Frame 5, Frame 6, Frame 7, Frame 9 turbine control panels
- Steam Turbine Control — Signal termination for steam temperature, pressure, and flow transmitters
- Combined-Cycle Power Facilities — Multi-unit plants relying on Mark VI for coordinated turbine-generator control
- Compressor Stations — Pipeline and gas compression applications using GE Mark VI as the primary controller
- Industrial Cogeneration — Facilities requiring high-availability analog input infrastructure
- OEM Turbine Packages — Skid-mounted turbine packages built around the Mark VI platform
Engineering Advantages
- Dedicated Architecture: Purpose-designed for Mark VI — no generic adaptation, ensuring full electrical and mechanical compatibility
- Signal Integrity: Structured terminal layout minimizes cross-talk and ground loop interference in noisy industrial environments
- Redundancy Support: Compatible with Mark VI TMR (Triple Modular Redundancy) configurations for highest availability applications
- Simplified Maintenance: Terminal board design allows field wiring to remain connected during I/O pack replacement, reducing maintenance downtime
- Long Service Life: Built to GE’s industrial-grade standards for continuous operation in demanding power generation environments
- Traceability: Each unit sourced by Konmask carries full part number and revision traceability
System Architecture & Signal Flow
Within the Mark VI control architecture, the IS200TBAIH1C functions as the field-side termination point in the analog input signal chain:
- Field Instruments (transmitters, thermocouples, RTDs) → wired to IS200TBAIH1C terminal blocks
- IS200TBAIH1C → conditions and routes signals via ribbon cable or direct connector to the Mark VI TBAI analog input I/O pack
- Mark VI I/O Pack → digitizes analog signals and transmits data over the IONet to the Mark VI controller (VCMI/VCRC)
- Mark VI Controller → executes turbine control logic based on conditioned analog inputs
This architecture ensures that field wiring changes and I/O pack maintenance can be performed independently, a key advantage in live plant environments.
Sourcing & Quality Verification
At Konmask.com, every IS200TBAIH1C unit undergoes a structured verification process before dispatch:
- ✔ Visual Inspection: PCB, connectors, terminal blocks, and housing examined for physical integrity
- ✔ Part Number & Revision Verification: Confirmed against GE documentation and labeling standards
- ✔ Functional Test (where applicable): Bench-tested using Mark VI-compatible test procedures
- ✔ Anti-Static Packaging: Shipped in ESD-safe packaging with moisture barrier protection
- ✔ Documentation: Test report and inspection checklist available upon request
Procurement Process
- Submit Inquiry: Contact us via the form below or email [email protected] with your part number and required quantity
- Receive Quote: Our technical team will confirm availability, condition, lead time, and pricing within 24 hours
- Order Confirmation: Review and approve the proforma invoice
- Payment & Dispatch: Secure payment processed; unit dispatched with full documentation
- After-Sales Support: Technical assistance available post-delivery for integration questions
We support DHL, FedEx, UPS, and sea freight for international orders. Export documentation available for all major markets.
Technical FAQ
- Q: Is the IS200TBAIH1C compatible with Mark VIe systems?
- A: The IS200TBAIH1C is designed for the Mark VI platform. Mark VIe uses a different I/O architecture (IONET-based distributed I/O). Please confirm your system generation before ordering — our team can assist with cross-referencing.
- Q: Can this board be used without replacing the I/O pack?
- A: Yes. The terminal board design allows the field wiring to remain connected while the I/O pack is replaced or serviced — a key maintenance advantage in live plant environments.
- Q: What is the lead time for IS200TBAIH1C?
- A: Lead time depends on current stock status. In-stock units typically ship within 2–5 business days. Contact us for real-time availability.
- Q: Do you provide a warranty?
- A: Yes. Konmask provides a standard warranty on all tested and refurbished units. Terms are confirmed at the time of quotation.
- Q: Can you supply other Mark VI boards?
- A: Yes. Konmask maintains an extensive inventory of GE Mark VI, Mark VIe, and Mark V components. Submit your full BOM for a consolidated quote.
