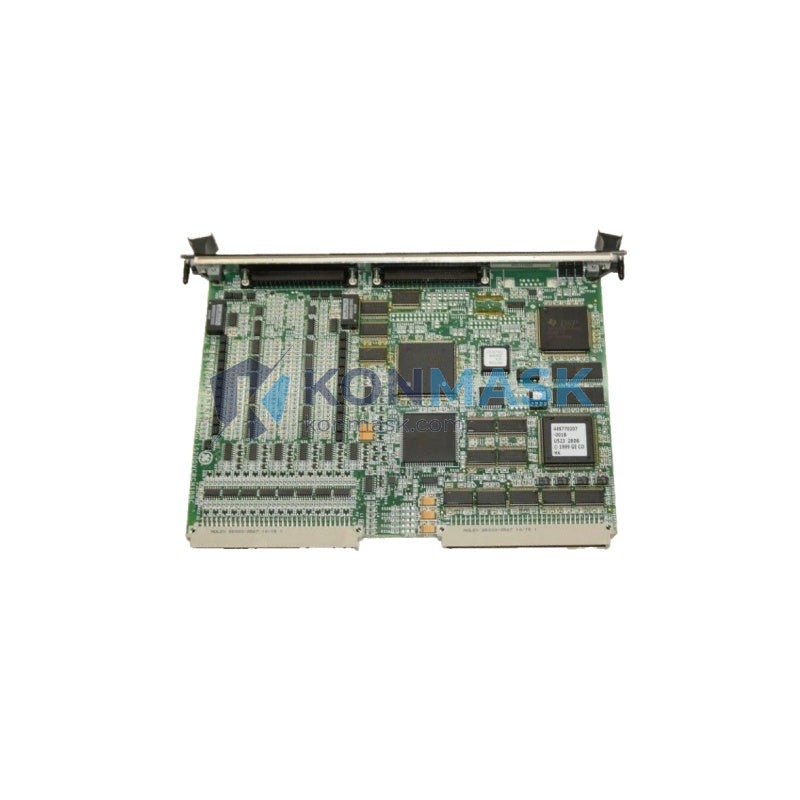

GE IS200VAICH1DAB – Vibration Analog Input Card | Mark VI Turbine Control Platform
Engineering Background: The IS200VAICH1DAB is a Vibration Analog Input Card (VAIC) designed and manufactured by GE as part of the Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. This card serves as the primary interface for acquiring vibration and dynamic analog signals from turbine-mounted sensors, feeding real-time data into the Mark VI’s triple-redundant control loops.
Product Positioning: Targeted at maintenance engineers, OEM integrators, and procurement specialists managing GE Frame 6, Frame 7, and Frame 9 turbine fleets, the IS200VAICH1DAB provides a direct, form-fit-function replacement for aging VAIC slots without requiring firmware reconfiguration or rack redesign. Konmask.com stocks verified units sourced from decommissioned and surplus industrial assets, each subject to functional inspection prior to dispatch.
Complete Technical Specifications
- Part Number: IS200VAICH1DAB
- Series / Platform: GE Mark VI Turbine Control System
- Card Type: VAIC — Vibration Analog Input Card
- Manufacturer: GE (General Electric) Energy / Grid Solutions
- Form Factor: VME-compatible plug-in card
- Analog Input Channels: Multiple differential vibration/dynamic analog inputs
- Signal Compatibility: Velocity, proximity (Bently Nevada-compatible), and accelerometer sensor types
- Communication Interface: Mark VI IONet (proprietary GE backplane bus)
- Operating Voltage: Supplied via Mark VI rack backplane (typically +5 VDC / ±15 VDC)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Weight: Approx. 420 g
- Revision: H1D (hardware revision as indicated in part suffix)
- RoHS Compliance: Per GE industrial product standards
Proven Application Environments
- Gas turbine control panels (GE Frame 6B, 7E, 7FA, 9E, 9FA series)
- Steam turbine and combined-cycle power plant DCS integration
- Compressor station vibration monitoring loops
- LNG plant rotating equipment protection systems
- Offshore platform turbine control upgrades
- Refinery and petrochemical turbine-driven compressor trains
Engineering Advantages
- Direct Drop-In Replacement: Maintains full compatibility with existing Mark VI rack wiring, I/O terminal boards (TBVA, TBVB), and ToolboxST configuration — zero re-engineering required.
- Triple-Redundant Architecture Support: Operates within GE’s TMR (Triple Modular Redundancy) framework, supporting R, S, T controller voting without additional configuration.
- High-Fidelity Signal Acquisition: Designed for low-noise, high-bandwidth vibration signal capture critical for early fault detection in rotating machinery.
- Proven Field Reliability: Deployed across thousands of GE turbine installations globally; mature, well-documented hardware with extensive OEM support history.
- Immediate Availability: Stocked and ready for same-week dispatch, minimizing turbine downtime during unplanned outages.
System Architecture & Signal Flow
Within the Mark VI architecture, the IS200VAICH1DAB resides in the I/O expansion rack and interfaces with field-mounted vibration sensors via dedicated terminal boards. Raw analog signals are conditioned, digitized, and transmitted over the IONet backplane to the , and
Sourcing & Quality Verification
- Units sourced from decommissioned GE turbine control panels and certified surplus inventories
- Each card undergoes visual inspection, connector integrity check, and functional power-on verification
- Original GE part markings, revision labels, and board silkscreen verified against OEM documentation
- Shipped in anti-static packaging with protective foam insert
- 90-day warranty against manufacturing defects and functional failure
Procurement Process
- Step 1: Confirm your Mark VI rack slot designation and terminal board type (TBVA / TBVB) before ordering.
- Step 2: Submit your purchase order or inquiry to support@konmask.com with your plant name and required delivery timeline.
- Step 3: Receive proforma invoice with DHL / FedEx / UPS tracking within 24 hours of order confirmation.
- Step 4: Installation support available via email — reference GEH-6421 Mark VI Service Manual for slot assignment procedures.
Technical FAQ
Q: Is IS200VAICH1DAB compatible with Mark VIe?
A: The IS200VAICH1DAB is designed for the Mark VI platform. Mark VIe uses a different I/O architecture (IONET vs. Ethernet-based). Cross-compatibility requires engineering review — contact us before ordering for Mark VIe applications.
Q: Can this card be used in a simplex (non-TMR) Mark VI configuration?
A: Yes. The VAIC card functions in both simplex and TMR configurations; rack slot assignment and ToolboxST I/O configuration determine the operating mode.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Express DHL delivery to most regions within 3–7 business days.
Q: Do you provide a test report or inspection certificate?
A: A basic inspection checklist is included with each shipment. Formal third-party testing certificates are available upon request at additional cost.
