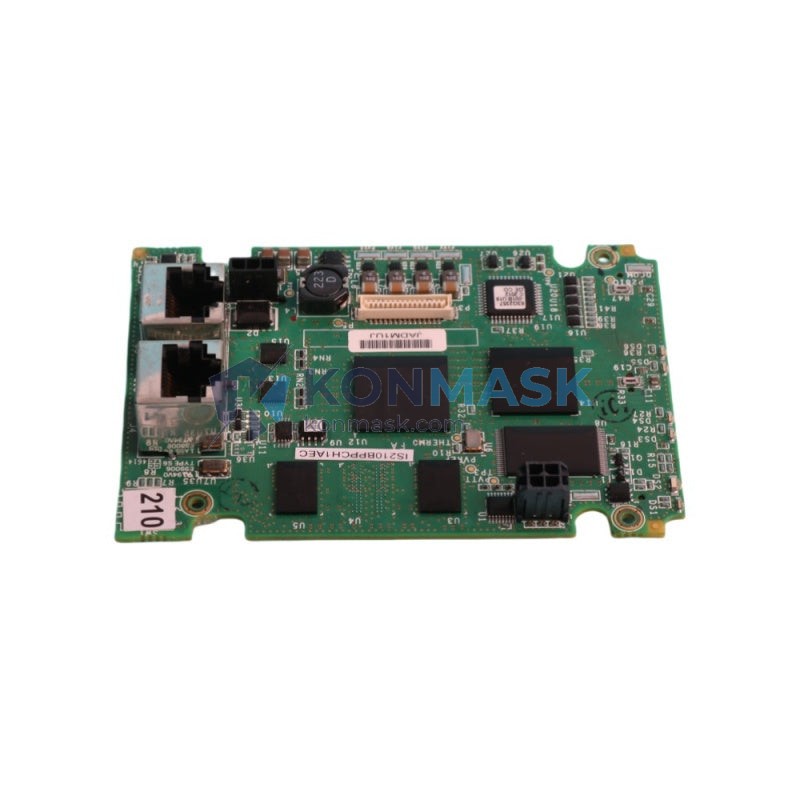

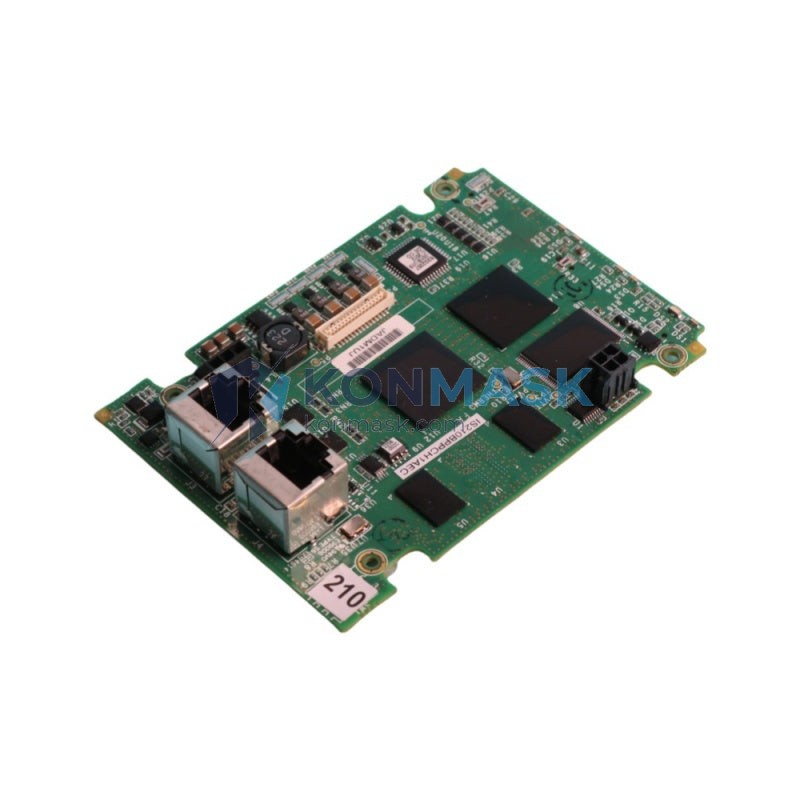

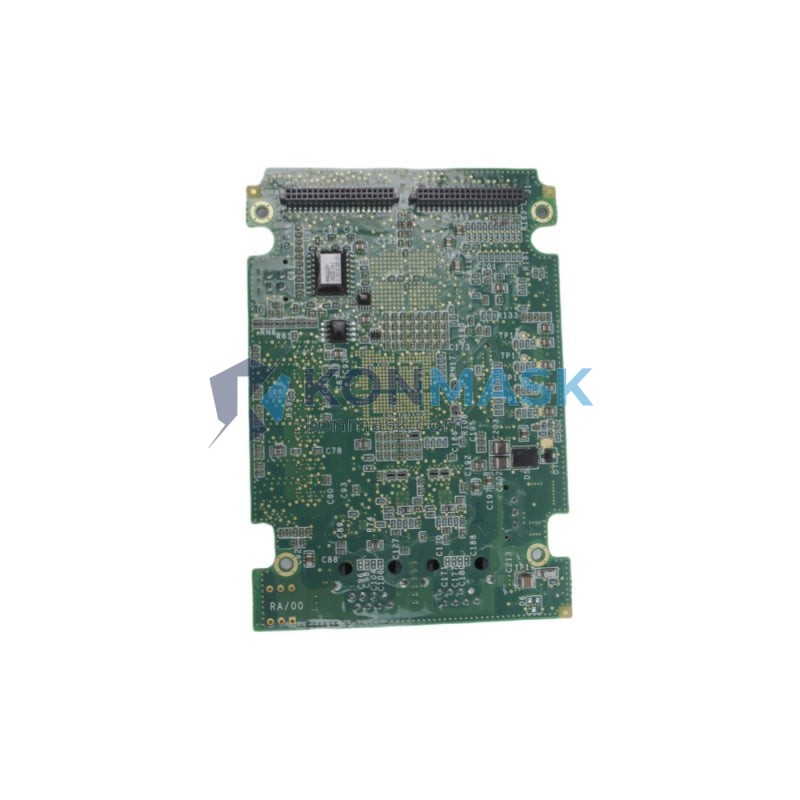

GE IS210BPPBH2BLD – Processor Board | Mark VI Turbine Control System
When a gas turbine or steam turbine loses its core processor board mid-operation, the consequences extend far beyond a simple shutdown. Unplanned outages in power generation facilities can cost operators tens of thousands of dollars per hour, while cascading failures in petrochemical plants risk both equipment damage and personnel safety. The GE IS210BPPBH2BLD is the central processing backbone of the Mark VI turbine control system — without it, the entire control architecture goes dark.
The IS210BPPBH2BLD occupies a critical tier within GE’s Mark VI platform, one of the most widely deployed turbine control systems in global power generation. Engineered for high-reliability environments, this processor board handles real-time control logic execution, I/O coordination, and communication with the broader Mark VI network. Its presence in operational fleets across North America, Europe, the Middle East, and Asia-Pacific makes it one of the most sought-after spare components in the industrial automation aftermarket.
Complete Technical Specifications
- Part Number: IS210BPPBH2BLD
- Manufacturer: GE (General Electric)
- Series / Platform: Mark VI Turbine Control System
- Board Type: Processor Board (BPP — Base Processor Pack)
- Form Factor: VME-based card, single-slot
- Processor Architecture: Real-time embedded control processor
- Communication Interfaces: IONet (proprietary GE network), serial, Ethernet-capable variants
- Operating Temperature: 0°C to 60°C (standard industrial range)
- Power Supply: Supplied via Mark VI backplane (redundant power architecture)
- Compatibility: Mark VI MKVI control cabinets; compatible with IS200, IS210, IS215 series I/O boards
- Firmware: Field-configurable via GE Toolbox software
- Certifications: Designed to GE industrial reliability standards
- Weight: Approx. 80g (board only, without housing)
Note: Specifications are based on GE published documentation. Konmask does not fabricate or alter technical parameters.
Proven Application Environments
- Gas Turbine Power Plants — Frame 6, Frame 7, Frame 9 GE turbine units
- Steam Turbine Facilities — Combined cycle and cogeneration plants
- Petrochemical & Refinery Operations — Compressor train control systems
- LNG Terminals — Turbine-driven compressor control
- Offshore Oil & Gas Platforms — Turbine generator control
- Industrial Cogeneration — District heating and power generation
- Utility-Scale Power Generation — Grid-connected turbine fleets
Engineering Advantages
- Real-Time Control Execution: Deterministic scan cycle ensures microsecond-level response for turbine protection logic
- Redundancy Support: Designed for TMR (Triple Modular Redundancy) configurations within Mark VI architecture
- Hot-Swap Compatibility: Supports controlled replacement procedures without full system shutdown in redundant configurations
- Robust EMI Shielding: Industrial-grade PCB design for high-noise turbine hall environments
- Long Service Life: Engineered for 10+ year operational cycles in continuous-duty applications
- GE Toolbox Integration: Full configuration and diagnostics via standard GE engineering software
System Architecture & Signal Flow
Within the Mark VI control cabinet, the IS210BPPBH2BLD serves as the central node of the control loop. It receives process variable inputs from I/O boards (speed, temperature, pressure, vibration), executes the turbine protection and sequencing logic in real time, and issues output commands to actuators, fuel valves, and trip solenoids. Communication with the operator HMI and plant DCS occurs via the IONet backbone, with the processor board acting as the primary gateway. In TMR configurations, three IS210BPPBH2BLD boards operate in parallel with voting logic to ensure fault-tolerant control continuity.
Sourcing & Quality Verification
- All units sourced from verified industrial surplus, OEM channels, or authorized distributors
- Each board undergoes visual inspection for physical damage, corrosion, and component integrity
- Functional bench testing performed where test fixtures are available
- Serialization and revision level documented prior to shipment
- Anti-static packaging with humidity indicators for international freight
- Certificate of conformance available upon request
Procurement Process
- Submit Inquiry: Contact us via the form below or email support@konmask.com with your part number and quantity
- Receive Quote: Our technical team responds within 24 hours with availability, lead time, and pricing
- Order Confirmation: Confirm purchase order; we issue proforma invoice
- Quality Check & Dispatch: Board inspected, documented, and shipped with tracking
- After-Sales Support: Technical assistance available post-delivery for integration questions
Technical FAQ
Q: Is the IS210BPPBH2BLD compatible with all Mark VI cabinet variants?
A: It is designed for the Mark VI platform. Compatibility depends on cabinet revision and firmware version. Please share your cabinet configuration when inquiring.
Q: Can this board be used in a TMR (Triple Modular Redundancy) setup?
A: Yes. The IS210BPPBH2BLD is designed to operate in simplex, dual, and TMR configurations within the Mark VI architecture.
Q: What is the lead time for this part?
A: Lead time varies by stock availability. Contact us for real-time inventory status. Expedited shipping options are available for urgent requirements.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a standard warranty on all supplied components. Terms are confirmed at the time of quotation.
Q: Can you supply multiple units for a fleet replacement project?
A: Yes. We support bulk procurement for MRO and capital project requirements. Volume pricing is available.
