General Electric IS220PDIAH1AD / IS220PDIAH1A — Discrete Input Module | Mark VIe Series Platform
Engineering Background

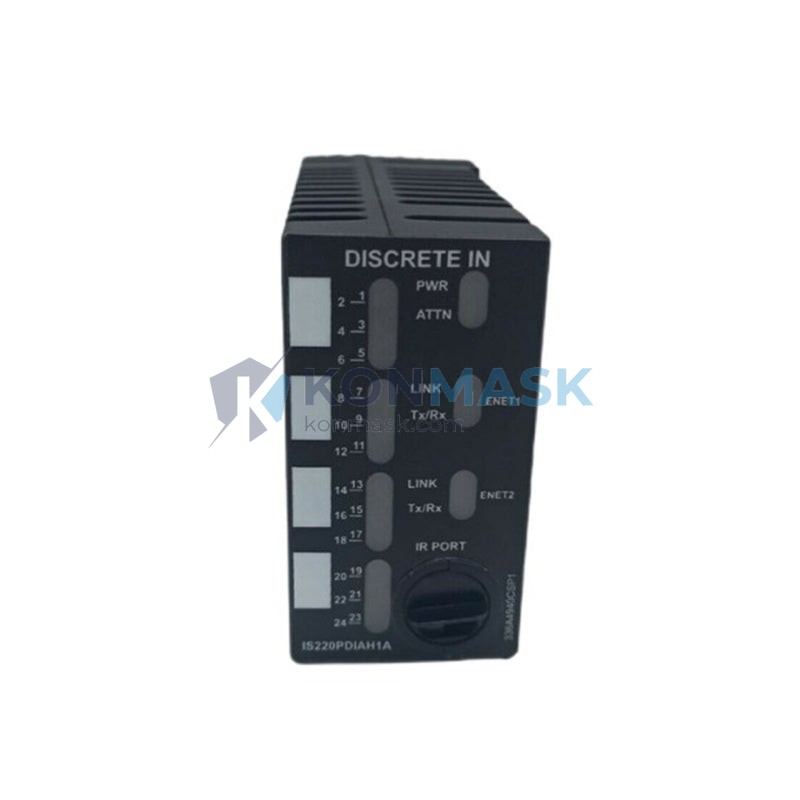

The IS220PDIAH1AD (also catalogued as IS220PDIAH1A) is a high-density discrete input module engineered for GE’s Mark VIe Distributed Control System — the industry-standard turbine and plant control platform deployed across power generation, oil & gas, and heavy process industries worldwide. Designed to interface directly with field-level digital signals, this module serves as the primary bridge between physical process states and the Mark VIe controller logic.
Product Positioning
As a core I/O component within the Mark VIe architecture, the IS220PDIAH1AD is specified by control engineers who require deterministic, high-integrity discrete signal acquisition in safety-critical and continuous-process environments. Konmask.com supplies this module as a verified, shelf-ready unit for MRO replacement, system expansion, and new-build projects — with full traceability documentation available on request.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IS220PDIAH1AD / IS220PDIAH1A |
| Manufacturer | General Electric (GE) |
| Series / Platform | Mark VIe DCS |
| Module Type | Discrete Input (DI) |
| Form Factor | PCB card, rack-mount I/O module |
| Weight | 560 g (approx.) |
| Communication Interface | Mark VIe IONet (Ethernet-based I/O network) |
| Input Signal Type | Discrete / Digital (dry contact & wet contact) |
| Isolation | Optical isolation between field and logic circuits |
| Operating Temperature | 0 °C to +60 °C (standard industrial range) |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | Mark VIe I/O rack / terminal board assembly |
| Compliance | CE, UL listed (per GE Mark VIe platform certification) |
| Condition Available | New surplus / Refurbished (tested) |
Proven Application Environments
- Power Generation: Gas turbine, steam turbine, and combined-cycle plant control systems using GE Mark VIe as the primary DCS.
- Oil & Gas: Upstream compressor stations, midstream pipeline control, and downstream refinery process units.
- Petrochemical & Chemical Processing: Continuous process plants requiring high-availability discrete I/O with redundancy support.
- Marine & Offshore: Platform control systems and vessel propulsion management integrated with Mark VIe architecture.
- MRO & Spare Parts Programs: Direct replacement for failed or end-of-life DI modules in existing Mark VIe installations.
Engineering Advantages
- Drop-in Compatibility: Fully compatible with existing Mark VIe I/O racks and terminal boards — no firmware re-flashing required for standard replacement.
- High Channel Density: Maximises I/O count per rack slot, reducing overall panel footprint and wiring complexity.
- Optical Isolation: Protects controller logic from field-side transients, ground loops, and surge events common in industrial environments.
- Deterministic Scan Cycle: Synchronised with Mark VIe IONet for predictable, low-latency input scanning — critical for turbine protection logic.
- Redundancy Support: Compatible with Mark VIe TMR (Triple Modular Redundancy) and dual-redundant I/O configurations.
- Long Service Life: GE Mark VIe platform has an extended support lifecycle; spare module availability is a strategic procurement priority for plant operators.
System Architecture & Signal Flow
Within the Mark VIe architecture, the IS220PDIAH1AD is installed in an I/O rack and connected to a terminal board (TB) that interfaces with field wiring. Discrete field signals (e.g., limit switches, relay contacts, proximity sensors) are wired to the terminal board. The module reads these signals, applies optical isolation, and transmits the digital state data over the IONet Ethernet backbone to the Mark VIe controller (e.g., IS420UCSBH3A or equivalent). The controller executes the application logic and returns output commands to actuator modules — completing the closed-loop control cycle.
Signal path: Field device → Terminal Board → IS220PDIAH1AD → IONet → Mark VIe Controller → Output Module → Actuator
Sourcing & Quality Verification
- Source Traceability: All units are sourced from authorised distributors, decommissioned OEM installations, or verified surplus channels. Chain-of-custody documentation available on request.
- Pre-shipment Testing: Each module undergoes functional verification including power-on self-test (POST) confirmation and I/O channel continuity checks prior to dispatch.
- Packaging: ESD-safe anti-static packaging with foam cushioning; original GE packaging retained where available.
- Warranty: 12-month operational warranty against manufacturing defects. Contact support@konmask.com for warranty terms.
- Counterfeit Mitigation: Physical inspection against GE reference standards; serial number and date-code verification performed on all units.
Procurement Process
- Enquiry: Submit your part number, required quantity, and delivery timeline via support@konmask.com or the on-site enquiry form.
- Quotation: Receive a formal quotation with unit price (HKD/USD), lead time, and shipping options within 1 business day.
- Order Confirmation: Purchase order accepted via email. Pro-forma invoice issued for prepayment or net-terms accounts.
- Quality Check & Dispatch: Module tested, documented, and dispatched with packing list and test report.
- Delivery: DHL / FedEx express international shipping available. Estimated transit: 3–7 business days to most destinations.
- After-sales Support: Technical support available post-delivery for installation queries and compatibility confirmation.
Technical FAQ
Q: Is IS220PDIAH1AD the same as IS220PDIAH1A?
A: Yes. The suffix “D” typically denotes a revision level. Both part numbers refer to the same functional module and are cross-compatible within the Mark VIe I/O system. Always verify with your GE system documentation or contact us to confirm compatibility with your specific rack revision.
Q: Can this module be used in a TMR (Triple Modular Redundancy) configuration?
A: Yes. The IS220PDIAH1A series is designed to support Mark VIe TMR I/O configurations. Three modules are installed in parallel; the controller uses voting logic to determine the valid signal state.
Q: What terminal board is required?
A: The IS220PDIAH1AD mates with the PDIA terminal board (e.g., IS200PDIAH1A). Confirm your existing terminal board part number before ordering to ensure mechanical and electrical compatibility.
Q: Do you provide a test report with the module?
A: Yes. A functional test report is available upon request and included as standard for orders of 3+ units.
Q: What is the lead time for stock items?
A: In-stock units ship within 1–2 business days of order confirmation. Lead time for sourced units is typically 5–15 business days depending on availability.
