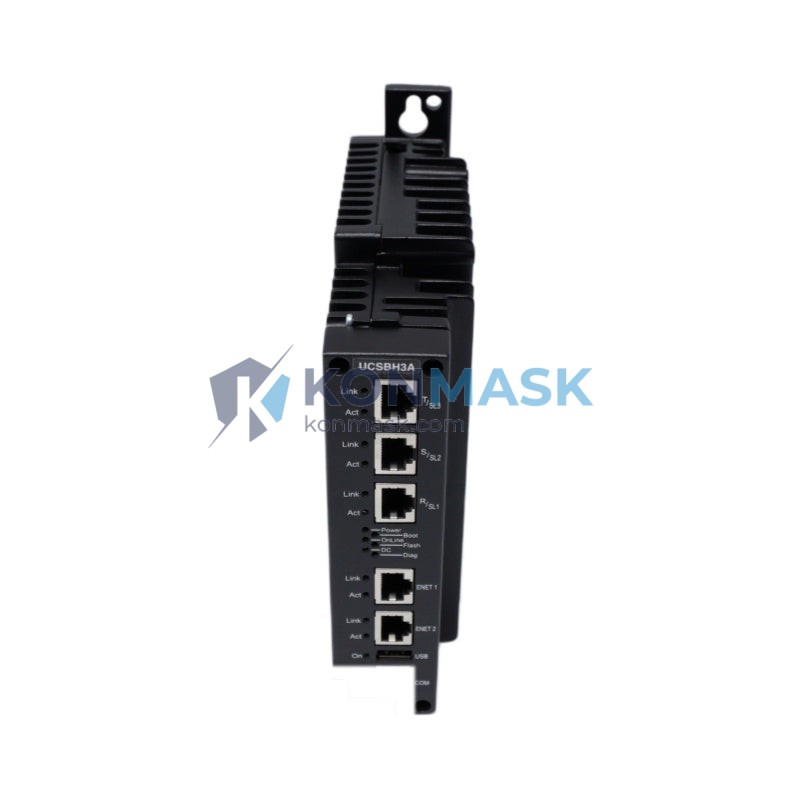

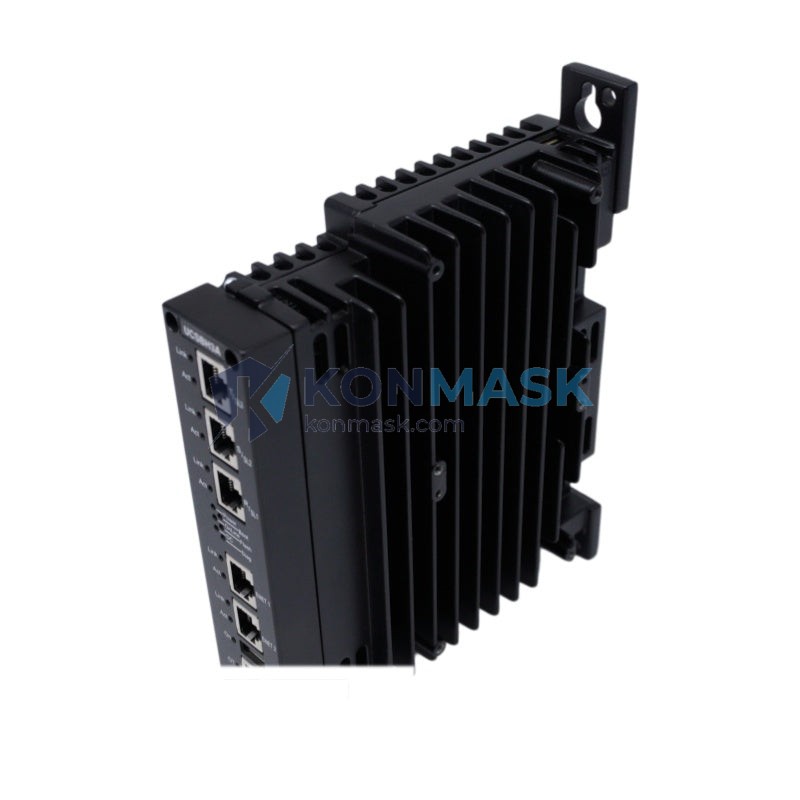

GE IS420UCSBH3A – Universal Controller Signal Board | Mark VIe DCS Platform
Engineering Background: The IS420UCSBH3A is a core signal board module within GE’s Mark VIe Distributed Control System — the industry benchmark for turbine and power generation control. Designed for high-reliability environments, this board serves as the universal controller signal interface, bridging I/O field signals with the central processing architecture of the Mark VIe controller rack.
Product Positioning: Targeted at maintenance engineers and procurement specialists managing GE Mark VIe turbine control systems in power plants, oil & gas facilities, and heavy industrial installations. The IS420UCSBH3A is a direct OEM replacement module, ensuring seamless integration without system reconfiguration.
Complete Technical Specifications
- Part Number: IS420UCSBH3A
- Manufacturer: GE (General Electric) – Grid Solutions / Power Conversion
- Series / Platform: Mark VIe Distributed Control System (DCS)
- Module Type: UCSB – Universal Controller Signal Board
- Hardware Revision: H3A
- Form Factor: VME-style rack-mount module
- Weight: Approx. 1,080 g
- Communication Interface: IONet Ethernet (proprietary GE protocol)
- Power Supply: Supplied via Mark VIe controller backplane
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% non-condensing
- Certifications: CE, UL (per GE Mark VIe system certification)
- Country of Origin: USA
- HS Code: 8537.10
Proven Application Environments
- Gas turbine and steam turbine control systems (GE Frame 5, 6, 7, 9 series)
- Combined-cycle power plant DCS architectures
- Offshore and onshore oil & gas platform automation
- Compressor station and pipeline control
- Industrial co-generation and utility-scale power generation
- Retrofit and upgrade projects migrating from Mark V / Mark VI to Mark VIe
Engineering Advantages
- Drop-in OEM Replacement: Direct hardware compatibility with existing Mark VIe racks — no firmware re-flashing or rack reconfiguration required in most installations.
- Redundancy Support: Compatible with TMR (Triple Modular Redundancy) and simplex controller configurations.
- High Signal Integrity: Precision signal conditioning circuitry minimizes noise and drift in critical turbine control loops.
- Proven Field Reliability: Deployed in thousands of GE turbine installations globally across 30+ years of Mark VIe platform history.
- Reduced Downtime: Stocked surplus unit enables rapid swap-out during unplanned outages, minimizing costly generation loss.
System Architecture & Signal Flow
Within the Mark VIe architecture, the IS420UCSBH3A UCSB module interfaces between the UCSC (Universal Controller Signal Conditioner) and the UCCC (Universal Controller Core Card). Field I/O signals — including analog inputs, discrete I/O, and RTD/thermocouple inputs — are routed through the UCSB board for signal conditioning and digitization before being passed to the controller core via the IONet backbone. In TMR configurations, three UCSB boards operate in parallel with voted outputs, ensuring fault-tolerant control continuity.
Sourcing & Quality Verification
- Stock Condition: Surplus / Refurbished — inspected and function-tested prior to shipment
- Inspection Protocol: Visual inspection, board-level continuity check, and power-on verification
- Packaging: ESD-safe anti-static bag, foam-padded carton
- Warranty: 12-month replacement warranty against manufacturing defects

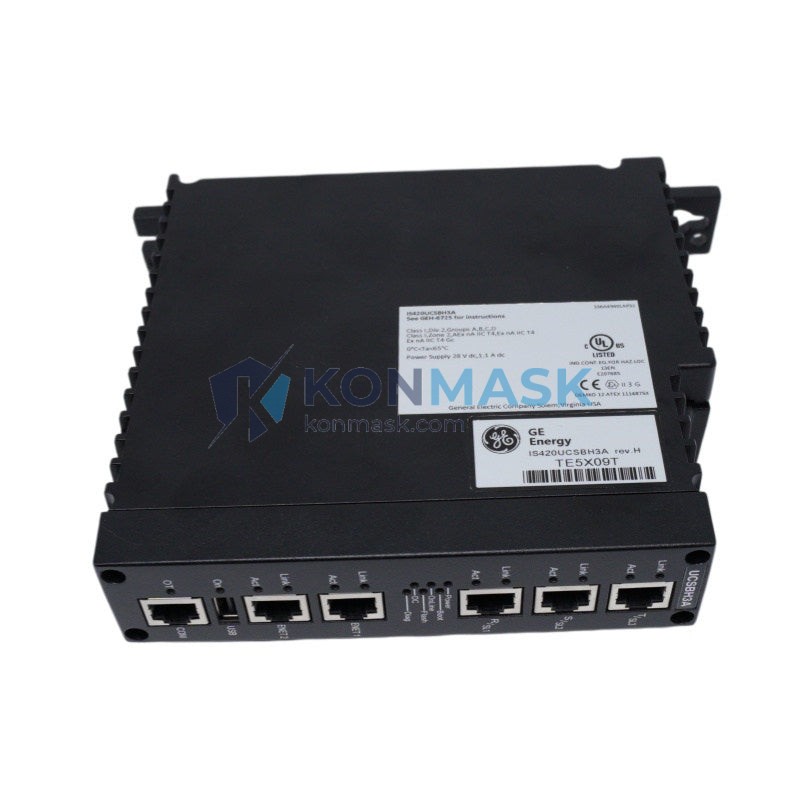

- Traceability: Serial number and revision label retained; documentation available on request
Procurement Process
- Confirm part number IS420UCSBH3A and hardware revision H3A matches your system BOM.
- Contact Konmask for real-time stock confirmation and lead time.
- Submit PO or request a formal quotation via support@konmask.com.
- Payment processed; unit ships within 1–3 business days with tracking.
- Post-delivery technical support available for installation verification.
Technical FAQ
Q: Is IS420UCSBH3A compatible with Mark VI (non-e) systems?
A: No. The IS420UCSBH3A is designed exclusively for the Mark VIe platform. Mark VI systems use a different backplane and I/O architecture.
Q: Can this module be used in a simplex (non-redundant) configuration?
A: Yes. The IS420UCSBH3A supports both simplex and TMR configurations depending on the controller rack setup.
Q: Do you provide GE toolbox software or configuration files?
A: We supply the hardware module only. GE ToolboxST software and application configuration are the responsibility of the end-user’s control system engineer.
Q: What is the lead time for this part?
A: In-stock units typically ship within 1–3 business days. Contact us for current availability.
Q: Can Konmask provide a test report or inspection certificate?
A: Yes. A basic inspection report is available upon request at no additional charge.
