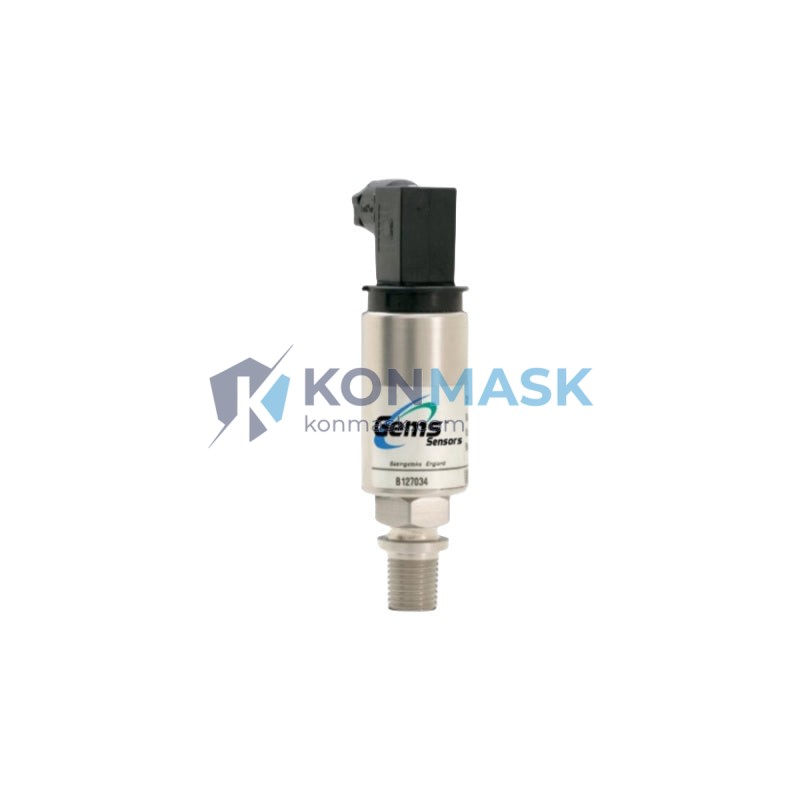

GEMS 2200BGA2501A3UA – Industrial Pressure Sensor | 2200 Series Platform
Engineering Background
The GEMS 2200 Series represents a proven lineage of industrial-grade pressure sensing technology engineered for demanding process environments. Designed to meet the rigorous requirements of OEM integrators, system builders, and MRO procurement teams, this series delivers consistent, repeatable performance across a wide range of media and installation conditions. The 2200BGA2501A3UA variant is configured for direct integration into automated control architectures where signal accuracy and long-term reliability are non-negotiable.
Product Positioning
This sensor is positioned as a drop-in replacement and new-build component for industrial automation systems requiring a compact, robust pressure transducer with analog output. It is sourced and verified through Konmask.com’s industrial supply chain, ensuring traceability and authenticity for B2B procurement teams operating under quality management systems (ISO 9001, IATF 16949, or equivalent).
Complete Technical Specifications
- Manufacturer: GEMS Sensors & Controls
- Part Number / SKU: 2200BGA2501A3UA
- Series: 2200
- Sensor Type: Industrial Pressure Transducer / Transmitter
- Pressure Range: 0–250 PSI (gauge, per BGA2501 configuration)
- Output Signal: Analog (configuration per A3UA suffix — consult datasheet for exact output type)
- Pressure Media Compatibility: Compatible with non-corrosive gases and liquids; consult wetted materials for aggressive media
- Electrical Connection: Per suffix designation (A3UA — refer to GEMS 2200 Series datasheet)
- Process Connection: Per BGA prefix (refer to GEMS dimensional drawing)
- Operating Temperature: Refer to GEMS 2200 Series datasheet for compensated and operating range
- Supply Voltage: Per output configuration (typically 9–30 VDC for analog variants)
- Ingress Protection: Refer to GEMS 2200 Series datasheet
- Weight: Approx. 40 g
- Compliance: CE, RoHS (verify current certification status with datasheet)
Proven Application Environments
- Industrial process control and SCADA systems
- Hydraulic and pneumatic circuit monitoring
- OEM machine building and automation panels
- Water treatment and fluid management systems
- HVAC and building automation infrastructure
- Mobile equipment and off-highway machinery
- Test & measurement rigs requiring traceable pressure references
Engineering Advantages
- Compact Form Factor: Designed for space-constrained panel and manifold installations
- Analog Output Stability: Low drift over operating life, suitable for closed-loop control
- Broad Media Compatibility: Engineered wetted materials for industrial fluid compatibility
- OEM-Grade Repeatability: Consistent batch-to-batch performance for production line integration
- GEMS Pedigree: Backed by decades of GEMS Sensors & Controls engineering heritage in pressure, level, and flow sensing
- Drop-In Replacement: Direct form/fit/function replacement for existing 2200 Series installations
System Architecture & Signal Flow
The 2200BGA2501A3UA integrates into standard industrial signal chains as follows:
- Power Supply: DC supply rail (9–30 VDC typical) → Sensor excitation input
- Sensing Element: Piezoresistive or thin-film element (per GEMS 2200 internal design) → Conditioned analog output
- Signal Output: Analog voltage or current signal → PLC analog input module (e.g., Siemens S7, Allen-Bradley ControlLogix, Mitsubishi iQ-R)
- Grounding: Single-point grounding recommended to minimize noise in analog signal path
- Shielding: Use shielded twisted-pair cable for runs exceeding 3 m in electrically noisy environments
Note: Confirm exact wiring diagram against GEMS 2200BGA2501A3UA datasheet prior to installation.
Sourcing & Quality Verification
- Source: Konmask.com authorized industrial supply channel
- Traceability: Each unit supplied with manufacturer part number verification; batch documentation available on request
- Condition: New, original packaging (specify if MRO/surplus stock applies to your order)
- Inspection: Visual and label verification performed prior to dispatch
- Counterfeit Mitigation: Sourced through vetted supply chain; hologram/label authentication per GEMS packaging standards
- Lead Time: Contact Konmask.com for current stock availability and lead time
Procurement Process
- Confirm Part Number: Verify 2200BGA2501A3UA matches your BOM or replacement requirement
- Request Quote: Contact support@konmask.com with quantity, delivery location, and required documentation
- Order Placement: Purchase via Konmask.com storefront or B2B purchase order (PO accepted for qualified accounts)
- Quality Documentation: Request CoC (Certificate of Conformance) or datasheet at time of order if required by your QMS
- Shipping: Dispatched with appropriate ESD/anti-static and protective packaging; international shipping available
Technical FAQ
Q: Is this sensor compatible with aggressive media such as hydraulic oil or refrigerants?
A: Compatibility depends on wetted materials. Refer to the GEMS 2200 Series datasheet for wetted material specifications and consult Konmask technical support for application-specific guidance.
Q: What PLC analog input modules is this sensor compatible with?
A: The analog output (voltage or current, per A3UA suffix) is compatible with standard industrial PLC analog input cards from Siemens, Rockwell, Mitsubishi, Omron, and others. Confirm signal range (e.g., 4–20 mA or 0–10 V) against your module’s input specification.
Q: Can I request a Certificate of Conformance (CoC)?
A: Yes. CoC and batch documentation are available upon request at time of order. Contact support@konmask.com.
Q: What is the minimum order quantity (MOQ)?
A: Single-unit orders are accepted. Volume pricing is available for quantities of 5+ units. Contact Konmask.com for a formal quotation.
Q: Is this a new or refurbished unit?
A: Units are supplied new in original manufacturer packaging unless explicitly stated otherwise. Surplus/MRO stock is clearly identified at time of quotation.
