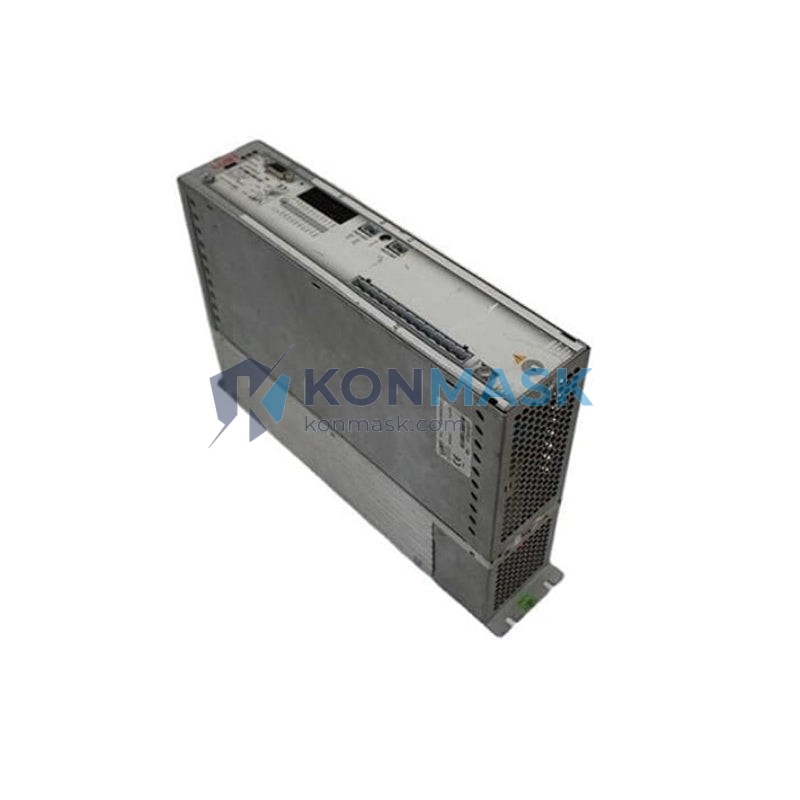

Generic CDE34.006.WXX.PC1 Servo Drive | Replacement, Equivalent & Selection Guide
The Generic CDE34.006.WXX.PC1 is a compact, high-performance servo drive designed for precision motion control in industrial automation systems. This page provides full technical specifications, verified compatible replacements, equivalent models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Model / SKU: CDE34.006.WXX.PC1
- Series: CDE34
- Type: AC Servo Drive
- Rated Output Current: 6 A
- Supply Voltage: 3-phase / single-phase AC input (refer to datasheet for exact range)
- Communication Interface: PC1 (fieldbus/serial interface variant)
- Enclosure: Panel-mount, IP20
- Weight: ~300 g
- Cooling: Forced air / convection
- Standards: CE, RoHS compliant
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as drop-in or functional replacements for the CDE34.006.WXX.PC1. Always verify electrical and mechanical compatibility before substitution:
- CDE34.006.WXX.PC2 – same current rating, alternate communication variant
- CDE34.012.WXX.PC1 – higher current (12 A), same series and interface
- Third-party equivalent: drives with 6 A rated output, matching fieldbus protocol, and compatible encoder feedback
Contact Konmask.com for cross-reference verification before ordering a replacement.
Why Choose the Original Model
- Exact parameter match: No re-tuning or firmware reconfiguration required when replacing like-for-like.
- Guaranteed compatibility: Validated against OEM machine specifications and wiring diagrams.
- Warranty & traceability: Original part numbers ensure full supply chain traceability and warranty coverage.
- Reduced downtime risk: Eliminates integration risk associated with cross-brand substitutions.
Typical Applications
- CNC machine tool axes (milling, turning, grinding)
- Robotic arm joint control
- Packaging and labeling machinery
- Semiconductor wafer handling equipment
- Textile and printing machine drives
- Conveyor and pick-and-place systems
System Compatibility
- PLC Brands: Compatible with Siemens, Mitsubishi, Omron, Beckhoff, and other major PLC platforms via standard fieldbus protocols.
- Servo Motors: Designed for use with matched servo motors in the CDE series ecosystem; verify encoder type (incremental / absolute) before pairing.
- HMI / SCADA: Supports integration with standard HMI panels via PC1 communication port.
- Safety: Compatible with STO (Safe Torque Off) safety circuits where applicable.
Selection Guide
Use the following criteria to confirm the CDE34.006.WXX.PC1 is the right drive for your application:
- Step 1 – Current Rating: Confirm motor rated current ≤ 6 A (drive rated output).
- Step 2 – Voltage: Match supply voltage to drive input specification.
- Step 3 – Communication: Confirm PC1 interface matches your controller’s fieldbus or serial protocol.
- Step 4 – Encoder Feedback: Verify encoder type compatibility (incremental / absolute / resolver).
- Step 5 – Environment: Confirm ambient temperature, humidity, and IP rating meet installation requirements.
- Step 6 – Certifications: Ensure CE / RoHS compliance meets regional regulatory requirements.
Need help selecting? Contact our technical team with your motor nameplate data and machine specifications.
Quality Assurance & Sourcing
- All units sourced through verified industrial distribution channels.
- Pre-shipment inspection available on request.
- Authenticity documentation (COC / test reports) provided for OEM and MRO orders.
- Long-term storage units inspected and function-tested before dispatch.
How to Order
- Add the CDE34.006.WXX.PC1 to your cart and proceed to checkout.
- For bulk / OEM orders (>5 units), email support@konmask.com for a volume quote.
- Specify any required documentation (COC, test report, country of origin certificate) in your order notes.
- Lead time: typically 3–7 business days for in-stock units; contact us for expedited shipping options.
Replacement & Compatibility FAQ
Q: Can I replace CDE34.006.WXX.PC1 with a CDE34.006.WXX.PC2?
A: The PC2 variant uses a different communication interface. Electrical ratings are identical, but firmware and wiring changes may be required. Consult your machine documentation before substituting.
Q: Is this drive compatible with third-party servo motors?
A: Compatibility depends on motor rated current, encoder type, and feedback protocol. Contact us with your motor specifications for a compatibility assessment.
Q: What is the warranty on this unit?
A: Konmask.com provides a standard 12-month warranty on all servo drives. Extended warranty options are available for volume orders.
Q: Do you provide installation support?
A: Yes. Our technical team can assist with parameter setup, wiring diagrams, and commissioning guidance via email or video call.
