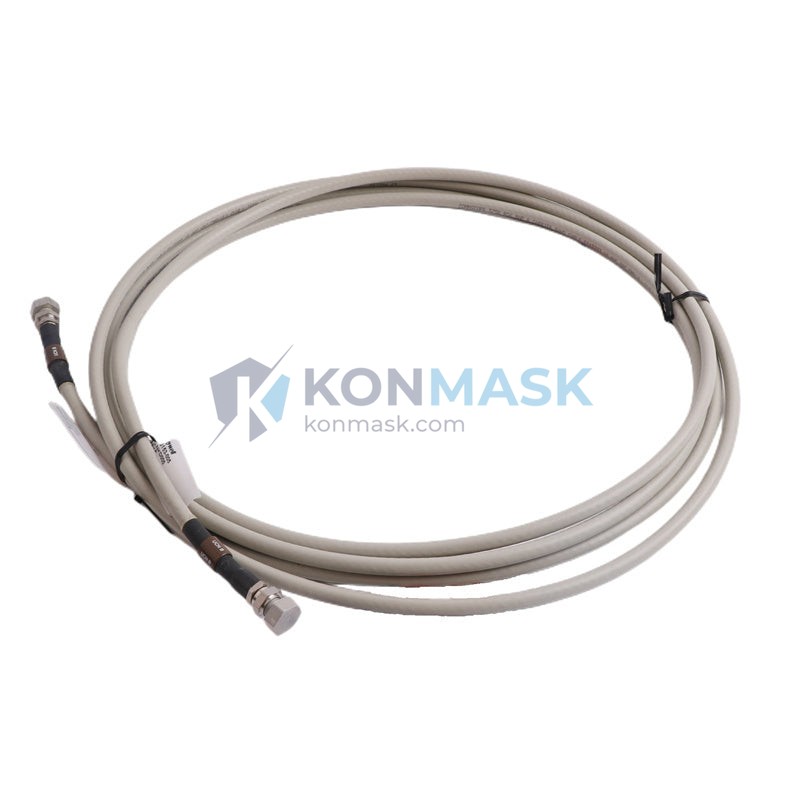

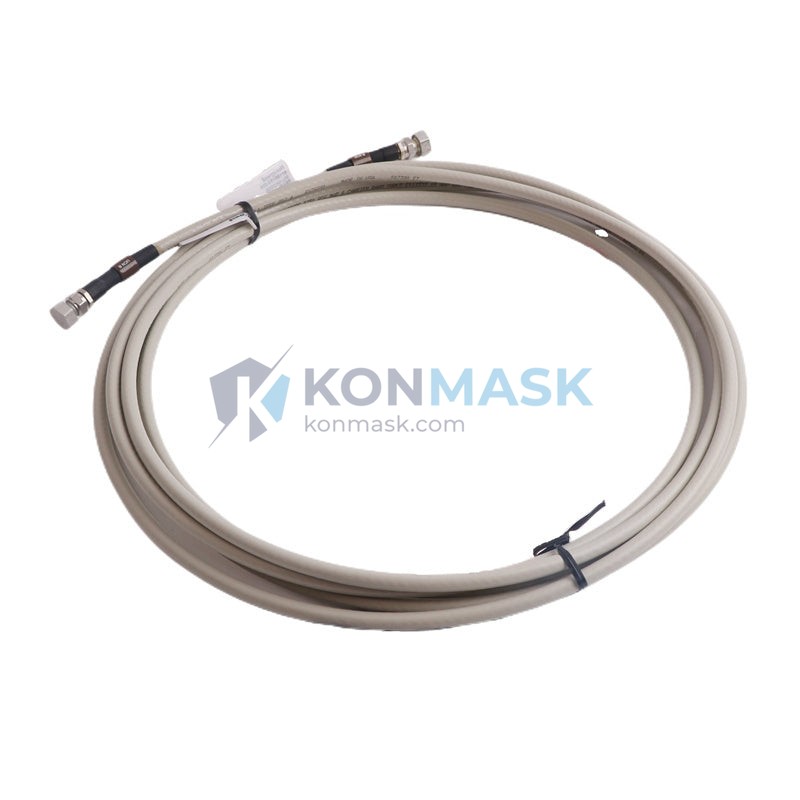

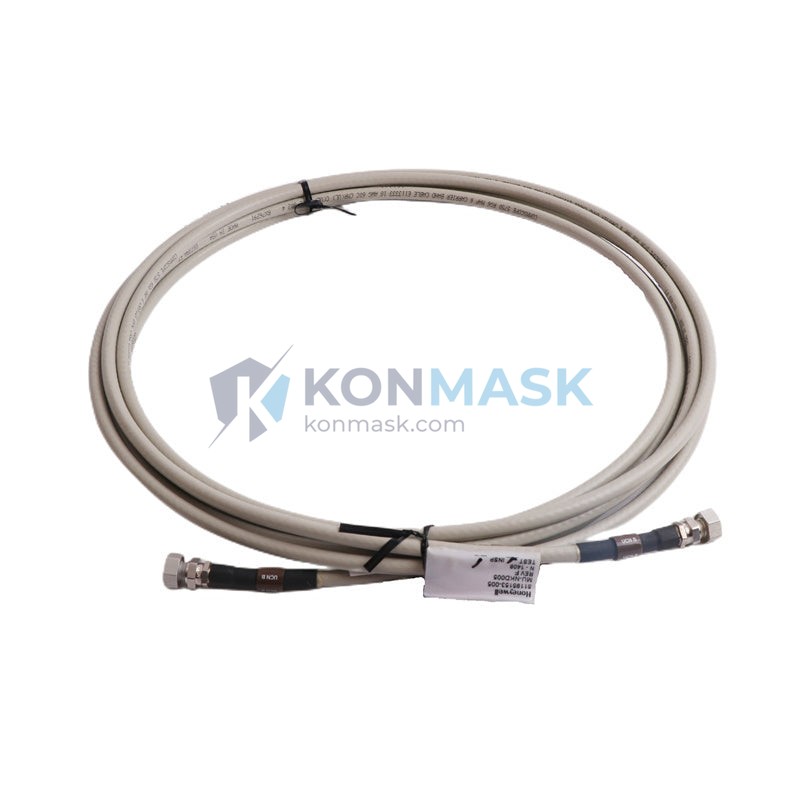

Genuine Honeywell 51195153-005 Cable Set | TDC 3000 / TotalPlant – Verified Source
The Honeywell 51195153-005 Cable Set is a critical interconnect assembly within the Honeywell TDC 3000 and TotalPlant Distributed Control System (DCS) ecosystem — one of the most widely deployed process automation platforms in refining, petrochemical, and power generation industries. As legacy DCS infrastructure ages, sourcing authentic replacement cable sets has become increasingly difficult. The market is saturated with counterfeit assemblies and substandard substitutes that fail to meet Honeywell’s original impedance, shielding, and connector-locking specifications, creating serious risks of signal degradation, unplanned shutdowns, and safety incidents.
Konmask sources the 51195153-005 Cable Set exclusively through verified industrial distribution channels and authorized surplus networks. Every unit we supply is inspected against Honeywell’s original engineering documentation before dispatch. We do not list, sell, or ship any item we cannot authenticate. When you order from Konmask, you receive a genuine, verified, and authentic Honeywell assembly — backed by full traceability documentation.
Technical Specifications
- Part Number: 51195153-005
- Manufacturer: Honeywell Process Solutions
- Description: Cable Set Assembly
- Compatible Platform: Honeywell TDC 3000 / TotalPlant DCS
- Cable Type: Multi-conductor shielded assembly
- Connector Type: Honeywell-proprietary locking connectors (both ends)
- Shielding: Overall foil + braid shield, drain wire included
- Weight: 280 g (nominal)
- Operating Temperature: -20°C to +70°C
- Compliance: Designed to Honeywell internal engineering standards
- Specifications verified against Honeywell Process Solutions official documentation and part cross-reference database.
Our 4-Step Quality Verification Process
Every Honeywell 51195153-005 Cable Set shipped by Konmask passes through a structured authentication and quality workflow:
- Step 1 — Visual & Marking Inspection: Connector housings, cable jacket markings, and part number labels are compared against Honeywell OEM reference samples. Any discrepancy in font, color, or label placement triggers immediate rejection.
- Step 2 — Continuity & Insulation Resistance Test: Each conductor is tested for continuity and insulation integrity using calibrated test equipment. Shield drain wire continuity is verified independently.
- Step 3 — Connector Locking Mechanism Check: Proprietary locking connectors are mated and released a minimum of 5 cycles to confirm positive engagement and zero play — a key failure point in counterfeit assemblies.
- Step 4 — Documentation Package Assembly: A full traceability package is compiled, including Certificate of Conformance (COC), incoming inspection record, packing list, and Country of Origin (COO) declaration. Test reports and photos are available upon request.
Key Features & Benefits
- OEM-Matched Signal Integrity: Conductor gauge, twist pitch, and shielding meet Honeywell’s original design spec — eliminating noise-induced I/O errors common with non-genuine cables.
- Proprietary Connector Compatibility: Locking connectors are dimensionally identical to OEM, ensuring zero-force mating with TDC 3000 I/O termination assemblies without modification.
- Full Traceability: COC, test report, and packing list provided as standard — meeting IEC 62381 and ISA-5.1 documentation requirements for process control maintenance records.
- Counterfeit-Proof Sourcing: Sourced exclusively from verified surplus and authorized distribution channels — not grey-market aggregators or unverified online marketplaces.
- Long-Term Storage Compatibility: Jacket and insulation materials rated for extended shelf life under controlled storage conditions per IEC 60228 Class 2 conductor standards.
- Drop-In Replacement: No re-engineering or field modification required — direct swap for failed or degraded OEM cable sets in live DCS environments.
Typical Applications
- Petroleum Refining: Interconnect replacement in Honeywell TDC 3000 process controllers managing crude distillation and hydrocracking units.
- Petrochemical Plants: I/O cable restoration in TotalPlant DCS nodes controlling reactor temperature and pressure loops.
- Power Generation: Turbine control system cable maintenance in combined-cycle and coal-fired power stations running legacy Honeywell DCS.
- Pulp & Paper: Replacement of degraded cable sets in continuous digester and recovery boiler control systems.
- Pharmaceutical Manufacturing: GMP-compliant cable set replacement in validated batch control environments requiring full documentation traceability.
- LNG & Gas Processing: Spare parts inventory replenishment for offshore and onshore Honeywell DCS installations in gas compression and liquefaction facilities.
Compatible System Components
- Honeywell TDC 3000 I/O Link Modules
- Honeywell High-Performance Process Manager (HPM)
- Honeywell Advanced Process Manager (APM)
- Honeywell Basic Process Manager (BPM)
- Honeywell TotalPlant Alcont / TPS Node Cabinets
- Honeywell 51195xxx-series Cable Assembly Family
- Honeywell FTA (Field Termination Assembly) Panels
Global Sourcing & Shipping Capabilities
- Primary Service Regions: Mainland China, Southeast Asia (Singapore, Malaysia, Thailand, Vietnam), Middle East (Saudi Arabia, UAE, Kuwait), Europe (Germany, Netherlands, UK), North America (USA, Canada)
- Export Packaging Standard: Anti-static bag → bubble wrap inner → double-wall corrugated carton with foam corner protection. Fragile and ESD-sensitive labeling applied.
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight consolidation for bulk orders
- Lead Time: In-stock orders ship within 1–3 business days. ETA varies by destination; express delivery typically 3–7 business days internationally.
- Export Documentation: Commercial invoice, packing list, COO declaration, and COC provided as standard for customs clearance.
Certifications & Compliance Statement
- Honeywell OEM Part — manufactured to Honeywell Process Solutions internal quality standards
- RoHS compliant materials (where applicable to cable jacket and insulation)
- IEC 60228 Class 2 conductor standard (stranded copper)
- Documentation meets IEC 62381 process control maintenance record requirements
Konmask Quality Commitment: We supply only parts we can authenticate. If any unit fails to meet the specifications stated on this page, Konmask will arrange replacement or full refund — no dispute required. Our reputation in the industrial automation supply chain depends on zero tolerance for counterfeit or substandard components.
How to Order
- Step 1 — Submit Inquiry: Contact us via the product page, email [email protected], or WhatsApp +0086 19859288691 with your required quantity and delivery destination.
- Step 2 — Receive Quote & Documentation Preview: We respond within 24 hours with pricing, lead time, and a preview of available documentation (COC, test report, photos).
- Step 3 — Confirm & Ship: Upon order confirmation and payment, we dispatch with full export documentation. Tracking number provided same day as shipment.
Sample units and pre-shipment test reports are available for qualified buyers on request. Minimum order quantity: 1 piece.
Authenticity & Trust FAQ
-
Q: How can I verify the cable set is genuine Honeywell?
A: We provide a Certificate of Conformance (COC) with every shipment, along with incoming inspection photos and connector marking close-ups. You can cross-reference the part number and date codes against Honeywell’s official part database or your existing OEM inventory. -
Q: What is your warranty policy?
A: All parts carry a 12-month warranty against manufacturing defects and authenticity. If a part is found to be non-genuine or fails under normal operating conditions within the warranty period, Konmask will replace it or issue a full refund. -
Q: Can you provide a test report before shipment?
A: Yes. Pre-shipment test reports including continuity test results, insulation resistance values, and connector engagement verification are available upon request for orders of any quantity. Please specify this requirement at the inquiry stage.
