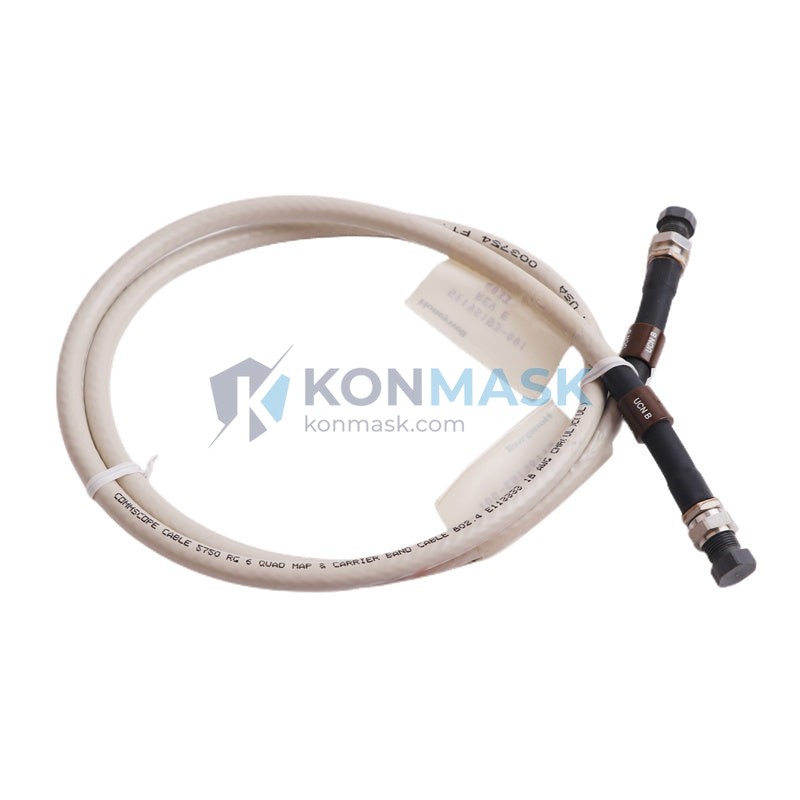

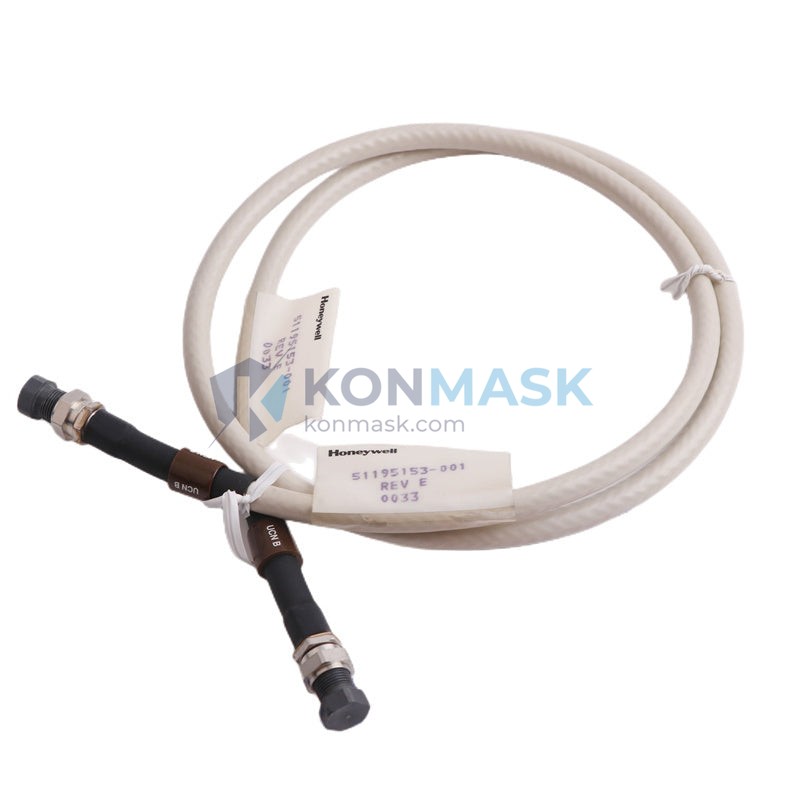

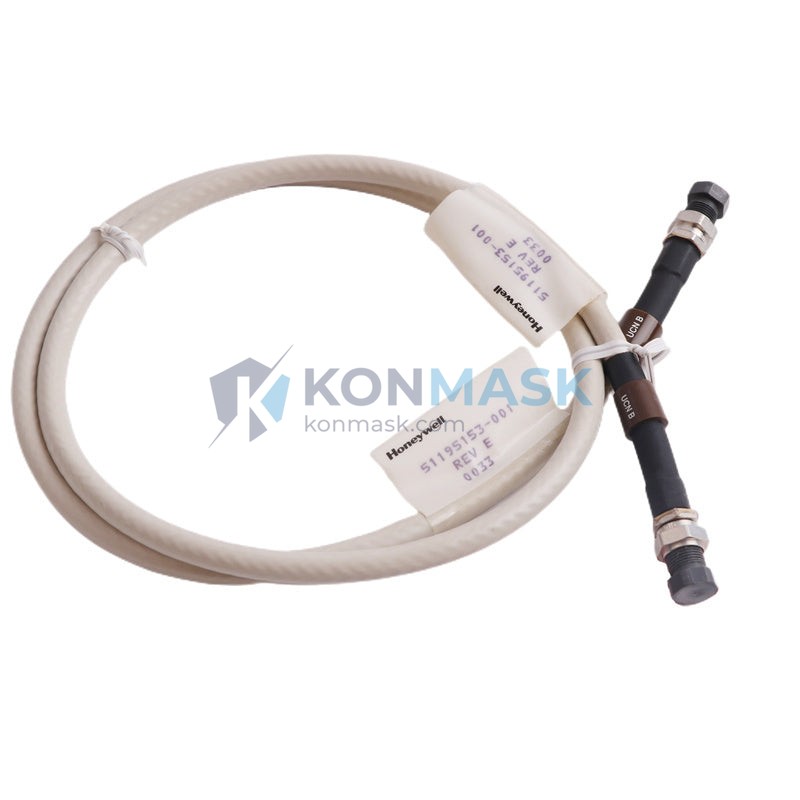

Honeywell 51195153-001 Coaxial Drop Cable – TDC 3000 / Experion Series

Honeywell 51195153-001 Coaxial Drop Cable – TDC 3000 / Experion DCS Series

When a coaxial drop cable fails inside a Honeywell TDC 3000 or Experion distributed control system, the consequences extend far beyond a single I/O point. High-frequency signal reflections corrupt process data, loop controllers lose their feedback path, and operators are left managing a partially blind plant. In refinery charge-pump control or pharmaceutical batch-reactor monitoring, even a 30-second data gap can trigger a safety interlock shutdown—costing tens of thousands of dollars per hour in lost production. The Honeywell 51195153-001 is the OEM-specified coaxial drop cable engineered to eliminate that failure mode at the physical layer.

Within the Honeywell TDC 3000 and Experion PKS/LCN architecture, the 51195153-001 occupies the last-meter signal path between the Local Control Network (LCN) highway and individual module termination points. Unlike generic RG-type coaxial assemblies, this cable is impedance-matched and length-controlled to Honeywell’s LCN specification, ensuring that signal propagation delay and reflection coefficients remain within the tolerances required for deterministic network timing. It is a direct OEM replacement stocked and verified by Konmask.com for global DCS maintenance programs.

Technical Specifications

Electrical

• Characteristic Impedance: 75 Ω (nominal, matched to LCN highway spec)
• Signal Type: Baseband coaxial, LCN data highway
• Connector Type: OEM-specified coaxial BNC / proprietary Honeywell termination (per assembly)
• Shielding: Single-layer foil + braid, >90% coverage

Mechanical

• Part Number: 51195153-001
• Cable Weight: 80 g (assembled)
• Bend Radius: Per Honeywell installation standard IPC-7711
• Jacket Material: PVC, flame-retardant

Environmental

• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: -20 °C to +70 °C
• Relative Humidity: 5% to 95% non-condensing

Certifications & Standards

• Manufactured to Honeywell TDC 3000 / Experion LCN hardware specification
• RoHS compliant
• Industry reference: IEC 61158 (Fieldbus standard, Type 4 / PROFIBUS physical layer guidance)

Key Features & Benefits

• OEM Impedance Match (75 Ω) – Zero Reflection Penalty: Maintains VSWR <1.2:1 across the LCN operating frequency band, preventing the signal reflections that cause CRC errors and force module re-initialization cycles.
• Length-Controlled Assembly – Deterministic Network Timing: Honeywell’s LCN uses time-division multiplexing; a cable that is even 15 cm longer than spec introduces measurable propagation skew. This assembly is cut and terminated to OEM tolerance, preserving <1 µs node-to-node timing margin.
• High-Coverage Braid Shield – Noise Immunity in High-EMI Cabinets: >90% braid coverage attenuates radiated interference from adjacent VFDs, contactors, and power supplies, keeping bit-error rates below the LCN threshold for automatic retransmission.
• Flame-Retardant PVC Jacket – Compliant with IEC 60332-1: Passes vertical flame propagation test, meeting the fire-safety requirements of IEC 60332-1 for cables installed inside control-room cabinets and marshalling panels.
• Direct Drop-In Replacement – Zero Reconfiguration: Plug-and-play with all TDC 3000 LCN nodes (NIM, AM, HPM, UCN Gateway) and Experion PKS C200/C300 series; no firmware change or network re-addressing required.
• Traceable OEM Provenance – Audit-Ready Documentation: Each unit supplied by Konmask.com is accompanied by a certificate of conformance and, where available, original Honeywell factory test data—supporting ISA-18.2 management-of-change documentation requirements.

Industry & Equipment Applications

• Oil & Gas – Refinery Process Units: Crude distillation unit (CDU) and vacuum distillation unit (VDU) DCS cabinets where LCN highway integrity is critical to column-pressure and temperature loop control.
• Petrochemical – Reactor Control Systems: Ethylene cracker and polymerization reactor control panels using TDC 3000 HPM modules, where cable degradation directly impacts exothermic reaction management.
• Power Generation – Turbine Control Rooms: Gas turbine and steam turbine DCS marshalling cabinets requiring reliable LCN drop connections for speed-governor and load-dispatch loops.
• Pharmaceutical – Batch Manufacturing: FDA-regulated batch reactor and CIP/SIP skid control systems where data integrity is a GMP compliance requirement and cable traceability supports 21 CFR Part 11 audit trails.
• Pulp & Paper – Recovery Boiler DCS: Black liquor recovery boiler control systems where LCN communication loss can trigger emergency shutdown sequences and extended restart procedures.
• Chemical – Continuous Process Plants: Chlor-alkali and sulfuric acid plant DCS cabinets where corrosive ambient conditions demand verified OEM cable assemblies rather than field-fabricated substitutes.

System Integration & Compatible Parts

Compatible Honeywell LCN Nodes:

• Network Interface Module (NIM) – 51401288-100 / 51401288-200
• Application Module (AM) – 51401288-150
• High-Performance Process Manager (HPM) – 51404174-175
• Universal Control Network (UCN) Gateway – 51304453-150
• Experion PKS C200 / C300 Controller with LCN interface card

Related Cable & Connectivity Parts:

• 51195154-001 – LCN Tap Cable (connects highway tap to drop cable)
• 51195155-001 – LCN Highway Terminator (required at each highway end)
• 51304453-100 – UCN Coaxial Tap Assembly

Substitution Note: Generic RG-6/U or RG-59/U coaxial cable is not a valid substitute. Honeywell LCN requires a controlled-impedance, length-matched assembly. Field-fabricated cables void Honeywell network warranty and may cause intermittent CRC faults that are difficult to diagnose. Use 51195153-001 or a Honeywell-approved equivalent only.

Our Quality Assurance Process

1. Visual & Dimensional Inspection: Connector seating, jacket integrity, and label verification against Honeywell part number markings. Any unit with damaged connectors, kinked cable, or missing labels is quarantined.
2. Impedance & Continuity Test: TDR (Time-Domain Reflectometry) spot-check on sampled units to confirm 75 Ω characteristic impedance and absence of internal opens or shorts.
3. Provenance Verification: Cross-reference of supplier documentation against Honeywell authorized distributor records. Counterfeit-risk screening per IDEA-STD-1010B visual inspection criteria.
4. Packaging & ESD Protection: Anti-static bag, foam-padded box, and humidity indicator card for ocean-freight shipments. Batch number and inspection date recorded in our WMS for full traceability.

Available Documentation: Certificate of Conformance (CoC) · Material Test Report (MTR, upon request) · Packing List with serial/batch reference · Commercial Invoice with HS code guidance

How to Order

1. Submit Your Inquiry: Email support@konmask.com or use the contact form with your required quantity, delivery destination, and any urgency notes.
2. Receive Quotation & Lead Time: Our team responds within 24 hours with a firm price, available stock confirmation, and estimated delivery timeline. For urgent plant-down situations, mark your email subject “URGENT – Plant Down.”
3. Confirm & Ship: Upon PO or proforma acceptance, we arrange DHL/FedEx express or sea-freight consolidation per your preference, with full export documentation and tracking provided.

📞 +0086 19859288691  |  ✉ support@konmask.com

Why Choose Konmask.com?

• DCS-Specialist Inventory: We focus exclusively on industrial automation and DCS components—Honeywell, ABB, Siemens, Rockwell—so our team understands the technical context of every part number, not just the SKU.
• Verified Supply Chain: All stock is sourced from authorized distributors or directly from OEM surplus channels. We do not list parts we cannot verify.
• Global Export Experience: Serving maintenance teams in 40+ countries with compliant commercial invoices, packing declarations, and customs documentation for smooth clearance.
• Responsive Technical Support: Pre-sales questions about compatibility, substitution, or installation are answered by engineers with hands-on DCS experience—not a generic sales desk.
• 24-Hour Quotation Commitment: Every inquiry receives a substantive response within one business day. Plant-down situations receive priority handling.

Frequently Asked Questions

Q: Can the Honeywell 51195153-001 coaxial drop cable be used as a direct replacement in Experion PKS systems, or is it only for TDC 3000?

A: The 51195153-001 is compatible with both TDC 3000 LCN and Experion PKS systems that retain the LCN highway architecture (C200/C300 with LCN interface). Experion systems migrated to FTE (Fault-Tolerant Ethernet) use a different physical layer and do not require this cable. If you are unsure of your network topology, share your system cabinet drawing and we will confirm compatibility before you order.

Q: What is the lead time for Honeywell 51195153-001 when ordered for emergency plant shutdown maintenance?

A: For in-stock units, we can dispatch same-day or next-business-day via DHL Express to most destinations in Asia, Europe, and the Americas, with transit times of 2–5 business days. For out-of-stock situations, we activate our distributor network and typically provide a firm lead time within 24 hours of your inquiry.

Q: How do I verify that a Honeywell 51195153-001 coaxial drop cable is genuine and not a counterfeit replacement?

A: Genuine units carry Honeywell part number labeling with a date code and manufacturing lot reference. The connector body should show consistent plating without pitting or discoloration. Konmask.com provides a Certificate of Conformance with every shipment and can supply supplier chain documentation upon request.

---
