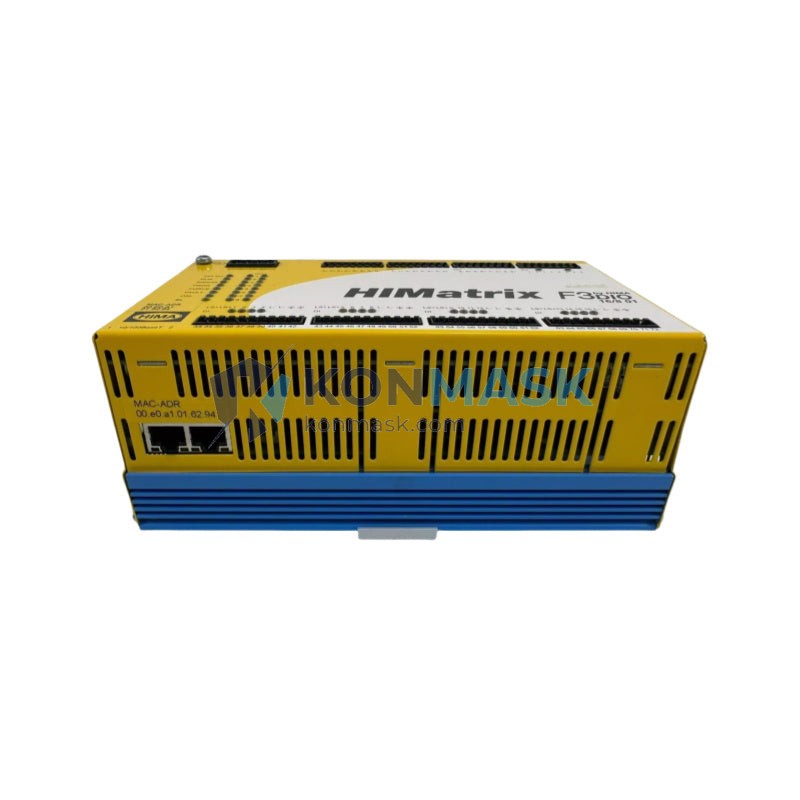

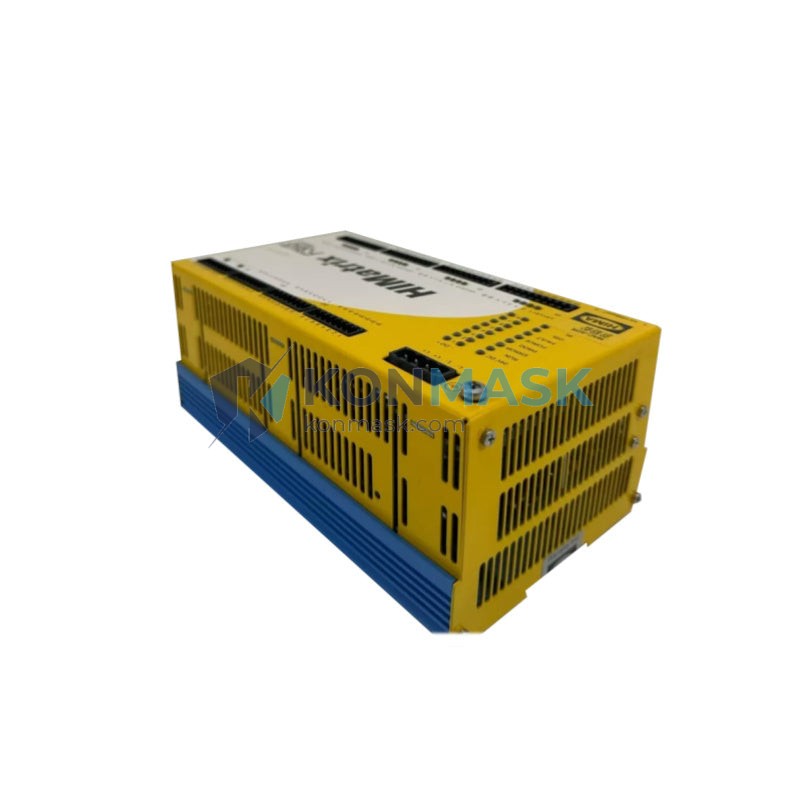

Industrial Safety Automation Solution – HIMA HIMatrix F35 011 | HIMatrix Series
Where This Product Is Used
The HIMA HIMatrix F35 011 Safety Controller is a compact, high-integrity programmable safety controller designed for demanding industrial environments. It is widely deployed in:
- Oil & Gas – Emergency Shutdown Systems (ESD), High Integrity Pressure Protection Systems (HIPPS), and burner management on offshore platforms and onshore terminals
- Chemical & Petrochemical Plants – Process safety interlocks, reactor protection, and toxic gas detection shutdown loops
- Power Generation – Turbine overspeed protection, boiler safety systems, and grid-connected generator protection
- Pipeline Infrastructure – Compressor station ESD, leak detection logic, and valve control safety loops
- Water & Wastewater Treatment – Pump protection, overflow prevention, and chemical dosing safety interlocks
- Pharmaceutical Manufacturing – Cleanroom pressure control safety and batch reactor protection
Technical Specifications
- Model: HIMatrix F35 011
- Part Number / SKU: HIMatrix-F35-011
- Manufacturer: HIMA Paul Hildebrandt GmbH
- Series: HIMatrix
- Safety Integrity Level: SIL 3 (IEC 61508), SIL 3 capable per IEC 61511
- Architecture: 1oo1D (1-out-of-1 with Diagnostics)
- Digital Inputs: 16 × 24 VDC
- Digital Outputs: 8 × relay / transistor
- Analog I/O: Configurable (model-dependent)
- Communication: PROFIBUS DP, Modbus RTU/TCP, HIMA SafeEthernet
- Programming Standard: IEC 61131-3 (via ELOP II Factory)
- Operating Temperature: -20°C to +60°C
- Power Supply: 24 VDC
- Housing: DIN rail mount, compact form factor
- Certifications: TÜV Rheinland, ATEX Zone 2 (optional), IECEx
- Weight: Approx. 1.5 kg
Why Engineers Specify This Model
- Proven SIL 3 Certification – TÜV-certified to IEC 61508, eliminating costly third-party re-validation for most applications
- Compact Footprint – The F35 form factor fits into space-constrained control panels without sacrificing I/O density
- Deterministic Response Time – Sub-10ms safety reaction time ensures reliable protection in fast-process applications
- Integrated Diagnostics – 1oo1D architecture provides continuous self-testing, reducing proof-test intervals and lifecycle costs
- Open Communication – Native PROFIBUS and Modbus support enables seamless integration with existing DCS and SCADA infrastructure
- Long Product Lifecycle – HIMA’s commitment to long-term spare parts availability reduces obsolescence risk for 15–20 year plant lifecycles
- Global Compliance – Accepted by major certification bodies (TÜV, DNV, Lloyd’s Register) for international project execution
Complete System Bill of Materials
For a complete HIMatrix F35 011 safety loop, engineers typically specify:
- HIMatrix F35 011 – Safety Controller (this unit)
- HIMA 24 VDC Power Supply Module (redundant recommended)
- HIMA SafeEthernet Switch / Gateway for network integration
- ELOP II Factory Engineering Software License
- HIMA F3 DIO 8/8 01 – Expansion I/O module (if additional I/O required)
- DIN Rail, terminal blocks, and field wiring accessories
- Surge protection devices (SPD) for field instrument inputs
Contact support@konmask.com for complete BOM assistance and compatible spare parts sourcing.
Compliance & Industry Standards
- IEC 61508 – Functional Safety of E/E/PE Safety-related Systems (SIL 3)
- IEC 61511 – Functional Safety for the Process Industry Sector
- IEC 61131-3 – Programmable Controller Programming Languages
- ATEX Directive 2014/34/EU – Equipment for Explosive Atmospheres (Zone 2 rated)
- IECEx – International Electrotechnical Commission System for Explosion Protection
- EN ISO 13849-1 – Safety of Machinery (PLd/PLe applicable configurations)
- DNV / Lloyd’s Register – Marine and offshore type approval available
Quality Assurance & Sourcing
At Konmask.com, every HIMA HIMatrix F35 011 unit is:
- Sourced directly from authorized HIMA distribution channels or verified surplus inventory
- Inspected for physical integrity, label authenticity, and firmware version prior to dispatch
- Shipped with original manufacturer documentation where available
- Backed by our 90-day return policy for DOA (Dead on Arrival) units
- Traceable via serial number for warranty and lifecycle management
How to Source This Part
- Add to Cart – Click the purchase button above to place your order directly
- Request a Quote – Email support@konmask.com for volume pricing, lead time confirmation, or project-specific BOM support
- Call / WhatsApp – Reach our technical sales team at +0086 19859288691 for urgent requirements
- Expedited Shipping – DHL Express, FedEx International Priority, and sea freight options available for global delivery
Application-Specific FAQ
Q: Is the HIMatrix F35 011 suitable for HIPPS applications?
A: Yes. Its SIL 3 rating and fast response time make it a common choice for High Integrity Pressure Protection Systems in oil & gas facilities.
Q: Can this controller be used in ATEX Zone 1 areas?
A: The standard F35 011 is rated for Zone 2. For Zone 1 installations, it must be housed in a certified Ex e or Ex d enclosure. Contact us for enclosure recommendations.
Q: What programming software is required?
A: HIMA’s ELOP II Factory (IEC 61131-3 compliant) is the native engineering environment. Third-party tools are not supported for safety-certified logic.
Q: Is a Factory Acceptance Test (FAT) certificate available?
A: For new units sourced through authorized channels, FAT documentation can be arranged. Contact our team for details.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For out-of-stock items, lead time is typically 4–8 weeks from HIMA’s factory. Contact us for current availability.
