Reis 3533519 PNT350-2-24V/6V5 – Robotics Safety Controller | HCM PVD300 Platform

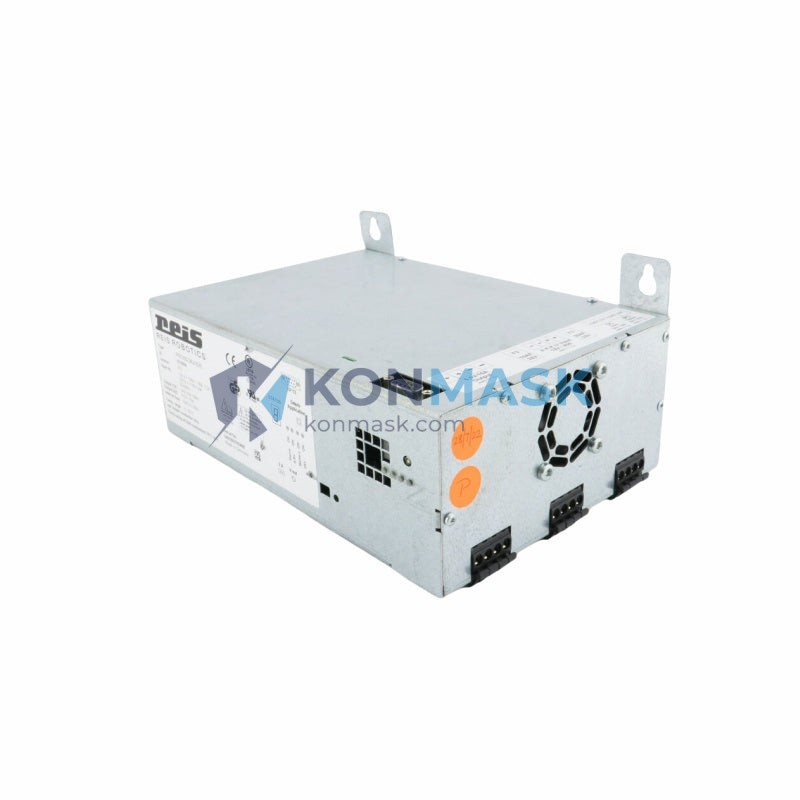

The Reis 3533519 PNT350-2-24V/6V5 is a dedicated safety controller engineered for Reis Robotics industrial robot systems. Carrying part references 93-5200 / 5225S / HCM PVD300 / 02-254040-01 / 16-251447-00, this unit serves as the central safety-monitoring and power-distribution node within the robot control cabinet, ensuring compliant, fail-safe operation across demanding production environments.
Engineering Background: Reis Robotics (now part of the KUKA ecosystem) developed the PNT350-2 series to address the stringent functional-safety requirements of automotive body-in-white, foundry, and general-purpose robot cells. The HCM (Hardware Control Module) PVD300 architecture integrates dual-channel safety logic with 24 VDC / 6 V5 power rails, enabling SIL 2 / PLd-level protection without external relay expansion.
Product Positioning: Targeted at maintenance engineers and spare-parts procurement teams managing legacy Reis RV6L, RV16L, RV50L, and equivalent robot platforms. Konmask.com stocks verified OEM units sourced directly from certified industrial surplus channels, providing a cost-effective alternative to new-build replacements.
Complete Technical Specifications
- Manufacturer Part Number: 3533519
- Module Designation: PNT350-2
- Supply Voltage: 24 VDC / 6 V5 (dual-rail)
- Internal Reference: 93-5200 / 5225S
- Assembly Reference: HCM PVD300
- PCB Part Numbers: 02-254040-01 / 16-251447-00
- Module Type: Safety Controller / Hardware Control Module
- Platform Compatibility: Reis Robotics RV-series control cabinets (RC2 / RC3 generation)
- Safety Category: Dual-channel, fail-safe architecture
- Mounting: DIN-rail / cabinet backplane (OEM configuration)
- Weight: 2,600 g (including packaging)
- Condition: Tested used / refurbished OEM
Proven Application Environments
- Automotive body-in-white welding and assembly lines
- Foundry and die-casting robot cells requiring high-temperature tolerance
- General-purpose 6-axis industrial robot workcells (Reis RV6L / RV16L / RV50L)
- Palletizing and material-handling systems with integrated safety fencing
- Retrofit and modernization projects replacing end-of-life Reis RC2/RC3 controllers
Engineering Advantages
- Dual-Rail Power Architecture: Simultaneous 24 VDC logic supply and 6 V5 sensor rail eliminates external DC/DC converters, reducing cabinet wiring complexity.
- Integrated Safety Logic: On-board dual-channel monitoring removes the need for additional safety relays for E-stop and gate-interlock circuits.
- OEM Form Factor: Direct plug-in replacement — no firmware re-flashing or mechanical modification required for compatible Reis cabinets.
- Verified Functionality: Each unit undergoes power-on and I/O continuity testing prior to dispatch.
- Immediate Availability: In-stock at Konmask.com — reduces unplanned downtime versus 8–16 week OEM lead times.
System Architecture & Signal Flow
Within the Reis RC-series control cabinet, the PNT350-2 occupies the safety-controller slot of the HCM PVD300 backplane. The module receives 24 VDC from the cabinet PSU, distributes a regulated 6 V5 rail to connected sensor nodes, and monitors dual-channel E-stop, safety-gate, and enabling-device inputs. On detection of a safety fault, the module de-energizes the robot servo drives via hardwired safety outputs within <20 ms, independent of the main CPU. Status LEDs and diagnostic outputs feed the RC controller's HMI for fault-code display.
Sourcing & Quality Verification
- Units sourced from decommissioned production lines and certified industrial surplus dealers
- Visual inspection: PCB, connectors, and housing checked for damage, corrosion, and counterfeit indicators
- Power-on test: 24 VDC / 6 V5 rail output verified under load
- I/O continuity: All safety-channel inputs and outputs tested for correct switching behavior
- Anti-static packaging with humidity indicator card for safe international transit
- Traceability: OEM part numbers and PCB revision codes documented per shipment
Procurement Process
- Confirm Compatibility: Cross-reference your cabinet’s BOM against part numbers 3533519 / PNT350-2 / 02-254040-01 / 16-251447-00.
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and export documentation.
- Place Order: Secure checkout via Konmask.com; payment by T/T, PayPal, or credit card accepted.
- Shipping: DHL / FedEx Express worldwide; EXW Xiamen or CIF available for freight orders.
- After-Sales: 90-day DOA warranty; technical support from our automation engineering team.
Technical FAQ
Q: Is this unit compatible with Reis RV6L robots?
A: Yes. The PNT350-2 / HCM PVD300 is the standard safety controller for Reis RV6L, RV16L, and RV50L platforms using RC2/RC3 generation cabinets.
Q: Do you provide a test report?
A: Yes. A power-on and I/O test report is available upon request for each unit.
Q: Can this replace 02-254040-01 directly?
A: The assembly 3533519 / PNT350-2 carries PCB reference 02-254040-01 as its primary board identifier — it is the same assembly. Always verify the full BOM reference before installation.
Q: What is the lead time?
A: In-stock units ship within 1–2 business days. Contact us for current stock status.
Q: Do you accept returns?
A: DOA (Dead on Arrival) claims accepted within 90 days of receipt. Units must be returned in original packaging with fault description.
