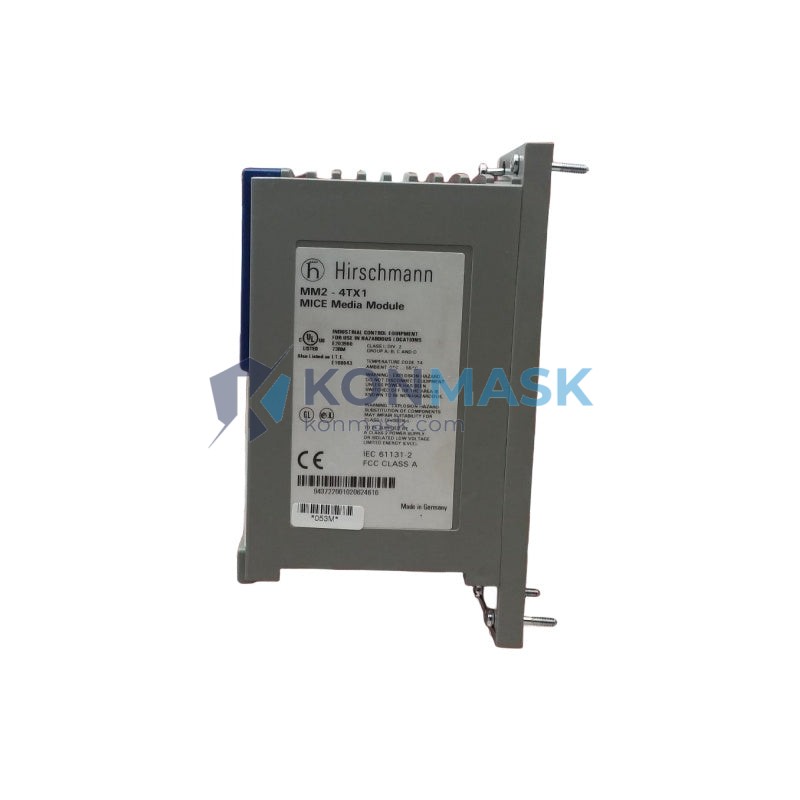

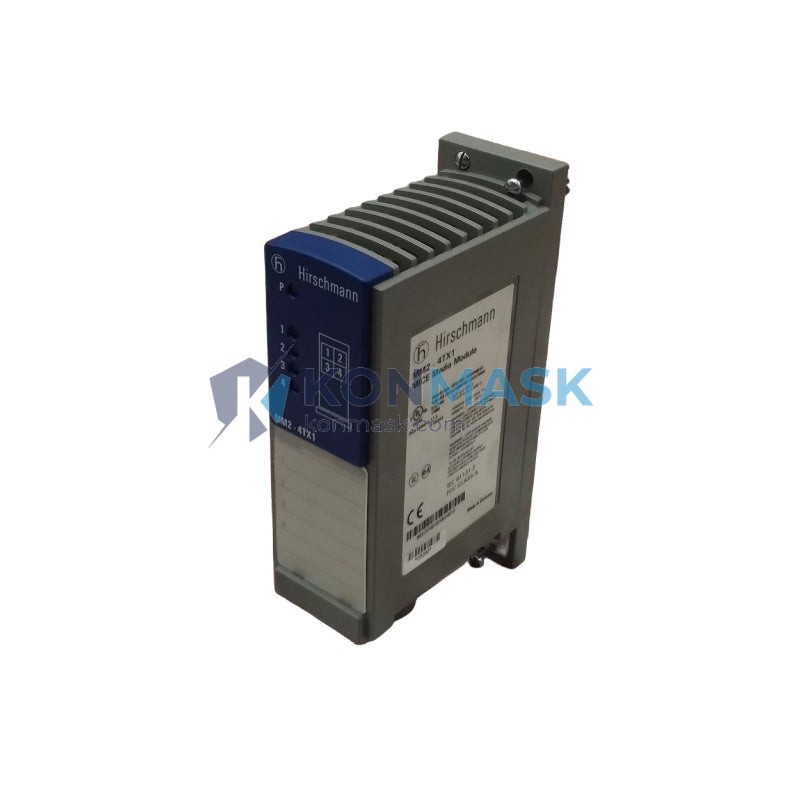

Industrial Ethernet Switching Solution – HIRSCHMANN MM2-4TX1 | MICE Series
Where This Product Is Used
The HIRSCHMANN MM2-4TX1 is a compact, DIN-rail-mountable managed media module engineered for mission-critical industrial Ethernet networks. Engineers and system integrators deploy this module across a wide range of demanding environments:
- Railway & Rolling Stock – Onboard and trackside Ethernet backbone networks requiring EN 50155 / EN 50121 compliance and vibration resistance.
- Factory Automation & Machine Building – High-speed data exchange between PLCs, HMIs, SCADA systems, and field devices on the shop floor.
- Process & Chemical Plants – Reliable switching in harsh environments with wide operating temperature ranges and resistance to EMI.
- Power Generation & Utilities – Substation automation and SCADA communication networks where network uptime is non-negotiable.
- Oil & Gas Facilities – Offshore and onshore control networks demanding rugged, sealed enclosures and extended temperature operation.
- Intelligent Transportation Systems (ITS) – Traffic management, tunnel control, and roadside infrastructure Ethernet backbones.
- Building Automation & HVAC – BACnet/IP and Modbus TCP integration within smart building control networks.
Technical Specifications
| Part Number | MM2-4TX1 |
| Brand | HIRSCHMANN (Belden) |
| Series | MICE (Modular Industrial Communication Equipment) |
| Form Factor | Modular Media Module, DIN-rail compatible |
| Ports | 4 × 10/100BASE-TX (RJ45) + 1 × expansion/uplink port |
| Transmission Speed | 10/100 Mbps, auto-negotiation, full/half duplex |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Power Supply | Via MICE backplane (24 VDC typical) |
| Housing | Metal, IP30 rated |
| Weight | 170 g |
| Mounting | DIN rail / MICE chassis slot |
| Management | Managed (via MICE chassis management module) |
| Protocol Support | PROFINET, Modbus TCP, EtherNet/IP, SNMP, RSTP/STP |
Specifications are subject to manufacturer revision. Always verify against the official HIRSCHMANN MM2-4TX1 datasheet before final design-in.
Why Engineers Specify This Model
- MICE Modular Architecture – Slots directly into the HIRSCHMANN MICE chassis, enabling scalable, hot-swap-capable network expansion without rewiring.
- Extended Temperature Range – Operates reliably from -40 °C to +70 °C, covering outdoor, unheated cabinet, and high-ambient industrial environments.
- Deterministic Latency – Store-and-forward switching with low, predictable latency critical for real-time PLC and motion-control communication.
- Redundancy Support – Compatible with HIRSCHMANN’s HiPER-Ring and RSTP/STP protocols for sub-300 ms ring recovery, ensuring network availability.
- EMI Hardened – Designed to IEC 61000 immunity levels, suitable for environments with variable-frequency drives, welding equipment, and high-voltage switchgear.
- Proven Field Record – Deployed globally in railway, utility, and heavy industry applications with documented MTBF exceeding 500,000 hours.
Complete System Bill of Materials
For a complete MICE-based managed switch system, engineers typically specify the following alongside the MM2-4TX1:
- MICE Chassis – e.g., HIRSCHMANN MS20, MS30, or MICE Base Unit (select slot count per project)
- MICE Management Module – e.g., MM3-2FXM2/2TX for fiber uplink and full Layer 2 management
- Power Supply Module – 24 VDC DIN-rail PSU rated ≥ 3 A (e.g., PHOENIX CONTACT QUINT series)
- DIN Rail & Enclosure – 35 mm DIN rail, IP54+ rated steel enclosure for outdoor/harsh locations
- Patch Cables – Industrial Cat5e/Cat6 shielded (STP) RJ45 cables, 0.5–2 m
- Fiber Patch Cord – LC/SC multimode or singlemode, per uplink module specification
- Grounding Kit – DIN rail grounding clamps and bonding conductors per IEC 60364
Contact support@konmask.com for bundle pricing on complete system BOMs.
Compliance & Industry Standards
- CE Marking – EU Low Voltage Directive & EMC Directive
- UL 508 – Industrial Control Equipment
- EN 50155 – Railway Electronic Equipment
- EN 50121-4 – Railway EMC (Signalling & Telecommunications)
- IEC 61000-4 Series – EMC Immunity (ESD, EFT, Surge, Conducted RF)
- IEEE 802.3 – Ethernet (10BASE-T / 100BASE-TX)
- IEEE 802.1D/w – STP / RSTP
- ATEX / IECEx – Consult factory for hazardous area variants
Quality Assurance & Sourcing
Konmask.com sources HIRSCHMANN MM2-4TX1 modules through authorized industrial distribution channels and verified secondary-market suppliers with full traceability. Every unit offered undergoes the following before dispatch:
- Visual Inspection – Housing integrity, connector condition, label legibility, and firmware label verification.
- Functional Power-On Test – Port link negotiation and LED status verification.
- Authenticity Check – Serial number cross-referenced against known HIRSCHMANN production batches.
- ESD-Safe Packaging – Anti-static bag, foam insert, and double-wall carton for safe international transit.
Certificates of conformance and test reports available upon request for project documentation.
How to Source This Part
- Add to Cart – Select quantity and click Buy Now for immediate checkout.
- Request a Quote – For orders of 5+ units or project BOMs, email support@konmask.com with your project details for volume pricing.
- Lead Time – In-stock units ship within 1–3 business days. Ex-stock orders dispatched same day if placed before 14:00 CST.
- Global Shipping – DHL Express, FedEx International Priority, and sea freight available. Export documentation (CO, packing list, commercial invoice) provided.
- Payment – T/T bank transfer, PayPal, and major credit cards accepted. LC available for orders above USD 5,000.
Application-Specific FAQ
Q: Is the MM2-4TX1 compatible with the HIRSCHMANN MS20 and MS30 chassis?
A: Yes. The MM2-4TX1 is designed for the MICE modular platform and is slot-compatible with MS20, MS30, and other MICE-series chassis. Verify slot type (TX/FX) before ordering.
Q: Can this module be used in a ring topology for redundancy?
A: Yes. When managed via a MICE management module supporting HiPER-Ring or RSTP, ring topologies with sub-300 ms recovery are achievable.
Q: What is the maximum cable length per TX port?
A: Up to 100 m per IEEE 802.3 specification using Cat5e or better UTP/STP cable.
Q: Is PROFINET IRT (Isochronous Real-Time) supported?
A: The MM2-4TX1 supports PROFINET RT. IRT requires a PROFINET IRT-capable switch; consult HIRSCHMANN’s PROFINET product line for IRT applications.
Q: Do you provide HIRSCHMANN firmware or configuration software?
A: HIRSCHMANN Industrial HiVision and the free Web-based management interface are available from Belden/HIRSCHMANN. We can advise on configuration best practices — contact our technical team.
Q: Can I return the module if it is incompatible with my system?
A: Yes. We offer a 30-day return policy for unused, uninstalled modules in original packaging. Contact support@konmask.com to initiate an RMA.
