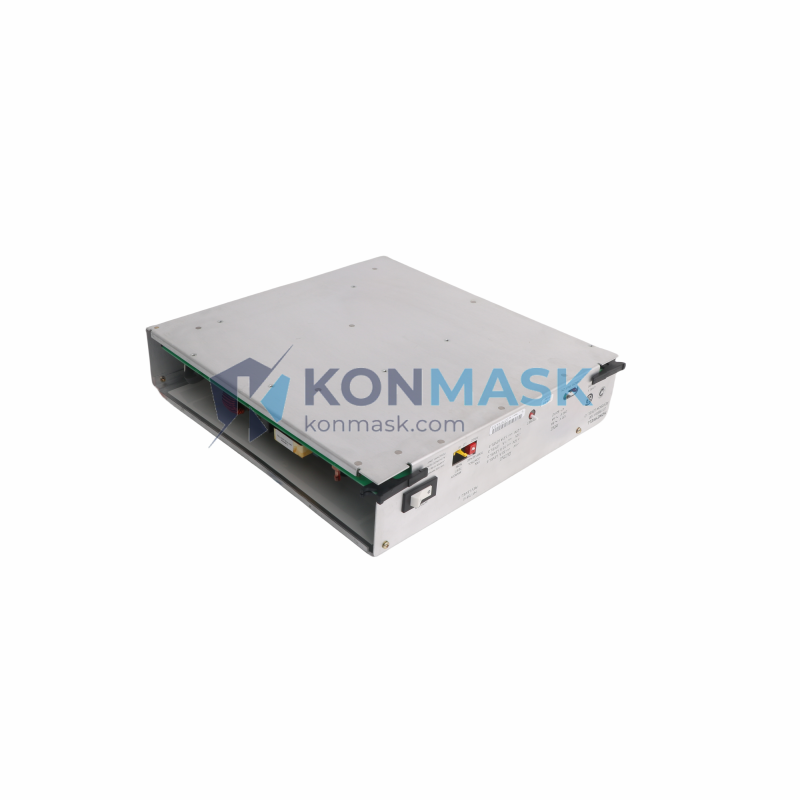

Honeywell 51196654-100 – Regulated DC Power Supply Module | TDC 3000 DCS Platform
Engineering Background: The Honeywell TDC 3000 (Total Distributed Control) platform has been the backbone of process automation in refining, petrochemical, and power generation facilities for decades. Reliable, conditioned DC power delivery is mission-critical to sustaining controller uptime and signal integrity across the entire distributed control architecture.
Product Positioning: The 51196654-100 is a factory-specification power supply module designed exclusively for the Honeywell TDC 3000 system. It provides stable, regulated DC output to field controllers, I/O modules, and communication cards, ensuring uninterrupted process control even under demanding industrial load conditions. Sourced through verified channels and inspected prior to shipment by Konmask.com.
Complete Technical Specifications
- Part Number: 51196654-100
- Manufacturer: Honeywell Process Solutions
- Platform / Series: TDC 3000 Distributed Control System (DCS)
- Module Type: Regulated DC Power Supply
- Output: Regulated DC (refer to OEM datasheet for exact voltage/current ratings)
- Form Factor: Card/module format, rack-mountable
- Weight: 4,400 g (approx.)
- Compatibility: Honeywell TDC 3000 controller cabinets and I/O enclosures
- Condition: New / Refurbished (specify at inquiry)
- Country of Origin: USA
- HS Code: 8504.40 (Static converters)
Proven Application Environments
- Petroleum refining and upstream oil & gas facilities
- Petrochemical and specialty chemical plants
- Power generation and utilities (coal, gas, nuclear auxiliary systems)
- Pulp & paper and continuous process manufacturing
- Pharmaceutical batch and continuous processing
- Water treatment and municipal infrastructure control
Engineering Advantages
- OEM-Specification Design: Engineered to Honeywell’s exact electrical and mechanical tolerances — no compatibility compromises.
- Regulated Output Stability: Maintains consistent DC rail voltage under variable load, protecting downstream I/O cards and controllers from transient damage.
- Hot-Swap Ready Architecture: Supports TDC 3000 redundant power configurations, enabling module replacement without process shutdown.
- EMI/RFI Shielding: Integrated filtering suppresses conducted noise on the DC bus, preserving signal integrity across analog and digital I/O channels.
- Long-Cycle Availability: Konmask maintains stock of legacy TDC 3000 power components to support plants operating beyond OEM production end-of-life.
System Architecture & Signal Flow
In a TDC 3000 cabinet, AC mains power enters the power supply module (51196654-100), which rectifies and regulates it to the required DC bus voltage. This regulated rail feeds the High-Performance Process Manager (HPM), Local Control Network (LCN) nodes, and associated I/O termination assemblies. Redundant power supply slots allow automatic failover, ensuring zero-interruption operation during single-module faults. Proper grounding and cable routing per Honeywell PM12-200 installation guidelines must be observed.
Sourcing & Quality Verification
- All units undergo visual inspection and functional bench testing prior to shipment.
- Traceability documentation (lot code, revision level) provided upon request.
- Packaging: anti-static ESD bag + foam-lined carton, compliant with IEC 61340-5-1.
- Lead time: typically 3–7 business days from confirmed order; expedited options available.
- Warranty: 12-month replacement warranty against manufacturing defects.
Procurement Process
- Submit your RFQ via [email protected] or WhatsApp +0086 19859288691.
- Receive a formal quotation with availability confirmation within 24 hours.
- Issue PO — we accept T/T wire transfer, PayPal, and major credit cards.
- Module ships with packing list, test report, and tracking number.
- Post-delivery technical support available from our automation engineering team.
Technical FAQ
Q: Is 51196654-100 compatible with both HPM and PM controllers?
A: Yes. This power supply module is designed for the TDC 3000 cabinet backplane and supports HPM, PM, and associated LCN infrastructure within the same enclosure.
Q: Can this module operate in a redundant power configuration?
A: Yes. TDC 3000 cabinets support dual power supply slots. Two 51196654-100 units can be installed for N+1 redundancy with automatic load sharing and failover.
Q: What is the difference between 51196654-100 and similar Honeywell power supply part numbers?
A: The -100 suffix denotes the specific revision and output rating variant. Always verify your cabinet’s power requirements against the OEM documentation before substituting part numbers. Contact our team for cross-reference assistance.
Q: Do you provide a certificate of conformance?
A: Yes. A CoC and inspection report are available upon request at no additional charge.
