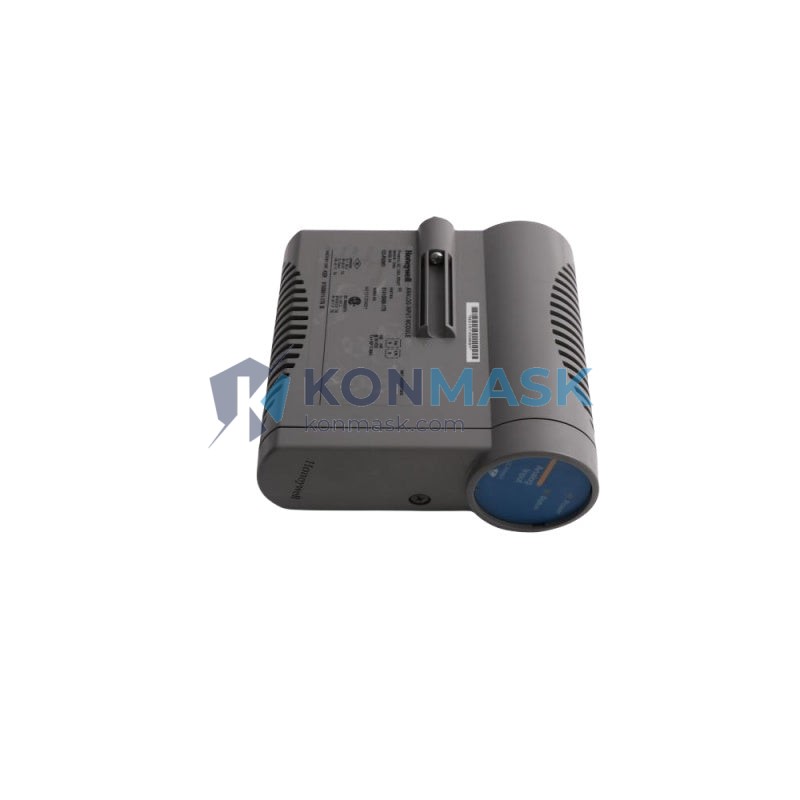

Honeywell CC-IP0101 (51410056-175) FOUNDATION Fieldbus Interface Module – Experion PKS C300 Series
In a modern process plant, a single failed fieldbus interface module can sever communication between the control system and dozens of field instruments simultaneously—triggering cascading alarms, forcing manual overrides, and halting production. The Honeywell CC-IP0101 (part number 51410056-175) is the critical link that keeps your FOUNDATION Fieldbus network alive, ensuring uninterrupted data exchange between the Experion PKS C300 controller and field devices such as transmitters, valve positioners, and analyzers.
Within the Experion PKS C300 ecosystem, the CC-IP0101 occupies a specialized role as the dedicated FOUNDATION Fieldbus (FF-H1) interface module. Unlike generic I/O modules, it implements the full IEC 61158 / IEC 61784 fieldbus protocol stack, enabling deterministic, multi-drop communication at 31.25 kbit/s. Its dual-port architecture and segment power conditioning make it the preferred choice for SIL-rated loops and high-availability process control architectures across refining, petrochemical, and power generation industries worldwide.
Technical Specifications
- Part Number: CC-IP0101 / 51410056-175
- Manufacturer: Honeywell Process Solutions
- Series: Experion PKS – C300 Controller / CIOM-A Chassis
- Module Type: FOUNDATION Fieldbus H1 Interface Module
- Protocol: FOUNDATION Fieldbus H1 (IEC 61158 / IEC 61784)
- Communication Speed: 31.25 kbit/s
- Fieldbus Ports: 2 × FF-H1 segments per module
- Devices per Segment: Up to 16 field devices (application dependent)
- Power Supply: Supplied via CIOM-A chassis backplane
- Operating Temperature: 0 °C to +60 °C
- Relative Humidity: 5% to 95% non-condensing
- Weight: Approx. 1,900 g (module with housing)
- Certifications: CE, UL (refer to Honeywell product documentation for full certification list)
- Compatible Chassis: Honeywell CIOM-A (Control I/O Module Assembly)
Key Features & Benefits
- Full FF-H1 Protocol Stack: Implements publisher/subscriber and client/server communication models for deterministic fieldbus control.
- Dual-Segment Architecture: Two independent H1 segments per module maximize device density while isolating faults between segments.
- Integrated Segment Power Conditioning: Built-in power conditioner eliminates the need for external fieldbus power supplies on each segment, reducing panel footprint.
- Hot-Swap Capable: Designed for removal and insertion under power (RIUP) within the CIOM-A chassis, minimizing maintenance downtime.
- Seamless Experion PKS Integration: Natively recognized by Experion PKS Control Builder; function blocks and device descriptions (DD/EDD) load automatically.
- Diagnostic Transparency: Segment-level diagnostics surfaced directly in Experion Station HMI, enabling rapid fault isolation without additional tools.
- Long Product Lifecycle: Honeywell’s extended support commitment ensures spare parts availability and firmware updates for process-critical installations.
Industry & Equipment Applications
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA, downstream refinery DCS loops
- Petrochemical & Chemical: Reactor temperature/pressure control, distillation column instrumentation
- Power Generation: Boiler combustion control, turbine governor interfaces, balance-of-plant I/O
- Pulp & Paper: Digester control, recovery boiler instrumentation
- Pharmaceuticals: Batch process control with FDA 21 CFR Part 11 audit trail requirements
- Water & Wastewater: Pump station automation, chemical dosing control
System Integration & Compatible Parts
The CC-IP0101 is designed to operate within the Honeywell Experion PKS C300 control architecture. Commonly paired components include:
- Honeywell C300 Controller Module (CC-PCF901 / 51405038-175)
- Honeywell CIOM-A Chassis (CC-PCNT01 / 51405039-175)
- Honeywell Series-C Power Supply (CC-PWR001 / 51405040-175)
- Honeywell FF-H1 Fieldbus Terminators and Trunk Cables
- Compatible FF-H1 Field Devices: Yokogawa EJA transmitters, Emerson Fisher DVC positioners, Endress+Hauser Promass flowmeters
Our Quality Assurance Process
Every Honeywell CC-IP0101 unit sourced by Konmask.com undergoes a rigorous multi-stage inspection before shipment:
- Visual Inspection: Connector pins, PCB surface, housing integrity, and label legibility checked against OEM standards.
- Authenticity Verification: Serial number and date code cross-referenced with manufacturer traceability records where available.
- Functional Pre-Check: Power-on self-test (POST) verification and LED status confirmation.
- ESD-Safe Packaging: Shipped in anti-static bags with foam cushioning inside double-wall cartons.
- Documentation: Certificate of conformance and inspection report included with every shipment.
How to Order
- Submit an inquiry via the Contact Us form or email [email protected] with your required quantity and delivery timeline.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange export documentation, freight forwarding, and customs clearance support.
- Track your shipment with the provided AWB/tracking number until delivery.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: Focused exclusively on DCS, PLC, and fieldbus components — not a generalist marketplace.
- ✅ Global Export Experience: Serving engineering firms and EPC contractors across 40+ countries with compliant export documentation.
- ✅ Technical Pre-Sales Support: Our engineers can advise on compatibility, firmware versions, and system integration before you commit to a purchase.
- ✅ Competitive Lead Times: Extensive supplier network enables faster sourcing than traditional distribution channels.
- ✅ Secure Packaging & Logistics: ESD-safe, climate-controlled shipping options available for sensitive electronic modules.
Frequently Asked Questions
Q: Is the CC-IP0101 the same as part number 51410056-175?
A: Yes. CC-IP0101 is the Honeywell model number and 51410056-175 is the full part/catalog number for the same FOUNDATION Fieldbus H1 Interface Module.
Q: How many FF-H1 field devices can one CC-IP0101 support?
A: Each module provides two independent H1 segments. Each segment supports up to 16 field devices, giving a theoretical maximum of 32 devices per module, subject to power budget and application constraints.
Q: Can the CC-IP0101 be hot-swapped without shutting down the controller?
A: The module is designed for RIUP (Removal and Insertion Under Power) within the CIOM-A chassis. However, hot-swapping will interrupt fieldbus communication on the affected segments during the swap. Always follow your site’s MOC (Management of Change) procedures.
Q: What firmware version does the CC-IP0101 require?
A: Firmware compatibility depends on your Experion PKS release. Please provide your current Experion PKS version when submitting an inquiry so our team can confirm compatibility.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoices, packing lists, certificates of origin, and can assist with export licensing requirements. Contact us for country-specific requirements.
Q: What is the lead time for the CC-IP0101?
A: Lead time varies by stock availability. Please submit an inquiry for a real-time availability check and confirmed delivery estimate.
