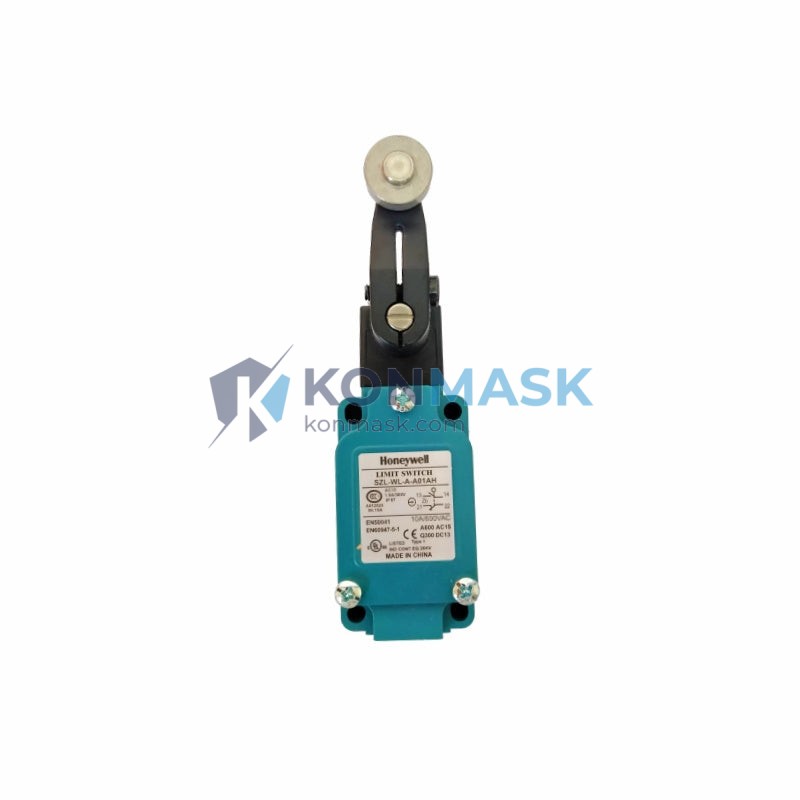

Honeywell SZL-WLA-A-LL3 – Precision Snap-Action Limit Switch | MICRO SWITCH SZL Series
Engineering Background
The Honeywell SZL-WLA-A-LL3 is part of the globally recognized MICRO SWITCH SZL Series — Honeywell’s compact, precision snap-action limit switch platform engineered for demanding industrial automation environments. Designed to deliver repeatable, high-accuracy position sensing, the SZL series has been a benchmark product in discrete manufacturing, machine tool, and process control applications for decades.
Product Positioning
The SZL-WLA-A-LL3 is optimized for applications requiring a lever-actuated, top-push, long-lever arm configuration with a standard terminal block connection. It is the preferred choice for OEM machine builders and MRO procurement engineers who require a drop-in replacement with guaranteed dimensional and electrical compatibility within the SZL platform.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell (MICRO SWITCH Division) |
| Part Number / SKU | SZL-WLA-A-LL3 |
| Series | SZL Series – Compact Precision Limit Switch |
| Actuator Type | Lever Arm – Long Lever (LL3) |
| Operating Principle | Snap-Action Mechanism |
| Contact Configuration | SPDT (1NO + 1NC) |
| Electrical Rating | 10A @ 250VAC / 10A @ 125VAC |
| Insulation Voltage | 500V AC |
| Contact Material | Silver Alloy |
| Housing Material | Thermoplastic (UL94 V-0) |
| Terminal Type | Screw Terminal (A-type) |
| Operating Temperature | -25°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP40 (standard housing) |
| Mechanical Life | ≥ 10,000,000 operations |
| Electrical Life | ≥ 1,000,000 operations (rated load) |
| Certifications | UL, CSA, CE |
| Weight | Approx. 50g |
| Mounting | 2-hole panel mount |
Proven Application Environments
- Machine Tool & CNC Equipment – Axis end-of-travel detection, door interlock, and spindle guard sensing
- Conveyor & Material Handling – Pallet position confirmation, jam detection, and diverter gate feedback
- Packaging Machinery – Film feed registration, carton flap detection, and seal bar position
- Robotics & Automation Cells – Gripper open/close confirmation, fixture clamping verification
- Press & Stamping Lines – Die protection, stroke counting, and safety gate interlocking
- HVAC & Building Automation – Damper position, valve end-stop sensing
Engineering Advantages
- Snap-Action Reliability – Positive, bounce-free switching independent of actuator speed, ensuring clean PLC input signals
- Long Lever Arm (LL3) – Extended actuation range reduces mechanical alignment sensitivity and accommodates larger cam profiles
- Compact SZL Footprint – Direct drop-in replacement within the SZL platform; no wiring or mounting changes required
- High Mechanical Endurance – ≥10M cycle rating supports continuous-duty production environments without scheduled replacement
- UL/CSA/CE Certified – Accepted by global machine safety standards including OSHA, EN ISO 13849, and IEC 60947-5-1
- Screw Terminal (A-type) – Tool-accessible terminals support field wiring with standard 18–22 AWG conductors
System Architecture & Signal Flow
In a typical PLC-based control architecture, the SZL-WLA-A-LL3 is wired as a discrete digital input sensor:
- Mechanical Actuation → Long lever arm (LL3) contacts the cam or actuating surface
- Snap-Action Transition → Internal snap-disc mechanism switches SPDT contacts instantaneously
- Signal Output → NC opens / NO closes; 24VDC or 120VAC signal transmitted to PLC input module
- PLC Logic Processing → Controller reads position state and executes programmed sequence or safety interlock
- Feedback Loop → Position confirmed; machine cycle proceeds or E-stop triggered as programmed
Compatible with Siemens S7, Allen-Bradley ControlLogix/CompactLogix, Mitsubishi MELSEC, Omron CJ/NJ, and all standard 24VDC/120VAC discrete input modules.
Sourcing & Quality Verification
- ✅ OEM-Sourced Stock – Units sourced directly from Honeywell authorized distribution channels
- ✅ Traceability – Lot code and date code documentation available upon request for regulated industries
- ✅ Anti-Counterfeit Inspection – All units inspected against Honeywell OEM packaging, label, and part marking standards before shipment
- ✅ Functional Test – Continuity and snap-action verification performed on sampled units per batch
- ✅ Secure Packaging – ESD-safe, moisture-barrier packaging with foam cushioning for international freight
Procurement Process
- Submit RFQ – Contact support@konmask.com with quantity, required delivery date, and destination port
- Quotation & Lead Time Confirmation – Response within 1 business day; volume pricing available for orders ≥10 units
- Order Placement – Secure checkout via Shopify or proforma invoice for bank transfer (T/T)
- Quality Documentation – COC, packing list, and commercial invoice issued with every shipment
- Shipping – DHL / FedEx / UPS express (3–7 days) or sea freight consolidation for bulk orders
- After-Sales Support – 12-month warranty; technical support available via email or WhatsApp
Technical FAQ
Q: What is the difference between SZL-WLA-A-LL3 and SZL-WLA-A-LL?
A: The LL3 suffix designates the extended long lever arm variant. The standard LL has a shorter lever. Verify your cam geometry and actuation travel before substituting.
Q: Can this switch be used in safety-rated circuits (SIL/PLd)?
A: The SZL-WLA-A-LL3 is UL/CSA/CE certified and meets IEC 60947-5-1. For formal SIL/PLd assessment, consult Honeywell’s PFHD data and integrate with a certified safety relay or safety PLC input module.
Q: What wire gauge is compatible with the screw terminals?
A: The A-type screw terminal accepts 18–22 AWG (0.75–1.5 mm²) conductors. Use ferrules for stranded wire in vibration-prone installations.
Q: Is this switch suitable for outdoor or washdown environments?
A: The standard SZL-WLA-A-LL3 is rated IP40 and is not suitable for direct water exposure. For washdown or outdoor use, specify the sealed variant or add an appropriate enclosure.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing tiers apply at 5, 10, and 50+ units. Contact us for a formal quotation.
