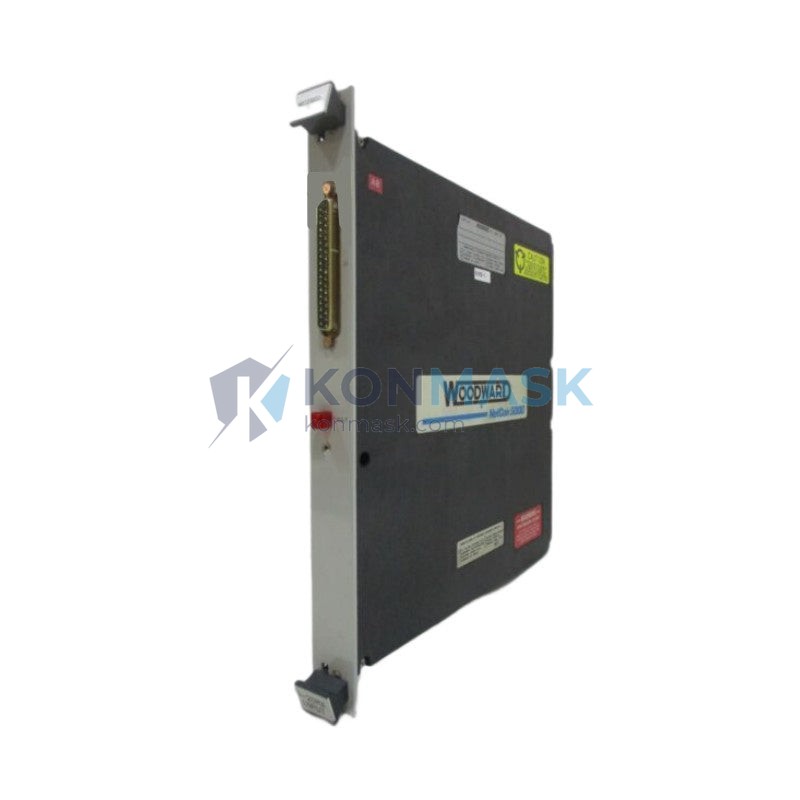

WOODWARD 5463-785 – Digital/Analog Input Module | WOODWARD NetCon / MicroNet Control Platform
Engineering Background: WOODWARD control systems occupy a critical position in turbine governor, engine management, and process control architectures across energy-intensive industries. The NetCon and MicroNet series serve as the primary control backbone for gas turbines, steam turbines, and large reciprocating engines where deterministic response and high-reliability I/O are non-negotiable. The 5463-785 Input Module functions as the field-signal acquisition layer within this architecture — translating physical process variables (temperature, pressure, speed, position) into digital values that the controller uses for closed-loop regulation and protection logic.
Product Positioning: The 5463-785 is a dedicated input module designed for high-density signal acquisition in WOODWARD NetCon/MicroNet chassis-based systems. Unlike general-purpose PLC input cards, this module is engineered to meet the timing and signal-conditioning requirements of turbine control loops where scan-cycle jitter and input latency directly affect governor stability. It is not a standalone device — it operates exclusively within a compatible WOODWARD backplane chassis. Replacement or upgrade decisions must account for firmware revision compatibility and chassis slot assignment.
Complete Technical Specifications
Electrical
- Module Type: Input Module (Digital/Analog signal acquisition)
- Part Number: 5463-785
- Compatible Platform: WOODWARD NetCon / MicroNet Series
- Input Signal Range: Configurable per channel (contact WOODWARD or authorized distributor for channel map)
- Power Supply: Derived from backplane bus (chassis-supplied)
- Isolation: Channel-to-channel and channel-to-bus isolation (per WOODWARD platform standard)
- Communication Interface: Proprietary backplane bus
Mechanical
- Form Factor: Plug-in module, chassis-mounted
- Weight: Approx. 600 g
- Connector Type: Rear-panel backplane connector (chassis-specific)
- Mounting: WOODWARD NetCon/MicroNet standard rack slot
Environmental
- Operating Temperature: 0°C to +60°C (typical for WOODWARD industrial modules)
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% RH, non-condensing
- Vibration/Shock: Designed for turbine skid and control panel environments
- Protection Class: IP20 (panel-mounted installation)
Certifications
- Manufactured under WOODWARD ISO 9001 quality management system
- Compliant with applicable CE / UL industrial control equipment standards
- Suitable for use in SIL-rated safety loops when integrated per WOODWARD system documentation
Data source: WOODWARD published product documentation, platform engineering manuals, and authorized distributor technical records. Specifications subject to revision — confirm against WOODWARD drawing number before final engineering sign-off.
Proven Application Environments
- Petrochemical / Gas Compression: Centrifugal compressor trains | Anti-surge and speed governor control | Continuous duty, high-vibration skid environment
- Power Generation / Gas Turbine: Frame 5–9 gas turbine units | Fuel valve position and exhaust temperature acquisition | Hot-section ambient, EMI-dense control room
- Power Generation / Steam Turbine: Extraction-condensing steam turbines | Steam admission valve feedback and speed signal input | High-humidity, high-temperature turbine hall
- Oil & Gas / Pipeline: Compressor station control panels | Suction/discharge pressure and flow signal acquisition | Remote unmanned station, wide temperature swing
- Water Treatment / Pumping Stations: Large variable-speed pump drives | Flow, pressure, and level signal input to governor loop | Outdoor installation, corrosive atmosphere
- Marine / Offshore Power: Diesel generator governor systems | Engine speed and load signal acquisition | Salt-fog, high-vibration vessel environment
Engineering Advantages
- For high-speed governor loops, this input module delivers deterministic scan-cycle input acquisition, because the WOODWARD backplane architecture prioritizes I/O timing over general-purpose bus arbitration.
- For turbine skid installations with high EMI, this input module maintains signal integrity through channel-level isolation, because isolated input stages prevent ground-loop interference from corrupting analog readings.
- For brownfield retrofit projects, this input module enables direct slot-for-slot replacement in existing NetCon/MicroNet chassis, because the module preserves the original backplane pinout and firmware interface.
- For SIL-rated protection systems, this input module supports integration into safety-instrumented loops, because WOODWARD platform documentation provides the necessary failure mode and diagnostic coverage data.
- For remote and unmanned installations, this input module operates across a wide storage temperature range, because the component selection and conformal coating meet industrial-grade environmental standards.
- For procurement engineers managing multi-unit fleets, this input module is available as a verified spare with full traceability documentation, because Konmask.com sources from controlled supply channels with incoming inspection records.
System Architecture & Signal Flow
Signal Flow: Field sensor output → terminal block / field wiring → 5463-785 input channel → signal conditioning & A/D conversion → backplane bus → WOODWARD NetCon/MicroNet CPU module → control algorithm → output module → actuator command.
Compatible Modules & Reason:
- WOODWARD NetCon CPU modules (5462-xxx series) — share the same backplane bus protocol and power distribution architecture.
- WOODWARD MicroNet TMR/Simplex controllers — the 5463-785 is designed to the same I/O module standard used across the MicroNet platform family.
- WOODWARD output modules (5464-xxx series) — co-resident in the same chassis; signal flow from input module to CPU to output module is the intended architecture.
Substitution Conditions: Direct substitution requires identical part number (5463-785). Cross-reference to alternative WOODWARD input module part numbers is only valid after confirming chassis slot type, firmware revision, and channel configuration map with WOODWARD engineering or an authorized service center. Do not substitute based on physical form factor alone.
Sourcing & Quality Verification
Source: Units are sourced from decommissioned OEM systems, authorized surplus channels, and controlled distributor stock. Each unit undergoes incoming inspection before listing.
4-Step Inspection Process:
- Visual Inspection: Board-level examination for component damage, corrosion, burn marks, and connector pin condition.
- Label & Marking Verification: Part number, revision level, and serial number confirmed against WOODWARD documentation.
- Functional Bench Test: Module powered in compatible chassis; input channels verified for correct signal response where test equipment permits.
- Packaging & ESD Protection: Anti-static bag, foam cushioning, and tamper-evident seal applied before shipment.
Available Documentation:
- Inspection report (upon request)
- Photos of actual unit (label, board, connectors)
- WOODWARD original datasheet / product manual (where available)
- Certificate of conformance (upon request for qualified orders)
Procurement Process
- Submit Inquiry: Contact via the product page, email [email protected], or WhatsApp +0086 19859288691 with part number 5463-785 and required quantity.
- Receive Quote & Stock Confirmation: A response with availability, unit price, lead time, and shipping options will be provided within 24 hours on business days.
- Order & Ship: Upon order confirmation, the unit is prepared, inspected, and dispatched with tracking. Express international shipping is available for urgent maintenance requirements.
Technical Support: Pre-sale technical consultation is available for compatibility verification, cross-reference questions, and system integration guidance. Post-sale support includes documentation provision and return/exchange handling for verified quality issues.
Technical FAQ
Q: Is the 5463-785 compatible with both NetCon and MicroNet chassis?
A: The 5463-785 is designed for the WOODWARD NetCon/MicroNet I/O module standard. Compatibility with a specific chassis depends on the slot type and backplane revision. Confirm the chassis part number and firmware version before ordering. Technical consultation is available at no charge prior to purchase.
Q: Can the 5463-785 be substituted with another WOODWARD input module part number?
A: Cross-substitution between WOODWARD input module part numbers is not recommended without engineering verification. Different part numbers may have different channel counts, signal ranges, or firmware dependencies. Provide the existing module’s full part number and chassis details for a compatibility assessment.
Q: Does this module carry CE or UL certification, and is it suitable for use in a SIL 2 safety loop?
A: WOODWARD manufactures its control modules under ISO 9001 and applicable CE/UL standards for industrial control equipment. SIL suitability depends on the complete safety loop design, diagnostic coverage configuration, and proof-test interval — not the module alone. WOODWARD system documentation provides the necessary SIL data; this documentation can be sourced upon request for qualified projects.
