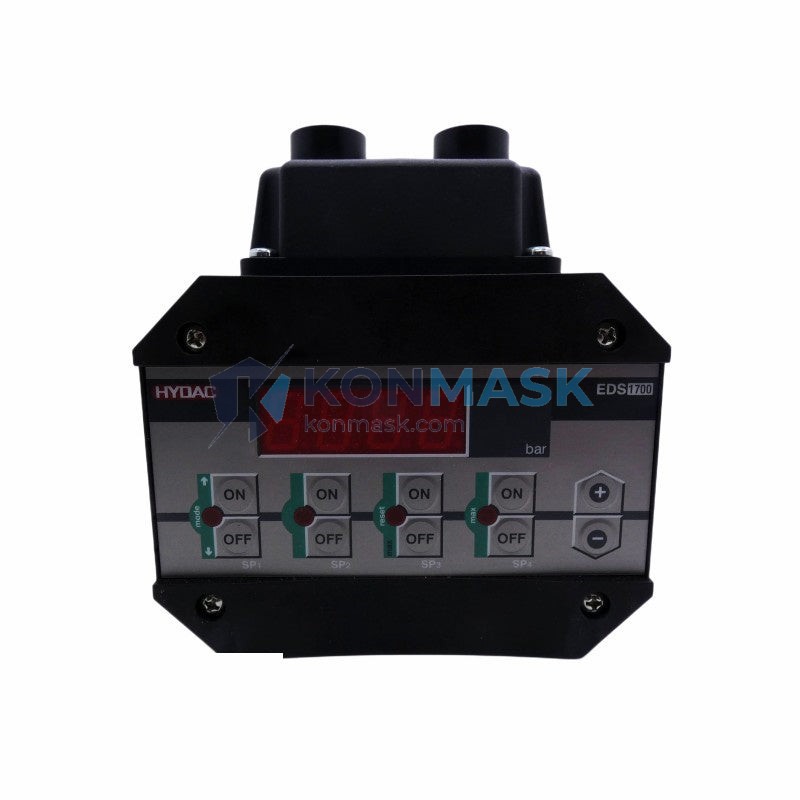

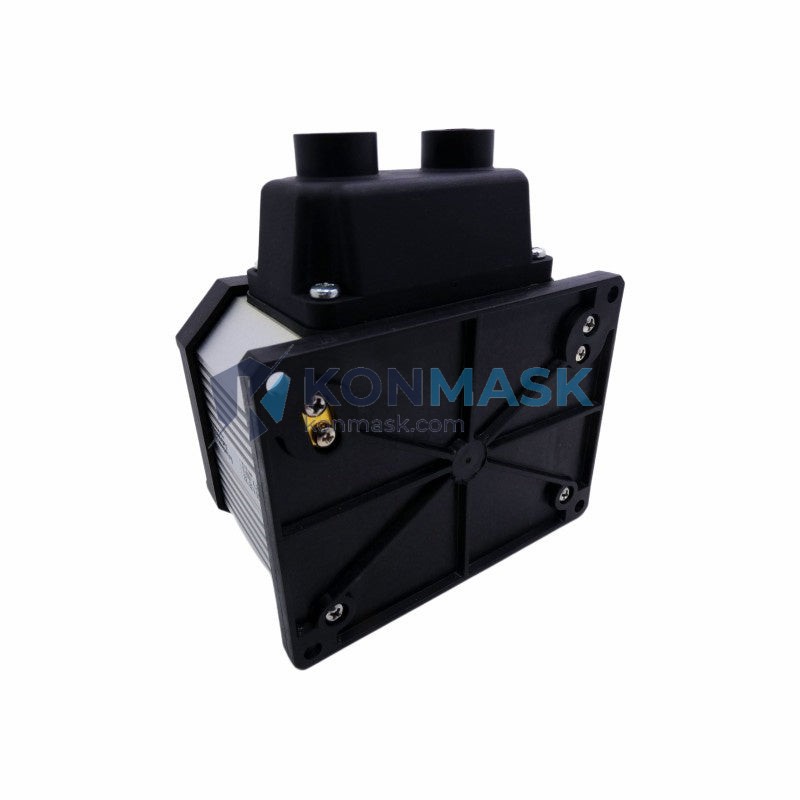

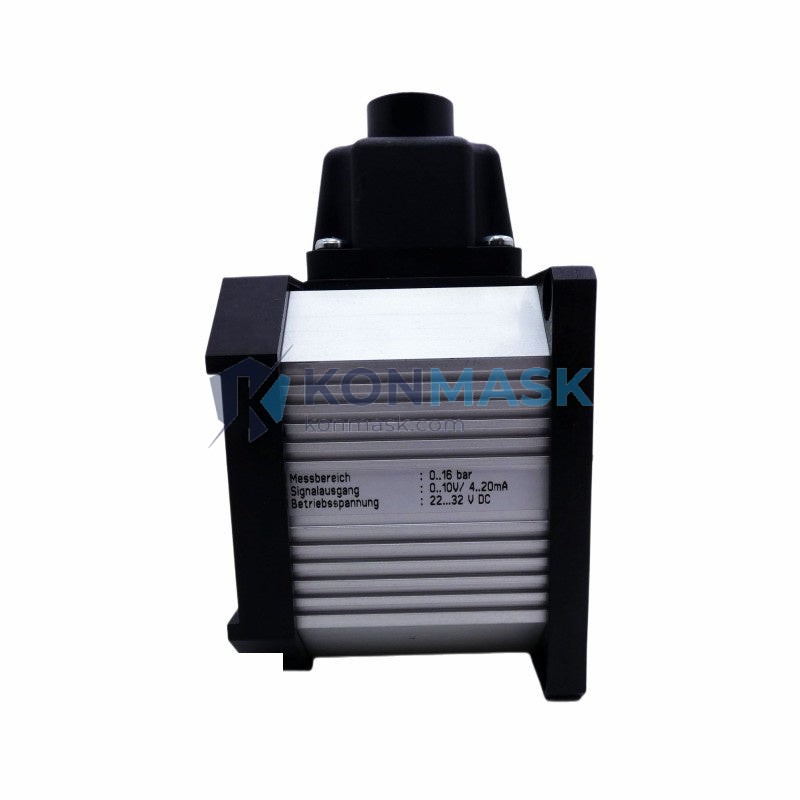

Genuine HYDAC EDS1791-N-016-000 Integrated Pressure Sensor | EDS 1700 Series – Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in genuine, traceable parts from leading global manufacturers. The HYDAC EDS1791-N-016-000 is a compact, high-precision integrated electronic pressure switch from HYDAC’s EDS 1700 series — engineered for demanding hydraulic and pneumatic monitoring applications where reliability is non-negotiable.
Every unit we supply is sourced through verified channels and undergoes our 4-step quality verification process before dispatch.
Technical Specifications
- Manufacturer: HYDAC Technology GmbH
- Part Number: EDS1791-N-016-000
- Series: EDS 1700
- Type: Integrated Electronic Pressure Switch / Sensor
- Measuring Range: 0 – 16 bar (nominal)
- Output: Switching output (PNP/NPN configurable per variant)
- Electrical Connection: M12 plug connector
- Process Connection: G¼ male (DIN 3852)
- Protection Class: IP67
- Operating Temperature: -25°C to +85°C (media); -25°C to +70°C (ambient)
- Supply Voltage: 10 – 30 V DC
- Weight: Approx. 268 g
- Housing Material: Stainless steel
- Media Compatibility: Hydraulic oils, water-based fluids, compressed air
Note: Always verify specifications against the official HYDAC datasheet for your application. Contact us if you require the full technical datasheet.
Our 4-Step Quality Verification Process
At Konmask, trust is built through process — not promises. Every HYDAC component we ship passes through:
- Step 1 – Source Verification: We confirm the supply chain origin and cross-reference batch documentation against HYDAC’s authorized distribution records.
- Step 2 – Physical Inspection: Each unit is inspected for correct labeling, part number markings, housing integrity, and connector condition upon receipt.
- Step 3 – Functional Pre-check: Where applicable, units are bench-tested for electrical continuity and output signal response before packaging.
- Step 4 – Documentation Package: Shipments include a packing list with batch/lot reference, and we retain records for traceability. COC (Certificate of Conformance) available on request.
Key Features & Benefits
- ✅ Compact integrated design — combines pressure switch and sensor in a single unit, reducing wiring complexity
- ✅ High repeatability — suitable for closed-loop control and precision monitoring
- ✅ IP67 rated — robust against dust ingress and temporary water immersion
- ✅ Wide supply voltage range (10–30 V DC) — compatible with most PLC and control system power supplies
- ✅ LED status indicator — enables fast on-site diagnostics without additional tools
- ✅ Stainless steel housing — corrosion-resistant for harsh industrial environments
- ✅ M12 connector — industry-standard, plug-and-play installation
Typical Applications
- Hydraulic power units (HPU) — pressure monitoring and overload protection
- Industrial machinery — coolant and lubrication system monitoring
- Mobile hydraulics — construction, agricultural, and material handling equipment
- Pneumatic systems — compressed air pressure control
- Process automation — integration with Siemens, Allen-Bradley, Mitsubishi, and Omron PLCs
- Test benches and quality control rigs
Compatible System Components
The EDS1791-N-016-000 is designed to integrate seamlessly with:
- PLCs: Siemens S7-1200 / S7-1500, Allen-Bradley CompactLogix / ControlLogix, Mitsubishi FX / Q Series, Omron NX / NJ Series
- HYDAC accessories: EDS 1700 series mounting adapters, M12 extension cables, HYDAC HAD 3000 display units
- Fieldbus modules: Compatible with digital I/O modules supporting PNP/NPN 24 V DC signals
- Hydraulic manifolds: G¼ ported manifold blocks (ISO 4401 compatible)
Contact us if you need help selecting compatible cables, connectors, or mounting hardware — we stock a wide range of complementary automation components.
Global Sourcing & Shipping Capabilities
- Stock availability: Inquire for current inventory levels — we maintain buffer stock on high-demand HYDAC SKUs
- Lead time: In-stock orders typically ship within 1–3 business days; sourced orders within 7–15 business days
- Shipping regions: Worldwide — including mainland China, Southeast Asia, Middle East, Europe, and the Americas
- Export documentation: Commercial invoice, packing list, and COO (Certificate of Origin) provided for customs clearance
- Freight options: DHL Express, FedEx International, sea freight (LCL/FCL), and China domestic logistics
- Minimum order: Single unit orders accepted; volume pricing available for 5+ units
Certifications & Compliance Statement
- CE Marking: HYDAC EDS 1700 series complies with applicable EU directives (EMC, Low Voltage)
- RoHS Compliant: Manufactured in accordance with RoHS 2 (2011/65/EU) requirements
- IP67: Tested per IEC 60529
- Pressure Equipment: Compliant with PED 2014/68/EU where applicable
- Konmask Sourcing Policy: We do not knowingly supply counterfeit, refurbished-as-new, or out-of-specification components. All parts are sold as genuine OEM unless explicitly stated otherwise.
How to Order
- Confirm part number: Verify EDS1791-N-016-000 matches your application requirements (pressure range, output type, connection size)
- Request a quote: Contact us via email or phone for volume pricing, lead time confirmation, and freight cost
- Place order: Add to cart and checkout online, or send a purchase order to support@konmask.com
- Receive & verify: Inspect your shipment upon arrival — we include a packing checklist to make this easy
- After-sales support: Contact us within 7 days of receipt for any quality concerns — we stand behind every unit we ship
Authenticity & Trust FAQ
Q: How do I know the part is genuine HYDAC?
A: We source through verified industrial distributors and maintain batch documentation. COC available on request. If you have concerns, we can provide supply chain documentation before you commit to an order.
Q: Do you sell refurbished or repaired units?
A: No. All units sold as new are genuine OEM, unused, and in original or equivalent packaging. We clearly label any surplus/used stock separately.
Q: Can I return a part if it doesn’t match my application?
A: Yes — contact us within 7 days of receipt. Parts must be unused and in original condition. We’ll work with you to find the correct replacement.
Q: Do you offer technical support for installation?
A: We can provide datasheets, wiring diagrams, and basic application guidance. For complex integration questions, we recommend consulting a certified HYDAC distributor or your system integrator.
Q: What if the part is out of stock?
A: Contact us — we can source from our global supplier network, typically within 7–15 business days. We’ll confirm lead time and pricing before you commit.
