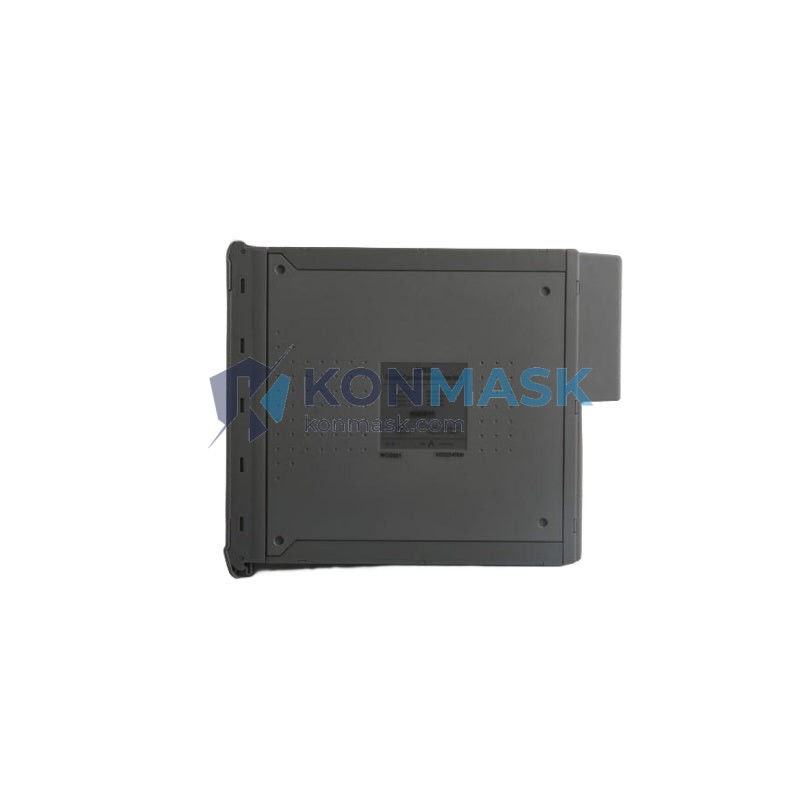

ICS TRIPLEX T8231 – Redundant Power Pack | Trusted TMR Safety Platform
Engineering Background: The ICS TRIPLEX T8231 Power Pack is a core power supply module designed for the Trusted TMR (Triple Modular Redundancy) safety system platform — one of the most widely deployed SIL3-certified safety instrumented systems in the oil & gas, petrochemical, and power generation industries. The T8231 provides conditioned, redundant DC power to the Trusted controller chassis, ensuring uninterrupted operation even under single-point failure conditions.
Product Positioning: Engineered for mission-critical environments where power continuity is non-negotiable, the T8231 is a direct-fit replacement and expansion module for existing Trusted TMR installations. It is the preferred choice for maintenance engineers and procurement teams managing long-lifecycle safety systems requiring OEM-equivalent reliability.
Complete Technical Specifications
- Part Number: T8231
- Manufacturer: ICS TRIPLEX (Rockwell Automation / Triconex heritage)
- Module Type: Power Pack / Power Supply Module
- Platform Compatibility: Trusted TMR Safety System
- Safety Integrity Level: SIL 3 (IEC 61508 / IEC 61511)
- Redundancy Architecture: Triple Modular Redundancy (TMR) — 2oo3 voting
- Input Voltage: 24 VDC nominal (18–32 VDC operating range)
- Output: Regulated DC power to chassis backplane
- Hot-Swap Capability: Yes — online replacement without system shutdown
- Chassis Compatibility: Trusted TMR standard and extended chassis
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5–95% RH, non-condensing
- Approvals: CE, UL, FM (Class I, Div 2), ATEX (Zone 2)
- Weight: Approx. 500 g
- Form Factor: Standard Trusted TMR module form factor
- Diagnostic Coverage: >99% (self-testing on power-up and continuous runtime diagnostics)
Proven Application Environments
- Oil & Gas: Offshore platform ESD (Emergency Shutdown) systems, pipeline HIPPS (High Integrity Pressure Protection Systems)
- Petrochemical & Refining: Reactor safety interlock systems, burner management systems (BMS)
- Power Generation: Turbine protection systems, boiler safety interlocks
- LNG & Gas Processing: Compressor protection, fire & gas detection integration
- Nuclear & Utilities: Auxiliary safety system power distribution
- Chemical Manufacturing: Process safety management (PSM) compliant installations
Engineering Advantages
- Zero-Downtime Replacement: Hot-swap design allows field replacement during live system operation — critical for continuous-process industries with no planned shutdown windows.
- Fault-Tolerant Power Distribution: TMR architecture ensures power continuity even with one power pack failed; the 2oo3 voting logic maintains safe state output.
- Comprehensive Self-Diagnostics: Built-in diagnostics detect internal faults and report status to the Trusted controller, enabling predictive maintenance before failure occurs.
- Long Service Life: Designed for 20+ year operational lifecycles typical of safety-critical infrastructure projects.
- Direct OEM Replacement: Pin-compatible and firmware-compatible with existing T8231 installations — no reconfiguration required.
- Regulatory Compliance: Meets IEC 61508 SIL3, IEC 61511, and NFPA 72 requirements for safety instrumented systems.
System Architecture & Signal Flow
The T8231 Power Pack slots directly into the Trusted TMR chassis power bay. Three independent power packs (T8231 × 3) operate in parallel within a TMR chassis, each supplying power to one of the three redundant processor legs (Leg A, Leg B, Leg C). The chassis backplane distributes conditioned power to all installed I/O and communication modules. The Trusted controller continuously monitors each power pack’s health via the internal diagnostic bus, flagging degraded units to the operator HMI without interrupting process control.
Typical Power Architecture:
- External 24 VDC UPS → T8231 Power Pack (×3) → Trusted TMR Chassis Backplane → Processor Modules (T8110/T8120) + I/O Modules
Sourcing & Quality Verification
Konmask.com applies a rigorous 4-step verification process to every T8231 unit before shipment:
- Provenance Audit: Each unit is traced to its original OEM production batch or certified MRO (Maintenance, Repair & Overhaul) source. No grey-market or unverified surplus stock is accepted.
- Physical Inspection: Full visual inspection of PCB, connectors, housing, and labeling against OEM reference standards. Counterfeit indicators (incorrect fonts, mismatched serial formats, substandard plastics) are grounds for immediate rejection.
- Functional Bench Test: Power-on self-test (POST) verification and output voltage measurement under load conditions to confirm operational integrity.
- Documentation Package: Each shipment includes a Certificate of Conformance (CoC), test report, and traceability documentation upon request.
Procurement Process
- Submit RFQ: Contact us at support@konmask.com with your required quantity, delivery timeline, and any site-specific documentation requirements.
- Quotation & Lead Time: We respond within 1 business day with pricing, availability, and estimated lead time (typically 3–10 business days for in-stock units).
- Order Confirmation: Purchase order accepted via email. Proforma invoice issued for payment processing.
- Quality Hold & Dispatch: Unit undergoes final inspection before packaging in anti-static, moisture-barrier packaging with foam cushioning.
- Shipping & Tracking: DHL / FedEx / UPS express options available. Full tracking provided. Export documentation (commercial invoice, packing list, COO) included for international shipments.
- After-Sales Support: Technical support available post-delivery for installation verification and system integration queries.
Technical FAQ
Q: Can the T8231 be replaced while the Trusted TMR system is online?
A: Yes. The T8231 supports hot-swap replacement. The remaining two power packs maintain system power during the swap. Follow ICS TRIPLEX maintenance procedures for safe hot-swap execution.
Q: How many T8231 units are required per Trusted TMR chassis?
A: A standard Trusted TMR chassis requires three T8231 Power Packs — one per redundant leg. Some configurations may use a single power pack per chassis bay depending on chassis model; consult your system documentation.
Q: Is the T8231 compatible with the Trusted T8100 and T8200 series controllers?
A: Yes. The T8231 is designed for use across the Trusted TMR platform, compatible with T8110, T8120, T8151, and associated I/O modules within the same chassis.
Q: What is the warranty on Konmask-supplied T8231 units?
A: All units carry a 12-month warranty against defects in materials and workmanship from date of shipment. Extended warranty options are available — contact us for details.
Q: Do you provide export documentation for international procurement?
A: Yes. We provide full export documentation including commercial invoice, packing list, Certificate of Origin, and Certificate of Conformance. HS Code 8537.10 applies for customs classification.
Q: Can you supply multiple units for a plant-wide spares program?
A: Yes. We support bulk procurement for spares management programs. Volume pricing is available for orders of 3+ units. Contact us for a tailored quotation.
