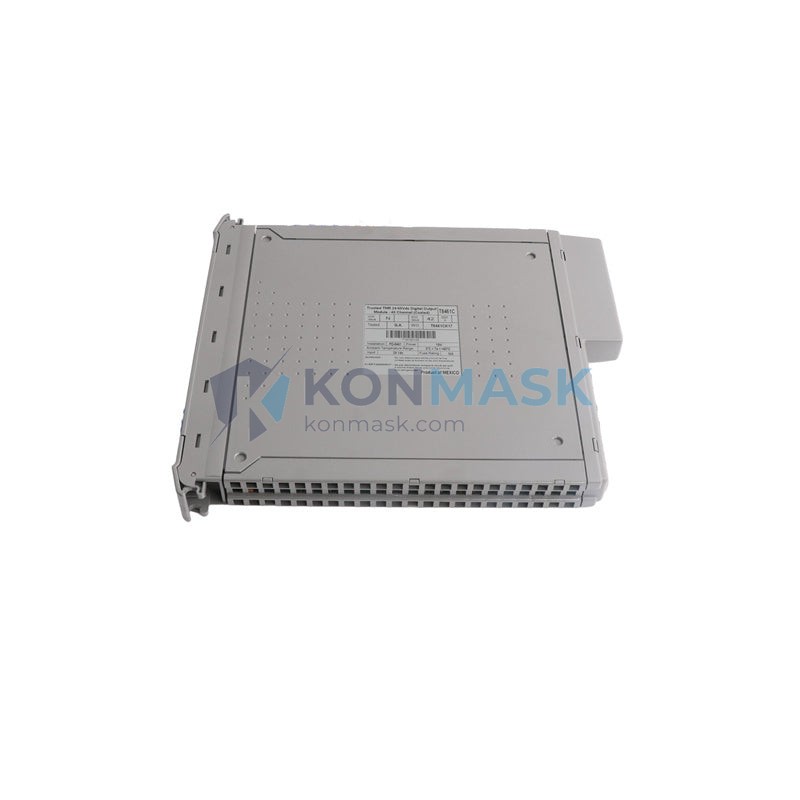

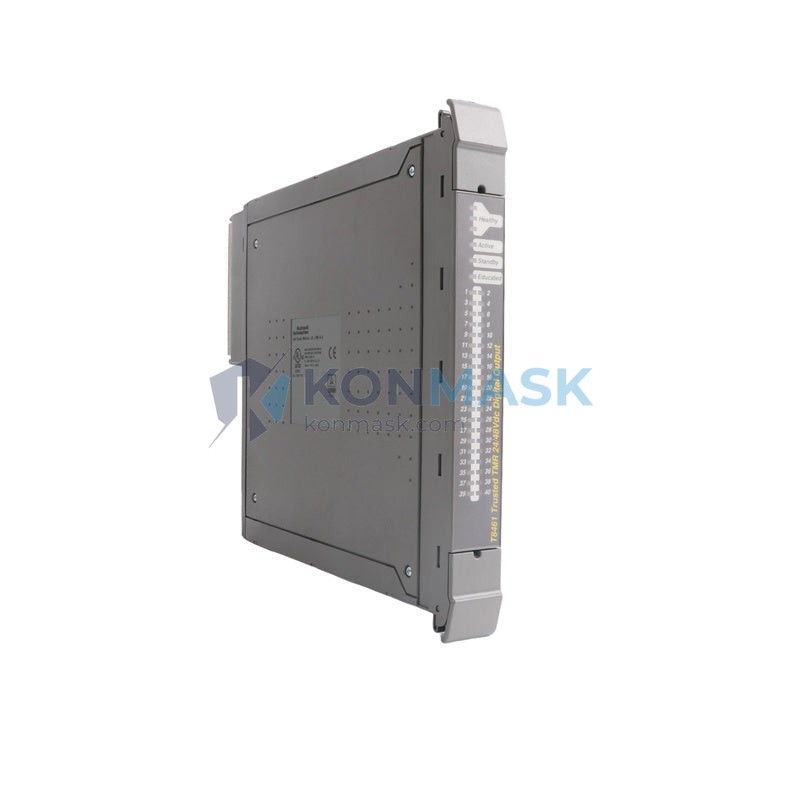

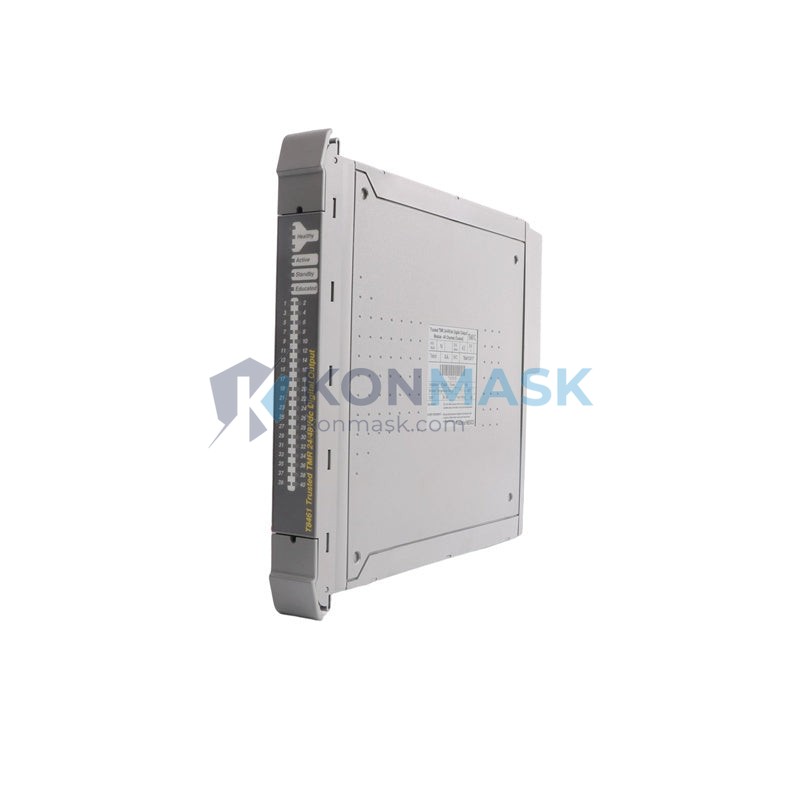

ICS TRIPLEX T8461C – Trusted TMR 24/48Vdc Digital Output Module | Trusted Platform
Engineering Background: The ICS Triplex Trusted platform is one of the most widely deployed Triple Modular Redundant (TMR) safety systems in high-consequence process industries. Designed to meet IEC 61508 SIL 3 requirements, the Trusted architecture provides fault-tolerant control through three independent processing channels with continuous cross-comparison and automatic fault isolation — without process interruption. The T8461C occupies the digital output layer of this architecture, serving as the final command interface between the safety logic solver and field actuators such as solenoid valves, motor starters, and shutdown relays.
Product Positioning: The T8461C is specifically rated for 24/48Vdc field loads, distinguishing it from the T8460 (120Vac output) and T8462 (relay output) variants within the same Trusted I/O family. Its operating envelope is optimized for DC-powered actuator circuits common in oil & gas wellhead control, compressor shutdown, and turbine trip systems. It is not intended for AC-powered field devices or high-current motor drive applications without appropriate interposing relays.
Complete Technical Specifications
Electrical
- Output Voltage Range: 24Vdc / 48Vdc (field selectable)
- Output Channels: 16 channels per module (TMR voted)
- Output Current: 500mA per channel (maximum)
- Short-Circuit Protection: Electronic, self-resetting per channel
- Isolation: 500Vdc channel-to-channel and channel-to-backplane
- Diagnostic Coverage: >99% (DC) per IEC 61508
- Safe Failure Fraction (SFF): >99%
- Output Type: Solid-state, sourcing
- Backplane Power Consumption: Typically 8W
Mechanical
- Form Factor: Single-width Trusted I/O module
- Weight: Approximately 1,320g (with field termination assembly)
- Connector: 64-pin DIN41612 backplane connector
- Field Wiring: Via T8461C-compatible field termination assembly (FTA)
- Hot-Swap: Supported — module replacement without process shutdown
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6 compliant
- EMC: EN 61000-4 series, CE marked
Certifications
- Functional Safety: IEC 61508 SIL 3 (TÜV certified)
- Hazardous Area: ATEX Zone 2 (with appropriate barriers)
- Marine: DNV GL type approval
- Regulatory: CE, cULus
Data sourced from ICS Triplex Trusted Platform T8461C Product Specification Sheet and IEC 61508 Safety Manual. Specifications subject to revision — confirm with current ICS Triplex documentation for safety-critical applications.
Proven Application Environments
- Upstream Oil & Gas — Wellhead Control Panel: Drives solenoid valves for surface safety valve (SSV) and downhole safety valve (DHSV) shutdown under high-cycle, high-reliability demand conditions.
- LNG Liquefaction — Compressor Anti-Surge Control: Provides TMR-voted output commands to anti-surge valve actuators where spurious trips carry multi-million-dollar production loss consequences.
- Power Generation — Gas Turbine Trip System: Interfaces with fuel shutoff valve solenoids in turbine emergency shutdown systems requiring SIL 3 integrity and sub-100ms response.
- Petrochemical — Reactor Emergency Shutdown (ESD): Controls isolation valve actuators in exothermic reactor protection loops where single-point failure is not tolerable.
- Water Treatment — High-Lift Pump Station: Manages pump motor starter relay circuits in critical water supply infrastructure subject to IEC 61511 lifecycle requirements.
- Offshore Platform — Fire & Gas Deluge System: Activates deluge valve solenoids upon confirmed fire/gas detection, operating in salt-air environments with DNV GL certification compliance.
Engineering Advantages
- For high-demand safety loops, this digital output module maintains SIL 3 integrity through TMR voting logic, because three independent output channels are continuously cross-compared and any single-channel fault is isolated without affecting the voted output state.
- For maintenance-critical facilities, this module supports hot-swap replacement under live process conditions, because the Trusted backplane architecture electrically isolates the module slot during extraction while the remaining two channels sustain the voted output.
- For DC-powered actuator circuits at 24V or 48V, this module eliminates the need for interposing relays in most solenoid valve applications, because the solid-state sourcing output is rated at 500mA per channel with integrated electronic short-circuit protection.
- For plants with high diagnostic requirements, this module achieves >99% diagnostic coverage, because each output channel is continuously monitored for open-load, short-circuit, and voltage deviation faults with per-channel status reporting to the safety logic solver.
- For offshore and marine installations, this module carries DNV GL type approval, because the design has been independently verified against marine environmental stress profiles including vibration, humidity, and EMC requirements.
- For multi-vendor DCS/SIS integration environments, this module communicates via the Trusted backplane protocol with deterministic scan times, because the Trusted platform separates I/O processing from communication, ensuring output response time is not affected by network load.
System Architecture & Signal Flow
The T8461C receives voted digital output commands from the Trusted TMR Main Processor (T8110/T8111) via the Trusted I/O backplane. Each of the three TMR channels independently drives its corresponding output circuit; the voted result (2-out-of-3 logic) determines the physical field output state. Field wiring connects through a dedicated Field Termination Assembly (FTA) mounted on the marshalling cabinet, providing galvanic isolation and surge protection before reaching field actuators.
Compatible Modules & Reason:
- T8110 / T8111 Main Processor: Native backplane protocol compatibility; required for TMR voted command generation.
- T8401 / T8403 Digital Input Module: Paired in ESD loops for input confirmation and output feedback verification within the same Trusted chassis.
- T8830 / T8831 Communication Module: Enables Modbus/OPC-DA status reporting of per-channel output diagnostics to DCS historian.
Substitution Conditions: The T8460 (120Vac output) may substitute where field actuators are AC-powered, but requires FTA change and safety re-validation. The T8462 (relay output) is applicable for dry-contact applications but introduces additional mechanical failure modes. Any substitution requires SIL verification recalculation per IEC 61508 Part 6.
Sourcing & Quality Verification
Modules offered through Konmask.com are sourced from decommissioned plant upgrades, authorized distributor overstock, and OEM-certified refurbishment channels. Each unit undergoes the following 4-step verification process before dispatch:
- Visual & Mechanical Inspection: Connector pin integrity, PCB condition, label legibility, and housing damage assessment against ICS Triplex acceptance criteria.
- Firmware Version Verification: Firmware revision confirmed against T8461C compatibility matrix; units with unsupported firmware versions are quarantined.
- Functional Power-On Test: Module energized on a Trusted test chassis; all 16 output channels exercised and diagnostic LED status verified.
- Burn-In & Final QC: 48-hour thermal soak at operating temperature; post-soak channel-by-channel output current measurement recorded.
Documentation available upon request: Test report, firmware revision record, decommissioning certificate (where applicable), ICS Triplex original product datasheet, and CE/TÜV certification copies.
Procurement Process
- Submit Inquiry: Provide model number (T8461C), required quantity, firmware version preference (if known), and delivery timeline via email to [email protected] or the on-page inquiry form.
- Receive Quotation & Stock Confirmation: A response with unit availability, lead time, pricing, and test report summary is provided within 24 hours on business days.
- Order Confirmation & Dispatch: Upon purchase order receipt, units are packaged in anti-static ESD shielding with foam-lined export cartons and dispatched via tracked international freight with full documentation package.
Technical pre-sales support is available for compatibility verification, firmware matching, FTA identification, and SIL documentation review. Post-delivery support covers installation guidance and diagnostic interpretation.
Technical FAQ
Q: Is the T8461C compatible with both the T8110 and T8111 main processors?
A: Yes. The T8461C is compatible with both the T8110 (standard) and T8111 (enhanced diagnostics) main processors via the Trusted I/O backplane. No hardware modification is required; firmware compatibility should be confirmed against the specific processor revision in use.
Q: Can the T8461C replace a T8460 in an existing installation?
A: Not directly. The T8460 is rated for 120Vac field loads, while the T8461C is rated for 24/48Vdc. A substitution requires a change of Field Termination Assembly (FTA), field wiring review, and a formal safety re-validation including PFD recalculation per IEC 61508. Konmask technical support can assist with compatibility documentation for the re-validation process.
Q: Does the T8461C carry SIL 3 certification for use in IEC 61511 applications?
A: The T8461C is TÜV-certified to IEC 61508 SIL 3 at the component level. For IEC 61511 (process sector) applications, the SIL rating of the complete safety instrumented function (SIF) must be verified through a full SIL verification calculation that includes the T8461C’s PFD data, proof test interval, and system architecture. The ICS Triplex Safety Manual provides the required PFD and MTTF data for this calculation.
