ICS TRIPLEX T8431C – Trusted TMR 24Vdc Analogue Input Module | Trusted Series Safety Platform
Engineering Background
The ICS TRIPLEX T8431C is a core analogue input module within the Trusted Series Triple Modular Redundancy (TMR) safety platform — one of the most widely deployed fault-tolerant control architectures in high-hazard process industries. Designed to IEC 61508 functional safety standards, the T8431C delivers continuous self-diagnostics and voted signal processing across three independent channels, ensuring that a single-point hardware failure never propagates to a process trip or undetected fault condition.
Product Positioning
Procurement engineers specifying analogue input capacity for SIL 2 or SIL 3 safety instrumented systems will find the T8431C a direct, certified fit. It interfaces natively with the Trusted TMR backplane, accepts 24 Vdc-powered field transmitters, and delivers voted analogue values to the safety logic solver without external signal conditioning. Konmask supplies both new-surplus and factory-refurbished units with full traceability documentation, supporting MRO, capital project, and emergency-replacement procurement cycles.
Complete Technical Specifications
| Part Number | T8431C |
| Manufacturer | ICS TRIPLEX (Rockwell Automation) |
| Series / Platform | Trusted TMR Safety System |
| Module Type | Analogue Input (AI) |
| Redundancy Architecture | Triple Modular Redundancy (TMR) — 2oo3 voted |
| Field Supply Voltage | 24 Vdc (loop-powered transmitter compatible) |
| Input Signal Range | 4–20 mA (standard HART-compatible) |
| Channel Count | 8 analogue input channels per module |
| Resolution | 16-bit ADC per channel per triplicated leg |
| Isolation | Channel-to-channel and channel-to-backplane galvanic isolation |
| Functional Safety Rating | SIL 2 / SIL 3 capable (IEC 61508) |
| Diagnostic Coverage | >99% (DC) with continuous online self-test |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH, non-condensing |
| Backplane Interface | Trusted TMR proprietary high-speed backplane bus |
| Module Weight | 1,490 g (approx.) |
| Certifications | TÜV, CE, IEC 61508, ATEX (zone-dependent — confirm with datasheet) |
| Firmware Compatibility | Compatible with Trusted TMR system firmware revisions — verify with site system version |
Proven Application Environments
- Oil & Gas: Emergency Shutdown Systems (ESD), High Integrity Pressure Protection Systems (HIPPS), compressor and turbine control
- Petrochemical & Refining: Reactor temperature and pressure monitoring, fired heater safety loops
- LNG / Offshore Platforms: Fire & Gas detection integration, process shutdown logic
- Power Generation: Turbine protection, boiler safety interlocks, grid-connected plant safety systems
- Chemical Processing: Batch reactor monitoring, exothermic process protection
- Nuclear Auxiliary Systems: Non-nuclear safety instrumentation where TMR architecture is mandated
Engineering Advantages
- True TMR voting: Three independent signal paths with 2oo3 majority voting eliminates single-point failure risk without spurious trips
- Online diagnostics: Continuous self-test runs without interrupting process measurement — no scheduled proof-test downtime for module-level faults
- Hot-swap capable: Module replacement under power within the Trusted chassis without process shutdown (confirm with site procedures)
- HART pass-through: Supports HART communication for field device diagnostics and calibration without breaking the safety loop
- Galvanic isolation: Protects the safety logic solver from field-side ground loops and transient surges
- Deterministic scan time: Fixed, predictable I/O scan ensures SIL timing budgets are met across all operating conditions
System Architecture & Signal Flow
The T8431C plugs directly into a Trusted TMR I/O chassis slot. Each of the eight field channels is read simultaneously by three independent analogue-to-digital converter circuits — one per TMR leg (Leg A, Leg B, Leg C). The three digitised values are passed to the TMR voter logic on the main processor module via the proprietary backplane bus. The voter applies 2oo3 selection: if one leg deviates beyond the configured tolerance window, the module flags a diagnostic alarm and continues operation on the two healthy legs. Only a second concurrent leg failure triggers a safe-state output. This architecture achieves both high availability (no spurious trip on single failure) and high integrity (no undetected dangerous failure on single fault).
Sourcing & Quality Verification
- All units inspected for physical integrity, connector condition, and firmware label prior to listing
- New-surplus stock supplied in original ICS TRIPLEX / Rockwell Automation packaging where available
- Refurbished units undergo functional bench verification against published I/O specifications
- Full traceability documentation (serial number, revision level, test record) provided on request

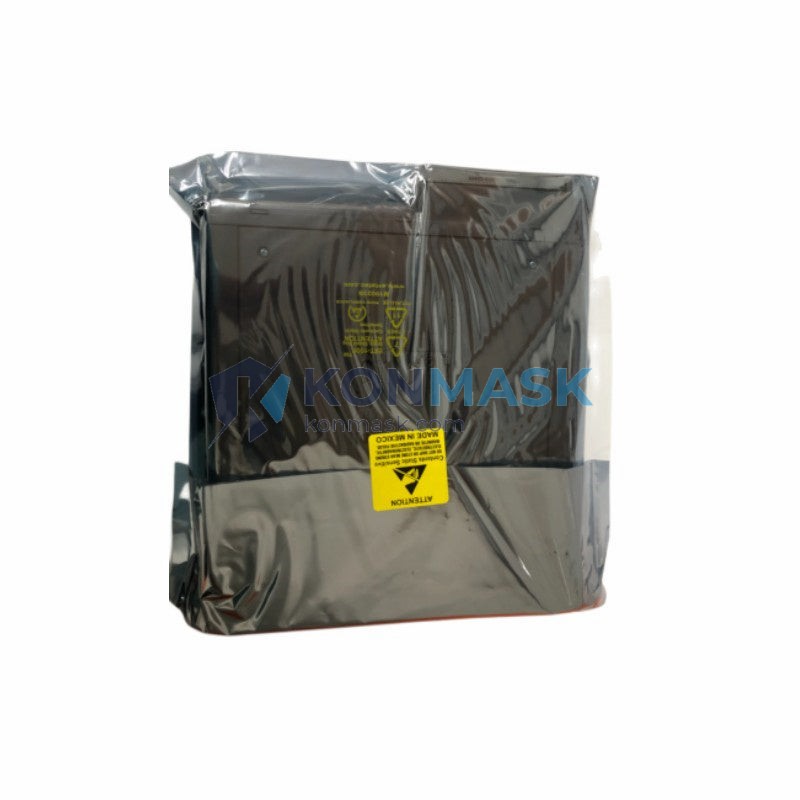

- Anti-static packaging and shock-protected shipping as standard for all module shipments
- Export compliance screening performed — ECCN classification and end-user declaration available for regulated destinations
Procurement Process
- Confirm compatibility: Verify your Trusted TMR chassis revision and system firmware version against the T8431C datasheet (ICS TRIPLEX document reference available on request)
- Request a quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and stock confirmation
- Submit PO: Purchase orders accepted via email; proforma invoice issued within 1 business day
- Shipping: DHL Express / FedEx International Priority standard; freight forwarding and DAP/DDP Incoterms available
- Documentation: Commercial invoice, packing list, certificate of conformance, and test report dispatched with shipment
Technical FAQ
Q: Is the T8431C compatible with the Trusted T8100 and T8110 processor modules?
A: Yes. The T8431C is designed for the Trusted TMR platform and is compatible with the standard Trusted processor and I/O chassis family. Confirm firmware revision compatibility with your site system engineer before installation.
Q: Can this module be used in a SIL 3 application?
A: The Trusted TMR architecture is SIL 3 capable at the system level. The T8431C contributes to this rating as part of a validated system configuration. Consult the ICS TRIPLEX safety manual and your functional safety engineer for application-specific SIL verification.
Q: What is the difference between T8431 and T8431C?
A: The “C” suffix typically denotes a hardware revision with updated component specifications or enhanced diagnostic coverage. Always cross-reference the exact part number against your system’s approved hardware list (AHL) before procurement.
Q: Do you supply the field termination assemblies (FTAs) for this module?
A: Yes. Konmask stocks a range of Trusted-compatible FTAs and marshalling components. Contact us with your wiring configuration requirements for a matched assembly recommendation.
Q: What warranty is provided?
A: New-surplus units carry a 12-month warranty against defects. Refurbished units carry a 6-month warranty. Extended warranty and on-site spare agreements are available — contact us for details.
