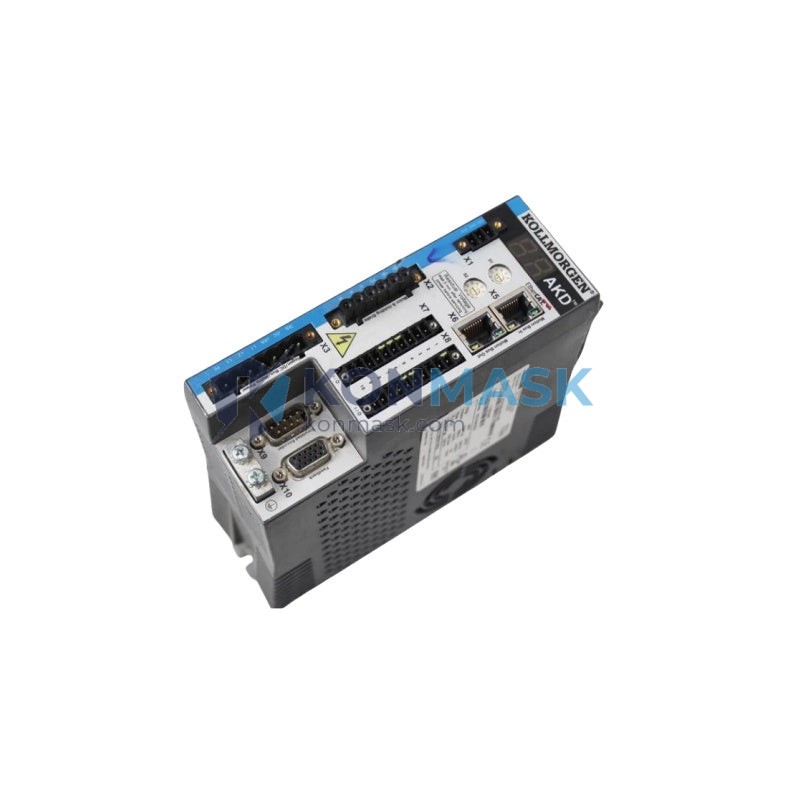

Kollmorgen AKD-P00606-NBEC-0069 | 6A EtherCAT Programmable Servo Drive – Replacement, Equivalent & Selection Guide
The Kollmorgen AKD-P00606-NBEC-0069 is a high-performance programmable servo drive from the AKD-P series, engineered for precision motion control in demanding industrial automation environments. This page provides complete technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: Kollmorgen
- Part Number / SKU: AKD-P00606-NBEC-0069
- Series: AKD-P (Programmable Servo Drive)
- Continuous Output Current: 3 A (RMS)
- Peak Output Current: 6 A
- Supply Voltage: 120–240 VAC, single or three-phase
- Fieldbus / Communication: EtherCAT (EC)
- Feedback Interface: SFD3 / EnDat 2.2 / Resolver / Incremental Encoder
- Onboard Programming: Yes — IEC 61131-3 via KAS IDE
- I/O: Digital I/O, Analog I/O, Safe Torque Off (STO) — SIL 2 / PLd
- Mounting: Panel mount, DIN rail compatible
- Protection Rating: IP20
- Operating Temperature: 0 °C to +45 °C
- Weight: Approx. 1.1 kg
- Certifications: CE, UL, cUL, RoHS
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the AKD-P00606-NBEC-0069. Always verify electrical and mechanical compatibility before substitution.
- Kollmorgen AKD-P00606-NBCC-0000 — Same current rating, CANopen fieldbus variant; suitable when EtherCAT is not required.
- Kollmorgen AKD-P00606-NBRS-0000 — RS-232/485 communication variant; for legacy system integration.
- Kollmorgen AKD-B00606-NBEC-0000 — Basic (non-programmable) AKD-B variant with EtherCAT; lower cost if onboard PLC is not needed.
- Kollmorgen AKD2G-SPE-6V24-DAEC-0000 — Next-generation AKD2G platform; higher performance, backward-compatible motor support.
- Bosch Rexroth IndraDrive Cs HCS01.1E-W0006 — Cross-brand equivalent for 6 A class EtherCAT servo drives.
- Yaskawa SGDV-2R8A01A — Sigma-5 series equivalent; suitable for retrofit projects with motor re-matching.
Note: Cross-brand replacements require motor parameter re-tuning and may need adapter cables. Contact Konmask for pre-sales compatibility assessment.
Why Choose the Original Model
- Seamless KAS Ecosystem Integration: Native compatibility with Kollmorgen Automation Suite (KAS) for multi-axis synchronization without additional gateways.
- Onboard IEC 61131-3 PLC: Eliminates the need for a separate motion controller in single-axis or simple multi-axis applications.
- STO Safety Function: Built-in Safe Torque Off meets SIL 2 / PLd without external safety relays, reducing panel complexity.
- Proven Reliability: AKD-P series documented MTBF exceeds 50,000 hours in continuous industrial operation.
- Wide Feedback Compatibility: Supports SFD3, EnDat 2.2, resolver, and incremental encoders — reducing motor-drive pairing constraints.
Typical Applications
- CNC machining centers and multi-axis gantry systems
- Packaging and labeling machinery
- Semiconductor wafer handling and pick-and-place equipment
- Printing and converting machines
- Robotics and collaborative automation cells
- Medical device manufacturing equipment
- Textile and winding machinery
System Compatibility
- Compatible Motors: Kollmorgen AKM, AKM2G, CDDR, and compatible third-party servo motors (with parameter configuration)
- Compatible Controllers: Kollmorgen KAS AKD-PDMM, Beckhoff TwinCAT, OMRON Sysmac, Siemens S7 (via EtherCAT master)
- Software: Kollmorgen WorkBench (commissioning), KAS IDE (programming), AKD PDMM firmware ≥ M_01-20-00-000
- Bus Topology: EtherCAT line, ring, or star topology supported
Selection Guide
Use the table below to select the correct AKD-P variant for your application:
| Parameter | AKD-P00306 | AKD-P00606 | AKD-P01206 | AKD-P02406 |
|---|---|---|---|---|
| Continuous Current (A) | 1.5 | 3 | 6 | 12 |
| Peak Current (A) | 3 | 6 | 12 | 24 |
| Typical Motor Power | ≤ 200 W | 200–750 W | 750 W–1.5 kW | 1.5–3 kW |
| Onboard PLC (AKD-P) | ✓ | ✓ | ✓ | ✓ |
Fieldbus suffix guide: NBEC = EtherCAT | NBCC = CANopen | NBRS = RS-232/485 | NBPN = PROFINET | NBDN = DeviceNet
If your application requires torques above 750 W continuous, consider upgrading to the AKD-P01206-NBEC series. For multi-axis centralized control, evaluate the AKD-PDMM master drive platform.
Quality Assurance & Sourcing
- Authenticity: All units sourced through authorized distribution channels or verified surplus with full traceability documentation.
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on testing prior to shipment.
- Warranty: 12-month warranty against manufacturing defects. Repair and exchange programs available.
- Lead Time: In-stock units ship within 1–3 business days. Special orders: 2–6 weeks depending on availability.
- Export Compliance: ECCN classification verified; export documentation provided for international shipments.
How to Order
- Confirm your full part number: AKD-P00606-NBEC-0069
- Specify quantity and required delivery date.
- Contact us via email or phone for a formal quotation.
- Submit purchase order — we accept T/T, L/C, and major credit cards.
- Receive shipping confirmation with tracking within 24 hours of dispatch.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the AKD-P00606-NBEC-0069 replace an AKD-B00606-NBEC?
A: Yes. The AKD-P is a superset of the AKD-B — it adds onboard programmability. All motor and I/O wiring is identical. Firmware must be updated to AKD-P version.
Q: Is the -0069 suffix a hardware variant?
A: The suffix typically denotes a customer-specific or regional configuration (e.g., firmware pre-load, label, or accessory bundle). Core electrical specifications are identical to -0000. Confirm with your OEM documentation.
Q: Can I use a Yaskawa or Siemens servo motor with this drive?
A: Third-party motors can be used with manual parameter configuration in WorkBench. SFD3 feedback requires a Kollmorgen or compatible motor. Resolver and incremental encoder inputs support most brands.
Q: What is the difference between AKD-P and AKD2G?
A: AKD2G is the next-generation platform with higher power density, dual-port EtherCAT, and enhanced safety (SIL 3). AKD-P remains fully supported. Migration to AKD2G requires new motor cables and firmware.
Q: Do you provide repair services?
A: Yes. We offer board-level repair and exchange programs. Contact us with your unit’s serial number for a repair quote.
