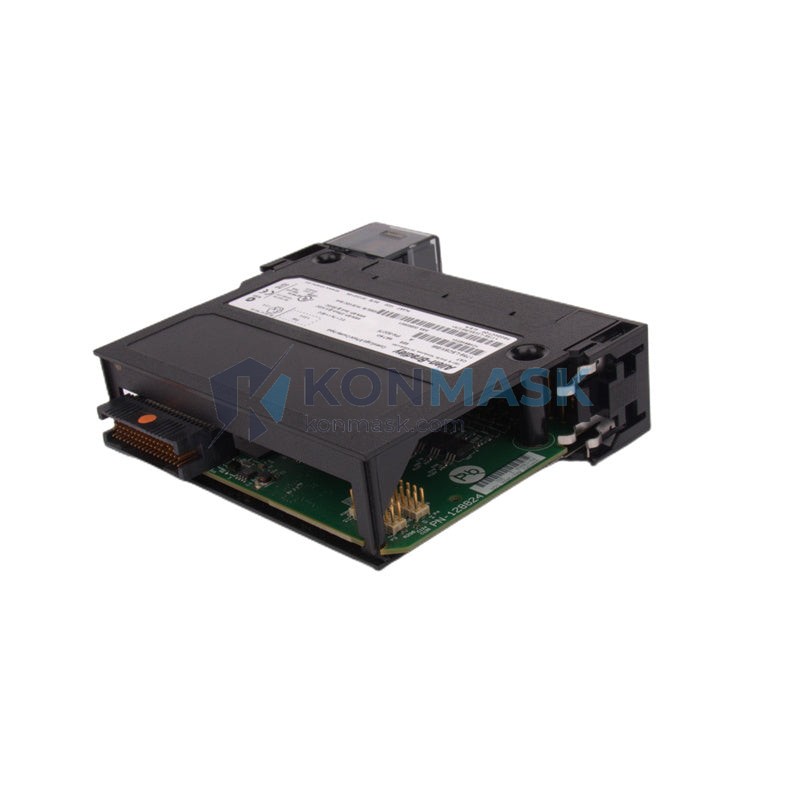

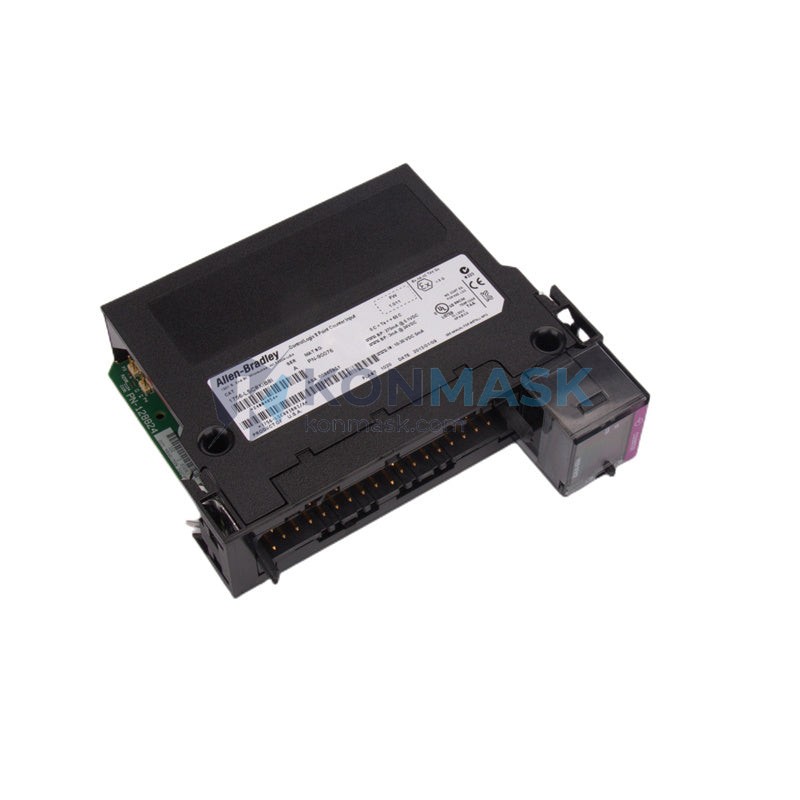

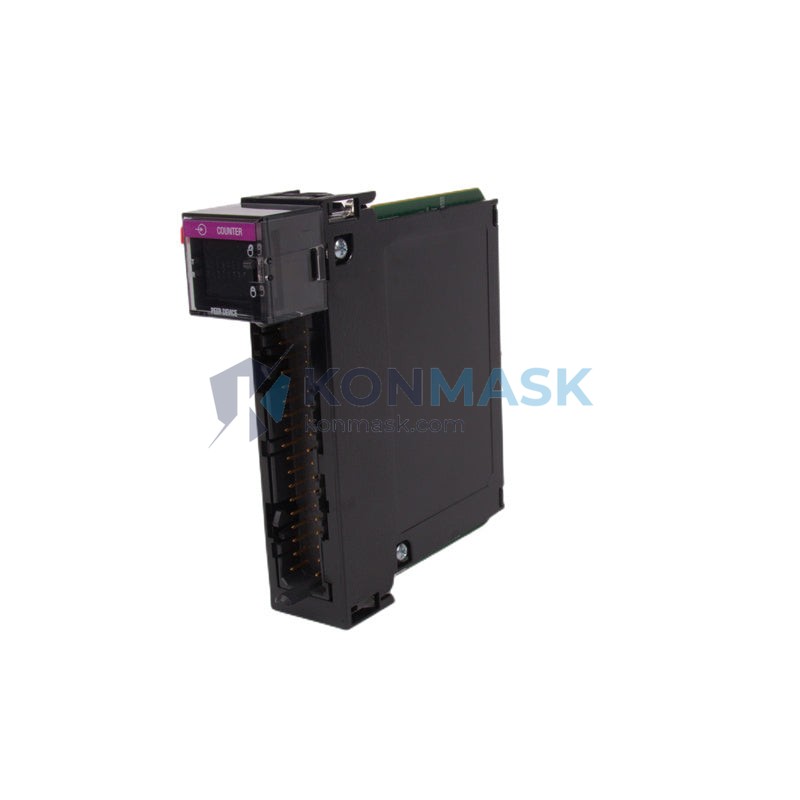

High-Speed Counter Input Solution – Allen-Bradley 1756-LSC8XIB8I | ControlLogix Series
In high-throughput manufacturing and motion-critical processes, missed counts cost money. A single encoder pulse lost at 500 kHz on a bottling line means a mislabeled unit; on a CNC axis, it means a scrapped part. Yet most standard digital input modules top out at 10–20 kHz — far below the 1 MHz+ pulse rates generated by modern incremental encoders, proximity sensors, and SSI transducers. Plants running legacy counter cards face firmware-level latency of 2–5 ms per scan, introducing positioning errors of ±0.5 mm or more at line speeds above 1 m/s.
The Allen-Bradley 1756-LSC8XIB8I eliminates this gap. As a dedicated ControlLogix counter input module, it processes up to 8 independent high-speed counter channels — each capable of handling quadrature, pulse, or period/frequency inputs at rates up to 1 MHz — directly within the ControlLogix backplane. Counting logic executes in the module’s onboard ASIC, decoupled from the controller scan cycle, so your PLC program always reads a deterministic, timestamped count value with sub-millisecond accuracy. The result: tighter position loops, reliable production counts, and zero missed pulses — even during controller firmware updates.
Where This Product Is Used
Packaging & Bottling Lines
- Rotary encoder feedback on capping heads — tracks angular position at 500 kHz in 24 VDC environments; meets OMAC PackML state-machine requirements for axis homing.
- Product count verification on conveyor gates — counts photoelectric sensor pulses at up to 200 kHz; integrates with ControlLogix AOI for OEE reporting.
- Fill-level pulse counting from flow meters — period/frequency mode measures Coriolis meter output (4–20 mA pulse train) with ±0.01% accuracy, compliant with EHEDG hygienic design guidelines.
CNC Machining & Metal Fabrication
- Spindle speed monitoring — quadrature mode reads 1024 PPR encoders at 1 MHz; feeds closed-loop speed control via ControlLogix motion task, meeting ISO 230-2 positioning accuracy standards.
- Tool-change position verification — dual-channel quadrature with Z-index capture confirms turret home position within ±1 encoder count.
- Part-length measurement on flying cutoff saws — high-speed latch input captures encoder count at blade trigger, achieving ±0.1 mm repeatability at 60 m/min line speed.
Oil & Gas / Chemical Processing
- Turbine flow meter pulse counting — frequency mode handles 0.1 Hz to 1 MHz pulse range from custody-transfer meters; supports API MPMS Chapter 21.1 flow computer interface.
- Pump stroke counting in Class I Div 2 areas — module mounts in standard 1756 chassis with appropriate XT-rated backplane; ATEX/IECEx Zone 2 compatible when housed in certified enclosure.
- Pig tracking via magnetic sensor pulses — period measurement mode resolves pig velocity to ±0.01 m/s, supporting pipeline integrity programs per ASME B31.8S.
Automotive Assembly
- Torque tool angle tracking — quadrature counting on DC torque wrench encoders (up to 500 kHz) ensures ISO 5393 tightening angle compliance; data logged via ControlLogix Produced Tag.
- Conveyor indexing position feedback — 8 independent channels monitor 8 carrier positions simultaneously, eliminating the need for multiple standard counter cards.
- Weld gun electrode wear measurement — cumulative count of weld cycles triggers maintenance alert via ControlLogix event task, supporting IATF 16949 preventive maintenance records.
Water & Wastewater Treatment
- Electromagnetic flow meter pulse input — frequency mode accepts 0–10 kHz pulse output from Krohne, Endress+Hauser, or Siemens mag meters; supports IEC 61511 SIL 2 loop validation.
- Pump run-hour accumulation — period measurement tracks motor shaft encoder to calculate actual run hours independent of PLC clock, meeting 10 CFR 50 Appendix B QA requirements for nuclear auxiliary systems.
- Chemical dosing pump stroke verification — pulse count per batch confirms dosing accuracy to ±0.5%, supporting NSF/ANSI 61 chemical treatment compliance.
Semiconductor & Electronics Manufacturing
- Wafer handler encoder feedback — 1 MHz quadrature input resolves 0.1 µm linear motion on direct-drive stages; cleanroom-compatible module with no moving parts or fans.
- Die bond force pulse counting — high-speed latch captures encoder position at bond trigger, achieving ±2 µm placement repeatability per SEMI E10 equipment reliability standards.
- Tape-and-reel component counting — pulse mode counts sprocket-hole sensor at 50 kHz; integrates with MES via ControlLogix EtherNet/IP for real-time component inventory.
Technical Specifications
| Part Number | 1756-LSC8XIB8I |
| Series | ControlLogix 1756 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Number of Counter Channels | 8 (isolated) — supports 8 independent axes or sensors simultaneously |
| Maximum Input Frequency | 1 MHz per channel — handles 1024 PPR encoders at up to 60,000 RPM |
| Counter Modes | Pulse, Quadrature (x1, x2, x4), Period, Frequency, Gate — quadrature x4 mode quadruples effective resolution |
| Input Voltage Range | 5–24 VDC (IB8I = isolated, individually configurable) — compatible with 5V TTL encoders and 24V PNP proximity sensors on same module |
| Input Isolation | Channel-to-channel isolated — prevents ground loop interference in multi-motor systems |
| Latch Input | High-speed hardware latch per channel, <1 µs capture latency — critical for flying cutoff and registration mark applications |
| Counter Register Width | 32-bit — supports counts up to 4,294,967,295 without rollover intervention |
| Backplane Communication | ControlLogix 1756 backplane, any chassis slot — data available to controller every scan cycle via Produced/Consumed Tags |
| Power Consumption | 325 mA @ 5 VDC (backplane) + field-side power per channel |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | 94.0 × 44.5 × 99.1 mm (standard 1756 single-slot module) |
| Weight | Approx. 200 g |
| Certifications | UL, CE, C-Tick, ATEX Zone 2 (with certified enclosure) |
| Programming Software | Studio 5000 Logix Designer v21.00 or later |
| Add-On Profile (AOP) | Available from Rockwell Automation Product Compatibility & Download Center |
Why Engineers Specify This Model
- In high-speed packaging lines, the 1756-LSC8XIB8I delivers deterministic 1 MHz counting because its onboard ASIC processes pulses independently of the PLC scan cycle, meeting OMAC PackML real-time axis feedback requirements.
- In CNC multi-axis machining centers, the 1756-LSC8XIB8I delivers simultaneous 8-channel quadrature feedback because each channel is fully isolated and independently configurable, meeting ISO 230-2 positioning repeatability standards without additional counter cards.
- In custody-transfer flow measurement, the 1756-LSC8XIB8I delivers ±0.01% frequency measurement accuracy because its period/frequency mode uses a dedicated 80 MHz timebase, meeting API MPMS Chapter 21.1 pulse-input flow computer interface requirements.
- In automotive torque tool verification, the 1756-LSC8XIB8I delivers sub-count angle resolution because quadrature x4 mode multiplies encoder PPR by 4, meeting ISO 5393 tightening angle tolerance requirements for safety-critical fasteners.
- In semiconductor wafer handling, the 1756-LSC8XIB8I delivers <1 µs latch capture latency because the hardware latch input bypasses firmware and captures encoder position in silicon, meeting SEMI E10 placement repeatability requirements at sub-micron resolution.
- In water treatment dosing systems, the 1756-LSC8XIB8I delivers reliable pulse accumulation across 5–24 VDC sensor ranges because channel-to-channel isolation eliminates ground loops between field devices, meeting IEC 61511 SIL 2 input loop integrity requirements.
Complete System Bill of Materials
| Item | Part Number | Function & Relationship to 1756-LSC8XIB8I |
|---|---|---|
| Counter Input Module (this item) | 1756-LSC8XIB8I | Core counting engine; installs in any 1756 chassis slot |
| ControlLogix Controller | 1756-L8xE / 1756-L7x | Reads counter data via backplane Produced Tags; executes motion/process logic |
| ControlLogix Chassis | 1756-A4 / A7 / A10 / A13 / A17 | Houses the module; select slot count based on total I/O requirements |
| Chassis Power Supply | 1756-PA75R / PB75R | Provides 5 VDC backplane power; 325 mA reserved for this module |
| RTB / Wiring Arm | 1756-TBCH or 1756-TBS6H | Field-side terminal block; connects encoder/sensor wiring to module |
| EtherNet/IP Communication Module | 1756-EN2T / EN2TR | Enables remote monitoring of counter data via Studio 5000 or SCADA |
| Incremental Encoder (example) | Heidenhain ERN 1381 / Dynapar HS35 | Generates quadrature A/B/Z pulses; connect to module channel input terminals |
| Proximity Sensor (example) | Balluff BES 516 (24 VDC PNP) | Pulse source for product counting; compatible with 24 VDC input range |
| Programming Software | Studio 5000 Logix Designer v21+ | Configures counter mode, scaling, and latch behavior via module AOP |
| Surge Protection (recommended) | Phoenix Contact TRABTECH 2838523 | Protects encoder signal lines from transient overvoltage in industrial environments |
Compliance & Industry Standards
- UL Listed (UL 508) — Underwriters Laboratories; confirms module meets industrial control equipment safety requirements. Significance: required for UL-labeled control panels in North American installations.
- CE Marking (EN 61131-2) — European conformity; covers electromagnetic compatibility and electrical safety for programmable controller equipment. Significance: mandatory for EU market installations; simplifies import documentation.
- C-Tick / RCM — Australian Communications and Media Authority; confirms EMC compliance for Australian and New Zealand markets. Significance: required for legal sale and installation in AU/NZ facilities.
- ATEX Zone 2 / IECEx (with certified enclosure) — European and international explosive atmosphere certification. Significance: permits installation in gas-risk areas (oil & gas, chemical) when module is housed in a certified Ex e or Ex p enclosure.
- IEC 61131-3 Compatible — International standard for PLC programming languages. Significance: counter function blocks (CTU, CTD, CTUD) and AOI developed for this module are portable across IEC 61131-3 compliant platforms.
- RoHS Compliant — EU Directive 2011/65/EU; restricts hazardous substances in electrical equipment. Significance: confirms module is free of lead, mercury, cadmium, and other restricted substances — required for EU procurement.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the 1756-LSC8XIB8I through authorized Rockwell Automation distributors, certified surplus channels with full traceability, and direct OEM overstock. All units are physically inspected before listing.
4-Step Inspection Process:
- Visual Inspection — Housing, label, firmware revision sticker, and connector pins checked against Rockwell Automation factory specifications. Counterfeit indicators (font, logo, label adhesive) are verified under magnification.
- Functional Bench Test — Module installed in a live 1756 chassis; Studio 5000 AOP loaded; all 8 counter channels exercised with a calibrated pulse generator at 100 kHz and 1 MHz. Latch inputs verified with <1 µs trigger signal.
- Firmware Verification — Firmware revision confirmed against Rockwell Automation PCDC compatibility matrix for Studio 5000 v21–v36.
- Packaging & ESD Protection — Module repackaged in anti-static bag with desiccant; shipped in foam-lined box with shock indicators.
Available Documentation: Certificate of conformance, functional test report, firmware revision record, original Rockwell Automation datasheet, and export compliance documentation (ECCN, HTS code) available upon request.
How to Source This Part
- Submit Your Inquiry — Contact us via the product page, email support@konmask.com, or WhatsApp +0086 19859288691 with your required quantity, target delivery date, and any firmware revision requirements.
- Receive Quote & Availability Confirmation — Our team responds within 24 hours with pricing, lead time, available firmware revisions, and inspection report availability. Urgent requirements can be escalated for same-day response.
- Order, Ship, Receive — Payment confirmed → ESD-safe packaging → global express shipping (DHL / FedEx / UPS) with full tracking. Export documentation (commercial invoice, packing list, COO, ECCN) included. Typical transit: 3–7 business days worldwide.
Application-Specific FAQ
Q: Can the 1756-LSC8XIB8I handle quadrature encoder feedback for a servo axis in a ControlLogix motion application?
A: Yes. The module supports quadrature x1, x2, and x4 counting modes and provides Z-index (marker pulse) capture via the hardware latch input. In a ControlLogix motion application, the counter data is read via Produced Tags and can feed a position loop in a Logix motion task. Note: for full closed-loop servo control with Rockwell drives, the 1756-M02AE or AXIS_SERVO_DRIVE axis type is typically used; the 1756-LSC8XIB8I is ideal for auxiliary encoder feedback, gantry verification, or non-drive axes.
Q: We have a custody-transfer turbine flow meter outputting a 0–5 kHz pulse train in a hazardous area. Can this module be used in Zone 2?
A: The 1756-LSC8XIB8I is not intrinsically safe (Ex ia/ib) on its own. For Zone 2 (gas group IIA/IIB) installations, the module must be housed in a certified Ex e (increased safety) or Ex p (pressurized) enclosure, and field wiring must use appropriate cable glands and barriers. In frequency mode, the module handles 0.1 Hz to 1 MHz input — well within your 5 kHz meter output. Consult your ATEX/IECEx enclosure supplier for the complete Zone 2 panel design.
Q: Our semiconductor fab uses 5 VDC TTL encoders on wafer-handling stages. Is the 1756-LSC8XIB8I compatible, and what is the actual latch latency?
A: Yes. The IB8I input designation means each channel accepts 5–24 VDC inputs, making it directly compatible with 5 V TTL encoder outputs (ensure signal levels meet the module’s minimum high-state threshold of 3.5 V). Hardware latch latency is specified at <1 µs — this is a silicon-level capture, not firmware-polled, so it is deterministic and unaffected by controller scan time. For sub-micron placement applications, pair with a high-resolution encoder (≥2500 PPR) and use quadrature x4 mode to achieve effective 10,000 counts/revolution resolution.
