Industrial Robot Motion Control Solution – KUKA KPP600-20-1X40 | P/N 00-198-260
Where This Product Is Used

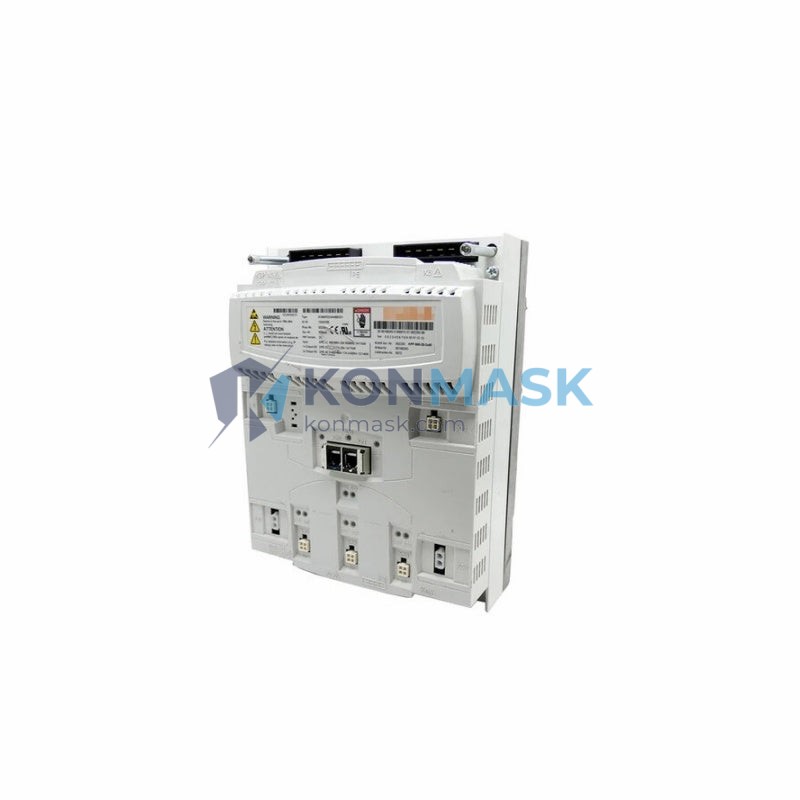

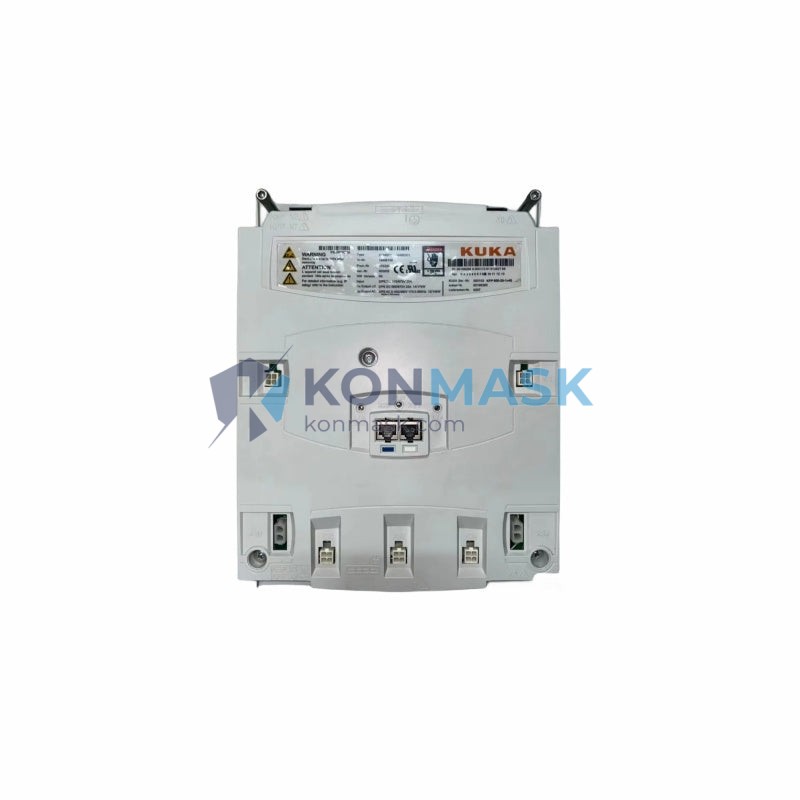

The KUKA KPP600-20-1X40 (Part No. 00-198-260) is a servo drive controller designed for KUKA industrial robot arms operating in high-demand manufacturing environments. Typical deployment scenarios include:
- Automotive body-in-white welding lines – Powering KR 6, KR 16, KR 30 and KR 60 robot axes on resistance and MIG welding cells
- Palletizing & material handling – Driving multi-axis coordinated motion for end-of-line stacking and depalletizing systems
- Machine tending & CNC loading – Providing precise torque and velocity control for part pick-and-place into machining centers
- Painting & coating booths – Enabling smooth, repeatable path motion in explosion-risk zones (verify UL listing applicability)
- Assembly & press-fit operations – Delivering controlled force profiles for precision insertion tasks
Technical Specifications
- Manufacturer: KUKA Robotics
- Part Number: 00-198-260
- Model: KPP600-20-1X40
- Series: KPP600 (KUKA Power Pack 600)
- Type: Servo Drive / Power Controller Module
- Rated Output Current: 20 A continuous / 40 A peak
- Supply Voltage: 3-phase AC, compatible with KRC2 / KRC4 cabinet infrastructure
- Certification: UL Listed
- Weight: approx. 1,040 g
- Form Factor: Modular plug-in drive card for KUKA controller cabinet
- Compatible Robots: KUKA KR series (KR 6, KR 16, KR 30, KR 60, KR 100 and variants)
Why Engineers Specify This Model
- OEM-matched performance – Drop-in replacement maintaining original motion profiles and safety parameters without re-commissioning
- UL certification – Meets North American safety standards for industrial machinery installations
- High peak current headroom – 40 A peak supports aggressive acceleration ramps in high-throughput cycle applications
- Modular architecture – Hot-swap capable within the KPP600 series, minimizing downtime during maintenance windows
- Proven field reliability – Widely deployed across Tier 1 automotive and electronics manufacturing facilities globally
Complete System Bill of Materials
For a fully operational KUKA robot servo axis, the following components are typically required alongside the KPP600-20-1X40:
- KUKA KRC2 or KRC4 Robot Controller Cabinet
- KUKA Servo Motor (axis-specific, e.g., 1FK6 or 1FT6 series)
- KUKA Resolver / Encoder Cable (axis harness)
- KUKA KPS600 Power Supply Module
- KUKA DSE/DSE-IBS Interface Board (for KRC2 systems)
- KUKA SmartPAD or KCP2 Teach Pendant
Contact us to source complete drive sets or matched spare kits.
Compliance & Industry Standards
- UL Listed – Underwriters Laboratories certification for North American market
- CE Marking – Compliant with EU Machinery Directive 2006/42/EC (verify with original documentation)
- RoHS – Manufactured under KUKA’s environmental compliance program
- ISO 10218 – Designed for integration into robot systems conforming to industrial robot safety standards
Quality Assurance & Sourcing
- All units are inspected and function-tested prior to shipment
- Sourced from authorized KUKA distributors or verified surplus channels
- Traceability documentation available upon request
- Packaging: anti-static foam-lined carton with moisture barrier
- Warranty: 90-day operational warranty against manufacturing defects
How to Source This Part
To place an order or request a quote for the KUKA KPP600-20-1X40 (00-198-260):
- Online: Add to cart directly on this page
- Email: support@konmask.com with your PO or RFQ
- Phone/WhatsApp: +0086 19859288691
- Lead time: In-stock units ship within 1–3 business days; ex-stock orders confirmed within 24 hours
Application-Specific FAQ
Q: Is the KPP600-20-1X40 compatible with both KRC2 and KRC4 cabinets?
A: The KPP600 series is primarily associated with KRC2 architecture. Verify cabinet generation and slot configuration before ordering. Contact us for compatibility confirmation.
Q: Can this drive be used as a direct replacement without re-teaching the robot?
A: Yes, as an OEM part number replacement, robot programs and motion parameters are preserved. A safety acceptance test per ISO 10218 is still recommended after any drive swap.
Q: Do you supply matched sets for multi-axis replacement?
A: Yes. We can supply full axis drive sets (A1–A6) for KR series robots. Contact us with your robot model and serial number for a matched kit quote.
Q: What is the difference between KPP600-20-1X20 and KPP600-20-1X40?
A: The suffix denotes peak current rating — 1X20 = 20 A peak; 1X40 = 40 A peak. The 1X40 variant is specified for higher-torque axes (typically A1, A2, A3) on larger robot models.
