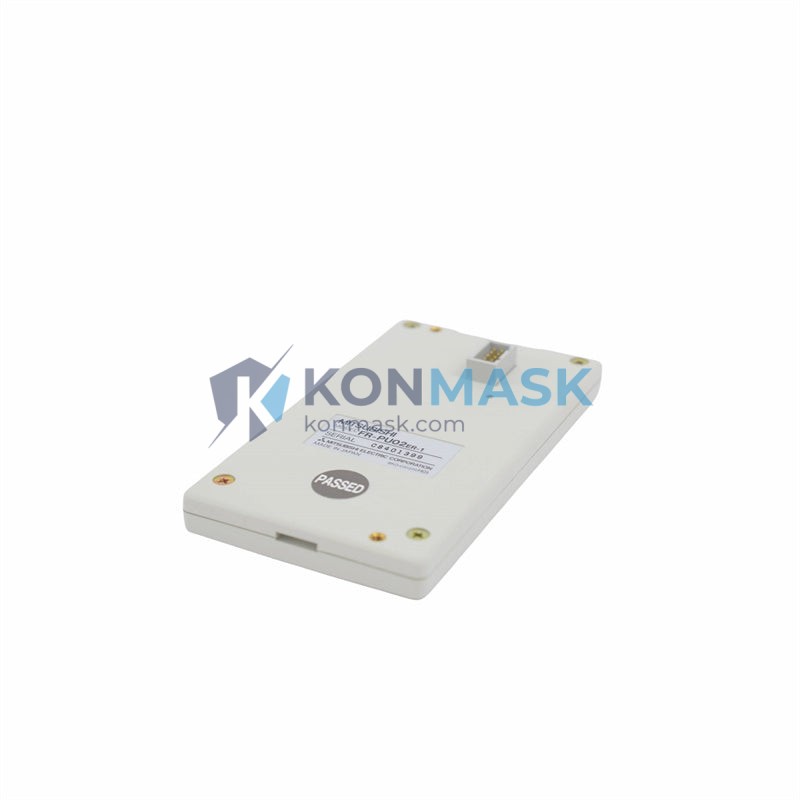

Mitsubishi FR-PU02ER Parameter Unit | Replacement, Equivalent & Selection Guide
The Mitsubishi FR-PU02ER is a dedicated parameter unit (remote keypad/operator panel) designed for Mitsubishi Electric FR-series variable frequency drives (VFDs/inverters). It enables remote parameter setting, monitoring, and operation of compatible inverters, making it an essential accessory for industrial automation and motor control systems. This guide covers technical specifications, compatible replacements, equivalent models, and selection advice to help engineers and procurement teams make the right choice.
Technical Specifications
- Model: FR-PU02ER
- Manufacturer: Mitsubishi Electric
- Series: FR Parameter Unit / Inverter Keypad
- Compatible Inverter Series: FR-A500, FR-F500, FR-E500, FR-S500, FR-A024, FR-A044
- Display: LED/LCD parameter display with numeric readout
- Functions: Parameter read/write, frequency setting, run/stop control, fault monitoring, parameter copy
- Communication: RS-485 serial interface (via inverter connector)
- Cable Length: Supports remote mounting via extension cable (up to 5 m)
- Operating Temperature: 0°C to +50°C
- Weight: Approx. 420 g
- Mounting: Panel-mount or handheld remote operation
- Country of Origin: Japan
Compatible Replacement & Equivalent Models
If the FR-PU02ER is discontinued or unavailable, the following models are functionally equivalent or compatible replacements. Always verify connector type and firmware compatibility before substitution.
- FR-PU04 – Upgraded parameter unit with enhanced display; direct replacement for most FR-A500/F500 series
- FR-PU07 – Advanced keypad with backlit LCD; compatible with FR-A700/F700/E700 series and backward-compatible adapters available
- FR-PU02 – Earlier variant without ER suffix; functionally similar, check connector pinout
- FR-PA02-02 – Parameter access unit; limited functions but compatible for basic parameter setting
- Third-party equivalents: Some aftermarket suppliers offer FR-PU02ER-compatible keypads — verify RS-485 protocol compatibility and parameter map support before use
Note: Konmask.com supplies genuine Mitsubishi Electric parts. We recommend using OEM units to ensure full parameter compatibility and warranty coverage.
Why Choose the Original FR-PU02ER
- ✅ Full parameter access – Read, write, and copy all inverter parameters without a PC
- ✅ Plug-and-play – No additional configuration required; connects directly to inverter PU port
- ✅ Fault diagnostics – Real-time fault code display and history log
- ✅ Parameter copy function – Clone settings between inverters for fast commissioning
- ✅ Genuine OEM reliability – Manufactured to Mitsubishi Electric quality standards
- ✅ Long service life – Designed for continuous industrial use in harsh environments
Typical Applications
- HVAC fan and pump motor speed control
- Conveyor and material handling systems
- Compressor and blower control panels
- Machine tool and CNC auxiliary drives
- Water treatment and process automation
- Elevator and escalator drive systems
- Textile and printing machinery
System Compatibility
The FR-PU02ER is compatible with the following Mitsubishi Electric inverter series:
- FR-A500 Series – FR-A520, FR-A540, FR-A544
- FR-F500 Series – FR-F520, FR-F540
- FR-E500 Series – FR-E520, FR-E540
- FR-S500 Series – FR-S520, FR-S540
- FR-A024 / FR-A044 – Older compact inverter range
Not compatible with FR-A700/F700/E700 series without an adapter. Contact us to confirm compatibility for your specific inverter model.
Selection Guide
Use this guide to select the correct parameter unit for your Mitsubishi inverter:
- FR-A500 / F500 / E500 / S500 series → Choose FR-PU02ER or FR-PU04
- FR-A700 / F700 / E700 series → Choose FR-PU07
- FR-A800 / F800 series → Choose FR-LU08 or FR-PU07BB
- Need parameter copy between drives? → FR-PU02ER supports copy function for A500/F500 series
- Need PC connectivity? → Pair with FR-USB-CON or FR-E5-232 communication option
- Unsure of compatibility? → Send us your inverter model number; our team will confirm the correct unit
Quality Assurance & Sourcing
All Mitsubishi Electric products supplied by Konmask.com are sourced through authorized distribution channels or verified surplus stock. Each unit undergoes:
- Visual inspection for physical damage and counterfeit indicators
- Label and serial number verification against Mitsubishi Electric databases
- Functional testing where applicable
- Secure anti-static packaging for safe international shipping
We provide documentation including packing lists and certificates of conformity upon request.
How to Order
- Add the FR-PU02ER to your cart and proceed to checkout
- For bulk orders (5+ units), contact us for volume pricing
- Specify your inverter model in the order notes for compatibility confirmation
- We ship worldwide via DHL, FedEx, and EMS — typical lead time 3–7 business days
- For urgent requirements, contact us directly for expedited options
Replacement & Compatibility FAQ
Q: Can the FR-PU02ER replace the FR-PU02?
A: Yes, in most cases. The FR-PU02ER is an enhanced version of the FR-PU02 with improved display. Connector and protocol are compatible with the same inverter series.
Q: Is the FR-PU02ER compatible with FR-A700 series inverters?
A: Not directly. The FR-A700 series uses a different PU port connector. An adapter may be available — contact us to confirm.
Q: Can I use the FR-PU02ER to copy parameters between two inverters?
A: Yes. The parameter copy function allows you to read parameters from one inverter and write them to another of the same model series.
Q: What is the difference between FR-PU02ER and FR-PU04?
A: The FR-PU04 offers an improved LCD display and additional monitoring functions. Both are compatible with FR-A500/F500 series inverters. The FR-PU04 is the recommended upgrade if the FR-PU02ER is unavailable.
Q: Do you supply genuine Mitsubishi Electric parts?
A: Yes. Konmask.com supplies genuine OEM Mitsubishi Electric components. We do not sell counterfeit or unauthorized copies.
