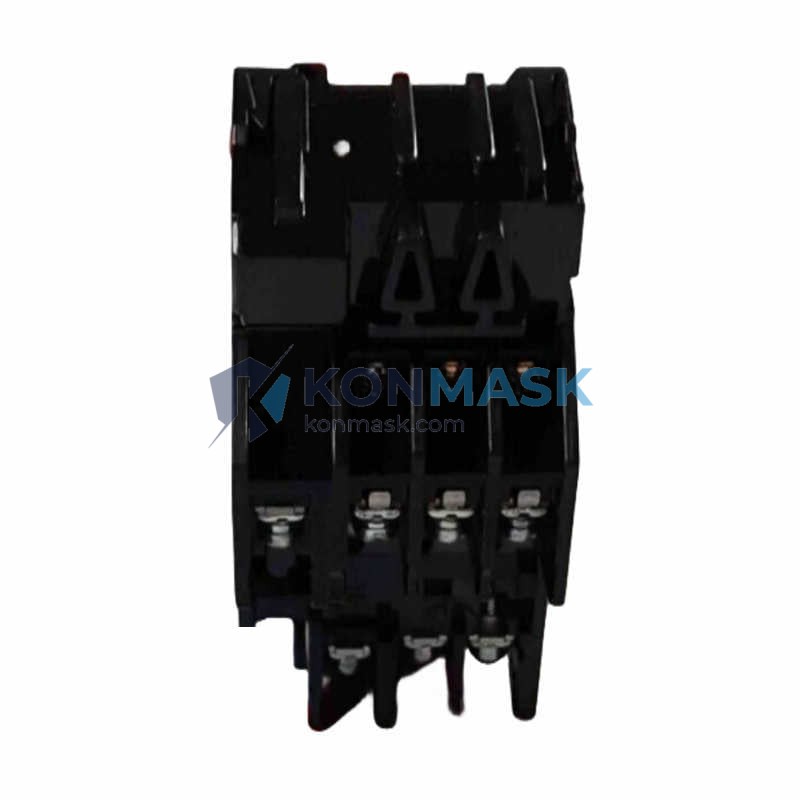

Genuine MITSUBISHI TH-N12TP Thermal Overload Relay | TH-N Series – Verified Source
The Mitsubishi TH-N12TP is a thermal overload relay designed for motor protection in industrial control systems. Sourced directly through verified supply channels, every unit sold by Konmask.com undergoes a rigorous 4-step quality verification process before dispatch. Trust your automation infrastructure to a supplier that prioritizes authenticity and traceability.
Technical Specifications
| Brand | Mitsubishi Electric |
| Model | TH-N12TP |
| Series | TH-N Series |
| Type | Thermal Overload Relay |
| Current Setting Range | 7 – 12 A (adjustable) |
| Trip Class | Class 10 |
| Reset Method | Manual / Automatic |
| Phase Loss Sensitivity | Yes |
| Auxiliary Contacts | 1 NO + 1 NC |
| Mounting | Direct mount to S-N series contactors |
| Rated Insulation Voltage | 600 V AC |
| Ambient Temperature | -10°C to +60°C |
| Weight | Approx. 460 g |
| Standards | IEC 60947-4-1, JIS C 8201-4-1 |
Our 4-Step Quality Verification Process
At Konmask.com, we do not simply list and ship. Every TH-N12TP unit passes through our structured verification workflow before it reaches you:
- Step 1 — Source Authentication: All units are procured exclusively from authorized distributors or verified OEM surplus channels. No grey-market or unverified third-party sources.
- Step 2 — Physical Inspection: Each relay is inspected for label integrity, housing condition, terminal quality, and correct part markings against Mitsubishi’s published specifications.
- Step 3 — Functional Verification: Where applicable, units are bench-tested for trip response and auxiliary contact continuity prior to packaging.
- Step 4 — Traceability Documentation: Lot numbers, sourcing records, and inspection results are logged and retained. Documentation is available upon request for compliance-sensitive projects.
Key Features & Benefits
- Precise thermal bimetal trip mechanism for reliable motor overload protection
- Phase loss detection prevents single-phasing damage to three-phase motors
- Adjustable current setting dial for flexible application across motor ratings
- Direct plug-in mounting to Mitsubishi S-N series contactors — no additional wiring bracket required
- Manual and automatic reset modes for flexible control panel design
- Compact, DIN-rail-compatible form factor suitable for space-constrained enclosures
- Proven reliability in continuous industrial duty cycles
Typical Applications
- Three-phase AC motor protection in manufacturing lines
- Pump and compressor motor control panels
- HVAC fan motor protection circuits
- Conveyor and material handling drive systems
- Machine tool and CNC auxiliary motor circuits
- Water treatment and process automation panels
Compatible System Components
The TH-N12TP is engineered for direct integration with the following Mitsubishi components:
- Contactors: S-N10, S-N12, S-N18, S-N21 (S-N series)
- Control Relays: Mitsubishi CR series auxiliary relays
- PLCs: Mitsubishi MELSEC Q, L, iQ-R, iQ-F series (via contactor interface)
- Motor Control Centers: Standard IEC MCC configurations
If you require compatibility confirmation for a specific panel configuration, contact our technical team before ordering.
Global Sourcing & Shipping Capabilities
- Stock Availability: In-stock units ship within 1–3 business days from our warehouse
- Lead Time (non-stock): 5–15 business days depending on sourcing region
- Shipping Regions: Worldwide — Asia-Pacific, Europe, Middle East, Americas
- Export Documentation: Commercial invoice, packing list, and certificate of origin available for all international shipments
- Customs Support: HS Code guidance and export compliance documentation provided upon request
- Minimum Order: Single unit orders accepted; volume pricing available for 10+ units
Certifications & Compliance Statement
The Mitsubishi TH-N12TP is manufactured in compliance with internationally recognized standards:
- IEC 60947-4-1 — Low-voltage switchgear and controlgear: electromechanical contactors and motor starters
- JIS C 8201-4-1 — Japanese Industrial Standard for motor starters
- CE Marking — Compliant for European market deployment
- RoHS Compliant — Restriction of Hazardous Substances directive
Konmask.com maintains sourcing records and can provide compliance documentation packages for regulated industries including food & beverage, pharmaceutical, and critical infrastructure.
How to Order
- Add to Cart — Select quantity and proceed to checkout directly on this page
- Request a Quote — For orders of 5+ units, email [email protected] for volume pricing
- Technical Pre-Sales — Contact us with your panel schematic or motor nameplate data for compatibility confirmation
- Purchase Order (B2B) — We accept PO-based procurement for registered business accounts. Contact us to establish terms.
Payment methods accepted: T/T Bank Transfer, PayPal, major credit cards. Letter of Credit (L/C) available for orders above USD 5,000.
Authenticity & Trust FAQ
Q: How do I know the TH-N12TP I receive is genuine Mitsubishi?
A: Every unit is sourced from verified channels and passes our 4-step inspection. We provide sourcing documentation upon request and stand behind every shipment with a replacement guarantee for verified authenticity issues.
Q: Can you provide a certificate of conformance?
A: Yes. A certificate of conformance (CoC) is available for all orders. Please request it at the time of order placement.
Q: What is your return policy for defective units?
A: Defective units are replaced or refunded within 30 days of receipt. We require photo documentation of the defect and the unit label for processing.
Q: Do you offer long-term supply agreements?
A: Yes. We support blanket purchase orders and scheduled delivery agreements for customers with recurring demand. Contact us to discuss terms.
Q: Is this product available for immediate shipment?
A: Stock availability is updated regularly. Contact us to confirm current inventory before placing time-sensitive orders.
