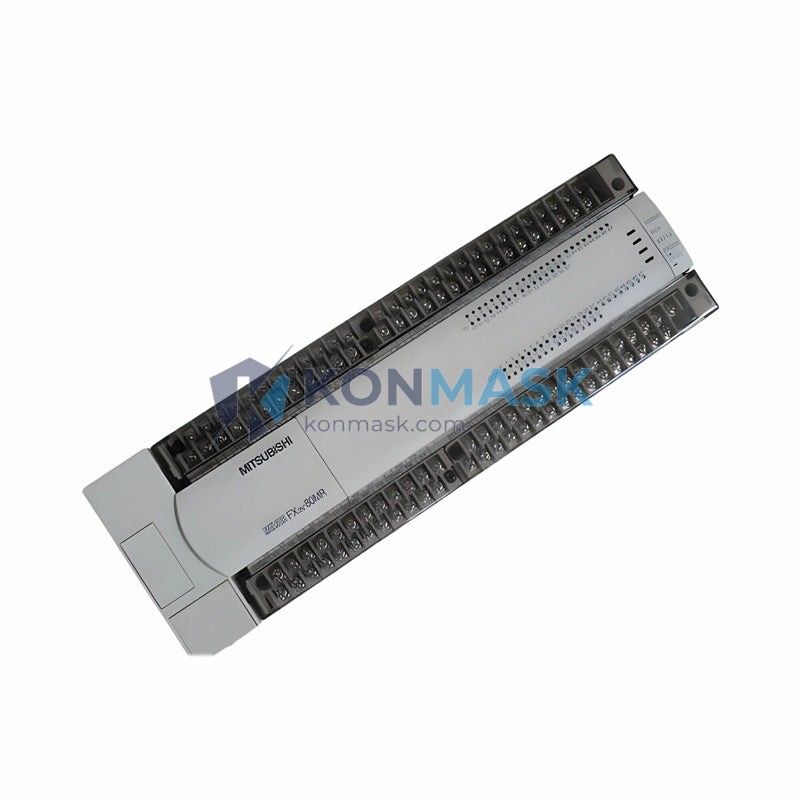

Industrial Automation Solution – Mitsubishi FX2N-80MR-001 | FX2N Series Programmable Logic Controller
Where This Product Is Used
The Mitsubishi FX2N-80MR-001 is a high-performance compact PLC widely deployed across demanding industrial environments. Typical application scenarios include:
- Manufacturing Assembly Lines – Coordinating multi-axis conveyor sequencing, part detection, and reject handling in automotive and electronics plants.
- Packaging Machinery – Controlling fill-seal machines, labelers, and case erectors requiring precise relay output timing.
- HVAC & Building Automation – Managing pump stations, air handling units, and chiller sequencing in commercial facilities.
- Water & Wastewater Treatment – Automating dosing pumps, valve actuation, and level control in municipal and industrial water systems.
- Material Handling & Logistics – Driving sortation systems, palletizers, and automated storage/retrieval (AS/RS) equipment.
- Food & Beverage Processing – Sequencing mixers, fillers, and CIP (clean-in-place) cycles in hygienic production environments.
- Textile & Printing Machinery – Synchronizing web tension control, register correction, and drying zone management.
Technical Specifications
| Model | FX2N-80MR-001 |
| Series | MELSEC FX2N |
| Manufacturer | Mitsubishi Electric |
| Total I/O Points | 80 (40 Inputs / 40 Outputs) |
| Output Type | Relay (R) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Program Memory | 8,000 Steps (expandable to 16,000 with memory cassette) |
| Processing Speed | 0.08 µs / basic instruction |
| Communication Ports | RS-422 (built-in); expandable via FX2N-232-BD / 485-BD |
| Expansion Capability | Up to 8 extension modules (max 256 I/O) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -25 °C to 70 °C |
| Humidity | 35–85% RH (non-condensing) |
| Weight | 1,320 g |
| Dimensions (W×H×D) | Approx. 480 × 90 × 87 mm |
| Certification | UL, CE, cUL |
Why Engineers Specify This Model
- Relay Output Versatility – The MR (relay) output variant handles both AC and DC loads up to 2 A per point, making it ideal for driving solenoids, contactors, and indicator lamps without additional interface relays.
- Proven FX2N Platform – With millions of units installed globally, the FX2N series offers an unmatched track record of reliability in 24/7 industrial operation.
- Rich Instruction Set – Supports 209 basic and applied instructions including PID, floating-point math, and high-speed counters (up to 60 kHz).
- Scalable Architecture – Expand I/O, add analog modules, or integrate fieldbus adapters (CC-Link, Profibus, DeviceNet) without replacing the base unit.
- GX Developer / GX Works2 Compatible – Seamless programming with Mitsubishi’s standard IEC 61131-3 software toolchain.
- Long Service Life – Relay contact rated for 200,000 operations; capacitor-backed RAM retains program during power loss.
Complete System Bill of Materials
For a fully operational FX2N-80MR-001 control system, engineers typically specify:
- FX2N-80MR-001 – Base PLC unit (this item)
- FX2N-232-BD or FX2N-485-BD – Serial communication board
- FX2N-8AD / FX2N-4DA – Analog input/output expansion modules
- FX2N-16EX / FX2N-16EYR – Digital I/O expansion modules
- FX-RAM-8 – 8K RAM memory cassette (for extended programs)
- FX2N-CNV-BD – Connector conversion board for BD modules
- SC-09 or USB-SC09-FX – Programming cable
- 24 V DC power supply (for input sensors and field devices)
- DIN rail, terminal blocks, and enclosure hardware
Compliance & Industry Standards
- UL 508 – Industrial Control Equipment (USA)
- CE Marking – EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- cUL – Canadian certification per CSA standards
- IEC 61131-2 – Programmable controllers hardware requirements
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Every FX2N-80MR-001 unit offered through Konmask.com undergoes a structured verification process:
- Visual inspection of housing, label, and firmware version markings
- Functional power-on test and I/O point verification
- Cross-referenced against Mitsubishi Electric authorized distributor documentation
- Traceable lot records maintained for warranty and audit purposes
- Shipped in anti-static packaging with protective foam inserts
How to Source This Part
To place an order or request a formal quotation for the FX2N-80MR-001:
- Online: Add to cart directly on this page for immediate checkout.
- RFQ / Bulk Orders: Email [email protected] with your required quantity, delivery timeline, and project details.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock units ship within 1–3 business days; ex-factory orders quoted on request.
- Export: We support international shipping with full commercial invoice and packing list documentation.
Application-Specific FAQ
Q: Can the FX2N-80MR-001 control servo drives directly?
A: The relay output variant is not suited for high-frequency pulse output to servo drives. For servo/stepper control, specify the FX2N-80MT-001 (transistor output). The MR model is ideal for relay-logic and contactor-based loads.
Q: Is the FX2N-80MR-001 compatible with GX Works3?
A: No. The FX2N series is supported by GX Developer and GX Works2. GX Works3 supports the iQ-F (FX5U) and iQ-R series only.
Q: Can I expand beyond 80 I/O points?
A: Yes. Up to 8 FX2N extension modules can be connected, expanding the system to a maximum of 256 I/O points.
Q: What is the battery backup duration for program retention?
A: The FX2N uses a capacitor for short-term retention (approx. 30 minutes) and an optional FX2N-BAT battery cassette for long-term retention (up to 5 years).
Q: Is this unit suitable for hazardous area (Ex) installations?
A: The standard FX2N-80MR-001 is not ATEX/IECEx certified. For hazardous locations, install the PLC in a certified purged and pressurized enclosure.
