MITSUBISHI FX3U-485ADP-MB RS-485 Interface Module | Replacement, Equivalent & Selection Guide

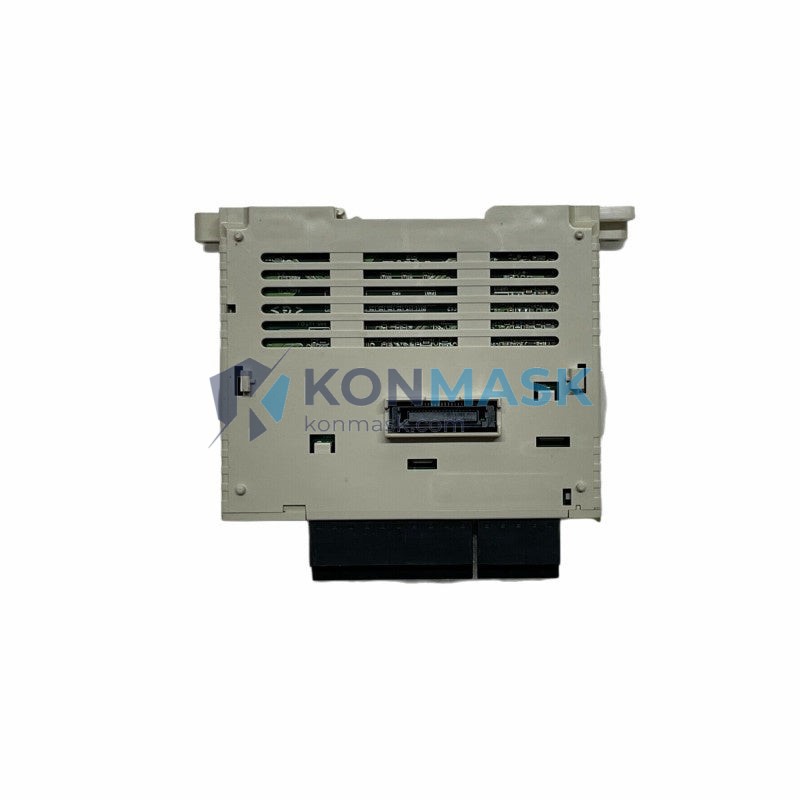

The MITSUBISHI FX3U-485ADP-MB is a dedicated RS-485 / Modbus RTU communication interface module designed for the FX3U/FX3UC series PLC platform. It enables high-speed serial communication with inverters, HMIs, sensors, and other field devices, making it a cornerstone component in distributed automation architectures.
Technical Specifications
- Model: FX3U-485ADP-MB
- Manufacturer: Mitsubishi Electric
- Communication Standard: RS-485 (2-wire half-duplex)
- Protocol: Modbus RTU (Master/Slave), Mitsubishi MC Protocol
- Baud Rate: 300 – 115,200 bps
- Max. Nodes: Up to 32 stations per segment
- Connector: Terminal block (screw type)
- Compatible PLC Series: FX3U, FX3UC
- Power Supply: Supplied from PLC base unit (5 VDC internal bus)
- Operating Temperature: 0 – 55 °C
- Storage Temperature: −20 – 70 °C
- Humidity: 5 – 95 % RH (non-condensing)
- Dimensions (W × H × D): 40 × 90 × 87 mm (approx.)
- Weight: Approx. 200 g
- Certification: CE, UL
Compatible Replacement & Equivalent Models
The table below lists verified compatible and functionally equivalent alternatives for the FX3U-485ADP-MB. Always confirm firmware version and wiring pinout before substitution.
| Model | Brand | Interface | Protocol | Compatibility Note |
|---|---|---|---|---|
| FX3U-485ADP-MB | Mitsubishi | RS-485 | Modbus RTU / MC | Original — reference model |
| FX3U-485ADP | Mitsubishi | RS-485 | MC Protocol only | No Modbus; use only if Modbus not required |
| FX2N-485ADP | Mitsubishi | RS-485 | MC Protocol | FX2N series; not directly interchangeable |
| FX3U-232ADP-MB | Mitsubishi | RS-232 | Modbus RTU / MC | RS-232 variant; different wiring topology |
| FX5-485ADP | Mitsubishi | RS-485 | Modbus RTU / MC | iQ-F/FX5U series; not backward compatible |
⚠ Substitution requires engineering review. Contact support@konmask.com for compatibility confirmation.
Why Choose the Original Model
- Native Modbus RTU support — no gateway or converter required for Modbus networks.
- Seamless FX3U integration — plug-and-play with FX3U/FX3UC base units; no additional power supply needed.
- Dual-protocol flexibility — supports both Mitsubishi MC Protocol and Modbus RTU in a single module.
- Proven field reliability — widely deployed in manufacturing, HVAC, water treatment, and energy management systems.
- GX Works2/3 compatible — full parameter configuration via Mitsubishi engineering software.
Typical Applications
- Inverter (VFD) speed and torque control via Modbus RTU
- HMI / SCADA communication over RS-485 bus
- Multi-drop sensor and transmitter networks
- Energy meter and power analyzer data acquisition
- Building automation and HVAC control systems
- Water and wastewater treatment plant automation
- Conveyor and material handling line control
System Compatibility
- Compatible PLC: FX3U-□MT/ES, FX3U-□MR/ES, FX3UC series
- Max. modules per PLC: Up to 2 special adapter modules on left side of base unit
- Engineering Software: GX Works2 (Ver. 1.492N or later), GX Works3
- Cable: Shielded twisted-pair (STP), Belden 9841 or equivalent recommended
- Termination: 110 Ω termination resistor required at both ends of RS-485 bus
Selection Guide
Use the following decision tree to select the correct communication module for your FX3U system:
- Need Modbus RTU + RS-485? → FX3U-485ADP-MB ✓ (this model)
- Need RS-485 but only MC Protocol? → FX3U-485ADP
- Need RS-232 + Modbus RTU? → FX3U-232ADP-MB
- Upgrading to FX5U/iQ-F platform? → FX5-485ADP (not backward compatible)
- Need Ethernet/IP or CC-Link? → FX3U-ENET-ADP or FX3U-16CCL-M
- Unsure? → Contact our engineers at support@konmask.com
Quality Assurance & Sourcing
- ✅ Genuine Mitsubishi Electric components sourced from authorized distribution channels
- ✅ Each unit inspected for physical integrity, label authenticity, and firmware version prior to shipment
- ✅ Anti-static packaging with humidity indicator card
- ✅ Batch traceability records maintained for all stock
- ✅ 12-month warranty against manufacturing defects
- ✅ RoHS compliant
How to Order
- Confirm your PLC model (FX3U or FX3UC) and available adapter slot count.
- Verify required protocol: Modbus RTU, MC Protocol, or both.
- Add FX3U-485ADP-MB to cart or contact us for bulk/project pricing.
- Provide your project details for expedited technical support and lead-time confirmation.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can FX3U-485ADP replace FX3U-485ADP-MB?
A: Only if your application does not require Modbus RTU. The FX3U-485ADP supports MC Protocol only; it cannot function as a Modbus master or slave.
Q: How many FX3U-485ADP-MB modules can I install on one FX3U PLC?
A: Up to 2 special adapter modules can be connected to the left side of the FX3U base unit simultaneously.
Q: Is FX3U-485ADP-MB compatible with FX5U or iQ-R series?
A: No. The FX3U-485ADP-MB is exclusively designed for the FX3U/FX3UC platform. For FX5U, use FX5-485ADP; for iQ-R, use RJ71C24.
Q: What cable should I use for RS-485 wiring?
A: Use shielded twisted-pair (STP) cable. Belden 9841 or equivalent is recommended. Maximum cable length is 500 m at 19,200 bps.
Q: Do you offer programming and commissioning support?
A: Yes. Our technical team provides GX Works2 parameter configuration guidance and Modbus register mapping support. Contact us for details.
