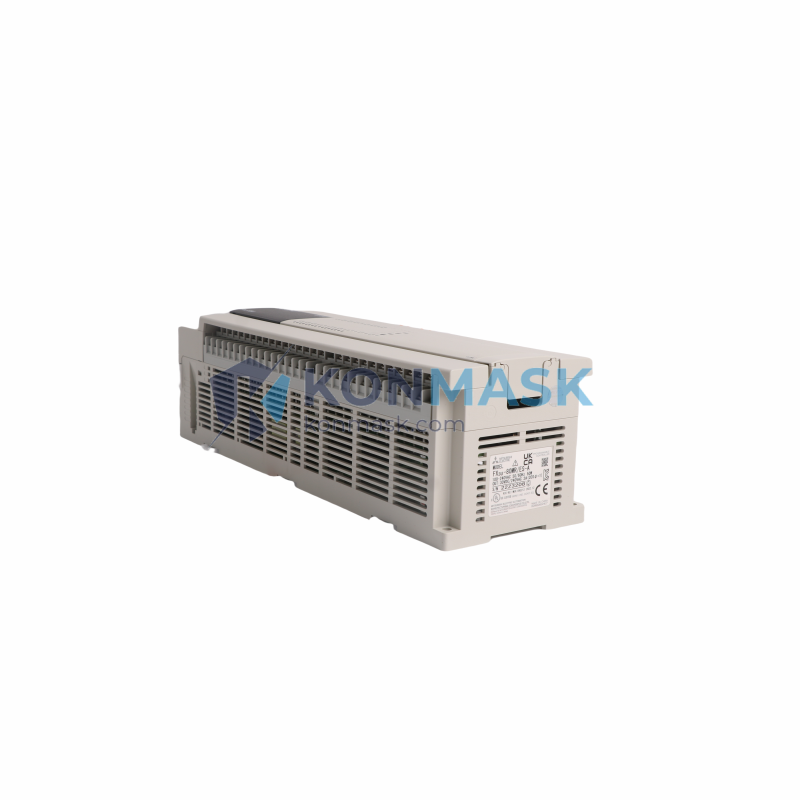

Industrial Automation Solution – Mitsubishi Electric FX3U-80MR/ES | FX3 Series
Where This Product Is Used
The Mitsubishi FX3U-80MR/ES is a high-performance programmable logic controller (PLC) main unit deployed across a wide range of industrial automation environments. Typical application scenarios include:
- Discrete Manufacturing Lines – Coordinating conveyor systems, robotic pick-and-place stations, and assembly jigs requiring deterministic relay output control.
- Packaging Machinery – Managing filling, sealing, labeling, and rejection sequences with precise I/O timing.
- HVAC & Building Automation – Controlling fans, pumps, compressors, and damper actuators in commercial and industrial facilities.
- Water & Wastewater Treatment – Sequencing pump stations, valve manifolds, and dosing systems in municipal and industrial plants.
- Material Handling & Logistics – Driving sortation conveyors, pallet transfer systems, and automated storage/retrieval equipment.
- Food & Beverage Processing – Controlling mixers, pasteurizers, CIP systems, and bottling lines in hygienic environments.
- Machine Tool Control – Interfacing with servo drives and spindle controllers for CNC auxiliary functions.
Technical Specifications
- Model: FX3U-80MR/ES (also known as FX3U-80MR/ES-A)
- Series: Mitsubishi MELSEC FX3U
- I/O Points: 80 (40 inputs / 40 outputs)
- Output Type: Relay (R)
- Power Supply: AC 100–240 V, 50/60 Hz
- Program Memory: 64,000 steps (with memory cassette)
- Processing Speed: 0.065 µs/basic instruction
- Communication Ports: RS-422 (built-in); USB via optional adapter
- Expandable I/O: Up to 256 points via expansion modules
- Special Function Modules: Supports analog, positioning, network, and temperature modules
- Operating Temperature: 0 °C to 55 °C
- Storage Temperature: –25 °C to 75 °C
- Humidity: 5% to 95% RH (non-condensing)
- Weight: Approx. 1,100 g
- Dimensions (W × H × D): 220 × 90 × 87 mm
- Protection Rating: IP20
- Certifications: CE, UL, cUL
Why Engineers Specify This Model
- High-Speed Execution: 0.065 µs per basic instruction enables tight scan-time control for demanding motion and process applications.
- Generous I/O Density: 80 onboard I/O points reduce panel footprint and wiring complexity versus multi-unit configurations.
- Relay Output Versatility: Dry-contact relay outputs switch AC and DC loads without external interface relays, simplifying BOM and reducing failure points.
- Scalable Architecture: Expand to 256 I/O points and add analog, positioning, or fieldbus modules as application requirements grow.
- Wide Ecosystem: Compatible with GX Works2/GX Works3 programming software, GOT HMI series, and the full MELSEC FX3U expansion library.
- Proven Reliability: MTBF exceeds 100,000 hours under rated conditions; widely deployed in Tier-1 automotive and electronics manufacturing.
Complete System Bill of Materials
For a complete FX3U-based control system, engineers typically specify the following alongside the FX3U-80MR/ES:
- Programming Cable: FX-USB-AW or FX3U-USB-BD (USB communication board)
- HMI: Mitsubishi GOT2000 series (e.g., GT2107-WTSD)
- Analog Input Module: FX3U-4AD
- Analog Output Module: FX3U-4DA
- Positioning Module: FX3U-1PG or FX3U-20SSC-H
- Communication Module: FX3U-485ADP-MB (Modbus RTU) or FX3U-ENET (Ethernet)
- Memory Cassette: FX3U-FLROM-64L (extends program memory to 64K steps)
- Power Supply: Mitsubishi PS-5VDC or equivalent DIN-rail 24 VDC PSU for sensor loop
- Expansion I/O: FX3U-16EX (16-point input) / FX3U-16EYR (16-point relay output)
Compliance & Industry Standards
- CE Marking: EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL / cUL Listed: UL 508 (Industrial Control Equipment)
- IEC 61131-2: Programmable Controllers – Equipment Requirements and Tests
- IEC 61131-3: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD) programming languages supported
- RoHS Compliant: Directive 2011/65/EU
Quality Assurance & Sourcing
All units supplied by Konmask.com are sourced through verified industrial distribution channels. Each FX3U-80MR/ES unit undergoes the following before dispatch:
- Visual inspection for label authenticity, hologram verification, and housing integrity
- Power-on functional test confirming LED status indicators and communication port response
- Anti-static packaging with humidity indicator card
- Batch traceability documentation available on request
We do not supply grey-market, refurbished, or counterfeit product. All stock is covered by our 12-month replacement warranty.
How to Source This Part
Ready to order the Mitsubishi FX3U-80MR/ES? Here’s how to proceed:
- Add to Cart: Click the purchase button above for immediate checkout.
- Request a Quote: Email support@konmask.com for volume pricing, lead-time confirmation, or project BOM review.
- Urgent Requirement: Call or WhatsApp +0086 19859288691 for same-day stock confirmation and expedited shipping options.
- International Orders: We ship globally via DHL Express, FedEx International Priority, and sea freight for bulk orders. Export documentation (commercial invoice, packing list, CO) provided.
Application-Specific FAQ
Q: What is the difference between FX3U-80MR/ES and FX3U-80MR/ES-A?
A: The FX3U-80MR/ES-A is the updated revision of the FX3U-80MR/ES. Both share identical electrical specifications and are fully interchangeable. The “/ES-A” suffix denotes a minor hardware revision with no functional difference for end users.
Q: Can the FX3U-80MR/ES control servo drives directly?
A: The base unit supports high-speed pulse output (up to 100 kHz on Y0/Y1/Y2) for open-loop stepper control. For closed-loop servo control, add the FX3U-20SSC-H SSCNET III positioning module.
Q: Is this PLC compatible with GX Works3?
A: The FX3U series is fully supported in GX Works2. GX Works3 supports FX3U via a compatibility mode. For new projects, Mitsubishi recommends GX Works2 for FX3U programming.
Q: What communication protocols does the FX3U-80MR/ES support?
A: Natively supports Mitsubishi’s proprietary protocol via RS-422. With optional modules, it supports Modbus RTU/ASCII (FX3U-485ADP-MB), PROFIBUS-DP (FX3U-64DP-M), CC-Link (FX3U-16CCL-M), and Ethernet/IP (FX3U-ENET-ADP).
Q: What is the maximum number of expansion modules?
A: Up to 8 special function modules and enough extension units/blocks to reach 256 total I/O points can be connected to the right side of the FX3U-80MR/ES base unit.
Q: Does this unit support data logging or recipe management?
A: Yes. With the FX3U-FLROM-64L memory cassette and appropriate programming, the FX3U supports data logging to internal registers. For advanced recipe management, integration with a GOT HMI or SCADA system is recommended.
